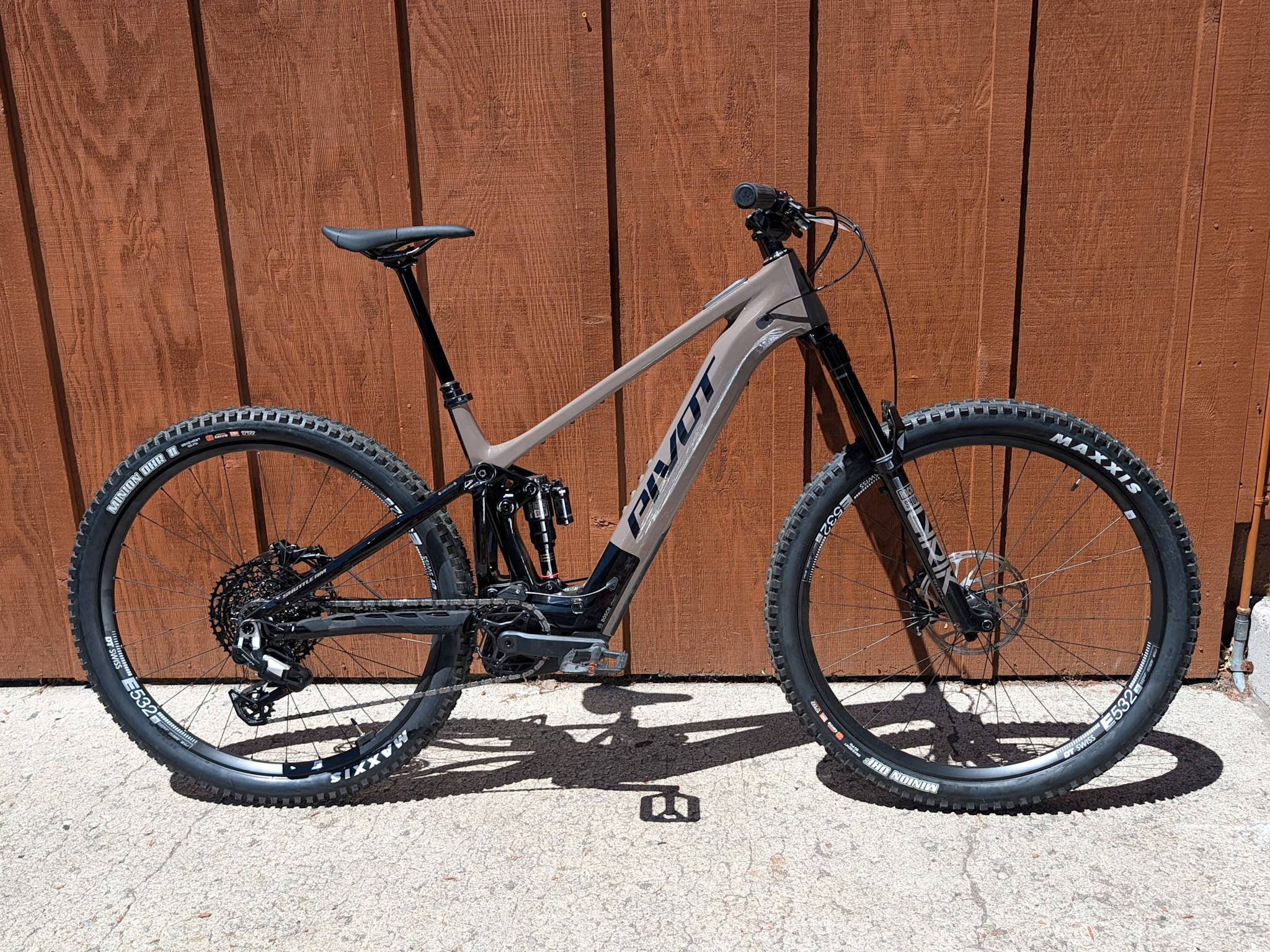

2026 Pivot Shuttle AM Ride Eagle 70/90 29"

$8,499.00

In store: Check availability

SKU: 26SAMC229AE79-- BRNMDDRPWNSA1-C

Bosch Performance CX Motor | 800Wh Battery | 160mm Front/148mm Rear | 64.1-64.5° HT

Color:

Size:

Add to compare Add to wishlist

Delivery time: 5-7 Business Days

Pivot 2026 Pivot Shuttle AM Ride Eagle 70/90 29"

2026 Pivot Shuttle AM Ride Eagle 70/90 29" — "Color: Badlands Brown","Size: Medium"

Description

From the manufacturer

Power, precision & possibility
The next gen Shuttle AM sets a new all-mountain benchmark. Featuring Bosch's Gen 5 Performance Line CX and CX-R drive systems, the Shuttle AM turns raw power into pure trail magic. It climbs like it's got a vendetta against gravity and descends like it has a score to settle. Smooth, responsive, and almost telepathic, it delivers a surreal blend of torque, traction, and pure trail tenacity.

Ready for whatever's ahead
We gave the Shuttle AM a serious power upgrade, and you'll feel it with every pedal stroke. The new Gen 5 Bosch Performance Line CX drive unit delivers up to 100Nm of torque and 750 watts of peak power, customizable through the eBike Flow app. It delivers quicker engagement, punchier acceleration, and seamless climbing across challenging terrain. The new eMTB+ mode takes things further, adapting in real time to your pedal input and trail conditions for intuitive, dialed-in support right when you need it.

"This bike rips, uphill and down. It's quick, snappy, and super powerful. It rides lighter than the scale suggests, and made me giggle every lap." — Freehub Magazine

Features

Ultra-Light hollow core carbon frame
Featuring Bosch's Gen 5 Performance Line CX (Ride) and CX Race motors (Pro & Team)
Long-range 800Wh battery on all build levels
Bosch 250wh PowerMore range extender compatible
Kiox 400C display (Pro & Team)
Wheel mounted speed sensor
Wireless Bosch remote
160mm fork
Flip chip upper link mount
Mixed wheel compatible
Pivot Dock Tool system compatible
Water bottle clearance on all sizes
150mm of progressive rear travel
Injection molded rubberized frame protection
Full internal routing with Pivot cable port system

Geometry

Low BB Setting (All measurements in mm)

Size	Small	Medium	Large	X-Large
Seat Tube Length	378	399	432	470
Top Tube Length (eff.)	599	631	649	671
Head Tube Length	110	120	130	140
Head Tube Angle	64.1°
Seat Tube Angle (eff.)	76.5°
Chainstay Length	444
BB Height	345
BB Drop	29
Standover Height	715
Wheelbase	1217	1251	1270	1295
Reach	632	642	651	660
Stack	431	461	476	496

High BB Setting

Size	Small	Medium	Large	X-Large
Seat Tube Length	378	399	432	470
Top Tube Length (eff.)	598	630	647	670
Head Tube Length	110	120	130	140
Head Tube Angle	64.5°
Seat Tube Angle (eff.)	76.9°
Chainstay Length	444
BB Height	350
BB Drop	24
Standover Height	720
Wheelbase	1216	1250	1269	1294
Reach	629	638	647	656
Stack	435	465	480	500

Specifications

Frame	Shuttle AM w/ Alloy RT
Wheel Size	29"
Travel	160mm Front \| 148mm Rear
Fork	RockShox Lyrik Select+ 29", 44mm Offset, 160mm
Rear Shock	RockShox Super Deluxe Select, 148mm
Headset	Pivot Precision Sealed Cartridge
Shifter	SRAM Eagle 70 Mechanical Transmission 12spd
Rear Derailleur	SRAM Eagle 90 Mechanical Transmission 12spd
Cassette	SRAM XS-1270 Eagle Transmission 10-52t
Chain	SRAM Eagle 70 Flattop 12spd
Chainring	-
Crankset	FSA CK-747/IS Armset 34t - 160mm
Brakes	SRAM DB8 Stealth 4-piston
Rotors	SRAM Centerline Centerlock \| 200mm F & R
Seatpost	TranzX YSP23GLS, 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL)
Handlebar	Phoenix Race Low Rise Aluminum
Stem	Phoenix Team Enduro/Trail
Grips	Phoenix Factory Lock-On
Saddle	Pivot Ride E-Bike
Pedals	N/A
Front Wheel	DT Swiss E532, 30mm - 29", 15x110
Rear Wheel	DT Swiss E532, 30mm - 29", 12x157
Front Tire	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Rear Tire	Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Drive Unit	Bosch Gen 5 Performance Line CX
Battery	800Wh
Display
Extras	N/A
