| Best Use | All Mountain |
| Profile | Hybrid Camber |
| Shape | Directional |
| Flex | N/A |
| Core Material | Paulownia Wood |
| Base material | Sintered Base |
| Tip & Tail clips | Voile |
| Split Hooks | Voile |
| Binding Mounting System | Channel |
| Skin Attachment | Tip Loop or Hooks | Tail Loop or Hooks |
| What's Included | Pucks |
** ATTENTION: mounting quiver killers on your Voile Spartan Splitboard will void the Voile factory warranty.
FROM THE MANUFACTURER

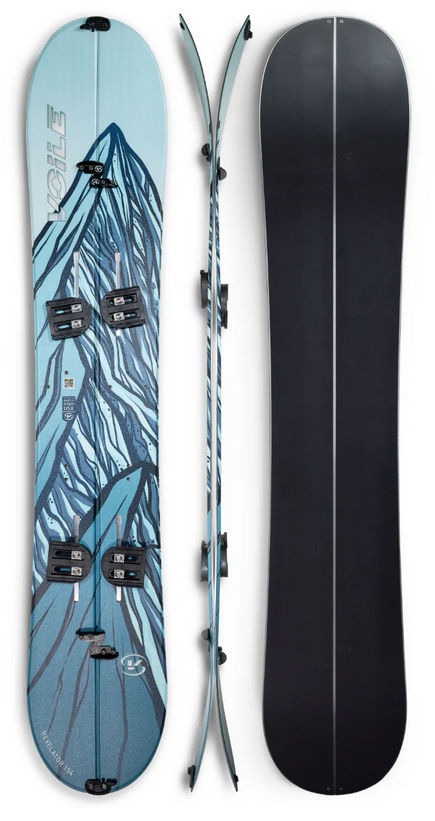

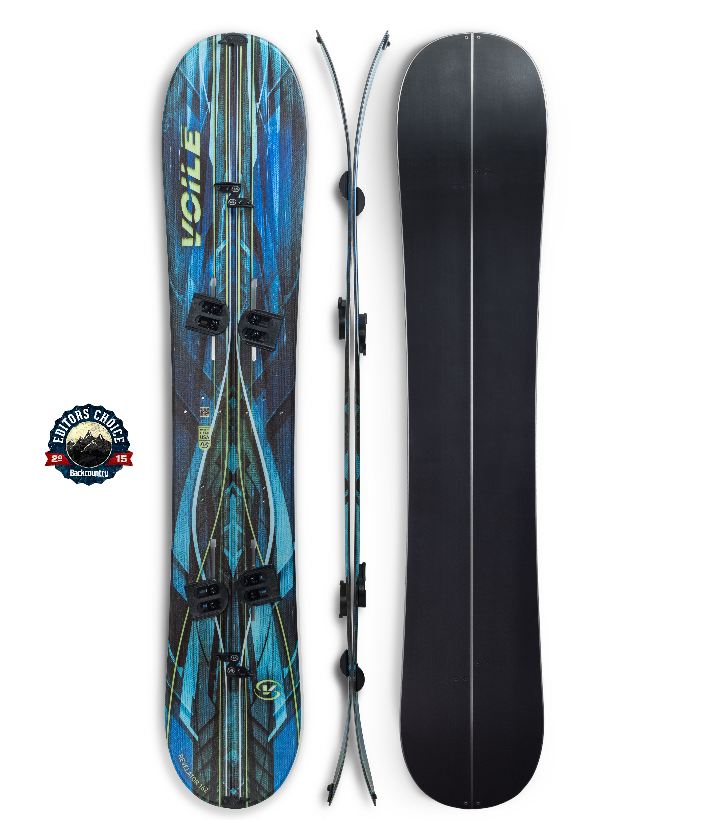

For riders that are looking to up their game from Voile's basic boards, comes the Revelator, the ultimate board for demanding riders.
The combination of board’s light weight, shape, profile, flex and camber helps make long uptracks a done deal and downhill rides a dream come true. And when it’s time for the latter, nothing beats our patented system of “Voilé Hooks & Clips” for easy assembly of Revelator’s halves into a single downhill plank.
Thanks to our signature “Voilé Channel Puck System,” adjusting stance width and toe angles is a snap. Using the Voilé Alignment Guide, the screws are loosened and the pucks can then be relocated in virtually any position quickly and without fuss. Many riders will also appreciate how easy the Revelator’s 2.5-degree canted pucks are on their knees.
The Revelator’s Paulownia wood core reduces the overall weight of the board without compromising strength and performance. Carbon fiberglass layers and a longish camber area make for very efficient skinning on the way up and increased stability on the way down. And of course, the board’s large, early-rise nose and tapered tail make deep powder riding seem virtually effortless.
The Revelator. It’s all business in the backcountry, except for huge intervals of fun.
FEATURES
| Anti-ice Topsheet |
Exceptionally durable polyamide, with an irregular texture that slows the accumulation of snow and allows easy removal of snow and ice build up when the approach is long and/or conditions are freezing.
|
|
| Voile Carbon Weave |
Two layers of their proprietary carbon fiberglass regulate the ski's flex without an impact on the bonding strength.
|
|
| Core |
Laminated Paulownia Wood Core
|
|
| Edges |
Full-Perimeter Steel Edge
|
|
| Sintered Base |
This ski passes on the base graphics for the sake of an ultra-high molecular density base; making for faster downhill performance and greater wear/ impact resistance. Many claim that a black base increases a ski's maximum speed. Something about "snow melting faster," which apparently has the effect of "increasing lubrication." Sounds pretty nice right? Of course, we don't really know if it's true... Regardless, you can rest assured that your p-tex repairs will be seamless after your day spent breaking the sound barrier. |
TECH SPECS
| Length (cm) | 154 | 159 | 162 | 165 | 169 |
| Effective Edge | 98.7 | 103.7 | 106.7 | 109.7 | 112.7 |
| Sidecut (meter) | 8.4 | 8.8 | 9 | 9.2 | 9.4 |
| Waist width | 24.8 | 25.7 | 26.1 | 26.3 | 26.5 |
| Nose Width | 29.2 | 29.8 | 30.2 | 30.5 | 30.8 |
| Tail Width | 28 | 28.6 | 29 | 29.2 | 29.4 |
| Nose Height | 6.1 | 6.3 | 6.4 | 6.5 | 6.8 |
| Tail Height | 4.3 | 4.5 | 4.5 | 4.5 | 4.5 |
| Nose Length | 31.2 | 31.8 | 31.8 | 32.1 | 32.1 |
| Tail Length | 28.2 | 28.8 | 28.8 | 29 | 29 |
| Stance | -3 | -3 | -3 | -3 | -3 |
| Stance Width (max in) | 23.5 | 25.5 | 25.75 | 26 | 26 |
| Board Weight (kg/lbs) | 5lbs 14oz / 2.68kg | 6lbs 6oz / 2.89kg | 6lbs 8oz / 2.95kg | 6lbs 11oz / 3.03kg | 6lbs 14oz / 3.13kg |
| Suggested Rider Weight Range (lbs-kg) | 100-180 45-82 |
130-200 59-91 |
130-210 59-95 |
150+ 68+ |
150+ 68+ |
