From the manufacturer

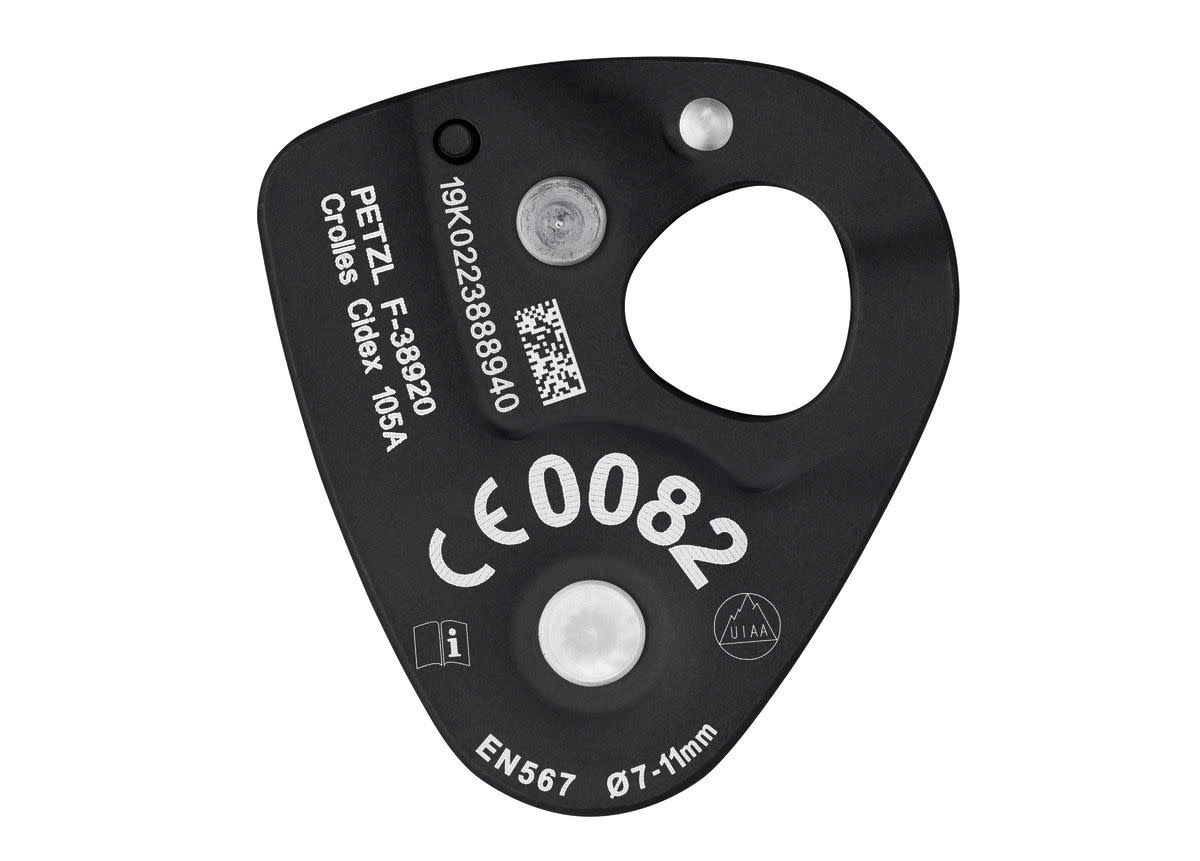

NANO TRAXION is an ultra-lightweight (53 g) and compact progress-capture pulley designed for rescue. Sealed ball bearings provide excellent efficiency (91 %).
Features
Ultralight & Compact
|
|
- Only 53g
- Very compact

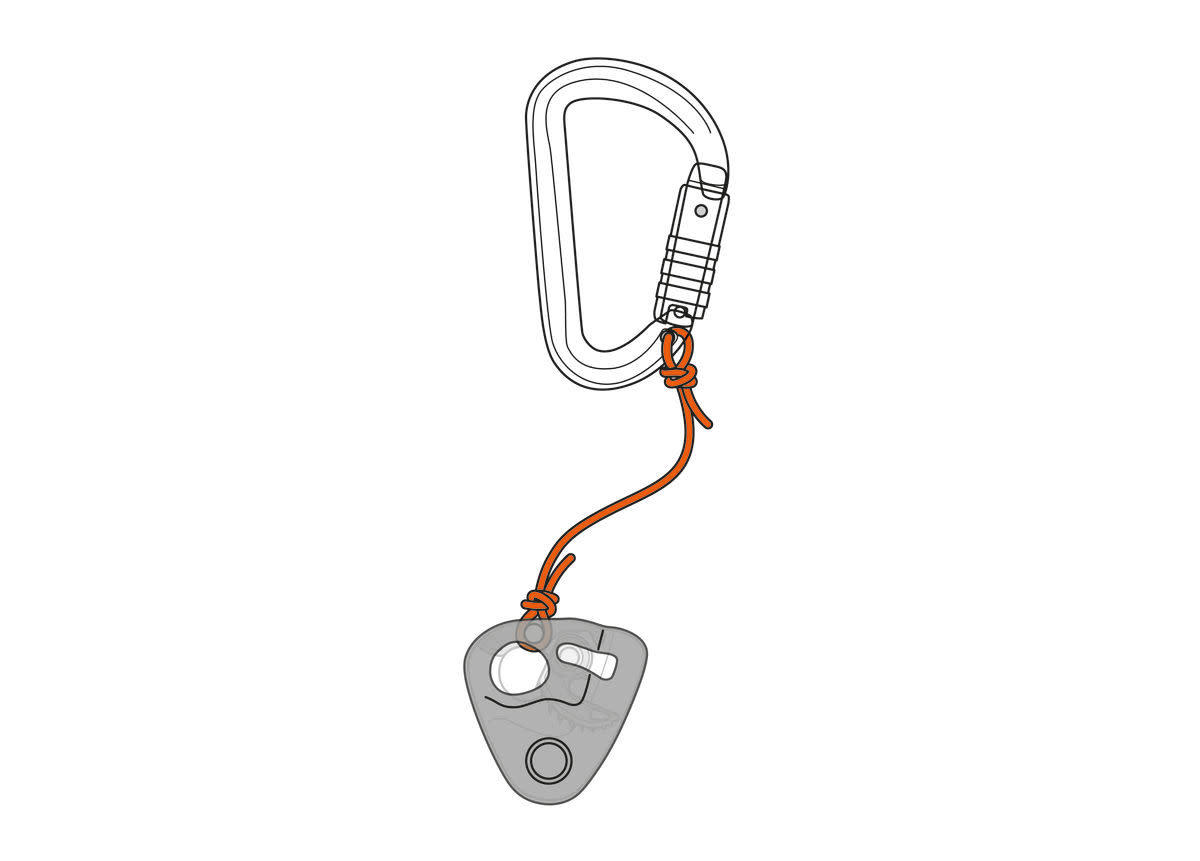

- Hole allows a Sm'D carabiner to be connected to the pulley with a cord, making the device loss-proof
|
High Efficiency
|
|
- Sealed ball bearings provide excellent efficiency (91%)
- Locks even on frozen or muddy ropes
- For use on 7 to 11mm diameter ropes
- Rope installation diagrams engraved inside pulley
|
Specifications
- Weight: 53 g
- Certification(s): CE EN 567, UKCA, UIAA
- Min. rope diameter: 7 mm
- Max. rope diameter: 11 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 18 mm
- Breaking strength: 2 x 7,5 = 15 kN
- Breaking strength as progress capture pulley: 4 kN
- Efficiency: 91 %
