From the manufacturer
High-efficiency, lightweight progress-capture pulley
MICRO TRAXION is a compact and lightweight progress-capture pulley (85 g) designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %).
Features
| Versatile |
|
- Designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender

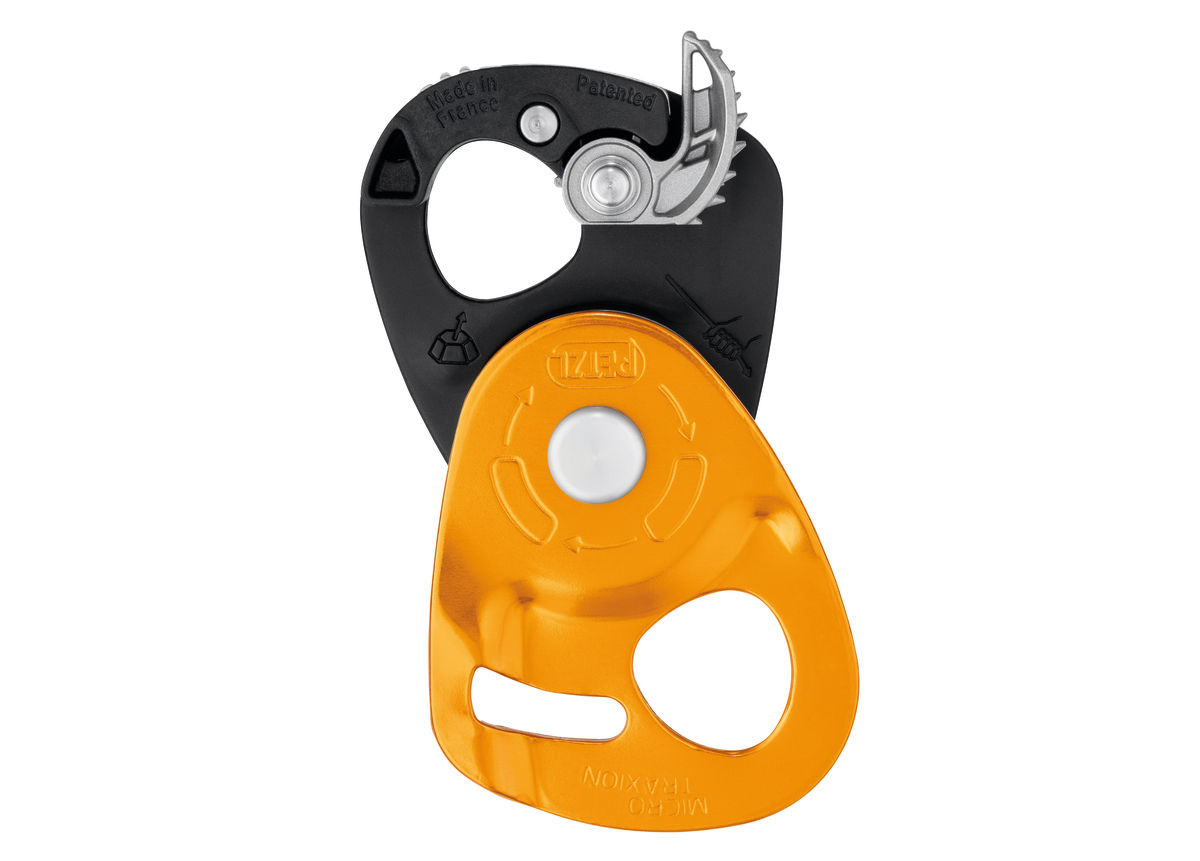

- May be used as a simple pulley by locking the cam in the raised position
|
| Construction |
|
- Only 85g
- Hole allows an Sm'D carabiner to be connected to the pulley with a cord, making the device loss-proof
|
| Efficiency |
|
- Sealed ball bearings provide excellent efficiency
- Works even on frozen or muddy ropes
- For use on 7 to 11mm diameter ropes
- Rope installation diagrams are engraved inside the pulley
|
Specifications
- Weight: 85 g
- Certification(s): CE EN 567, UIAA
- Min. Rope Diameter: 7 mm
- Max. Rope Diameter: 11 mm
- Sheave Type: Sealed ball bearings
- Sheave Diameter: 27 mm
- Working Load: 2 x 2.5 = 5 kN
- Breaking Strength: 2 x 7.5 = 15 kN
- Working load as progress capture pulley: 2.5 kN
- Breaking strength as progress capture pulley: 4 kN
- Efficiency: 91%
- Compatible with PUR'LINE 6mm cord only for hauling a pack
- Compatible with RAD LINE 6mm cord
