29"/27.5" Wheels | 160mm Front /150mm |
Sight VLT CX comes out of the box with 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, for an ideal blend of power and enjoyment while balancing wear and range. Update through the Bosch Flow App to access even higher levels, for up to 100Nm, 750 watts, and 400% support.

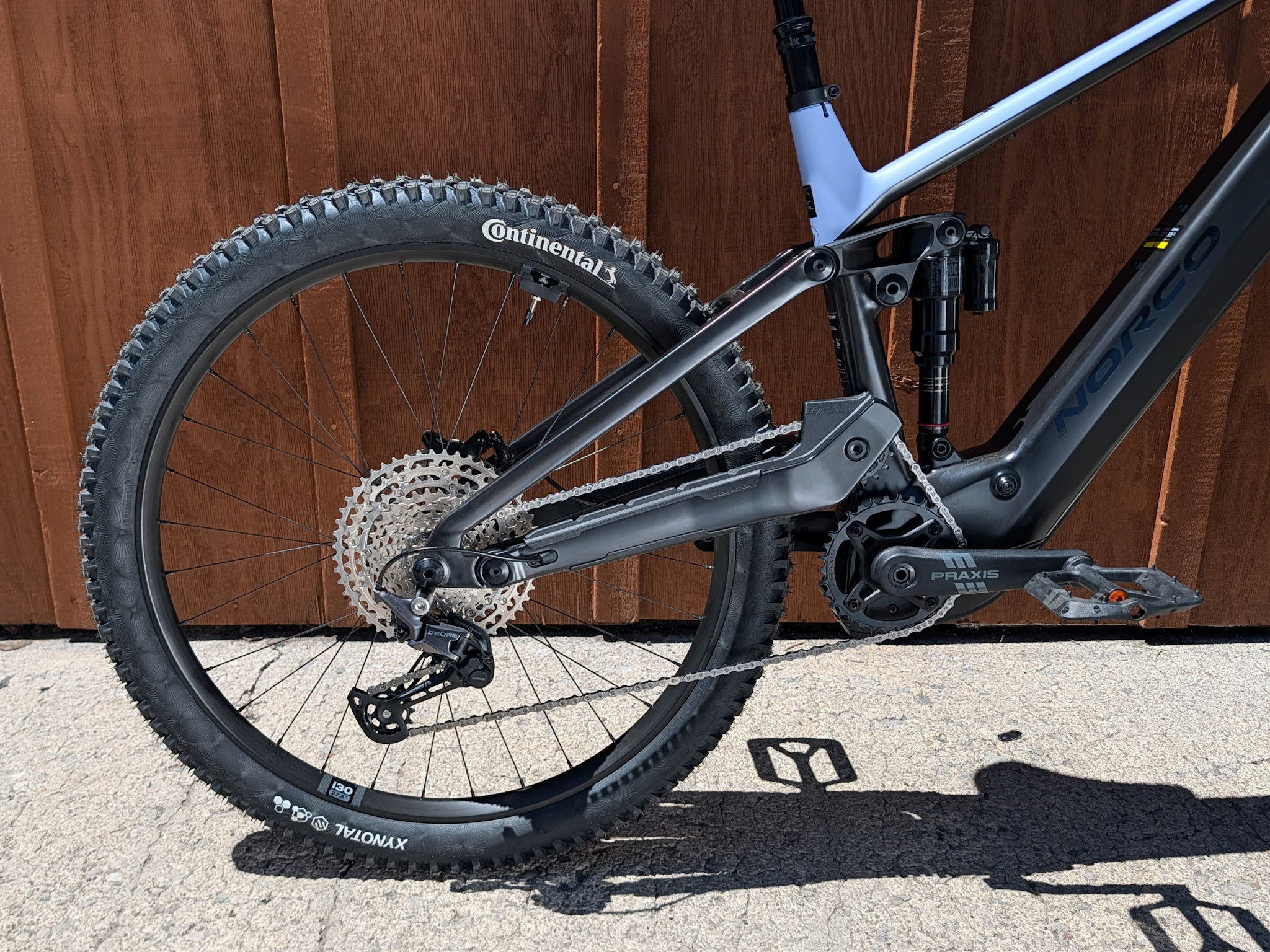

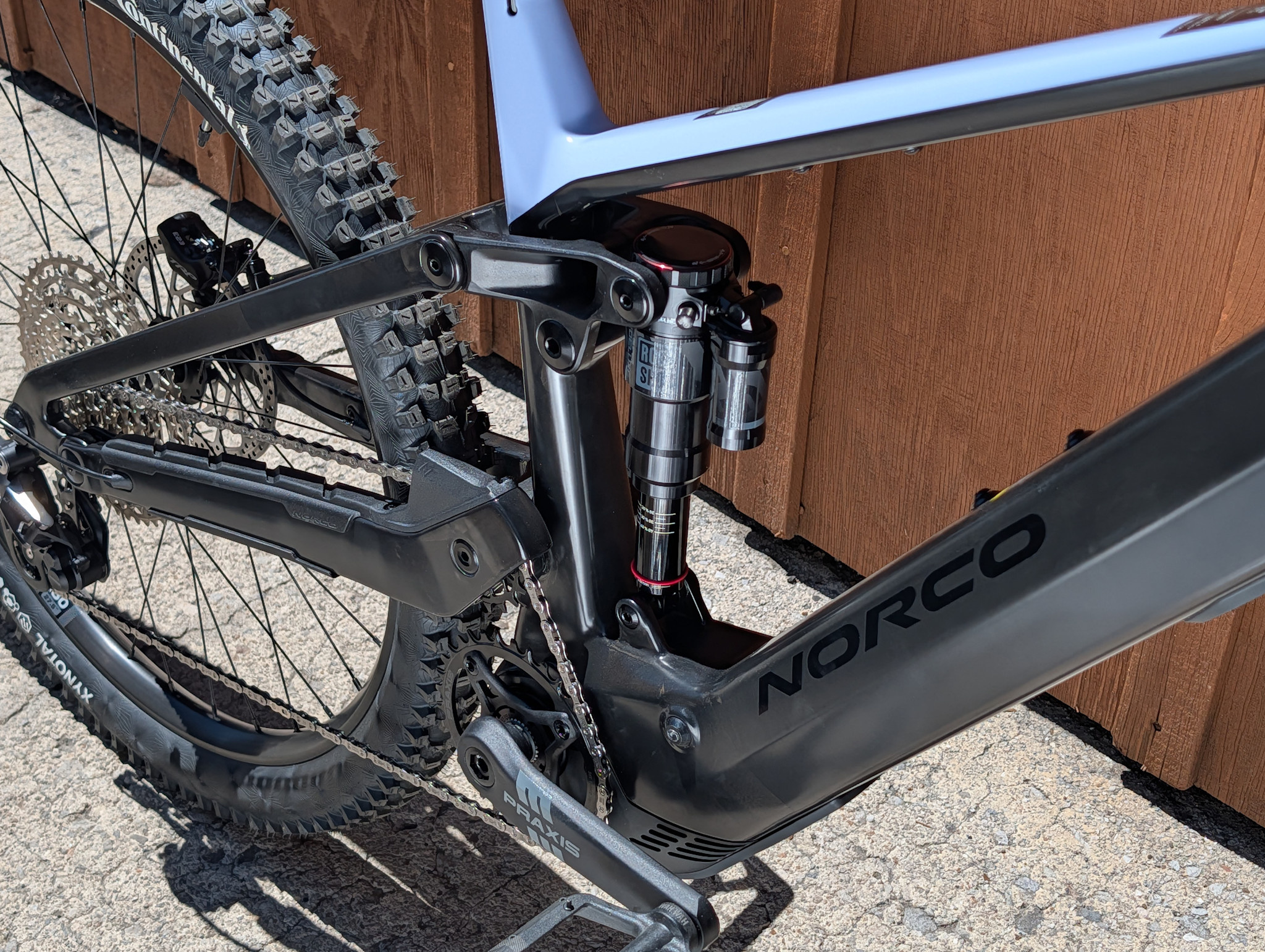

The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

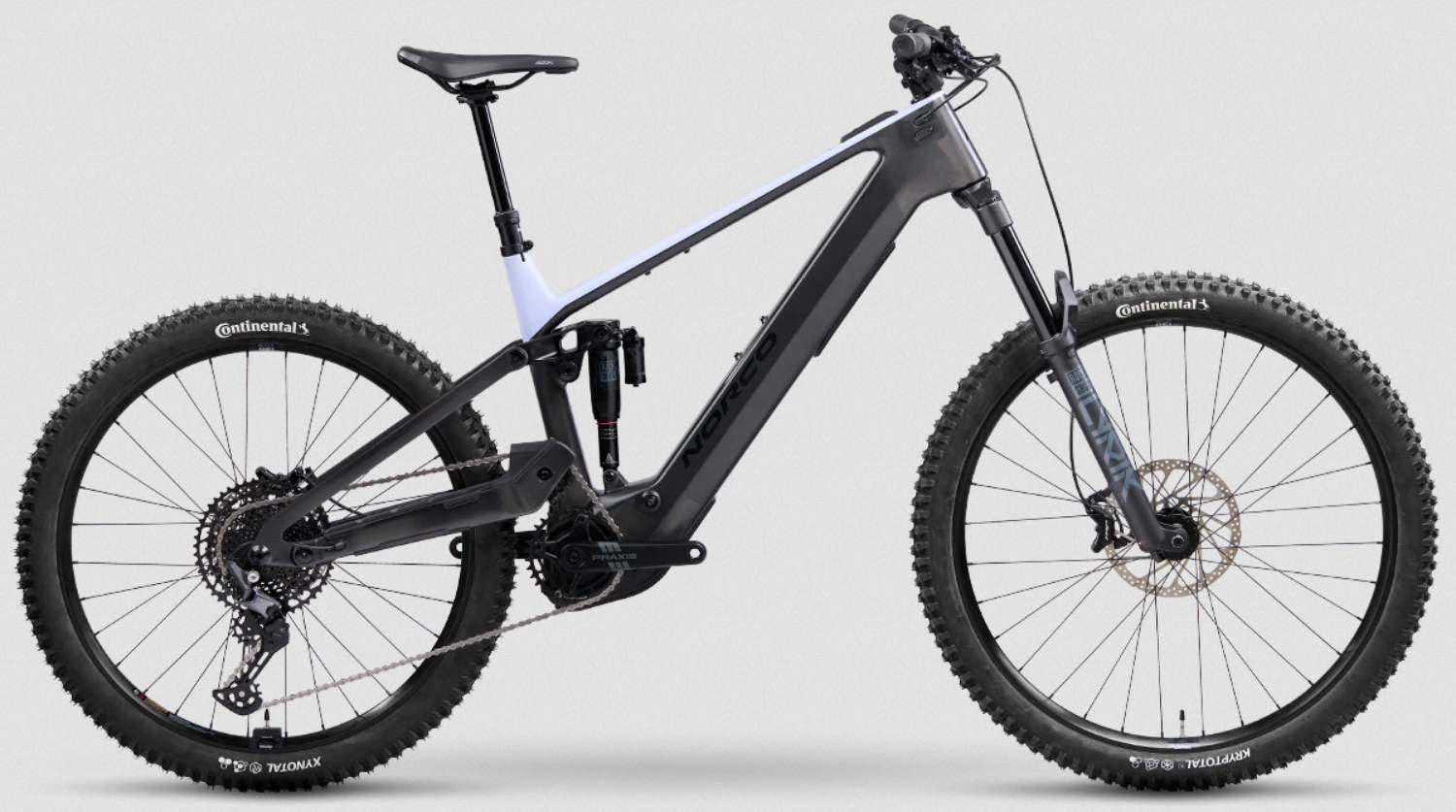

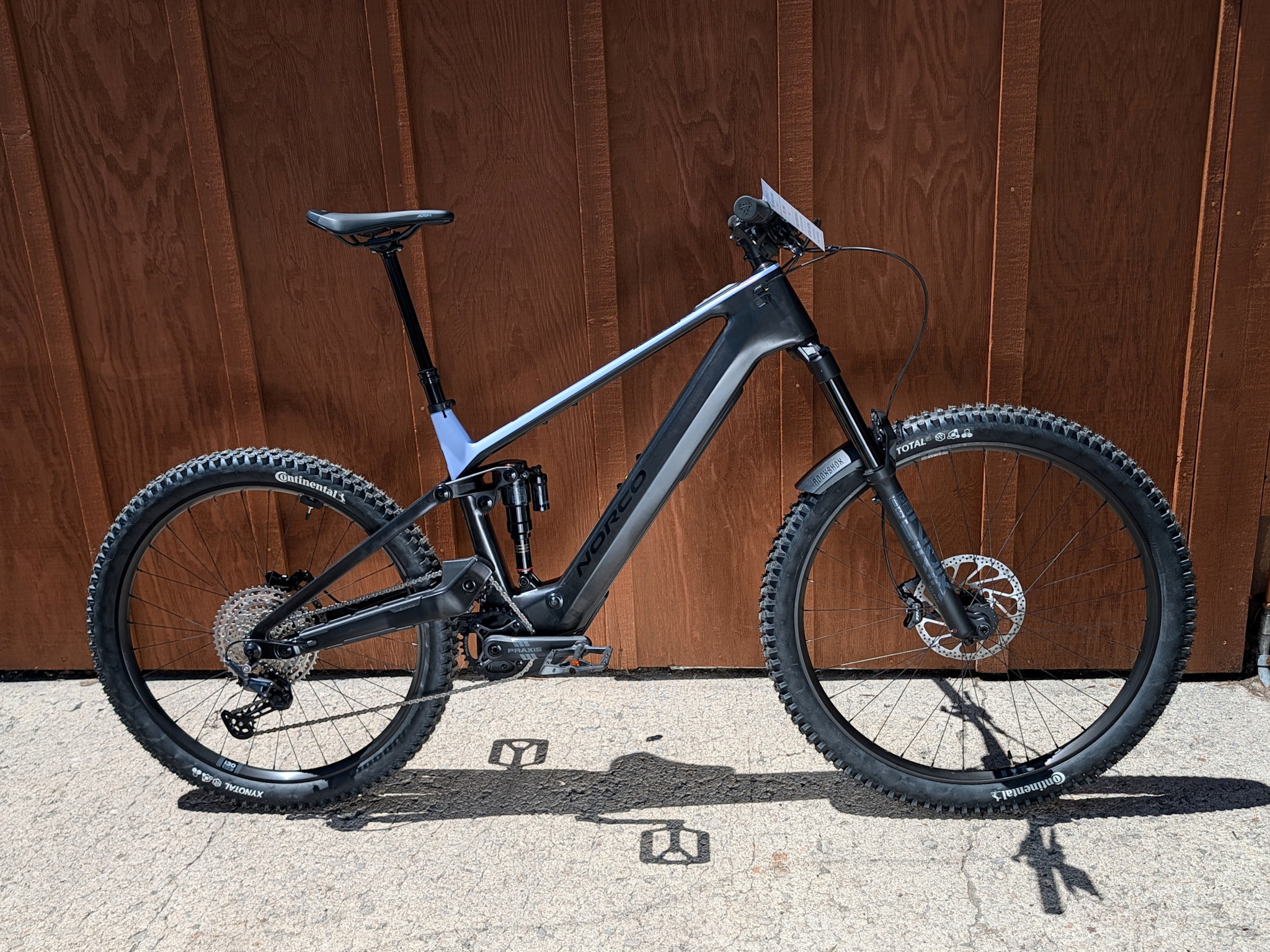

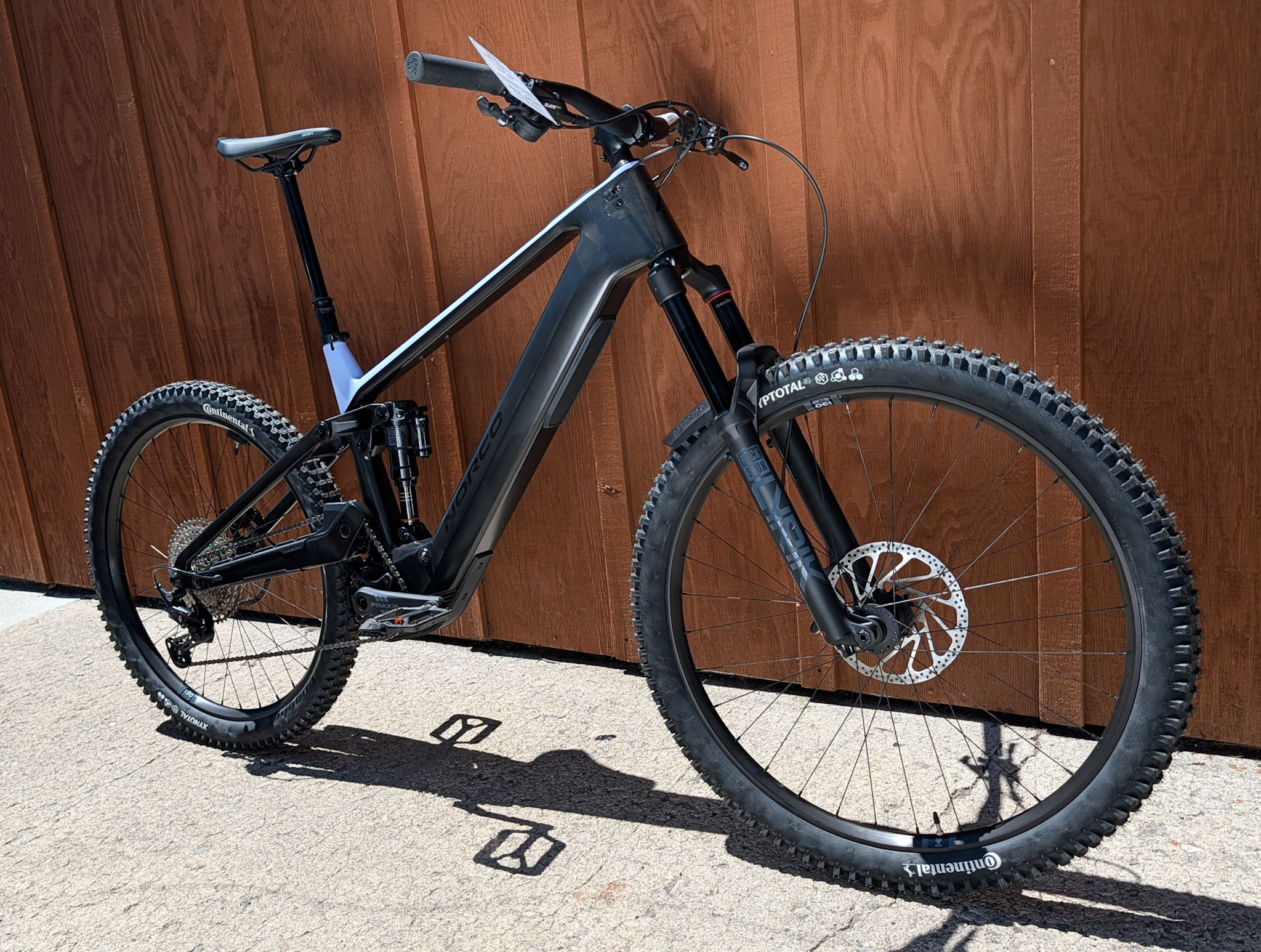

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
Sight VLT CX comes out of the box with 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, for an ideal blend of power and enjoyment while balancing wear and range. Update through the Bosch Flow App to access even higher levels, for up to 100Nm, 750 watts, and 400% support.
The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
| Frame | Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork | Rock Shox Lyrik Select 160mm |
| Rear Shock | Rock Shox Super Deluxe Select, 205x60mm TR |
| Rear Shifter | Shimano Deore SL-M6100-R, 12spd |
| Rear Derailleur | Shimano Deore RD-M6100, 12spd |
| Crankset | Praxis HD Aluminum Bosch Cranks, 34T, 165mm |
| Bottom Bracket | Bosch BDU38 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12spd |
| Chain | Shimano Deore CN-M6100, 12spd |
| Front Brake | TRP Slate EVO, Metallic Pads |
| Front Brake Rotor | TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt |
| Rear Brake | TRP Slate EVO, Metallic Pads |
| Rear Brake Rotor | TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt |
| Brake Levers | TRP Slate EVO |
| Handlebar | Norco 6061 DB Alloy, 800mm, 25mm |
| Stem | Norco Alloy, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YSP23, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5) |
| Headset | FSA No.55 Sealed Bearing, 1 1/8" - 1.5" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| Saddle | Fizik Terra Aidon X5 |
| Grips | WTB Wavelength, 130mm Length |
| Seatpost Clamp | Norco Alloy Nutted Clamp 34.9mm ID |
| Front Hub | Bear Pawls BMB-013, 15x110 Boost, 32H, 6 Bolt |
| Rear Hub | Bear Pawls BMB-007, 12x148 Boost, HG, 32H, 6 Bolt |
| Rims | WTB STi30,30 mm, 32H, 29"-27.5 F/R |
| Front Tire | Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable |
| Rear Tire | Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable |
| Spokes/Nipples | Sapim Sprint DB Spokes |
| Drive Unit | Drive Unit Performance Line CX BDU38 |
| Battery | Bosch PowerTube 800 Wh |
| Switch | Bosch BRC 3300 Mini Remote 22.2mm |
| Power Button | Bosch BRC 3100 System Controller |
| Weight | 22.67 kg (50 lbs) |
| Weight Size | S3 |
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
|---|---|---|---|---|---|
| Travel (mm front/mm rear) |
160/150
|
||||
| Reach | 447.5 | 472.5 | 497.5 | 522.5 | |
| Stack | 627 | 636 | 645 | 654 | |
| HTA | Head Tube Angle |
64
|
|||
| OS | Fork Offset |
44
|
|||
| ST | Seat Tube Length | 395 | 415 | 445 | 475 |
| STA | Effective Seat Tube Angle | 77.25 | 77.5 | 77.75 | 78 |
| RC | Rear Centre Length | 432 | 436 | 440 | 444 |
| RC | Rear Centre Length at Sag | 441 | 445 | 449 | 453 |
| BB | Bottom Bracket Drop |
25/5
|
|||
| BBH | Bottom Bracket Height |
349
|
|||
| HTT | Horizontal Top Tube | 589 | 613 | 637 | 661 |
| WB | Wheelbase | 1222 | 1255 | 1289 | 1322 |
| SOH | Standover | 701 | 711 | 714 | 729 |
| HT | Head Tube Length | 115 | 125 | 135 | 145 |
| Trail |
133
|
||||
| Recommended Seatpost Drop | 150 | 170 |
200
|
||
| Maximum Post Insertion | 250 | 270 | 300 | 330 | |
| Stem Length |
40
|
||||
| Crank Length |
165
|
||||
| Tire Size |
2.35" – 2.6"
|
||||
| Water Bottle Compatible | 1 x 620 mL |
1 x 750 mL
|
|||
