Kona

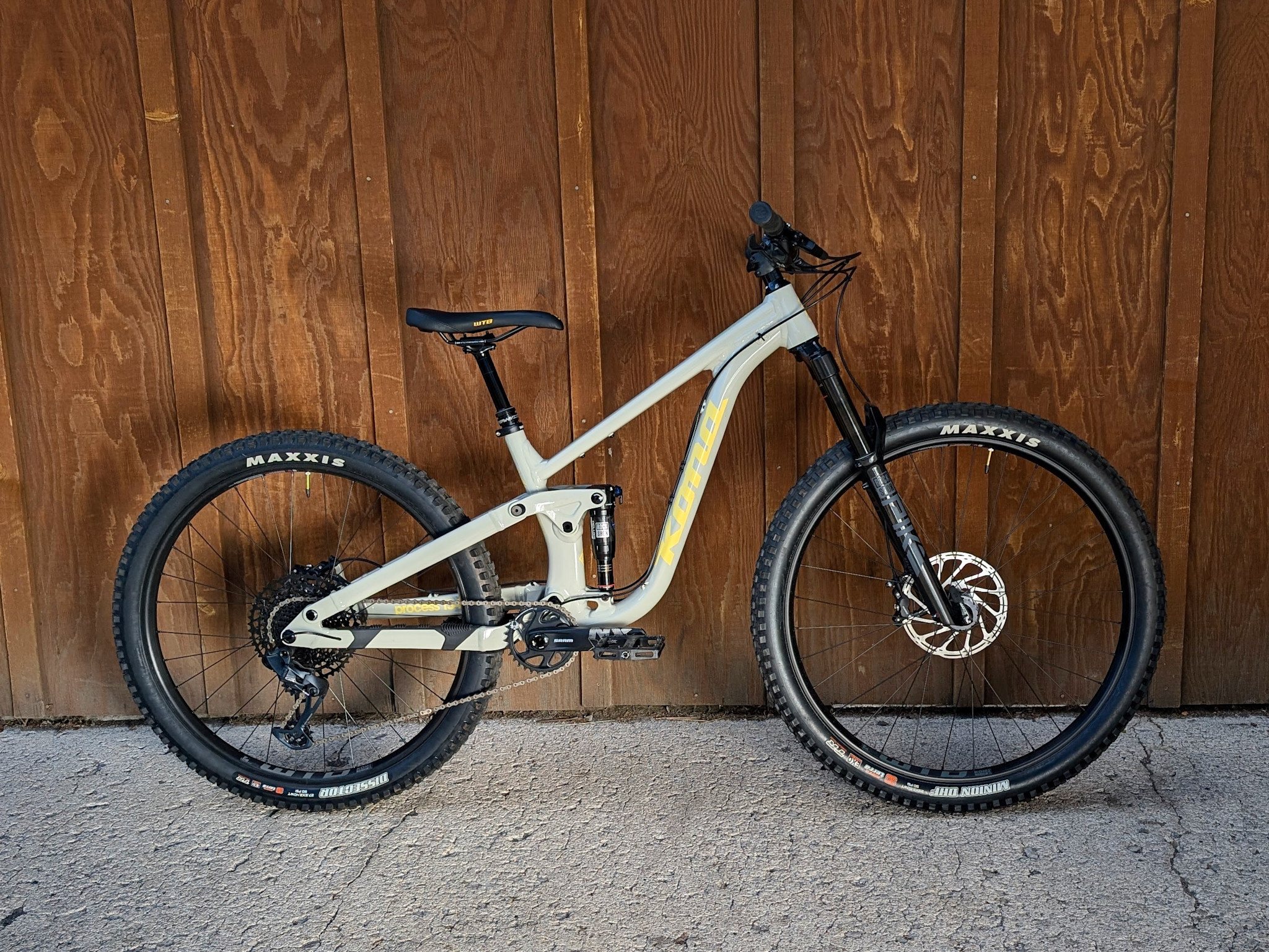

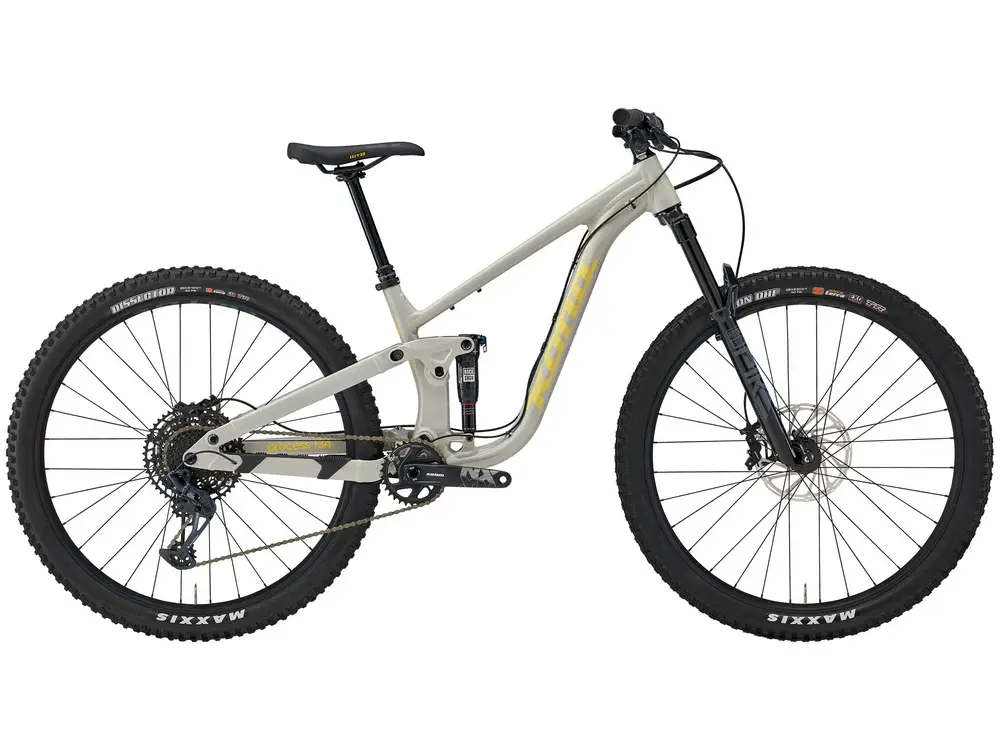

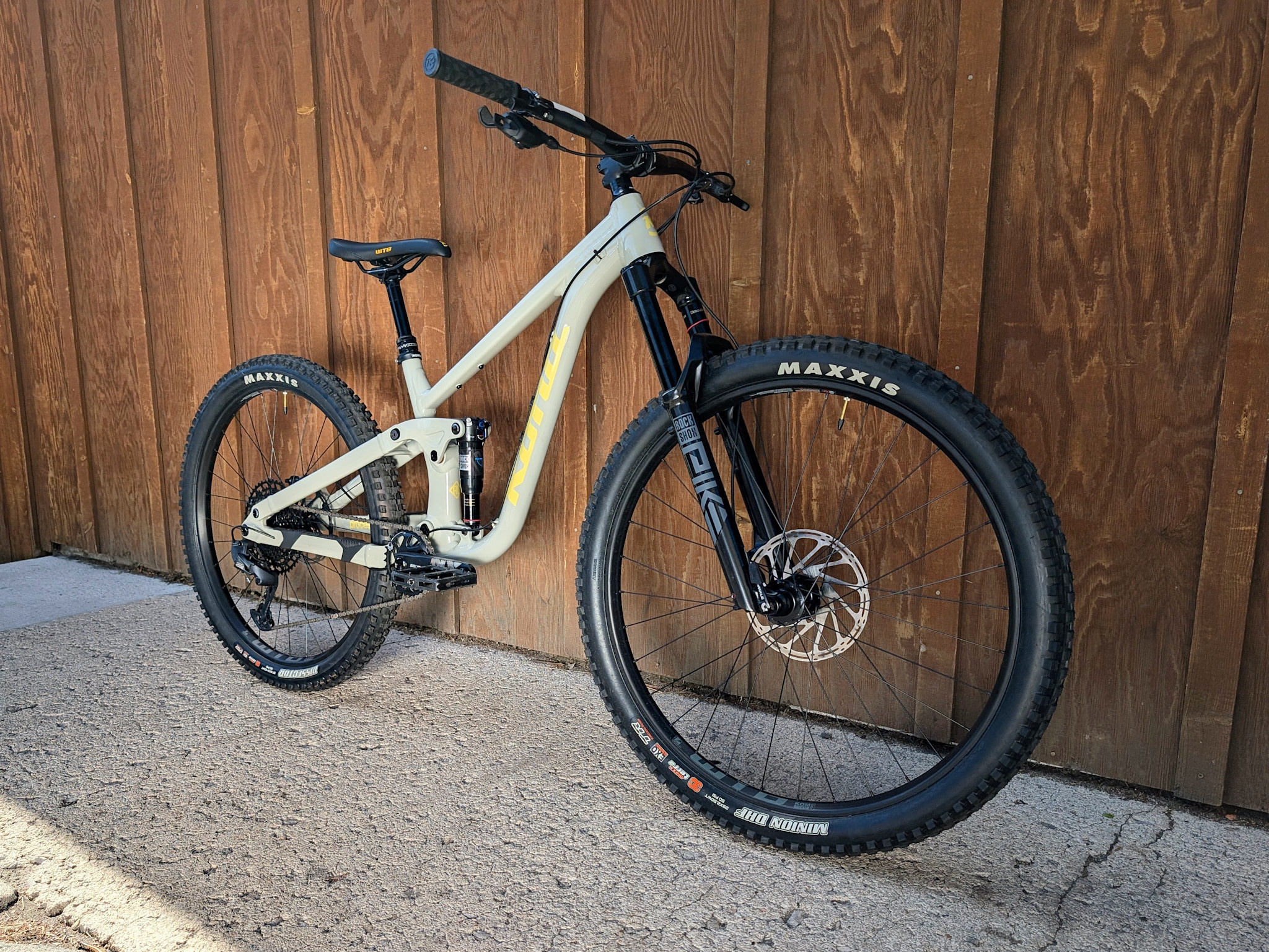

Kona Process 134 DL 29"

$2,999.00
In store: Check availability

Available in store

Front 140mm/Rear 134mm Travel | 65.5 HT° | 29"

Delivery time: 5-7 Business Days

Description



From the Manufacturer



Why not ride every day? The Process 134 DL is the bike you want if you’re thinking of telling The Man where to stick his 401k contribution. Yeah, we already played this riff with the 153 DL, but the song remains the same, just with a touch less suspension travel but the exact same anti-establishment attitude. Mullet-capable, sweet handling geometry, rugged aluminum frame, apocalypse (or sustained unemployment) ready pivot hardware keep you rolling day in, day out. Durable, dependable, and so damn fun that you’ll want to ride every single day. Which was kinda the point of quitting the day job in the first place, right?





Features



Customizable: Have it your way

  • Mullet Flip Chip - Choose your wheel size; 27.5 for maximum play, 29 for speed to plow. A convenient flip chip located on the seat stay / rocker connection makes choosing between rear wheel sizes a snap. Size Small comes stock with a 27.5” rear wheel and all other sizes come with 29” rear wheel

  • Compatible with UDH and SRAM T-type drivetrain

  • Air or coil rear shock compatible. Revised suspension kinematics for improved small bump sensitivity and balanced progressivity whether running air or coil.

  • Shorter seat tube, deeper seat post insertions



Functional: Peace of mind

  • Improved water bottle clearance, more water bottle mounts

  • Integrated tool / accessory mount on underside of top tube

  • Enhanced frame protection

  • Carbon frames feature fully guided internal cable / hose routing with a Y connector allowing clean hose direction for either moto or regular style brakes. This is internal routing done right!

  • Aluminum frames feature full external cable / hose routing (except for dropper post) for unbeatable user friendly, hassle-free performance and serviceability

  • Bearing and pivot hardware cross-compatibility – all Process models use the same dependable, easily sourced hardware





Geometry



Size S M L XL
ST Length 380 380 420 450
TT Length 572 599 628 666
Reach 430 455 480 515
Stack 611 615 625 635
Standover 700 700 710 720
HT Angle 65.5 65.5 65.5 65.5
HT Length 100 105 116 127
ST Angle 76.9 76.9 76.7 76.6
CS Length 435 435 435 435
BB Drop 23 33 33 33
BB Height 342 342 342 342
Wheelbase 1171 1200 1230 1269
Front Center 740 767 797 836
Fork Length 551 551 551 551
Fork Offset 44 44 44 44



Specifications

Frame Kona 6061 Aluminum Butted
Wheel Size 29"
Travel Front 140mm | Rear 134mm
Fork RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
Rear Shock RockShox Deluxe Ultimate Trunnion
Headset FSA Orbit 1.5 EP ZS
Bottom Bracket
Shifter SRAM NX-Eagle
Rear Derailleur SRAM GX-Eagle
Cassette SRAM NX-Eagle 11-50t 12spd
Chain SRAM SX-Eagle
Chainring 32t X-Sync Eagle
Crankset SRAM NX Eagle DUB
Brakes SRAM G2 RS
Rotors SRAM Centerline 200mm (front), 180mm (rear)
Seatpost TranzX Dropper +RAD Internal 31.6mm
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35
Grips Kona Key Grip
Saddle WTB Volt
Pedals N/A
Front Wheel WTB KOM Team i30 TCS w/ Formula 110x15mm
Rear Wheel WTB KOM Team i30 TCS w/ Formula 148x12mm
Front Tire Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear Tire Maxxis Dissector EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Sizes S, M, L, XL
