Mondraker

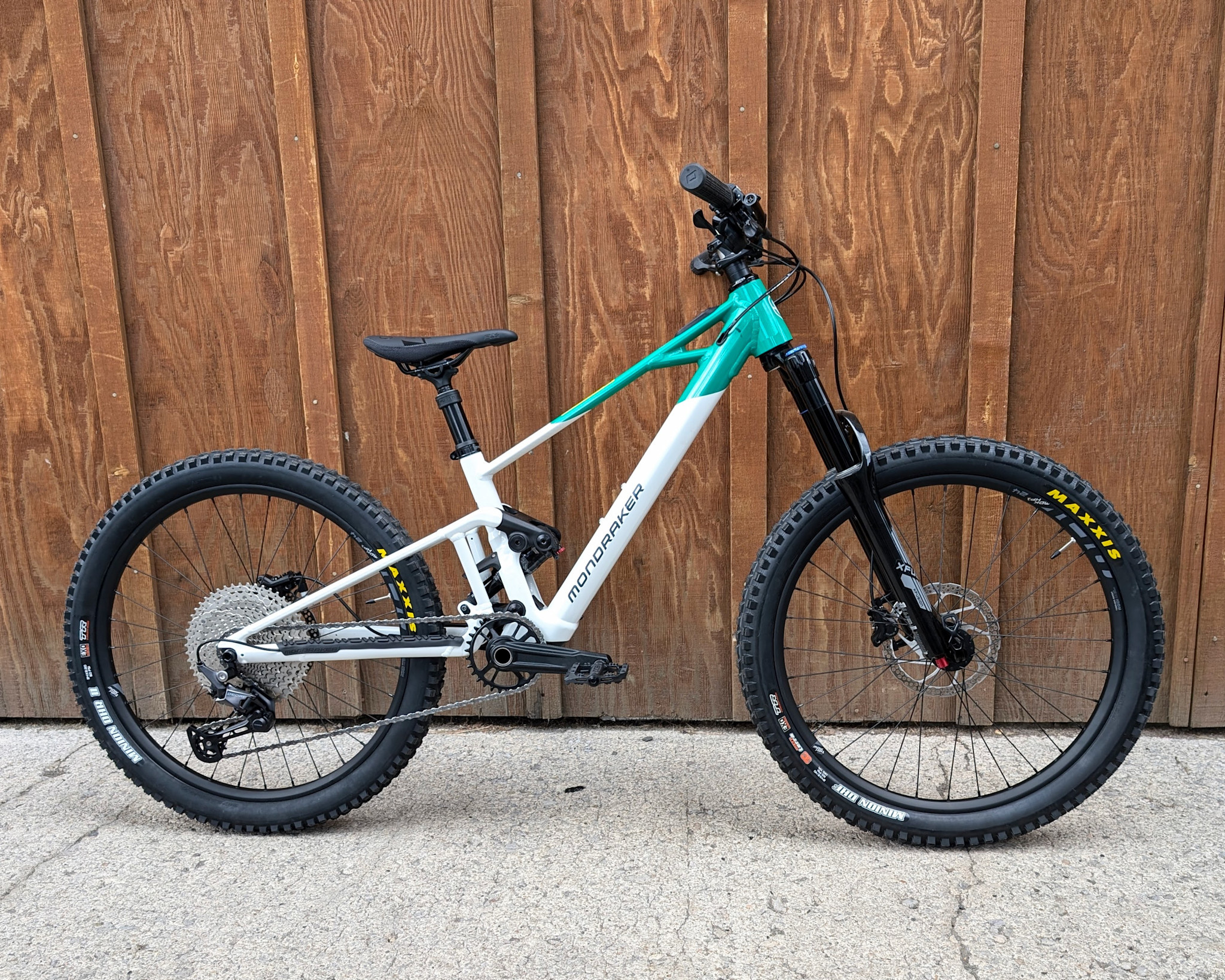

2026 Mondraker F-Play Kids E-Bike 24"

$3,999.00

Unit price — $1,030.00

In store: Check availability

SKU: 010.26US394

120mm Front/120mm Rear Travel | 67°HT | Mahle X-30 | Mahle IX250Wh

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Description

From the Manufacturer

F-Play. E-Bikes that help you grow.

If you want your little-ones to get better at mountain biking you’ll need a bike that helps them do just that. That’s why we’ve completely redesigned our F-Play range, making them unarguably the best two-wheeled investment ever when it comes to smiles per mile. We’ve gone all-in, leveraging adult-bike tech to design the best kids bikes out there.

E-Bike power, normal feel.

The new F-Play range has been developed in conjunction with the F-Trick range to make them ride as near as possible to a non-ebike: light, agile and responsive. To that end they share the same kinematic, Updated Zero Suspension System, suspension travel and a frame design that make them almost indistinguishable. The F-Play have a minimalist frame design with a stylised downtube which contains the 250Wh battery. The frame design includes the trademark Mondraker ‘window’ where the headtube meets the downtube and top tube, as well as being manufactured from Alloy Stealth Evo throughout.

Suspension travel has been augmented on both models, going from 100mm on the 24” bike up to 120mm, and from 120mm to 130mm on the 26” version. The forks have also been upgraded, now 120mm on the 24” bike (up from 100mm on the old F-Play 24”) and 140mm on the 26” bike (up from 120mm on last year’s F-Play 26”).

F-Play also comes with the latest iteration of the Zero System.

It’s not only the F-Trick that gets the Updated Zero Suspension System. The new F-Play enjoys the same new Zero system as the NEAT and F-PODIUM. This update delivers faster acceleration, more feedback and a faster response to your pedalling input. Simply put, each pedal stroke counts for more. This updated version of the Zero system also offers further benefits such as:

• Improved initial sensitivity and trail compliance.

• A more progressive kinematic.

• A lighter system with improved weight to stiffness ratio.

• More compact with less unsprung weight.

• Greater seatpost insertion depth.

MAHLE X35: Brings out your best you

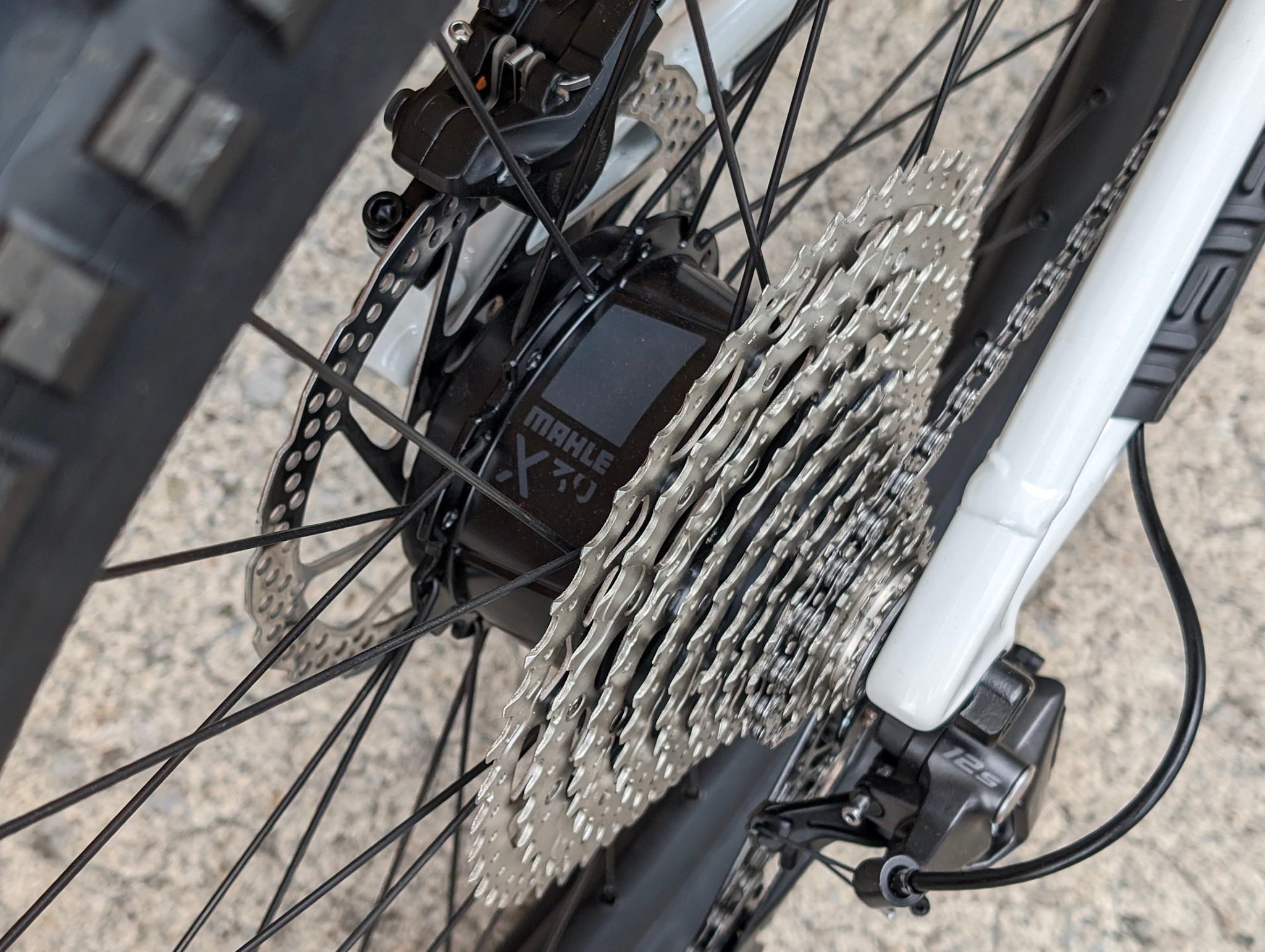

As with the hardtail ebike Play range, the F-Play utilizes the same Mahle E-Bikemotion X35 system, with its 40Nm motor and 250Wh internal battery. The system has three assist modes (Eco, Urban and Sport) which can be tuned via Mahle’s MySmartbike phone app. As with the Play, the F-Play 26” has the option of fitting an additional 210Wh range extender for those longer rides.

For-Real Mountain Biking

The new F-Play range blurs the line between a kids’ bike and a bike for adults. As with the rest of the KIDS ranges, the F-Play comes with 2.4” tyres, an ONOFF Pija dropper post, a 30mm stem complimentary to Forward Geometry and a 1x chainset with a UDH mech hanger. It’s by far the closest thing to an adults’ ebike available in our kids ranges. It uses the same tech, the same technical resources and even the same components so that your little-ones can feel what you feel when out on their bikes.

Geometry

Seattube length	320 mm
Toptube length	525 mm
Bottom bracket drop	-10 mm
Bottom bracket height	295 mm
Chainstay length	420 mm
Seat tube angle	71º
Effective seattube angle	76º
Headtube angle	67º
Fork Offset	39 mm
Wheelbase	1050 mm
Headtube length	90 mm
Reach	375 mm
Stack	513 mm

Specifications

Frame	F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x dr
Wheel Size	24"
Travel	120mm Front / 120 Rear
Fork	X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Rear Shock	X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Headset	Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Shifter	Sram trigger GX 10s, X-actuation 1:1
Rear Derailleur	Sram GX, 10s, short cage, X-actuation 1:1
Cassette	Sram PG 1020 11-36T, 10s
Chain	Shimano Deore M6100, 12s, Quick-link
Chainring	30T, steel
Crankset	Samox DM 30T steel, 152mm
Brakes	Front: Sram Level, tooled reach adjust, lever pivot bushings \| Rear: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rotors	RT56 180mm IS 6 bolts
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 100mm
Handlebar	MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Stem	Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Grips	Onoff Twin, 1lock-on
Saddle	Saddle
Pedals	N/A
Front Wheel	MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes \| Hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear Wheel	Mahle-Ebikemotion X-35, HG freehub
Front Tire	Kenda Regolith 24x2.4 120TPI, Folding TLR
Rear Tire	Kenda Regolith 24x2.4 120TPI, Folding TLR
Drive Unit	Mahle-Ebikemotion X-35
Battery	Mahle-Ebikemotion Internal 250Wh
Display	Mahle-Ebikemotion
Extras	N/A
Sizes	One size: 300mm
