  • Prevelo Prevelo Bravo Three 20"
  • Prevelo Prevelo Bravo Three 20"
Prevelo

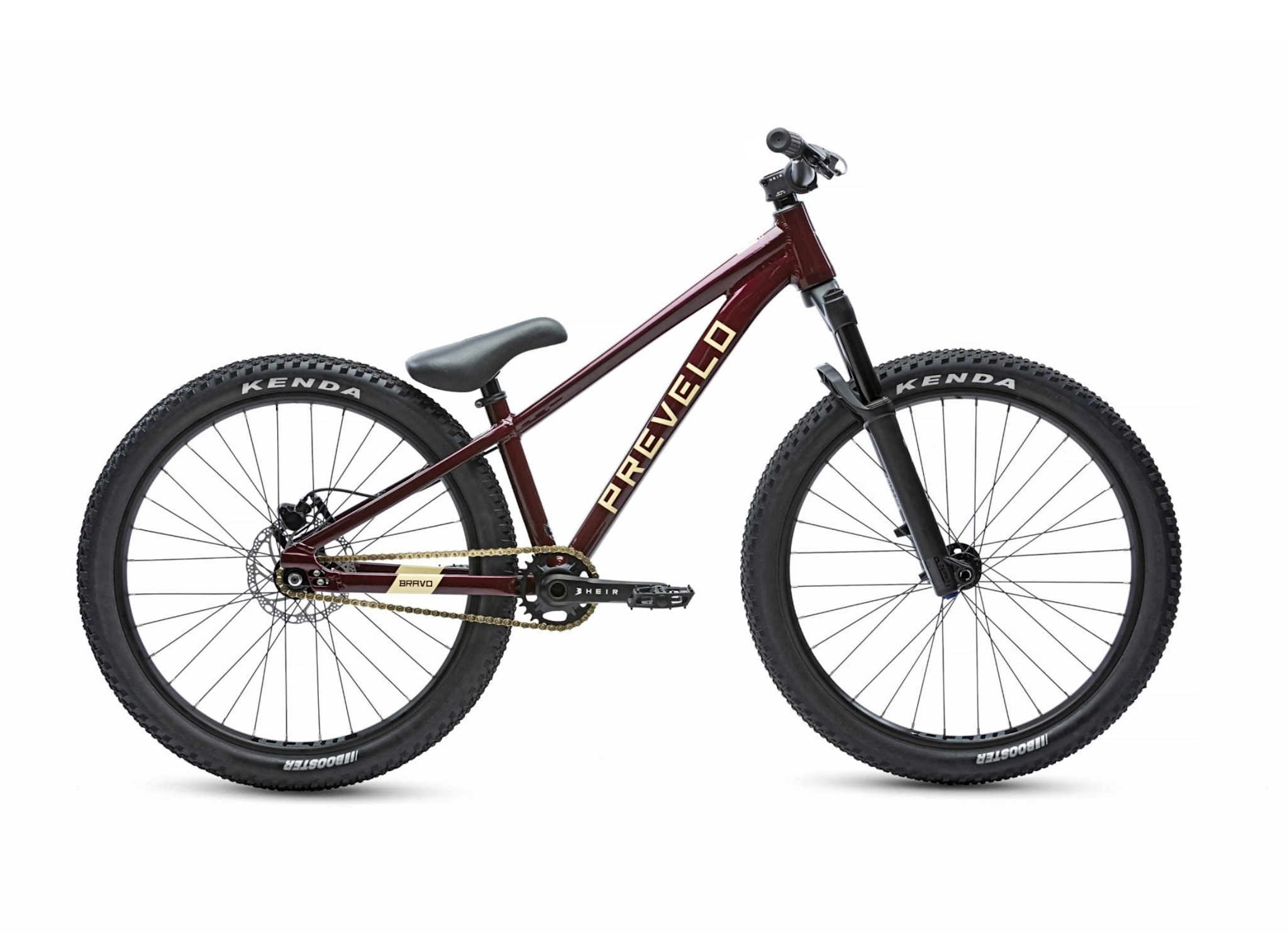

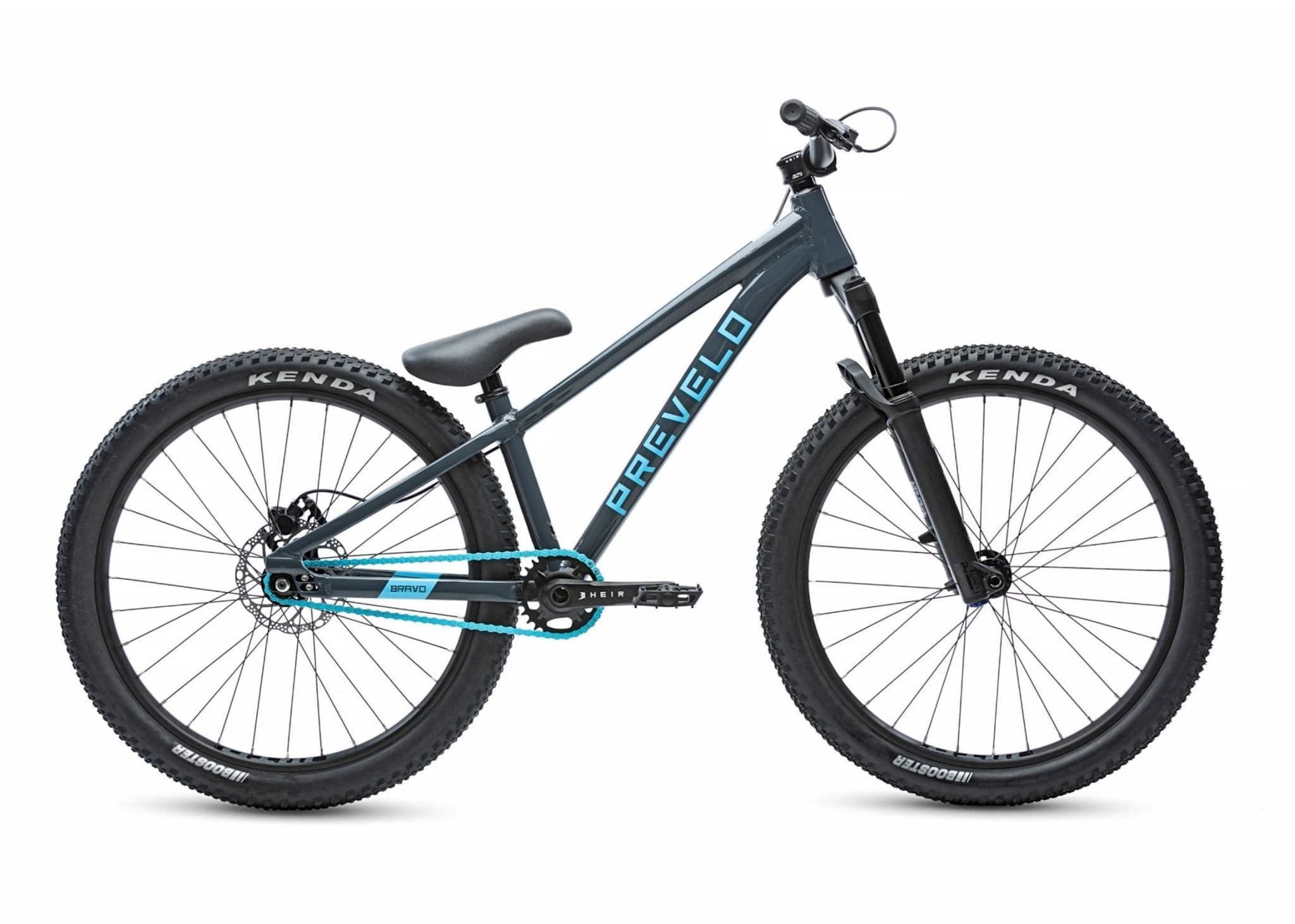

Prevelo Bravo Three 20"

$1,199.00
In store: Check availability

Available in store

SKU: PBB2001-RD

20" Wheels | Age 6-10 years

Add to compare Add to wishlist
Delivery time: 5-7 Business Days

Description


From the manufacturer



  • Manitou JUNIT Expert fork with 80mm of travel, 1.5" tapered alloy steerer tube, Boost 15x110 axle spacing, easily adjustable Expert Air spring system, adjustable rebound, and ABS+ damper
  • HEIR 31.8 Aluminum handlebar with 19mm grip diameter
  • HEIR 19mm Lock-On Grips
  • Lightweight 6061 Aluminum frames featuring internal cable routing and adjustable rear dropouts
  • Reliable and quick engaging Novatec Cassette hubs
  • Lightweight HEIR 2pc Direct Mount cranks
  • Half-Link chain for precision chainstay length adjustment
  • Pivotal seats help drop the seat height ~15mm compared to traditional railed seats.
  • Lightweight and Durable WTB i27 rims
  • Tektro Hydraulic Disc Brakes
  • Kenda Booster tires



Geometry



Bottom Bracket Drop 0.8 in / 20 mm
Chain Stay Length 12.6 in / 320 mm
Effective Top Tube Length 17.7 in / 450 mm
Gain Ratio 4.66
Head Angle 68°
Maximum Saddle Height 26 in / 660mm
Minimum Saddle Height 21.75 in / 552mm
Q factor 170mm
Reach 11.5 in / 291 mm
Recommended Inseam min 20.5"
Seat Tube Angle 71°
Seat Tube Length 10.2 in / 260 mm
Stack 18.1 in / 459 mm
Standover 20 in / 508 mm
Weight 19.8 lbs
Wheel Diameter 20 in
Wheelbase 32.6 in / 828 mm

Specifications

Frame Lightweight 6061 Aluminum with Internal Cable Routing and Forged Adjustable dropouts
Wheel Size 20"
Travel 80mm Front Travel
Fork Manitou J-Unit Comp 20 80mm Travel, Taper Steertube, 15x110
Rear Shock N/A
Headset 1 1/8" - 1 1/2" Tapered Threadless Sealed Cartridge
Bottom Bracket External BSA
Shifter N/A
Rear Derailleur N/A
Cassette N/A
Chain
Chainring 28t Direct Mount Narrow-Wide
Crankset 127mm HEIR Direct Mount 2 piece
Brakes Rear Tektro J285 Hydraulic Disc
Rotors
Seatpost ⌀31.6mm alloy Pivotal
Handlebar HEIR Lightweight Aluminum 31.8, 600mm wide, 13mm rise, 19mm grip diameter
Stem HEIR 3D Forged 31.8 35mm Extension
Grips HEIR 19mm Lock-On
Saddle Pivotal
Pedals Composite 9/16 Chromo Spindle
Front Wheel WTB i27; 32h Novatec Boost 15x110mm
Rear Wheel WTB i27; 32h Novatec Cassette w/ 12t cog
Front Tire Kenda Booster 20x2.20
Rear Tire Kenda Booster 20x2.20
Sizes One size

Related products

Carousel items

  1. 30% off
    Ride Concepts Ride Concepts W's Vice Bike Shoes

    Ride Concepts W's Vice Bike Shoes

    Low Volume | Inverse Hexagons | 380 g / shoe
    $70.00 $100.00
  2. 30% off
    Ride Concepts Ride Concepts Youth Vice Bike Shoes

    Ride Concepts Youth Vice Bike Shoes

    Kids | TPU Toe Protection | DST 6.0 HIGH GRIP Rubber Outsole
    $61.60 $88.00
  3. 15% off
    Scott Scott Voltage YZ 0.1 Dirt Jumper 26"

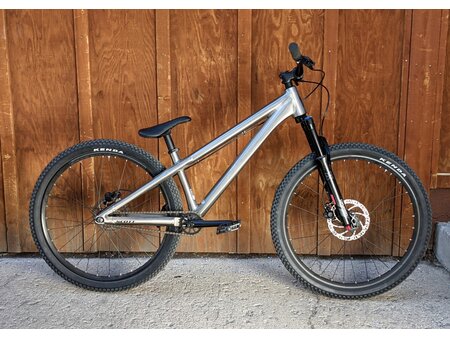

    Scott Voltage YZ 0.1 Dirt Jumper 26"

    26" Wheels | Hardtail/100mm Front | 68.5 ° Head Tube
    $1,399.99 $1,649.99
  4. 30% off
    Ride Concepts Ride Concepts Vice Mid Bike Shoes

    Ride Concepts Vice Mid Bike Shoes

    Low Volume | High Grip Rubber Outsole | 485 g / shoe
    $84.00 $120.00
  5. 30% off
    Fox Fox Flight Hardshell Helmet

    Fox Flight Hardshell Helmet

    $38.46 $54.95
  6. 15% off
    Kona Kona Shonky 26"

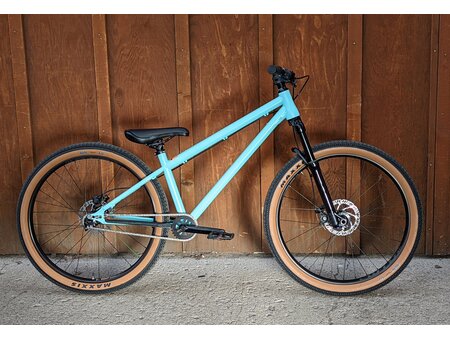

    Kona Shonky 26"
