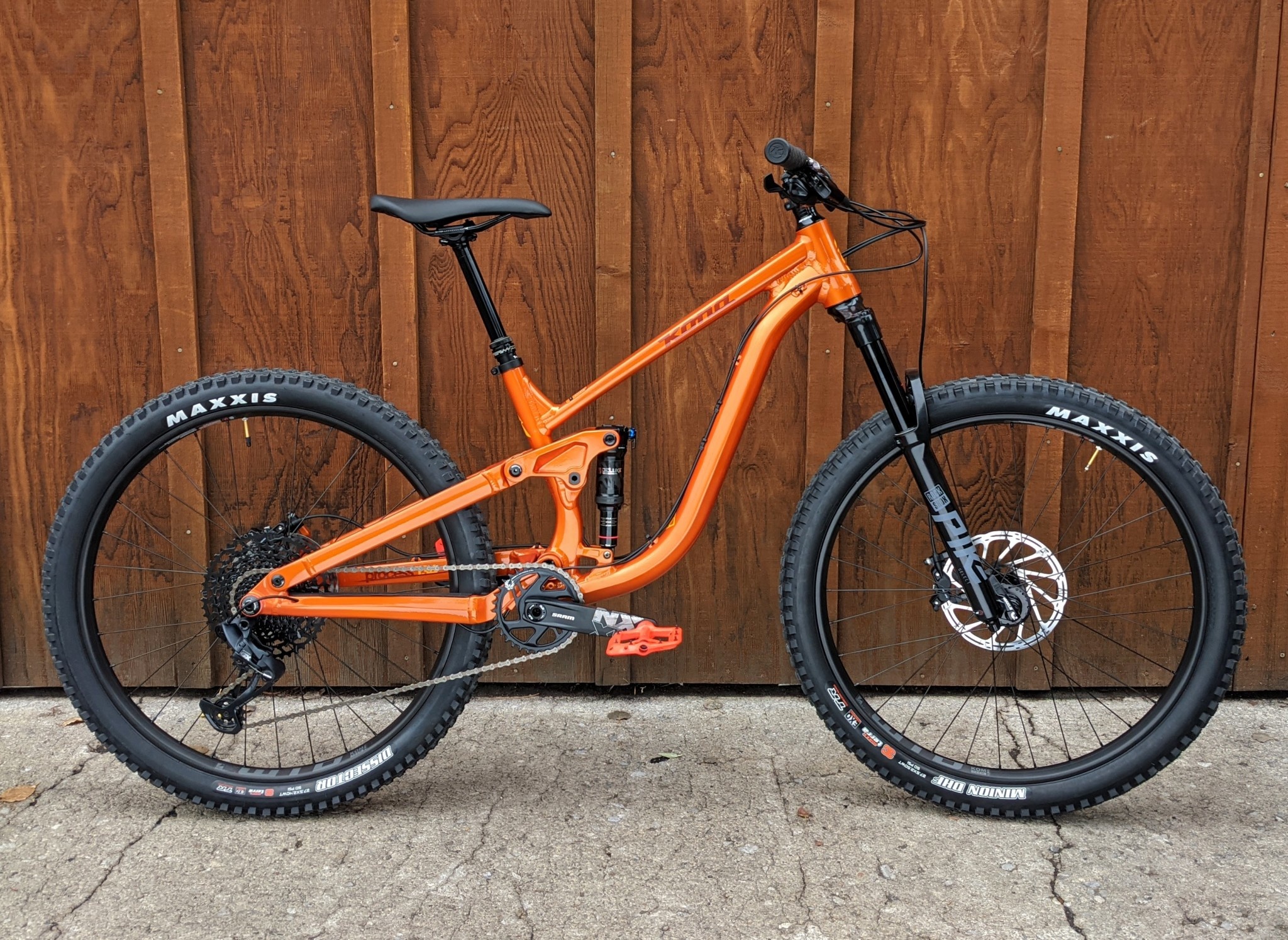

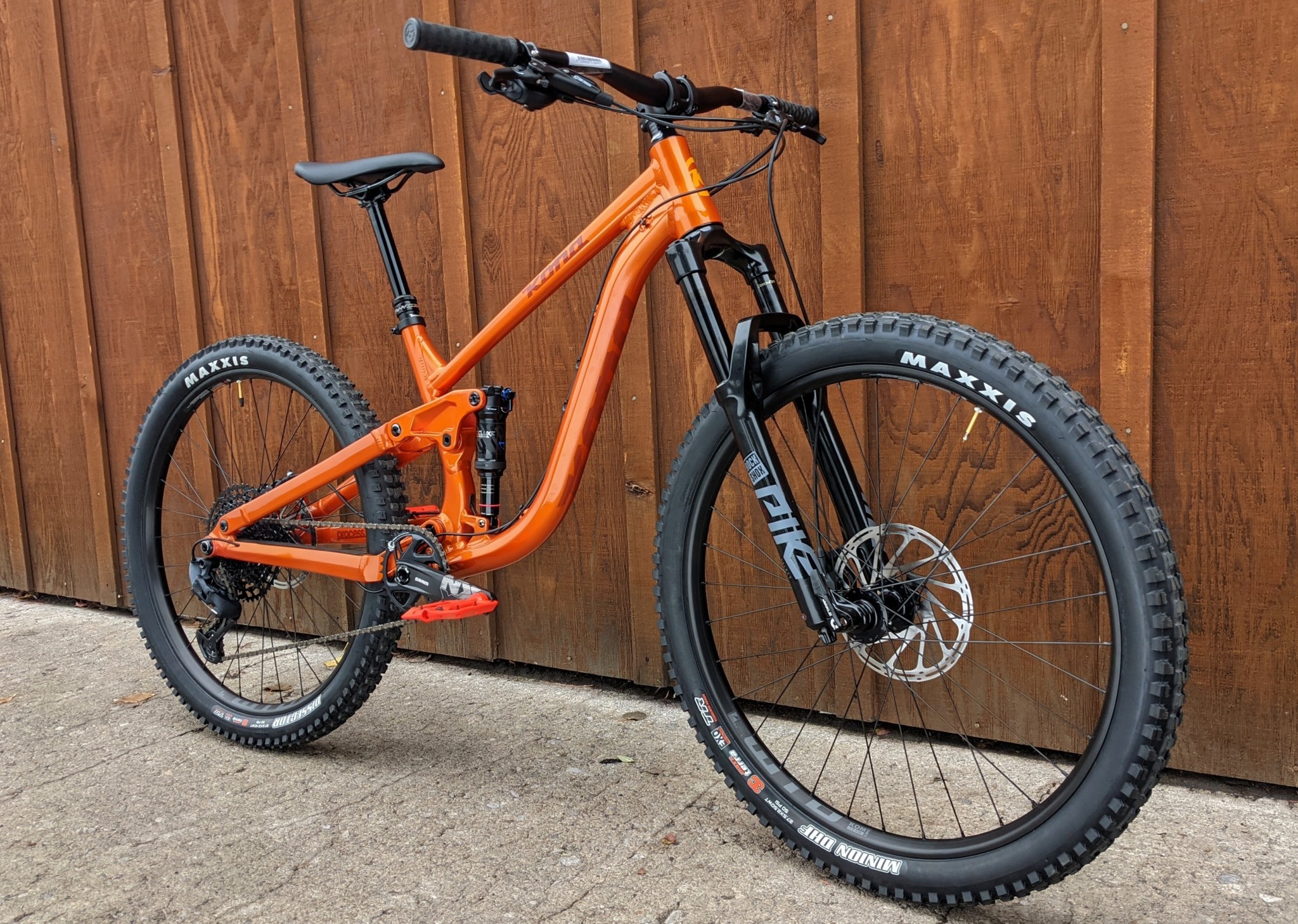

2022 Kona Process 134 DL 27.5"

$4,099.99 $2,869.99
Available in store: Check availability

Available in store

Close
27.5" Wheels | 134mm Rear/140 Front Travel | 66° HT
Add to cart
Delivery time: 5-7 Business Days
Frame Kona 6061 Aluminum Butted 134mm Travel
Wheel Size 29"
Travel 134mm Rear/140mm Front
Fork RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
Rear Shock SRAM DUB PF92
Headset FSA Orbit 1.5 EP ZS
Bottom Bracket SRAM DUB PF92
Shifter SRAM NX-Eagle
Rear Derailleur SRAM GX-Eagle
Cassette SRAM NX-Eagle 11-50t 12spd
Chain SRAM SX-Eagle
Chainring 34t X-Sync Eagle
Crankset SRAM NX Eagle DUB
Brakes SRAM G2 RS
Rotors SRAM Centerline 200mm Front | SRAM Centerline 180mm Rear
Seatpost TranzX Dropper +RAD Internal 31.6mm
Handlebar Kona XC/BC 35
Stem FSA Orbit 1.5 EP ZS
Grips Kona Key Grip
Saddle WTB Volt
Pedals N/A
Front Wheel Rim WTB KOM Team i30 TCS | Hub Formula 110x15mm | Spokes Stainless Black 14g
Rear Wheel Rim WTB KOM Team i30 TCS | Hub Formula 148x12mm | Spokes Stainless Black 14g
Front Tire Maxxis Minion DHF EXO TR 3C 27.5x2.5" WT
Rear Tire Maxxis Dissector EXO TR 3C 27.5x2.4" WT
Sizes XS, S, M, L, XL
FROM THE MANUFACTURER

You want a nice bike, but you’ve been hesitating to pull the trigger. What’s the right amount of travel? How can you be sure you’re getting great value? How do you know this bike is the only bike you’ll need? Because you gotta trust the Process, that’s why. The Process 134 DL 27.5 is thoughtfully put together to ensure every box is checked. It features a spec that puts the money where it matters: suspension, brakes, and drivetrain. It also comes in sizes XS-XL ensuring that no matter how tall or short you stand you’ll find a perfect fitting ride. It’s perfection in an entry level, high-end mountain bike.

FEATURES
  • Frame Material: Kona 6061 Aluminum Butted 134mm Travel
  • Wheels: WTB KOM Team i30 TCS
  • Front/Rear Suspension: 140/134mm

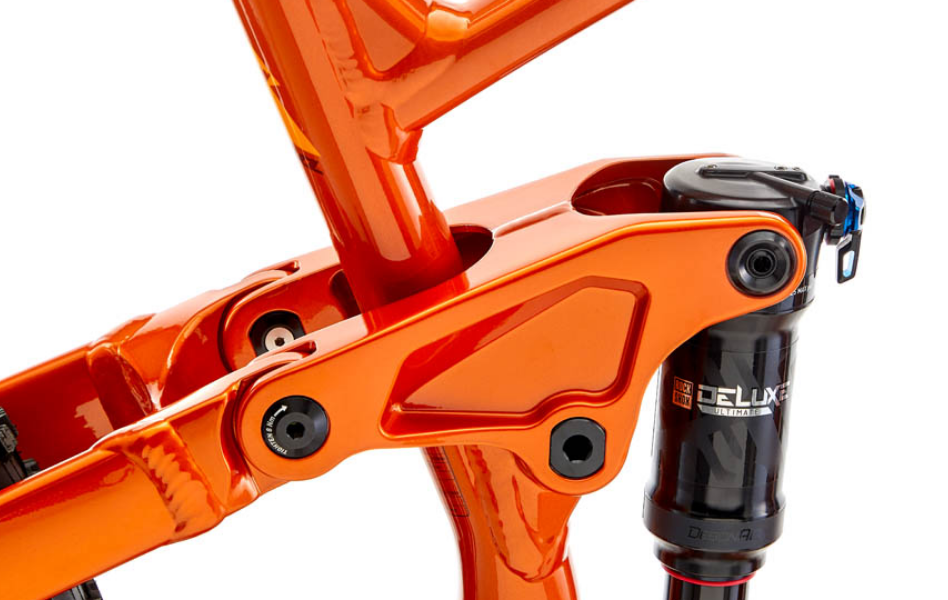

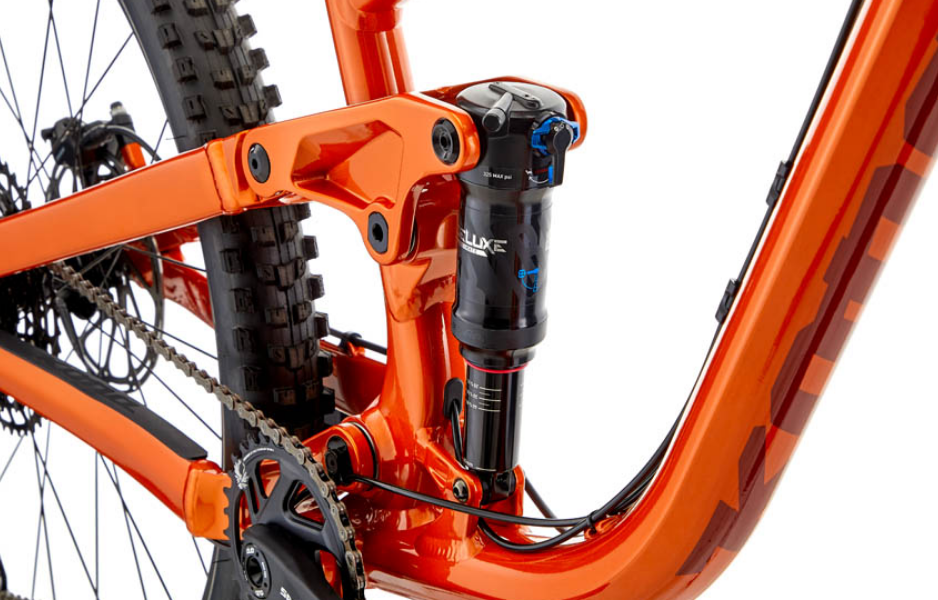

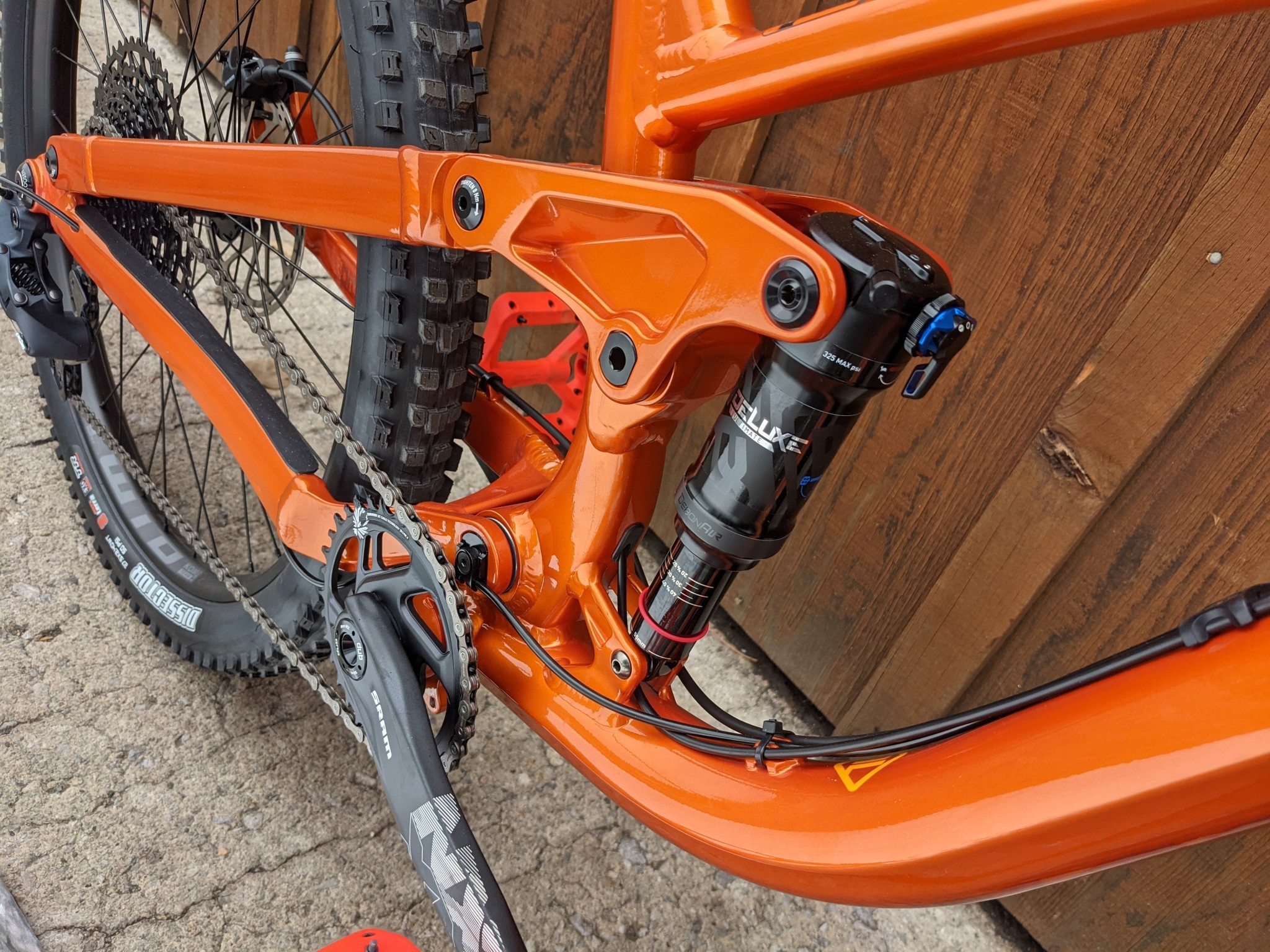

  • Rear Shock: RockShox Super Deluxe Ultimate Trunnion
  • Fork: RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
  • Drivetrain: SRAM NX Eagle 12spd
GEOMETRY & SIZING

KONA Geometry

  Size XS S M L XL
1 ST Length 360 385 410 450 485
2 TT Length 537 567 596 625 664
3 Reach 400 425 450 475 510
4 Stack 585 595 605 615 626
5 Standover 674 687 712 712 711
6 HT Angle 66
7 HT Length 116 127 138 149 160
8 ST Angle 76.8 76.6 76.5 76.3 76.2
9 CS Length 425
10 BB Drop 12
11 BB Height 343
12 Wheelbase 1131 1160 1190 1219 1259
13 Front Center 706 735 765 794 834
14 Fork Length 532
15 Fork Offset 46

Measured in mm
