Norco Rampage Team 26" | The BackCountry in Truckee, CA - The BackCountry

Open Daily 8a-6p | 530-582-0909 | [email protected]

Slideshow Items

Norco

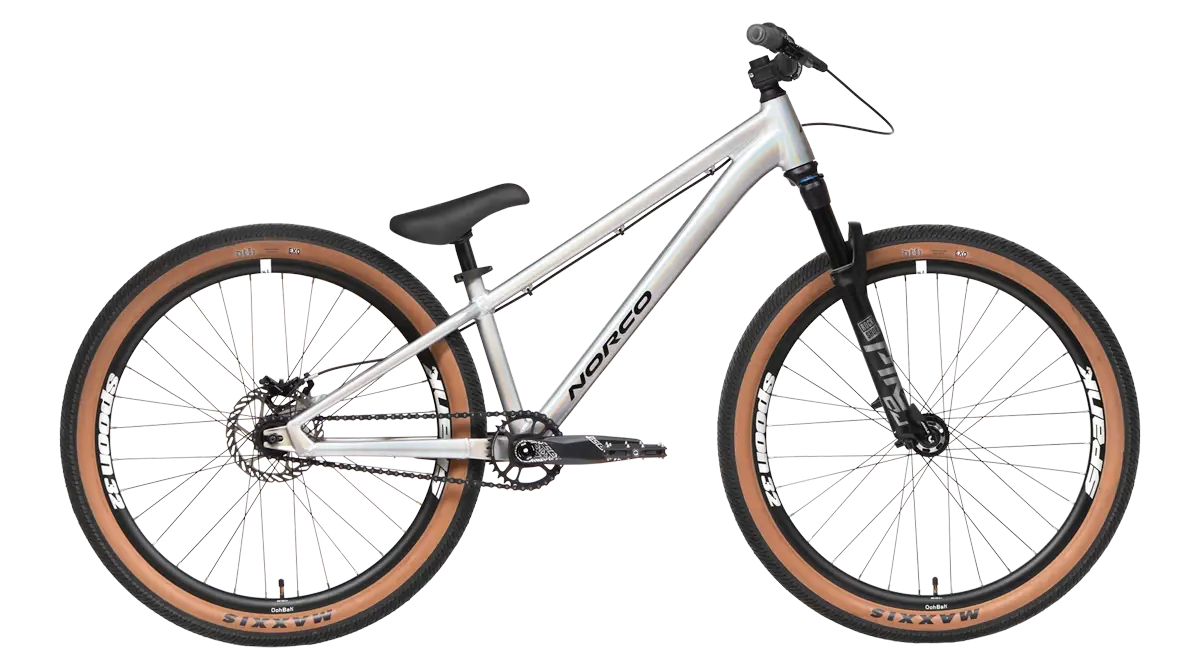

Norco Rampage Team 26"

$3,099.00
In store: Check availability

Available in store

SKU: 0800212655

Dirt Jumper | 100mm Front travel | Aluminum frame

Delivery time: 5-7 Business Days | *Bicycle shipping calculated at checkout.

Description

From the manufacturer



The Rampage Team is the ultimate evolution in Dirt Jumpers with a light frame that gets up to speed fast with the perfect mix of agility and stability.

It’s purpose-built for big air and features components hand-selected to rip.



Features



Smooth, seamless look for aluminum frame.

The classic light, stiff frame riders have come to rely on to as they push their progression looks smoother than ever with new custom hydroformed aluminum tubing - the welds are virtually invisible.



Frame features that allow you to push your potential.

Slotted dropouts offer low-profile chain tension adjusters, a tapered, gyro-compatible head tube adds strength and fork compatibility, and there’s now more tire clearance at the bottom bracket yoke.



Purpose-built for big air.

The frame has a super low standover with shorter chainstays for precision off the lip and more control in the air.



Components custom-selected for reliability.

Tough 2 & 3-piece cranks, BMX-style, compact single speed drivetrains, and disc brakes with lots of line for bar spins and tailwhips. Components are hand-picked for function with a BMX mindset so you can ride hard every day without second guessing.



No Other Way Limited Lifetime Warranty.

Rampage's durable frame design, hardware and component decisions have been made specifically to keep your Rampage on the dirt and in the streets for longer. Accidents can happen, and when they do, our No Other Way Limited Lifetime Guarantee is our promise to get you back on the trail as soon as possible.

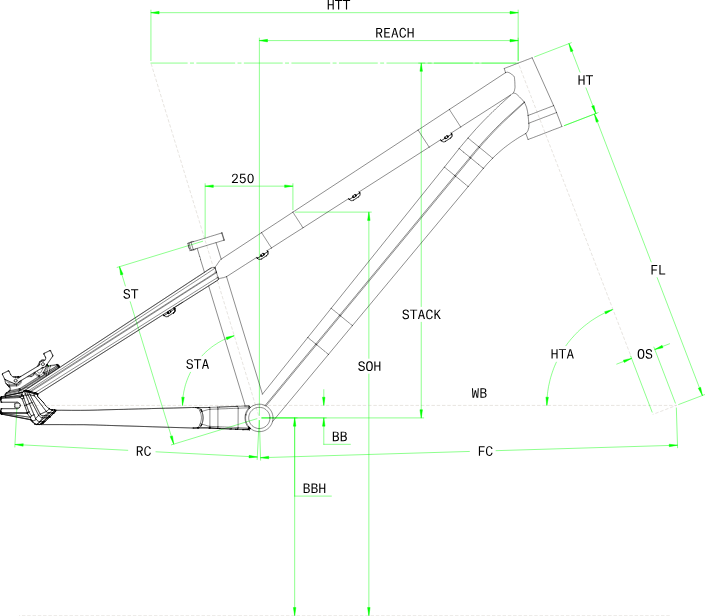

Geometry



  Frame size S M L
  Travel (mm front) 100 100 100
  Reach 380 405 430
  Stack 559 564 569
HTA Head Tube Angle 69° 69° 69°
OS Fork Offset 40 40 40
ST Seat tube length 300 300 300
STA Effective seat tube angle 73° 73° 73°
RC Rear center length 389 389 389
BB Bottom Bracket Rise/Drop -20 -20 -20
BBH Bottom Bracket Height 322 322 322
HTT Horizontal Top Tube 551 577 604
WB Wheelbase 1018 1045 1072
SOH Standover 581 576 577
HT Head Tube Length 110 115 120
  Trail 88 88 88
  Stem Length 35 35 35
  Crank Length 170 170 170
  Tire Size 2.0-2.3" 2.0-2.3" 2.0-2.3"



Specifications

Frame X6 Aluminum DJ 26"
Fork RockShox Pike DJ, 100mm Travel, Solo Air
Headset FSA Sealed Bearing, Tapered
Rear Derailleur N/A
Cassette 14T Single Speed
Chain KMC Z1, Black
Crankset Truvativ Descendant, 30T, 170mm (S, M), 175mm (L)
Bottom Bracket SRAM DUB, BSA
Pedals VP 539 resin flat, metal pins
Grips Norco, Small Flange
Handlebar Spank Spoon, 385mm, 40mm Rise
Stem Spank Spoon, 40mm Length, 31.8mm Clamp
Seatpost Pivotal Stealth II, 6061 Aluminum, 27.2mm
Seatpost Clamp Alloy QR
Saddle Norco/Pivotal thick padded, grip cover
Front Brake Tektro MD-280 Mechanical Disc
Rear Brake SRAM Guide T, extra long 1800mm hose
Brake Levers Tektro Front, SRAM Guide Rear
Front Hub Novatec Sealed Bearing, 15x100mm, 6 Bolt
Rear Hub Novatec Sealed Bearing, Single Speed Cassette, 6 Bolt
Rims Spank Spoon, 26", 32H
Spokes/Nipples Sapim Stainless, Black
Front Tire Maxxis DHT folding 2.3
Rear Tire Maxxis DHT folding 2.3
