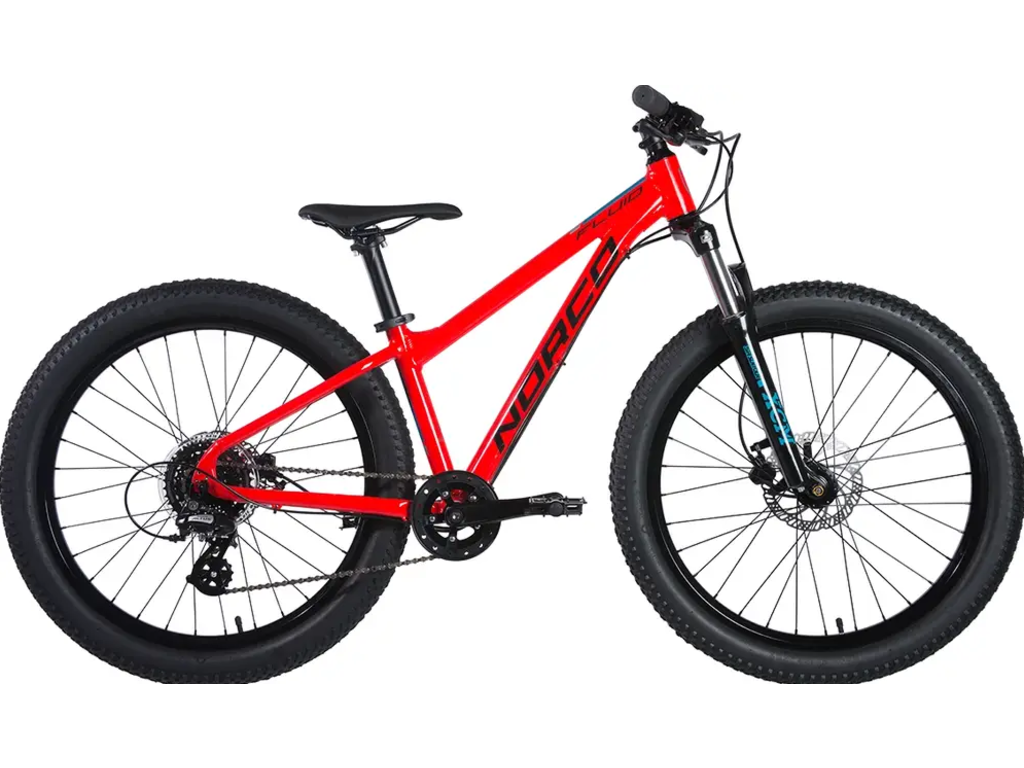

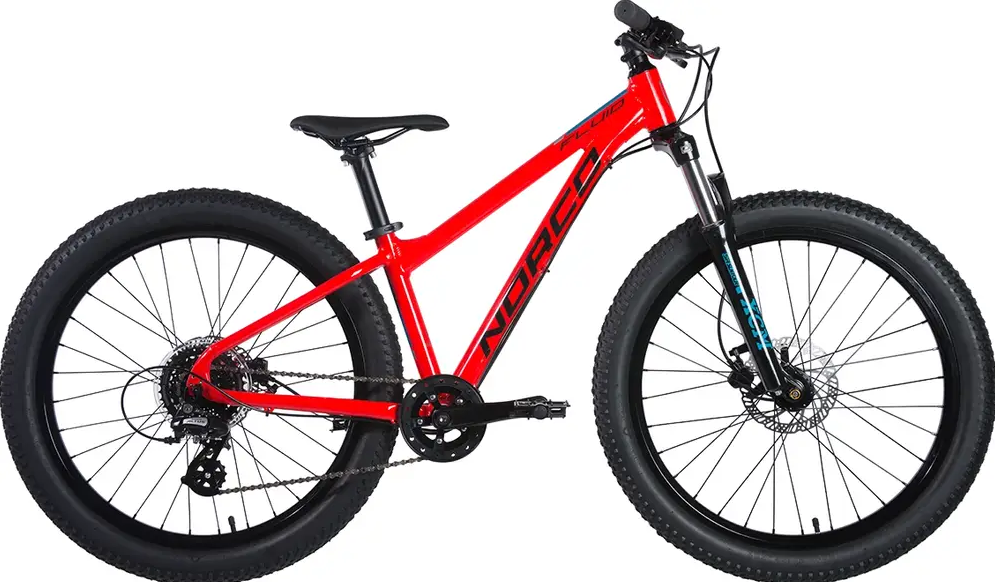

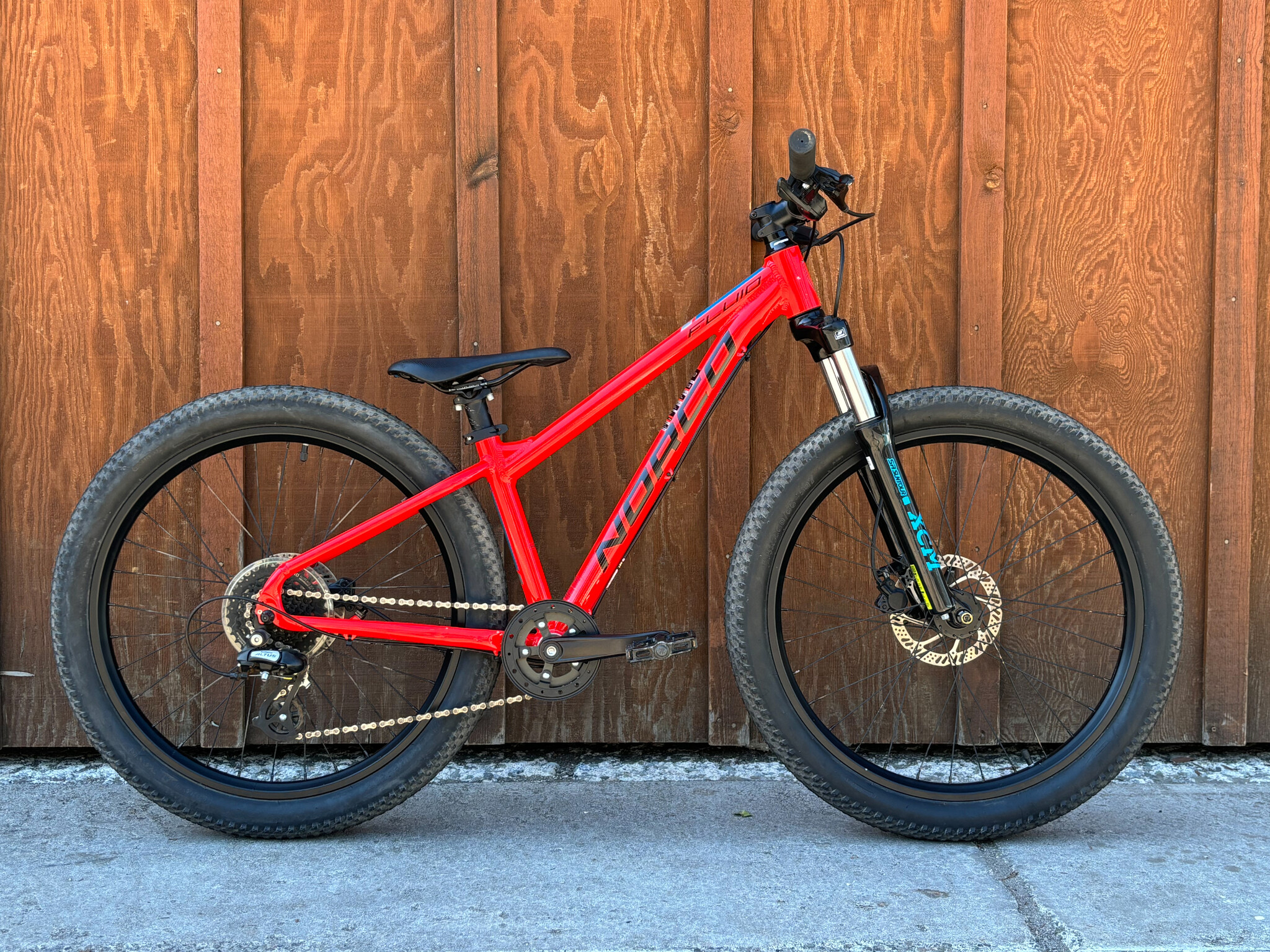

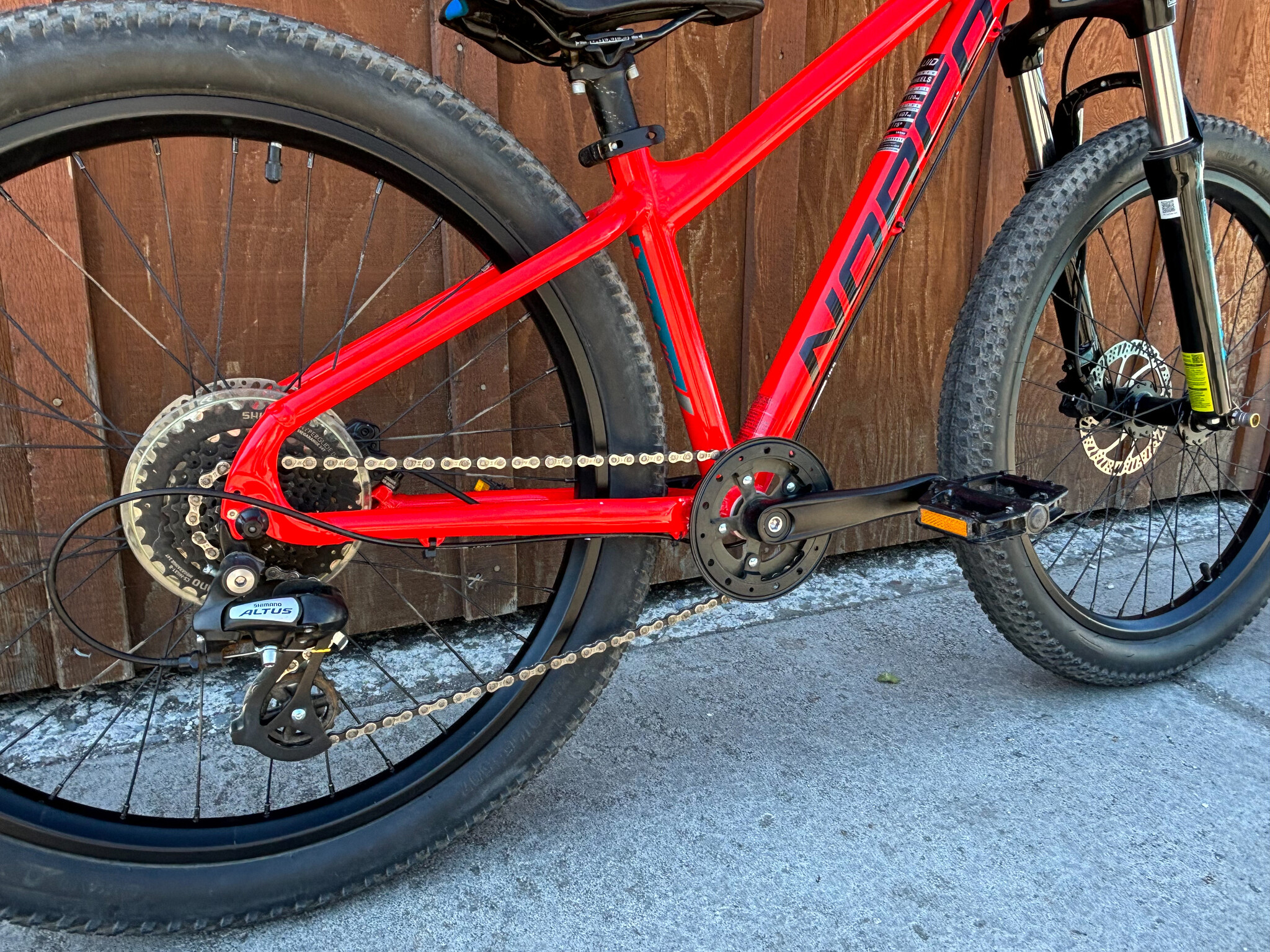

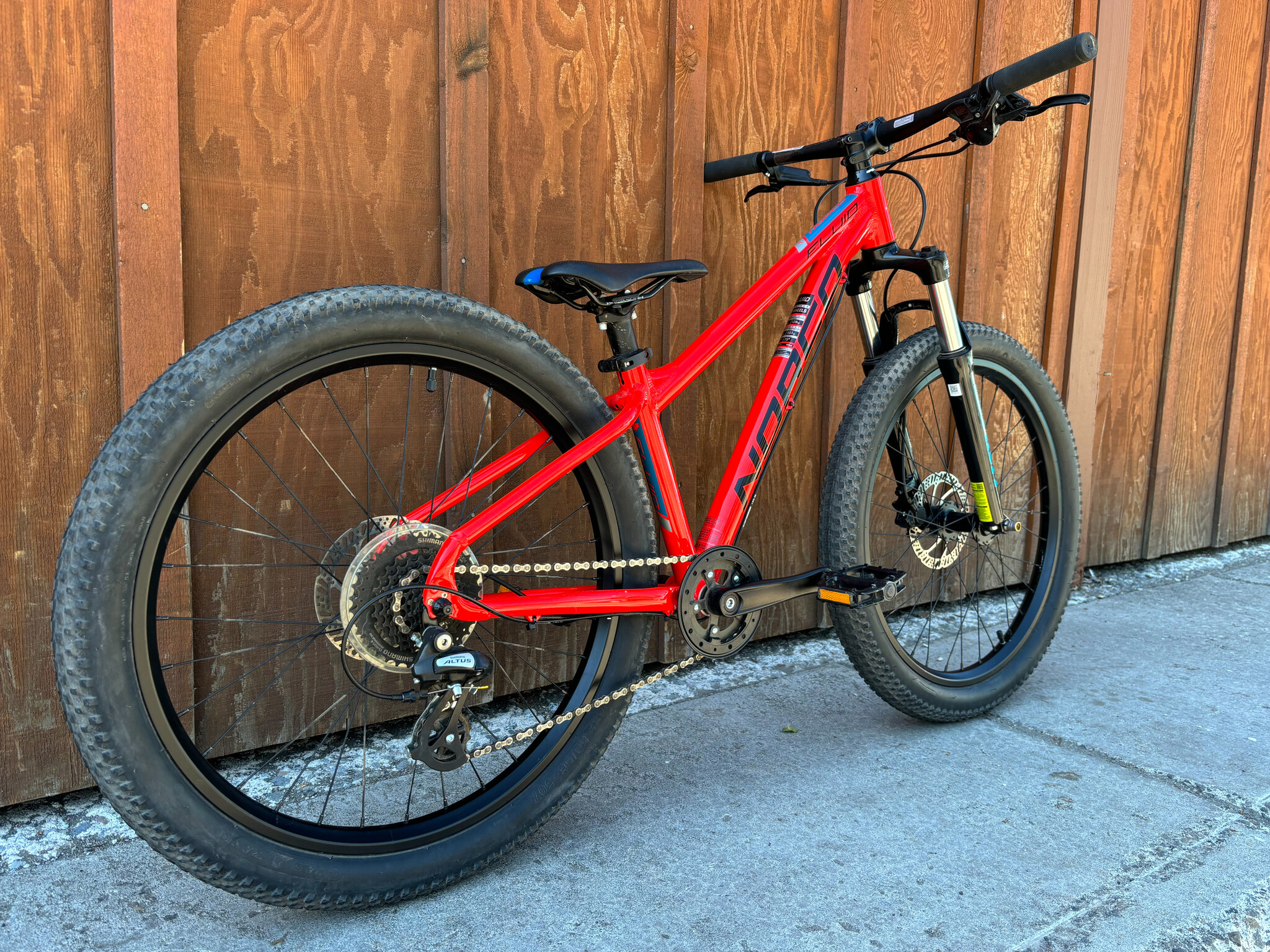

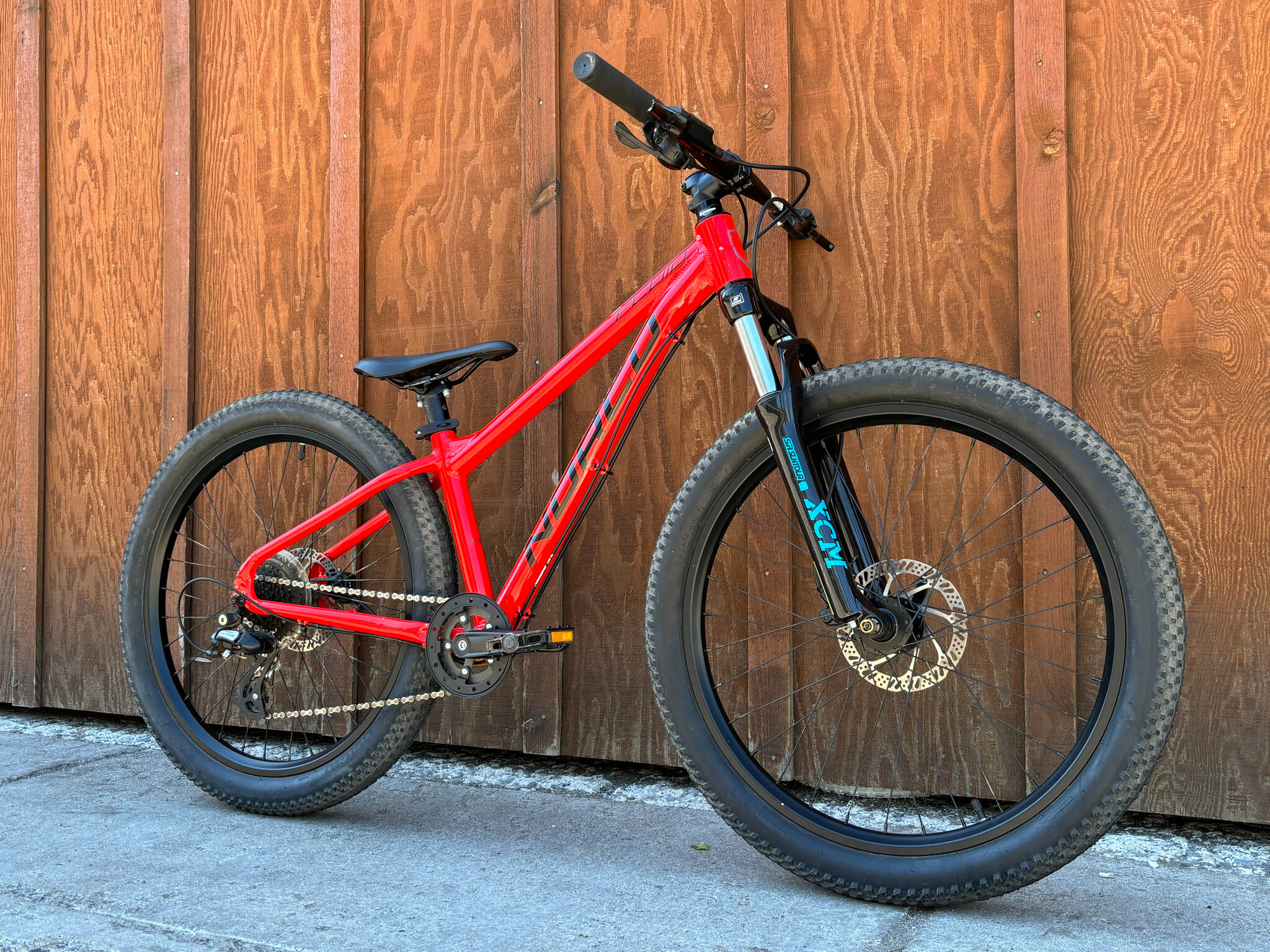

2023 Norco Fluid HT+ 4.3 24" Red

$939.99
Available in store: Check availability

Available in store

Close
24" Wheels | 80mm Front Travel | 69° HT
Add to cart
Delivery time: 5-7 Business Days
Frame Aluminum
Wheel Size 24"
Travel 80 mm front
Fork SR Suntour XCM 24+
Rear Shock None
Headset FSA No.10P
Bottom Bracket Sealed cartridge, 73mm English/BSA threaded
Shifter Shimano Altus, RevoShift, 8-speed
Rear Derailleur Shimano Altus M310, 8-speed
Cassette Shimano Altus HG31, 8-speed, 11-34 tooth
Chain KMC Z7, 8-speed
Chainring 28T
Crankset 3-Piece, 152mm length
Brakes Tektro HD-M286, hydraulic disc | Levers: Tektro HD-M286, short reach
Rotors N/A
Seatpost Norco, alloy
Handlebar Norco Jr., 660mm width, 15mm rise
Stem Norco, alloy, 35mm length
Grips Norco Jr.
Saddle Norco Jr. MTB
Pedals VP Alloy Flat Jr. BMX
Front Wheel Rims : Alloy, 35mm inner width | Hubs: Alloy, 110mm Boost front | Spokes : Stainless steel
Rear Wheel Rims : Alloy, 35mm inner width | Hubs: Alloy, 10x135mm rear | Spokes : Stainless steel
Front Tire Chaoyang MTB, 24" x 2.6"
Rear Tire Chaoyang MTB, 24" x 2.6"
Sizes 24"
FROM THE MANUFACTURER

A 24″ aluminum frame mountain youth bike with modest components and hydraulic disc brakes, priced near the low end of the Fluid model range.

FEATURES
  • 8 Speed
  • Shimano Altus
  • 80 mm of travel
GEOMETRY
Size
Wheels 24″
Stack 553
Reach 320
Stack/Reach Ratio 1.73
Top Tube Length 500
Seat Tube Length 320
Seat Tube Angle 72
Head Tube Length 90
Head Tube Angle 69
BB Drop 47
BB Height 274
Front Center 559
Chainstay Length 385
Wheelbase 939
Rake 40
Standover Height 699
