2021 Mondraker Factor 26" Black/Silver

$2,499.99
Available in store: Check availability

Available in store

Close
26" Frame & Wheels | 120mm Rear/120 Front | 67º HT
Add to cart
Delivery time: 5-7 Business Days
Frame Factor 26 6061 Alloy Stealth Evo
Wheel Size 26"
Travel 120mm Rear/120 Front
Fork X-Fusion Velvet RL2 26, 120mm, Motion control, air spring, tapered steerer tube, 9x135mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Rear Shock X-Fusion 02PRO R, 210x55mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Bottom Bracket Sram DUB BSA, sealed bearings, 73mm
Shifter Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Rear Derailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Cassette Sram PG-1230, 11-50T, 12s
Chain Sram SX Eagle, 12s, Powerlock
Chainring 30T
Crankset Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm
Brakes Shimano M4100, resin pads
Rotors RT56 160/160mm IS 6 bolts rotor
Seatpost Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Handlebar SDG Slater, double butted 6061 alloy, rise: 20mm, width: 650mm, 5º backsweep, 8º upsweep, 31.8mm barbore with 4x19mm shims
Stem Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Grips SDG Slater JR D19mm, 115mm
Saddle SDG Fly JR
Pedals N/A
Front Wheel MDK-XP1 26 TLR, 23mm internal width (Hub: Formula DC20LW, 9x135mm, cup & cone ball bearings, IS 6 bolts)
Rear Wheel MDK-XP1 26 TLR, 23mm internal width (Hub: Formula DC20LW, 9x135mm, cup & cone ball bearings, IS 6 bolts)
Front Tire Kenda Booster 26x2.4 single compound 30TPI, wire bead
Rear Tire Kenda Booster 26x2.4 single compound 30TPI, wire bead
Sizes One size: 350mm
FROM THE MANUFACTURER

At Mondraker we want every rider to have the best mountain bike experience possible. . That’s why we’ve designed the Factor 26 specifically to give our legendary full suspension performance to riders who don’t quite fit a full-sized bike. The new super light Stealth Alloy frame with 26in wheels makes the most of younger legs. 120mm travel Zero Suspension and a custom tuned X-Fusion Velvet RL fork amplify skill and back up bravery on the toughest trails. SRAM SX Eagle 12-speed drivetrain crushes climbs – and Shimano hydraulic disc brakes dominate descents. Junior-dialled Forward Geometry and Mondraker Kids equipment ensure confidence and comfort. If you’re looking for the ultimate fun Factor, in a compact package… here it is.

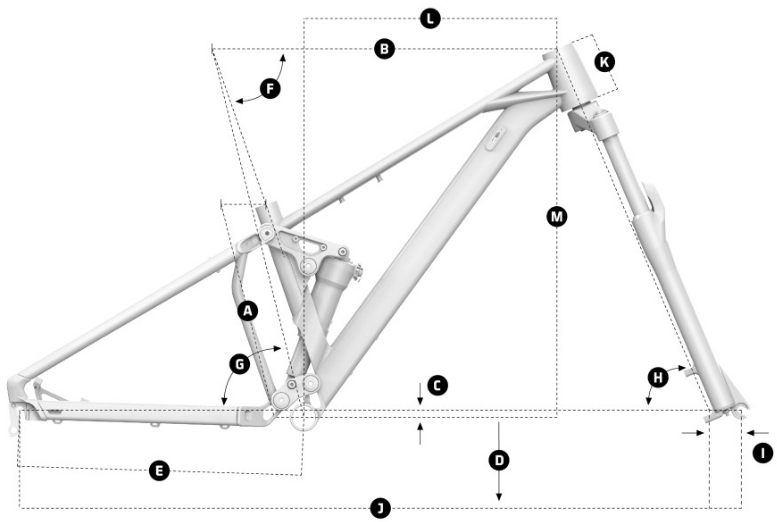

GEOMETRY & SIZING



    Factor 26
A Seattube length 350
B Toptube length 550
C Bottom bracket drop -10
D Bottom bracket height 320
E Chainstay length 420
F Seat tube angle 71º
G Effective seattube angle 76º
H Headtube angle 67º
I Fork Offset 39
J Wheelbase 1105
K Headtube length 90
L Reach 415
M Stack 545

Measured in mm
