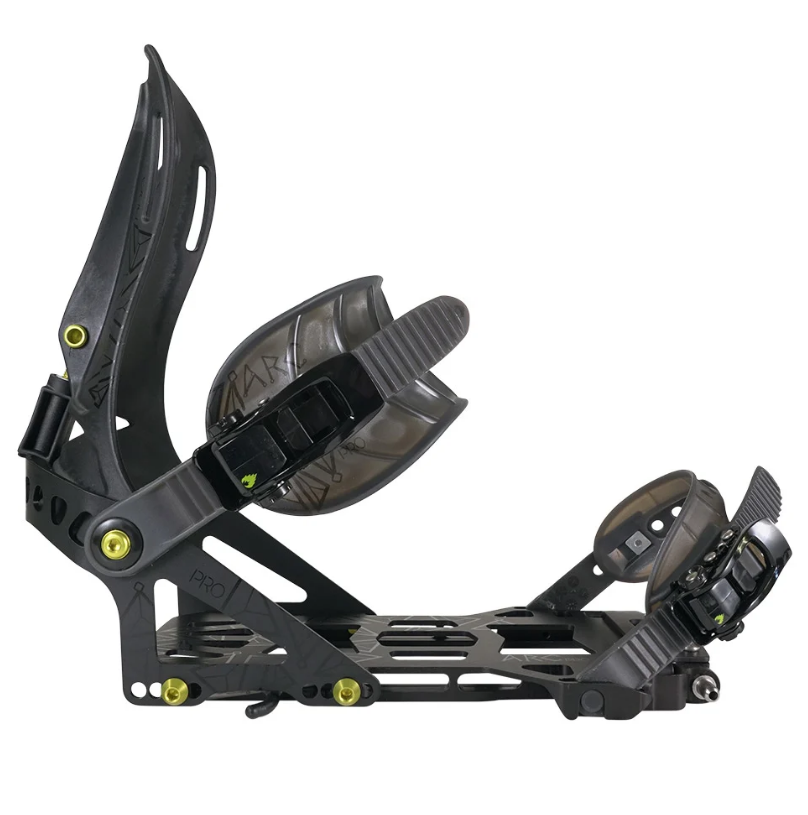

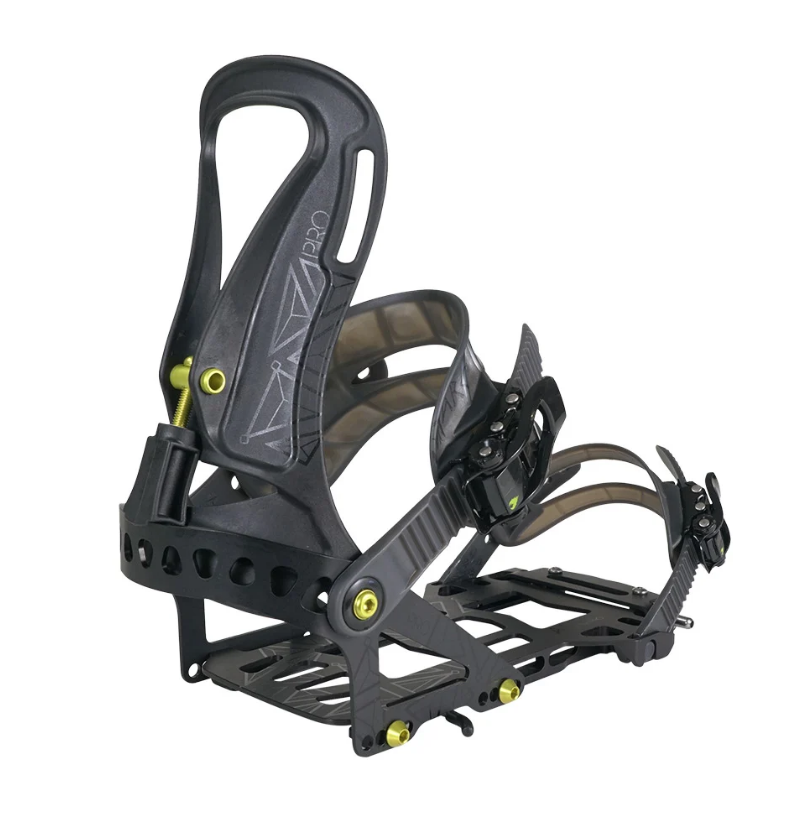

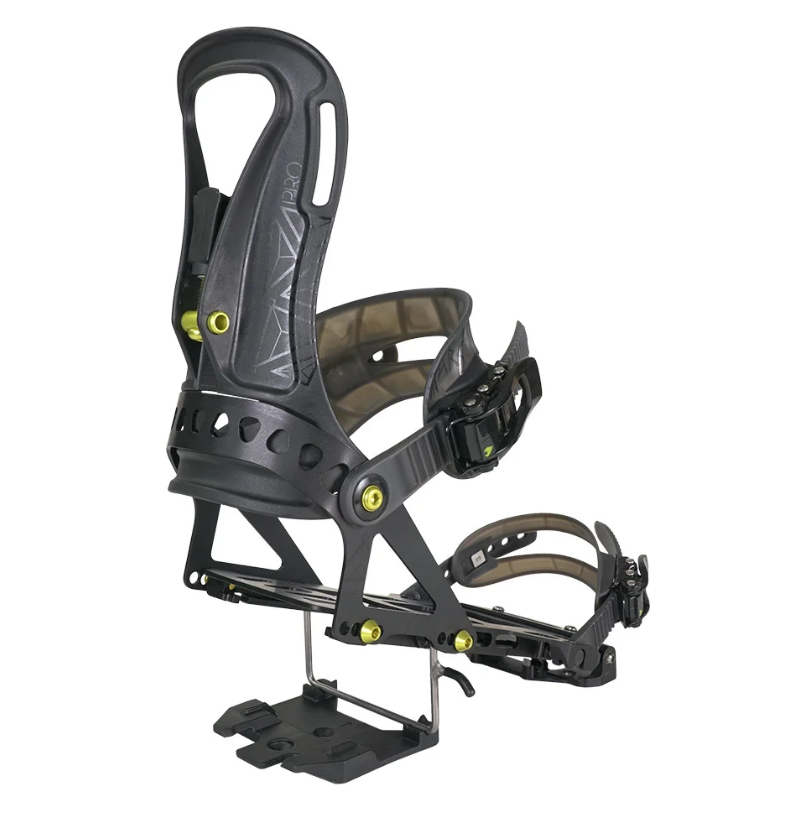

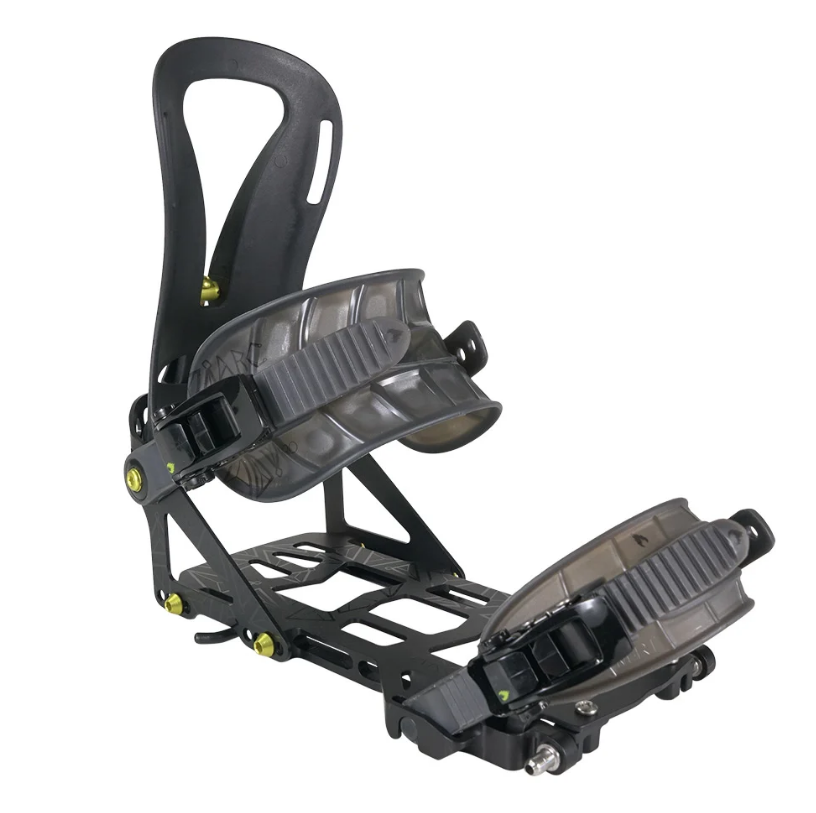

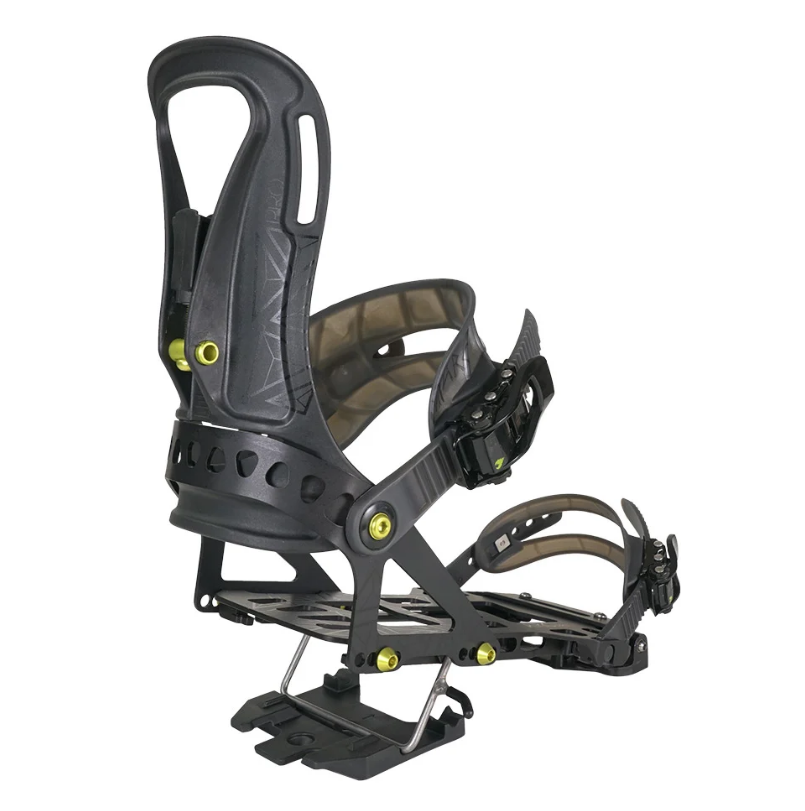

Spark R&D Arc Pro Splitboard Bindings

Pebax® Pillow Line Straps
Arc Pro Pillow Line Straps are made with Pebax® plastics, a premium material most often found in high-end ski boots as it provides consistent stiffness and improved toughness in cold temperatures while being 20% lighter. Like our standard pillow line straps, they are ultradurable, comfortable, waterproof, one-piece molded construction, and produced 100% in-house. Strap pillows are thin and flexible for a comfortable, conformed fit, while thicker ribs are held off the boot and provide support for a uniquely responsive ride. Arc Pro ankle straps are smaller around the boot than the Surge Pro and feature a flex window for max agility while maintaining support. The toe straps come in one construction for both Arc Pro and Surge Pro models, and are designed to be used as a toe cap but also fit traditionally over the top.

Carbon Reinforced Highbacks
The Arc Pro Rip ‘N’ Flip highback is made from carbon reinforced nylon in a ratio designed for medium flex and a surfy feel. This material blend is more responsive, lighter, and stiffer than our standard glass reinforced highbacks. All Rip ‘N’ Flip highbacks incorporate a tool free forward lean adjuster (FLAD) for complete customization from 0° to 22° in ride mode. The Forward Lean Adjuster toggles easily between forward lean position and -13° touring position for easy transition

Whammy Bar Climbing Wire
A single fatty climbing wire is built into the baseplate with a side arm lever for easy position changes on the steeps. You can switch easily from stowed, to low (12°), to high (18°) and back again while touring.

Weight savings add up by replacing stainless steel hardware with custom-made 7075-T6 aluminum hardware. Aluminum parts are 65% lighter than our standard stainless steel parts and are made with hex drives instead of phillips heads which are less likely to strip.

Slide them on and snap the ramp down. Snap the ramp up and slide them off. The most functional way to attach your binding to your board in ride mode. Period. Spark R&D bindings are designed to work with all puck compatible splitboard models. When used with Arc Pro bindings conveniently access puck screws with the bindings in place for precise stance adjustment. Spark R&D offers a flat and a 3° canted puck model. Note that pucks do not come with the bindings out of the box and must be purchased separately.

Snap Ramps, Touring Brackets, & Pivot Pins
T1 System bindings slide sideways into the offset Tesla touring bracket and are locked into place with our snap ramp. No pins, no cables, no fiddle factor. Integrated Ibex crampon mounting claws on touring brackets make for quick and easy installation and removal. Pivot pins have been hollowed out and are 33% lighter than standard pins.

Buckles & Pebax® Plastics
Ladders and adjusters are produced in-house with Pebax® premium thermoplastics which maintain flex over a wide temperature range, performing well on spring tours as well as sub-zero suffer fests. It's also 20% lighter than our standard material. All straps incorporate Burton's time-tested bomber buckles.

The T1 Heel Rest catches the climbing wire in the 12° and 18° positions and is specifically designed to hold the T1 Step Locker in place.
