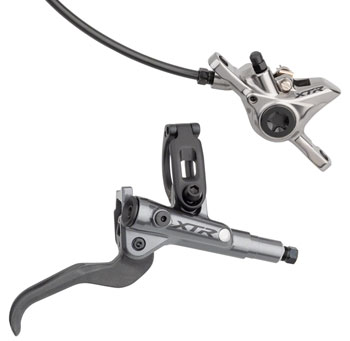

Shimano XTR BL-M9100/BR-M9100 Disc Brake and Lever Rear Hydraulic Post Mount Gray

$324.99 $292.49

Shimano

•••••

Article code br0777

Available in store: Check availability

Cross Country | 2 Piston | One Way Bleeding | I-SpecEV

Financing Available

Full Service Repair Shop

Shop Sale

Description
Reviews

FROM THE MANUFACTURER

With a focus on reduced weight and cross-country tuned stopping power, the SHIMANO XTR BL-M91000 lever provides intuitive modulation so that you can explore your limits with confidence. The XTR M9100 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and a pair of ceramic pistons for perfect, Rider Tuned stopping power.

FEATURES

Lever

Seamless operation
Quicker rebound between actions maintains rider concentration
Greater flexibility and action-optimized cockpit layout
Update brake lever shape
High rigidity
10% Stiffer than M9000 even under high temp conditions
Lightweight
Magnesium master cylinder
26g lighter (vs. BL/BR-M9000 with disc brake rotor)
Quicker brake engagement with shorter free stroke

Caliper

High-performance brake control
Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000
High rigidity
New high rigidity brake hose and 1-piece aluminum caliper
Lightweight
26g lighter (vs. BL/BR-M9000 with disc brake rotor)
Straight hose connection

SPECIFICATIONS

Lever		Caliper
MODEL NO	BL-M9100	MODEL NO	BR-M9100
SERIES	XTR M9100 Series	SERIES	XTR M9100 Series
Color	Series color	Color	Series color
Average weight	312	Average weight	312
Brake hose color (kit)	Black	Remarks	** Titanium
Brake hose (Kit)	SM-BH90-SS	Brake hose color (kit)	Black
Brake type	Hydraulic disc brake	Brake hose (Kit)	SM-BH90-SS
Hose joint	Straight	Brake type	Hydraulic disc brake
Brake hose (Kit)	SM-BH90-SS	Caliper fixing bolt_Anti loosen method	Wiring
Brake hose color (Kit)	Black	Caliper fixing bolt_Tool size	** 4 mm
Brake Type	Hydraulic disc brake	Caliper_MONO-BODY	✔
Clamp band_Open clamp band	✔	Hose joint	Straight
Compatible shifting lever mount_I-SPEC EV	✔	J-Kit spec (for OEM)	✔
Funnel bleeding	✔	Mount type	Post-type
Hose joint	Straight	Oil	SHIMANO Mineral
J-Kit spec (for OEM)	✔	ONE WAY BLEEDING	✔
Lever size (finger)	2	Pad_Standard	K03Ti Resin pad
Oil	SHIMANO Mineral	Pad mount	Pad axle
Reach adjust_Tool	✔	Piston	2
Recommended brake caliper	BR-M9100 BR-M9110	Recommended brake lever	BL-M9100
Compatible shifting lever mount_Clamp band	✔	Recommended disc brake rotor	RT-MT900
Clamp band_Open clamp	✔	J-Kit spec (for OEM)	✔
Shifting lever rotation angle adjust range (deg.) : I-SPEC EV	60	Oil	SHIMANO Mineral
