From the manufacturer

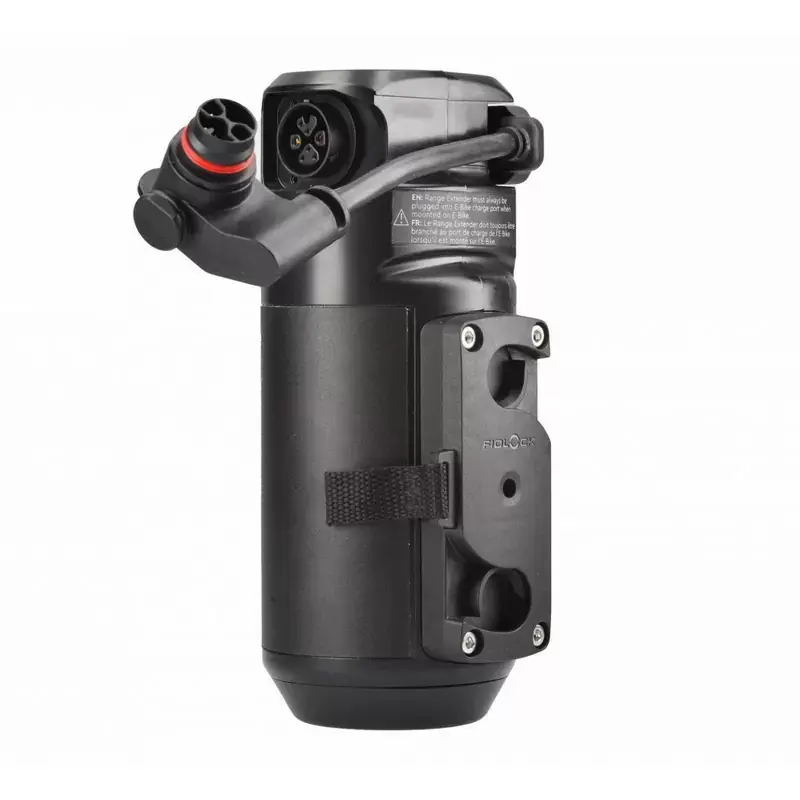

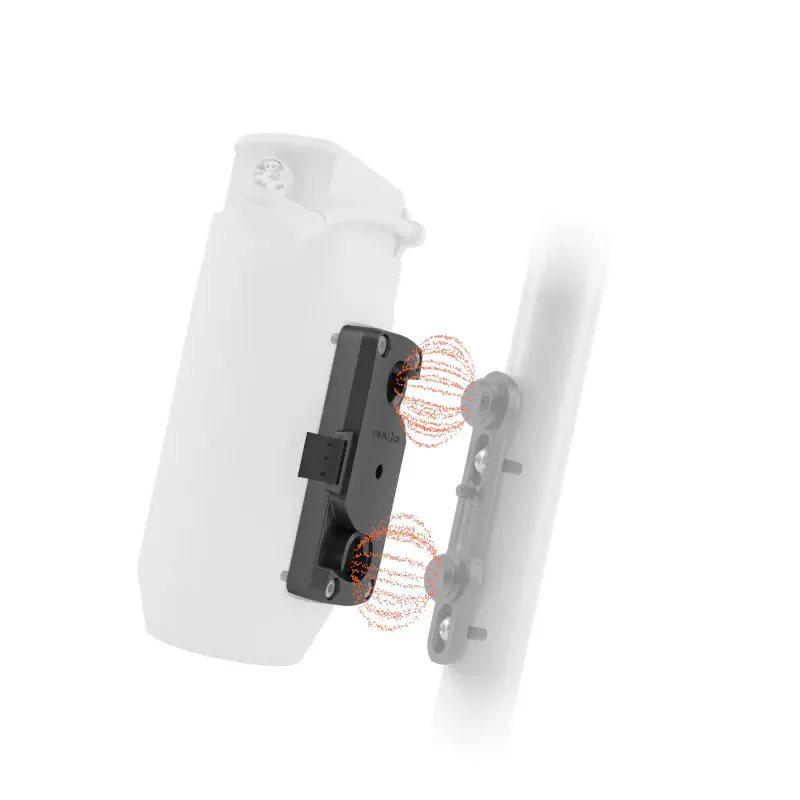

The new TWIST force connector is the perfect addition to a TQ e-bike battery range extender. It offers secure and rattle-free battery mounting thanks to a clever locking mechanism. Together with the TWIST force connector, a TQ e-bike battery range extender becomes TWIST system ready, which enables the range extender to be attached and removed flexibly and quickly.

Features

The TWIST force connector for range extender is compatible with:
TQ HPR Range Extender V01 160 Wh (für TQ HPR50 Antrieb)
- make your range extender TWIST system ready
- secure hold thanks to locking mechanism
- easy to attach with screws

Technical data:
- compatibility: all firmly screwed TWIST bases
- turning direction: counterclockwise max.
- dimensions: 46 x 100 x 17 mm
- screws: 4x M4x16, DIN 912 / ISO 4762
- weight: 72 g
