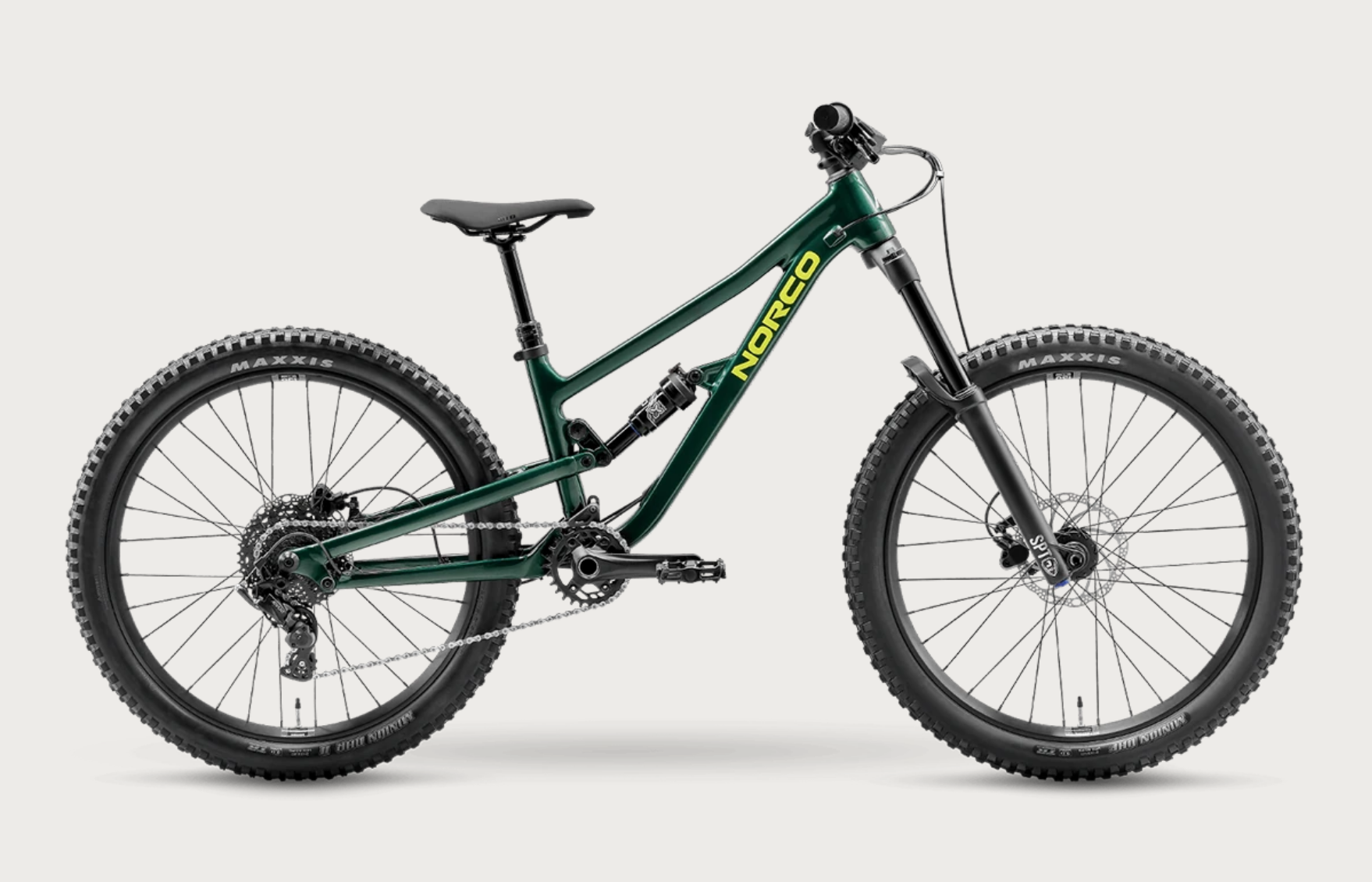

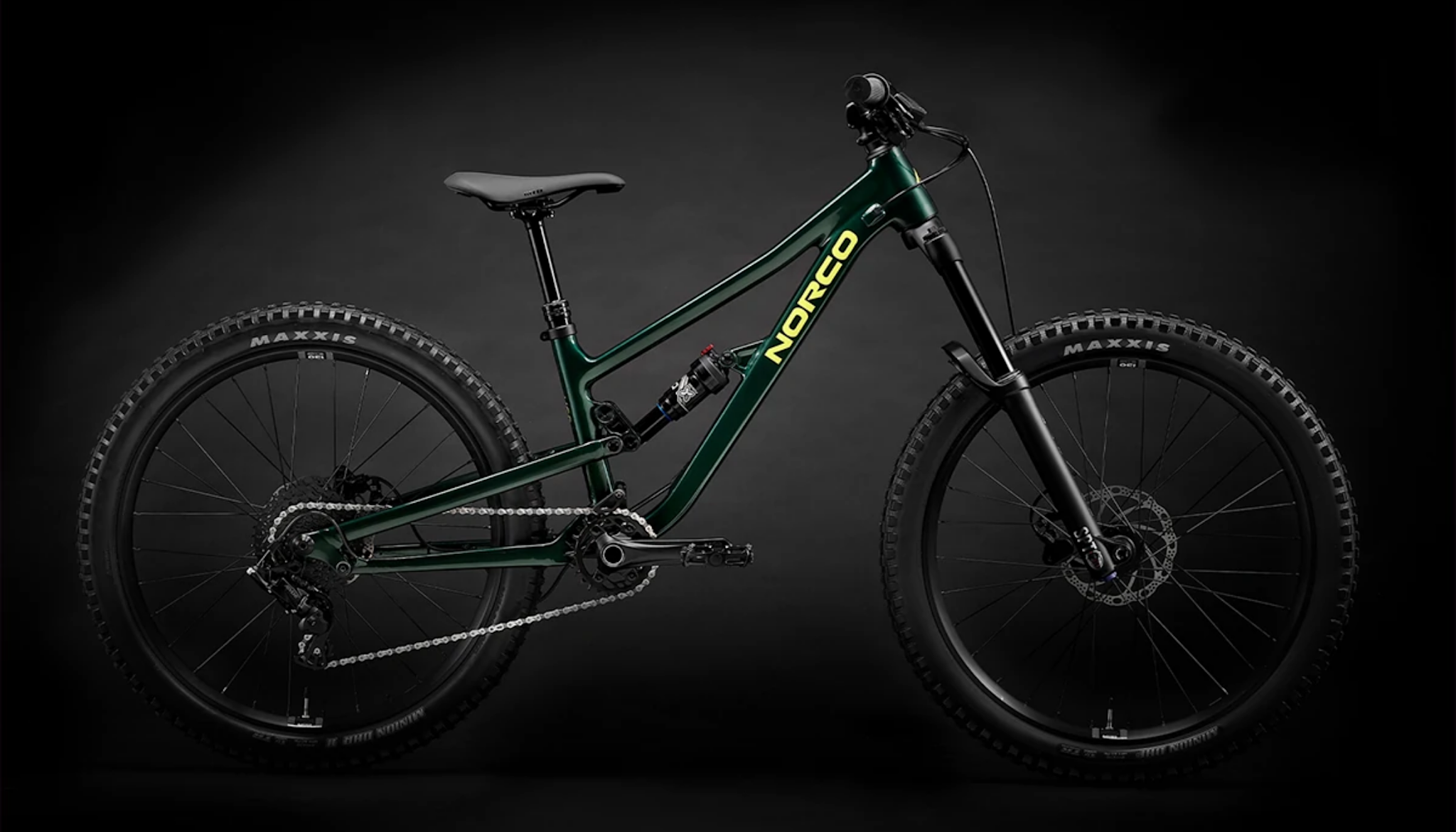

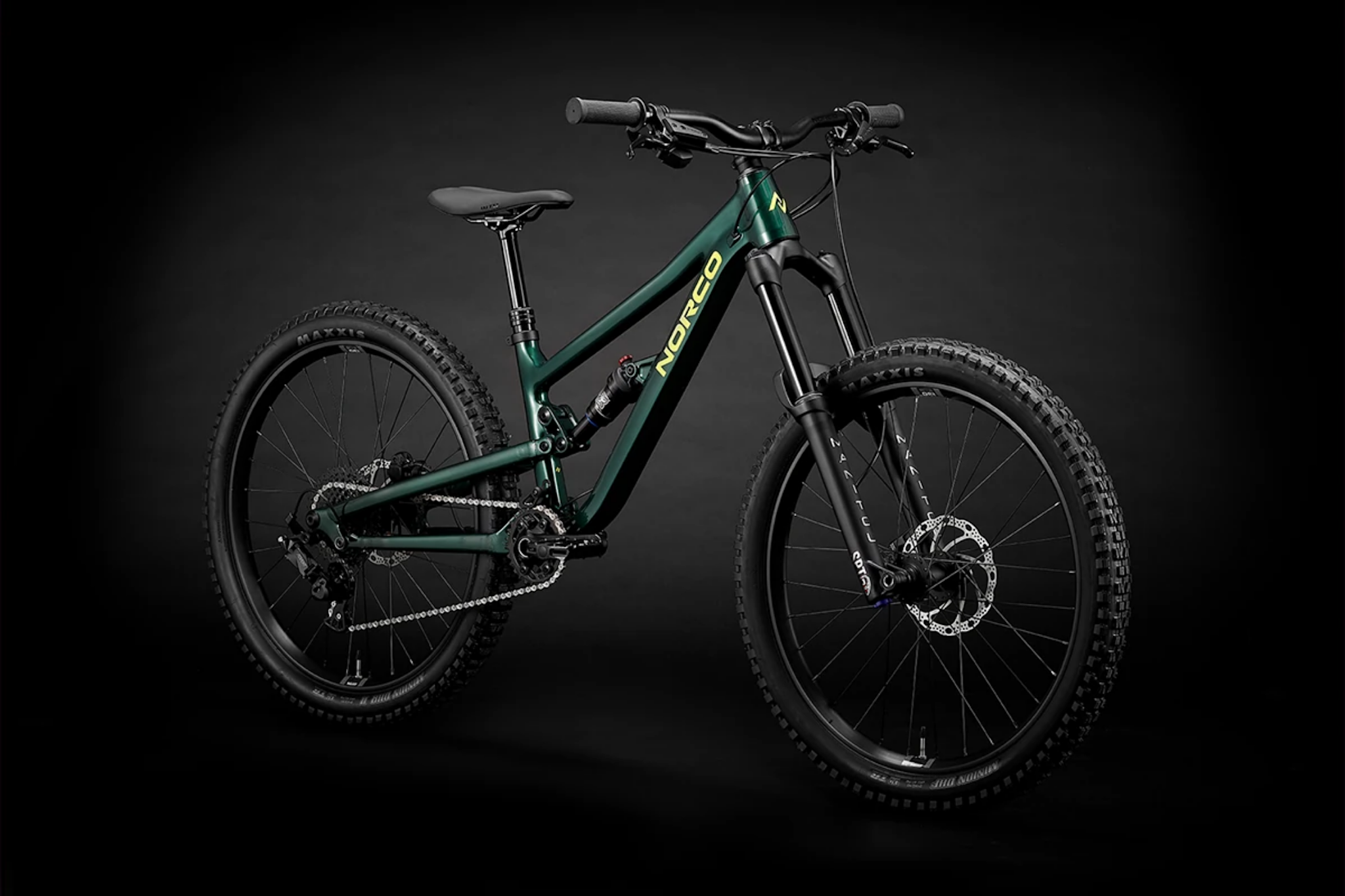

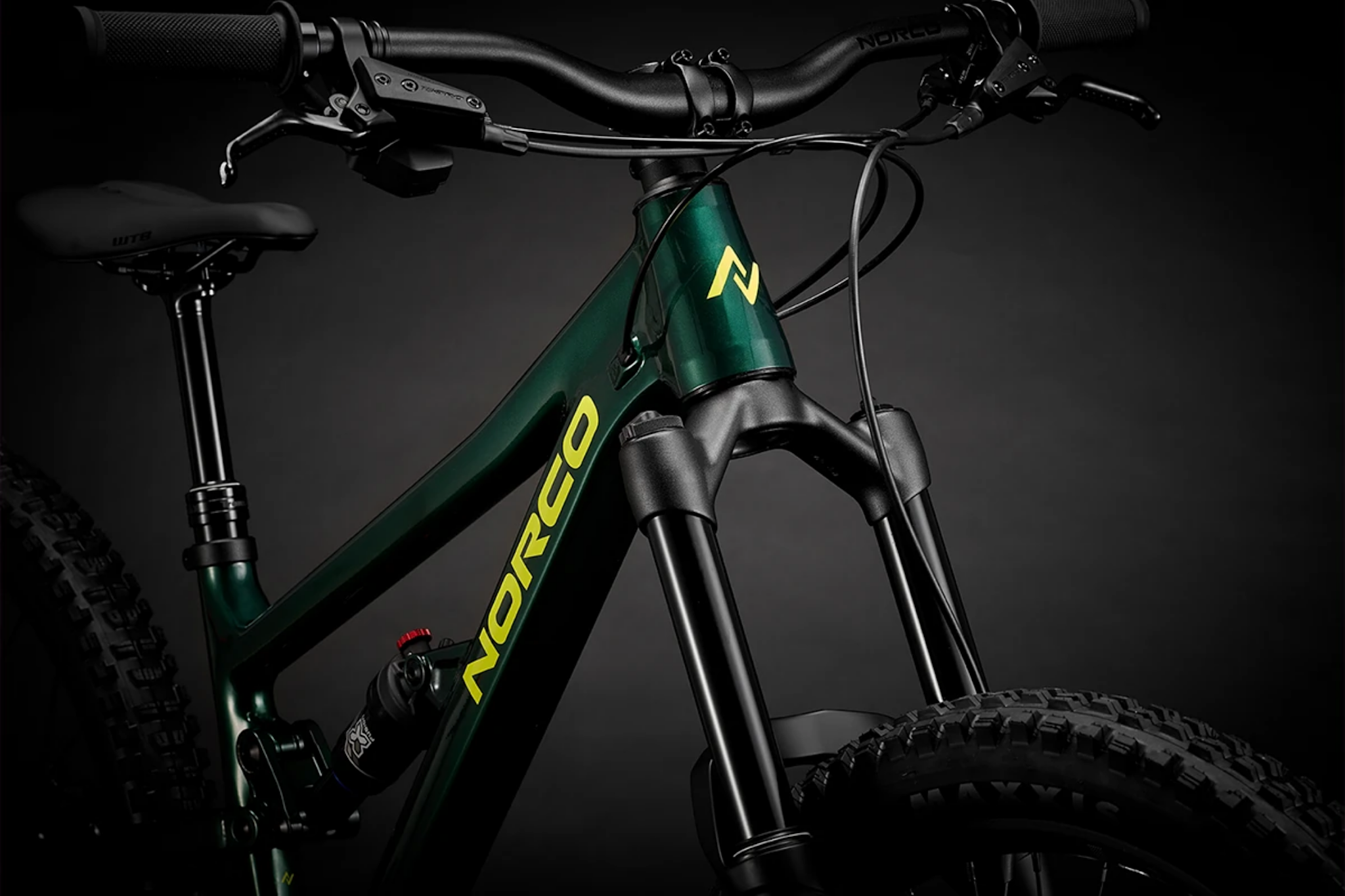

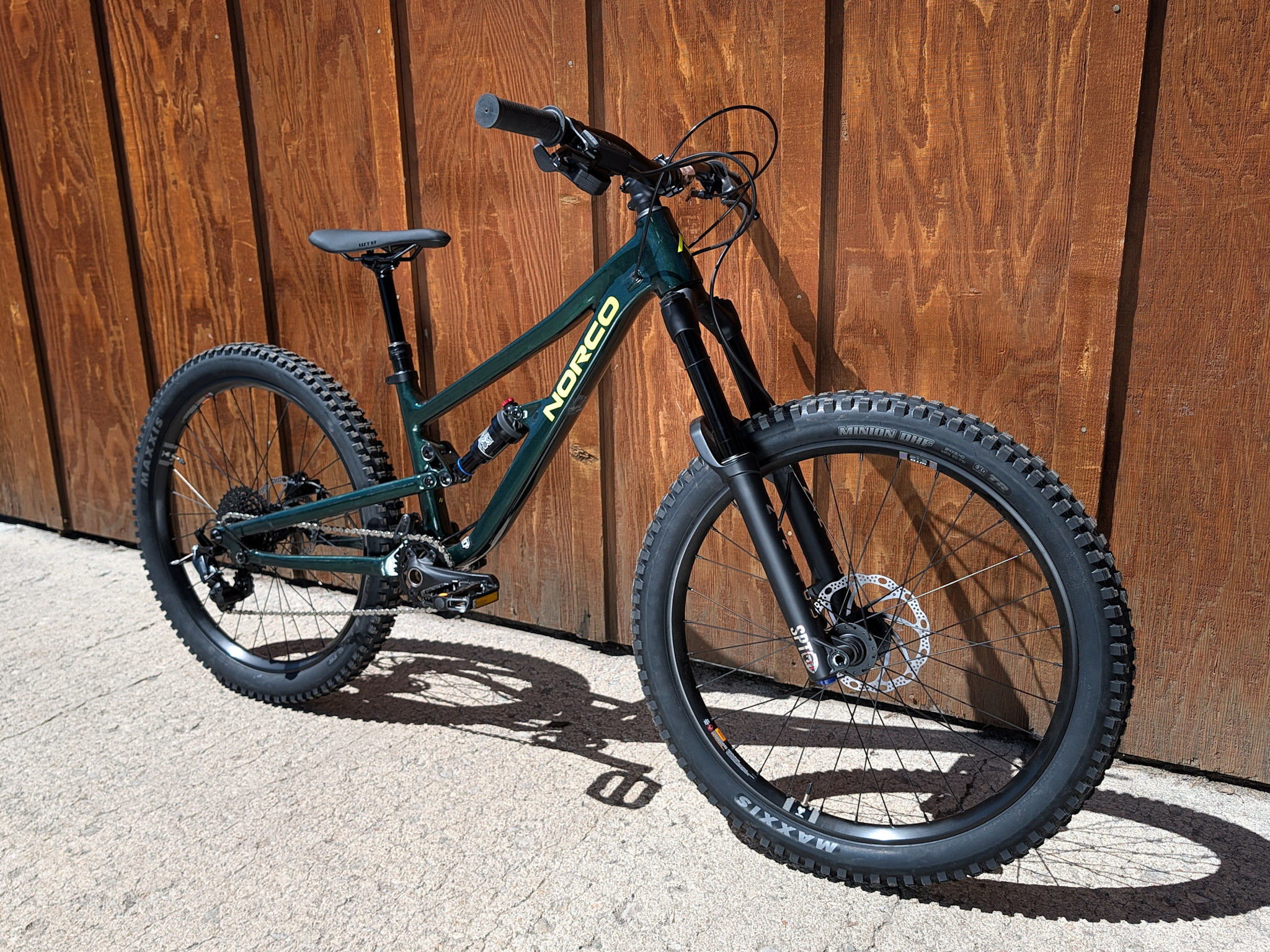

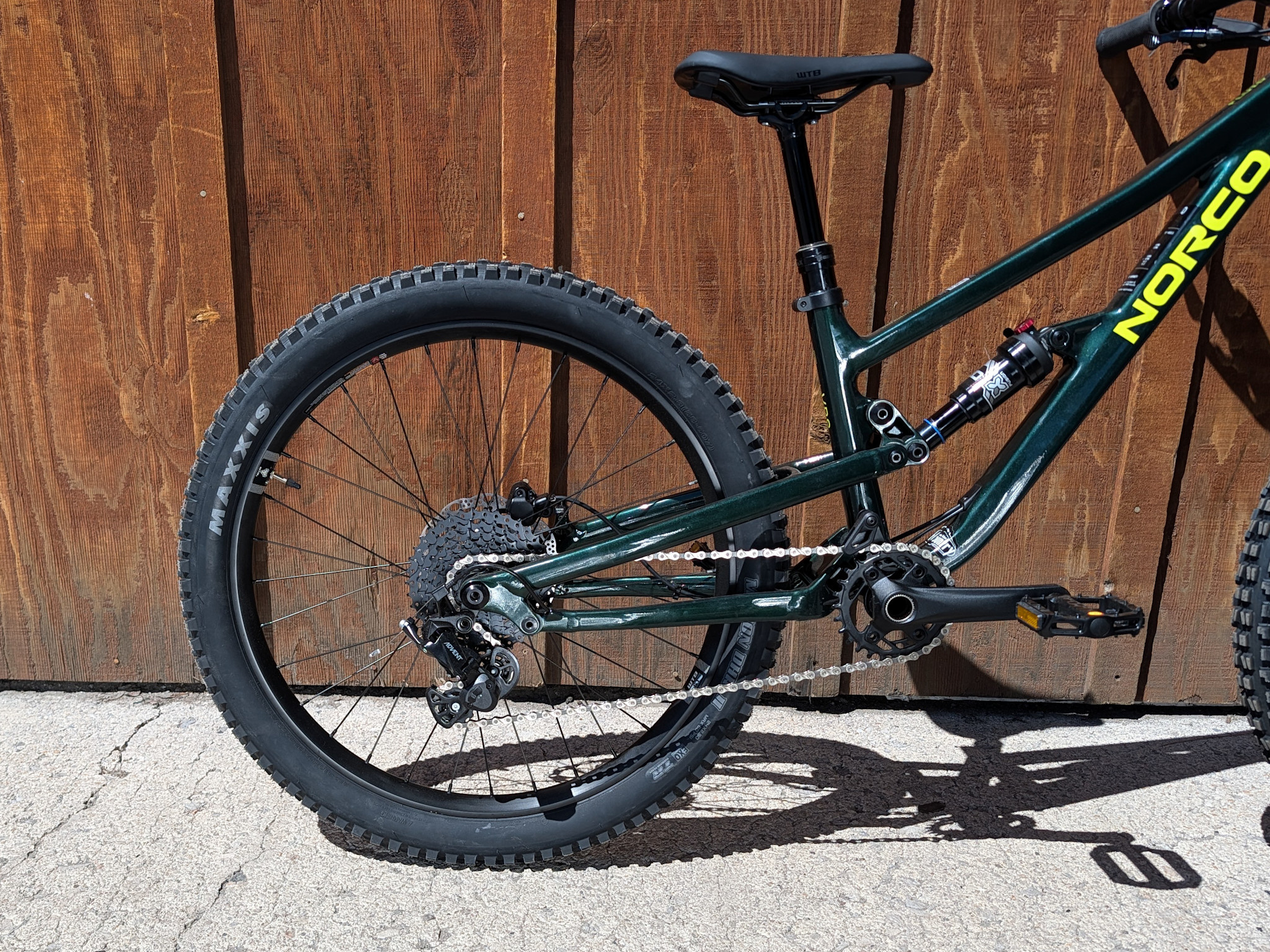

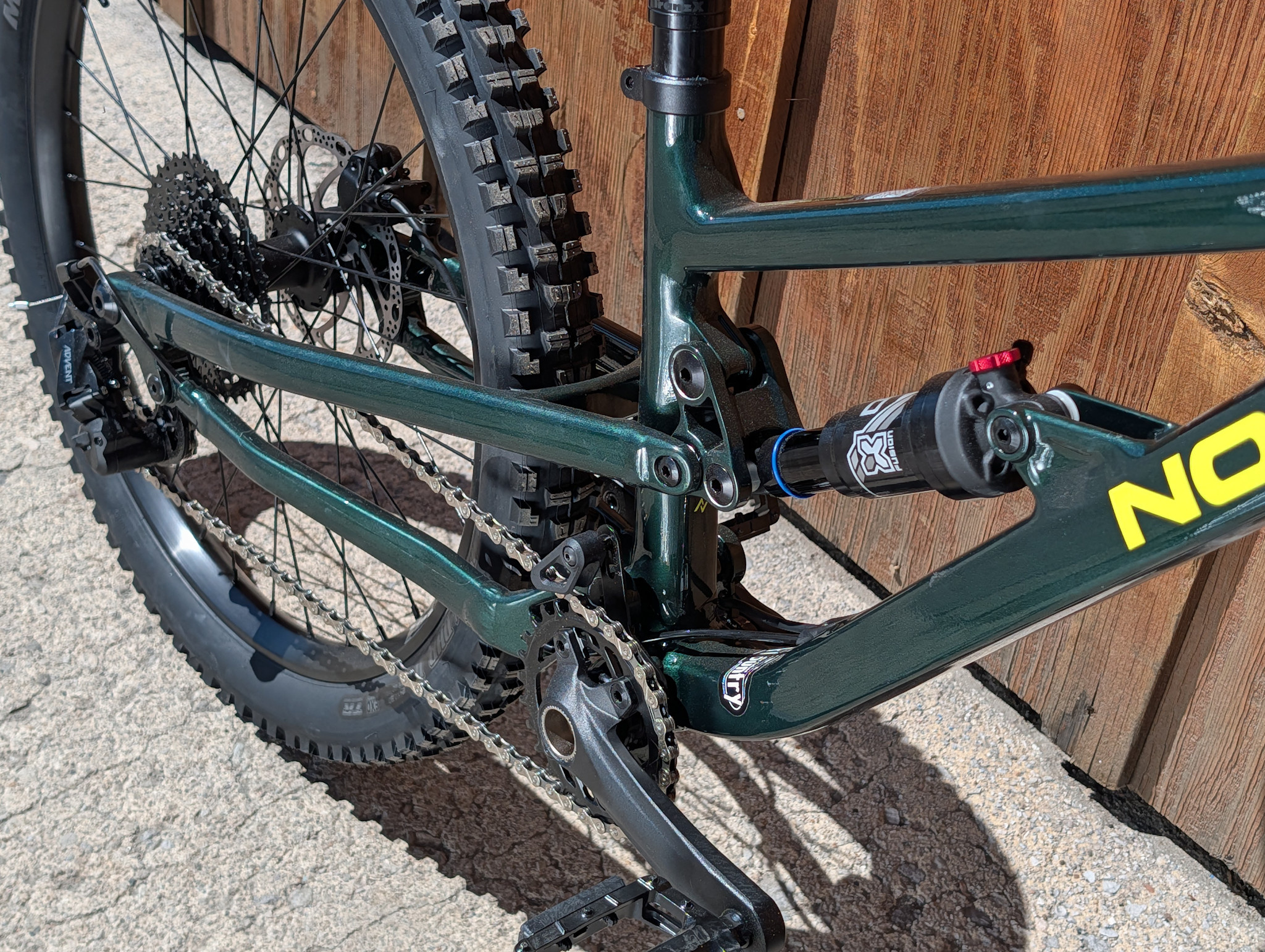

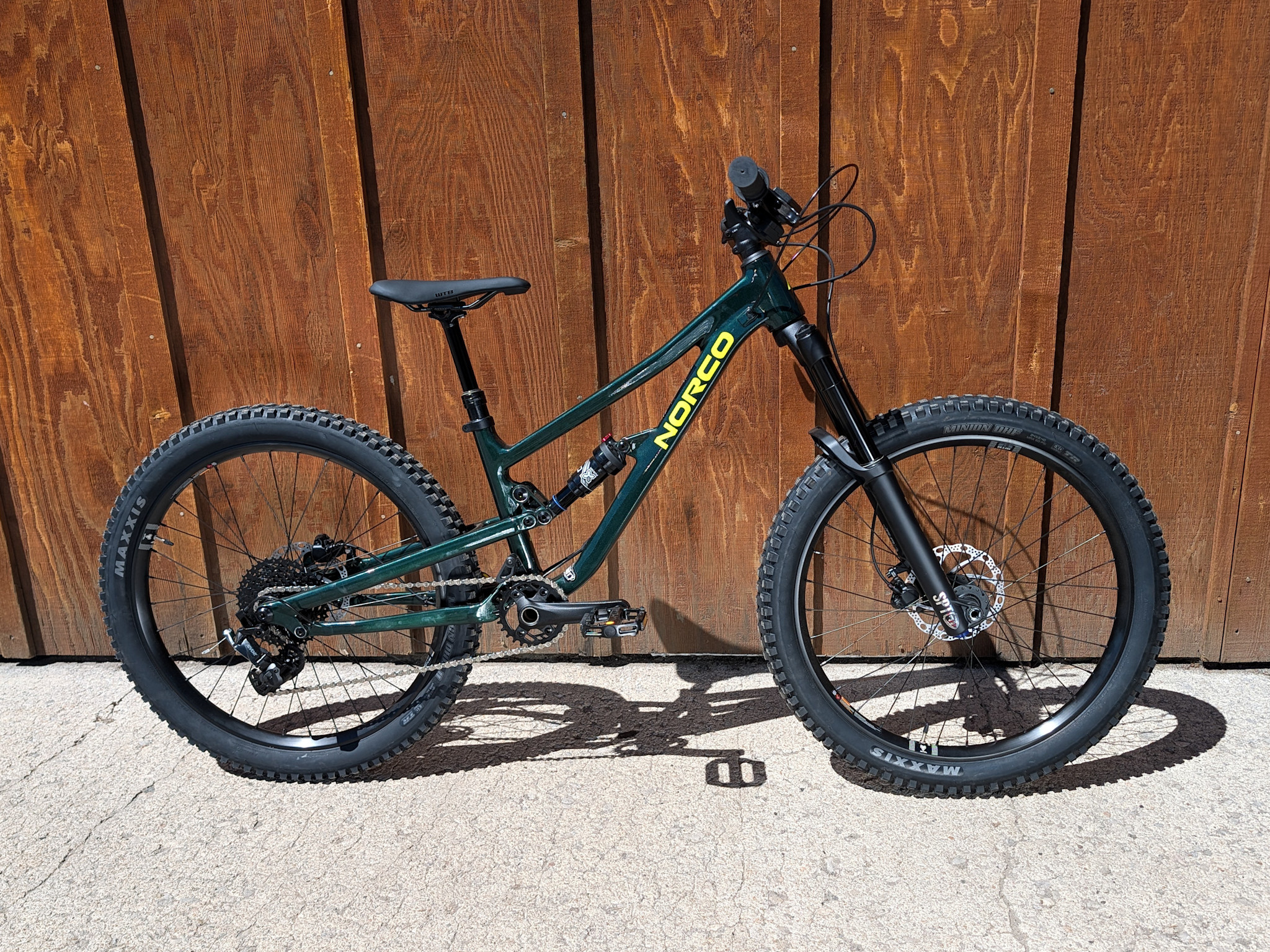

The Fluid FS 24 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 9-12-year-old riders below 90 pounds.
The quality and build reflect everything we put into our full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.
| Travel (mm front/mm rear) | 24" | 145/120 |
| Reach | 24" | 350 |
| Stack | 24" | 531 |
| Head Tube Angle | 24" | 64.5 |
| Fork Offset | 24" | 40 |
| Seat Tube Length | 24" | 305 |
| Effective Seat Tube Angle | 24" | 75.0 |
| Rear Centre Length | 24" | 407 |
| Bottom Bracket Rise/Drop | 24" | -5 |
| Bottom Bracket Height | 24" | 305 |
| Horizontal Top Tube | 24" | 492 |
| Wheelbase | 24" | 1052 |
| Standover | 24" | 569 |
| Head Tube Length | 24" | 100 |
| Trail | 24" | 106 |
| Recommended Seatpost Drop | 24" | 100 |
| Maximum Post Insertion | 24" | 160 |
| Stem Length | 24" | 35 |
| Crank Length | 24" | 152 |
| Tire Size | 24" | 2.35" - 2.6" |

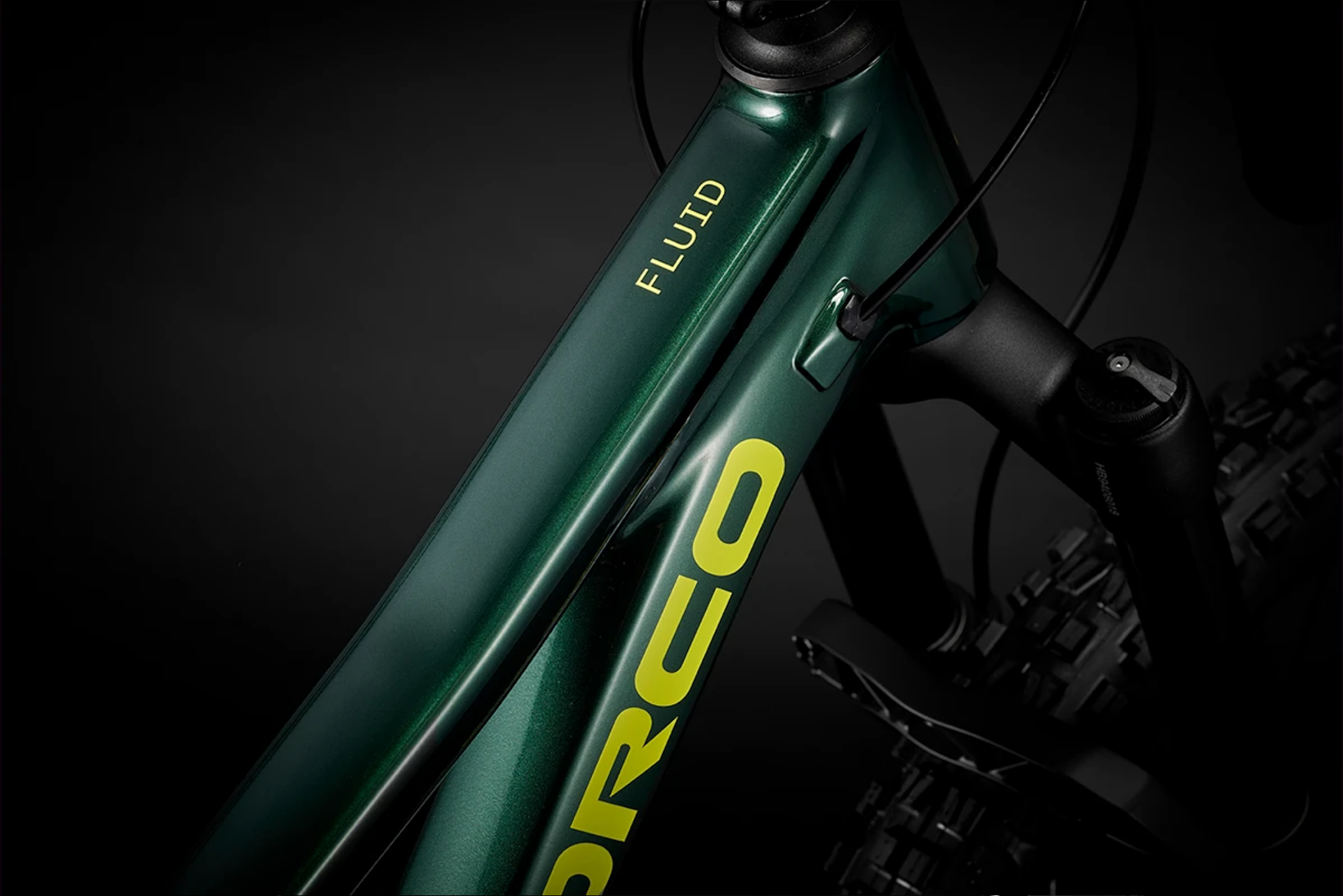

| Frame | 6061 Alloy, 120mm Travel, UDH |
|---|---|
| Wheel Size | 29" |
| Travel | 145mm |

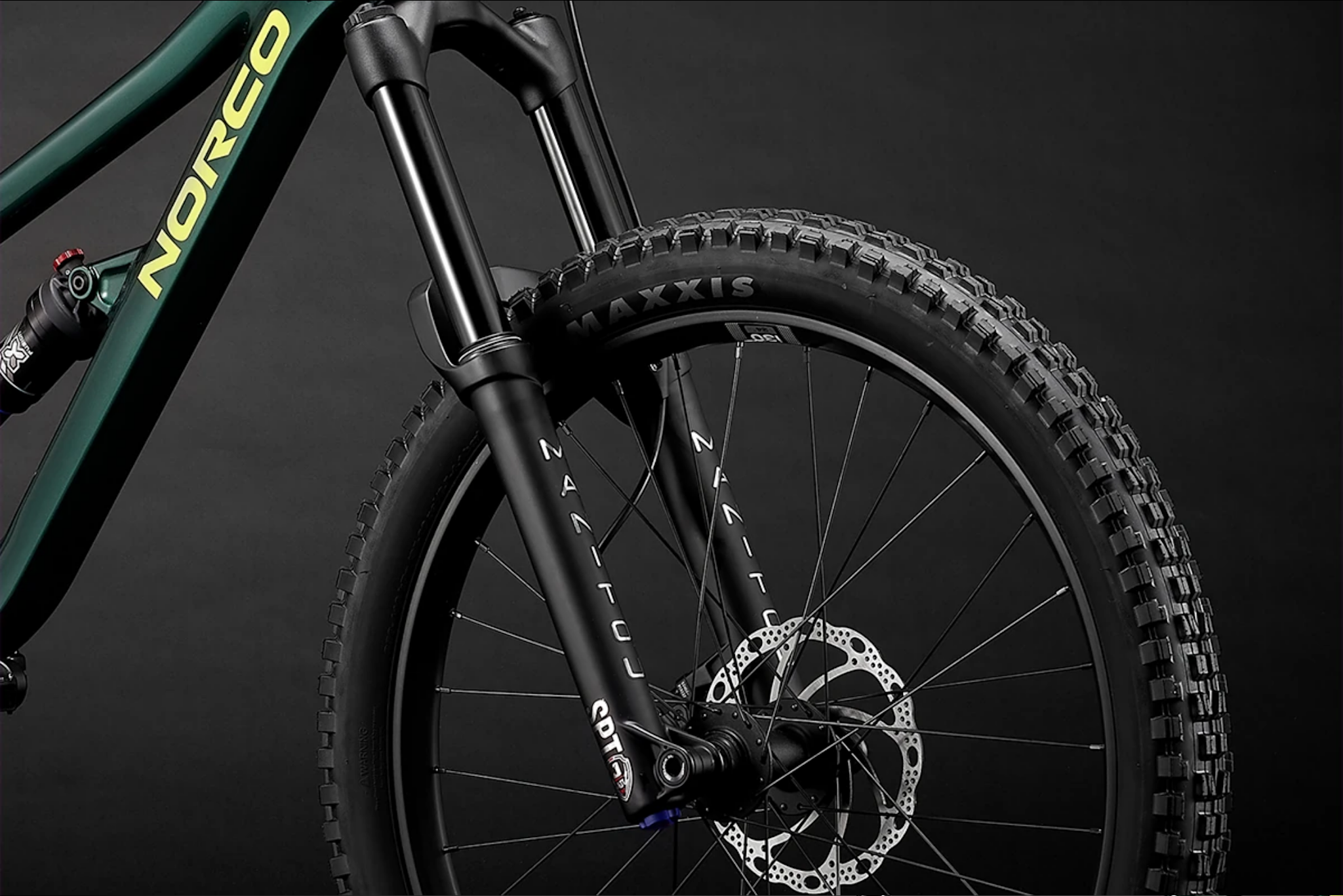

| Fork | Manitou JUNIT Sport 24", 145mm Travel, 42mm Offset, alloy stanchion |
| Rear Shock | X-Fusion 02 Pro R, 170x35mm Standard, A-Tune Soft |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Bottom Bracket | Prowheel Cartridge BB |
| Shifter | microSHIFT Advent, 9spd |
| Rear Derailleur | microSHIFT Advent, 9spd, Short Cage Clutch |
| Cassette | microSHIFT Advent, 11-38T, 9spd |
| Chain | KMC X9, 9spd |
| Chainring | 28T |
| Crankset | Prowheel Junior Alloy, 140mm |
| Brakes | F & R: Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Rotors | F: Tektro TR160-22, 160mm, 6-bolt| R: Tektro TR160-22, 160mm, 6-bolt |
| Seatpost | TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune |

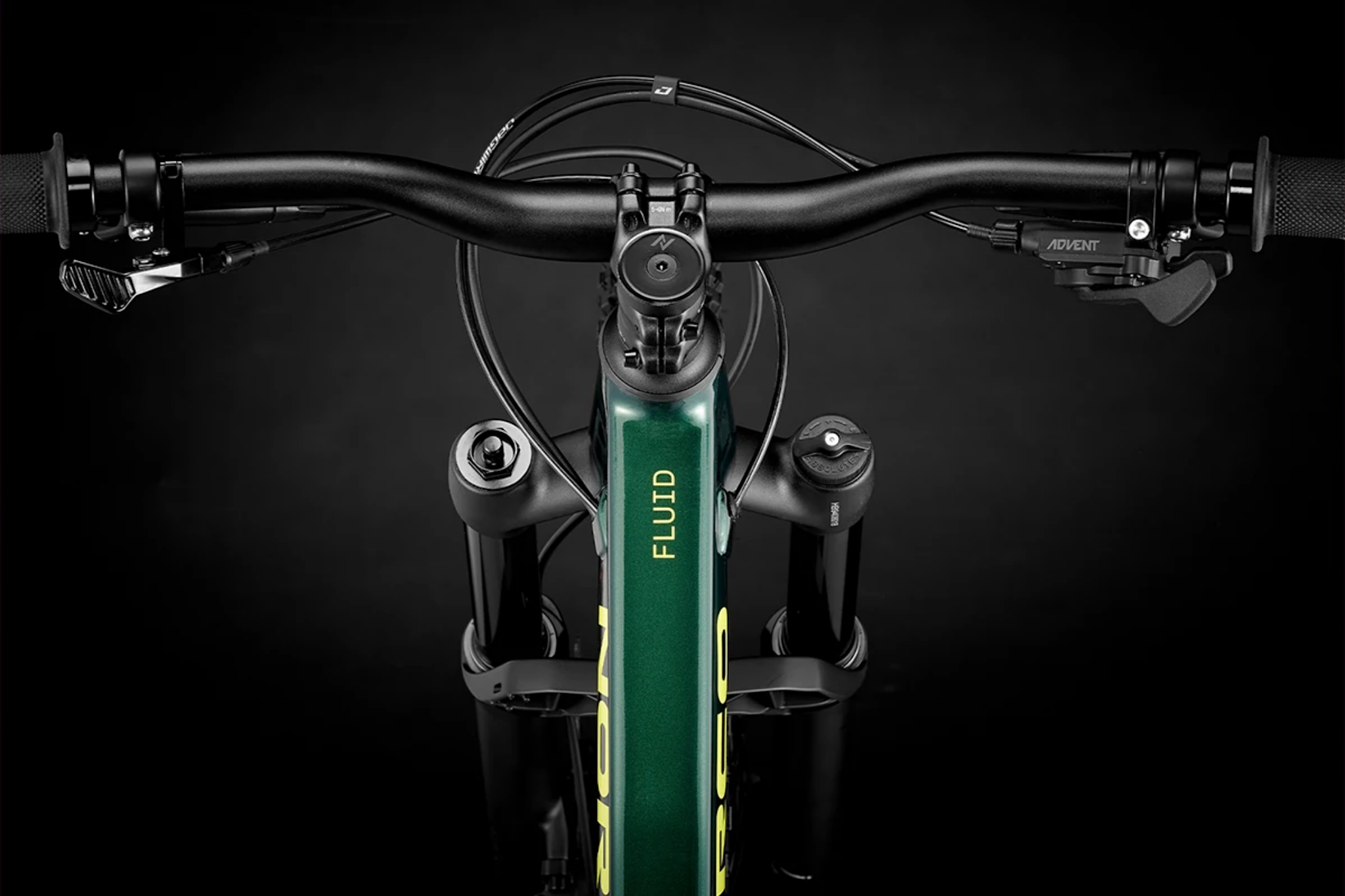

| Handlebar | Norco 6061 Alloy DB , 660mm, 20mm rise |
| Stem | Norco 6061, 35mm Length, 31.8mm Clamp |
| Grips | Norco Youth Lockon, 115mm Length |
| Saddle | WTB Solano Med, 142x240 mm, Steel Rails |
| Pedals | N/A |
| Front Wheel | WTB ST TCS 2.0, 27mm ID, 32H | HUBS: Formula DC-511, 15x110mm Boost, 32h, 6-bolt |
| Rear Wheel | WTB ST TCS 2.0, 27mm ID, 32H | HUBS: Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt |
| Front Tire | Maxxis Minion DHF, EXO, 24x2.4", Folding |
| Rear Tire | Maxxis Minion DHR II, EXO, 24x2.3", Folding |
| Sizes |
