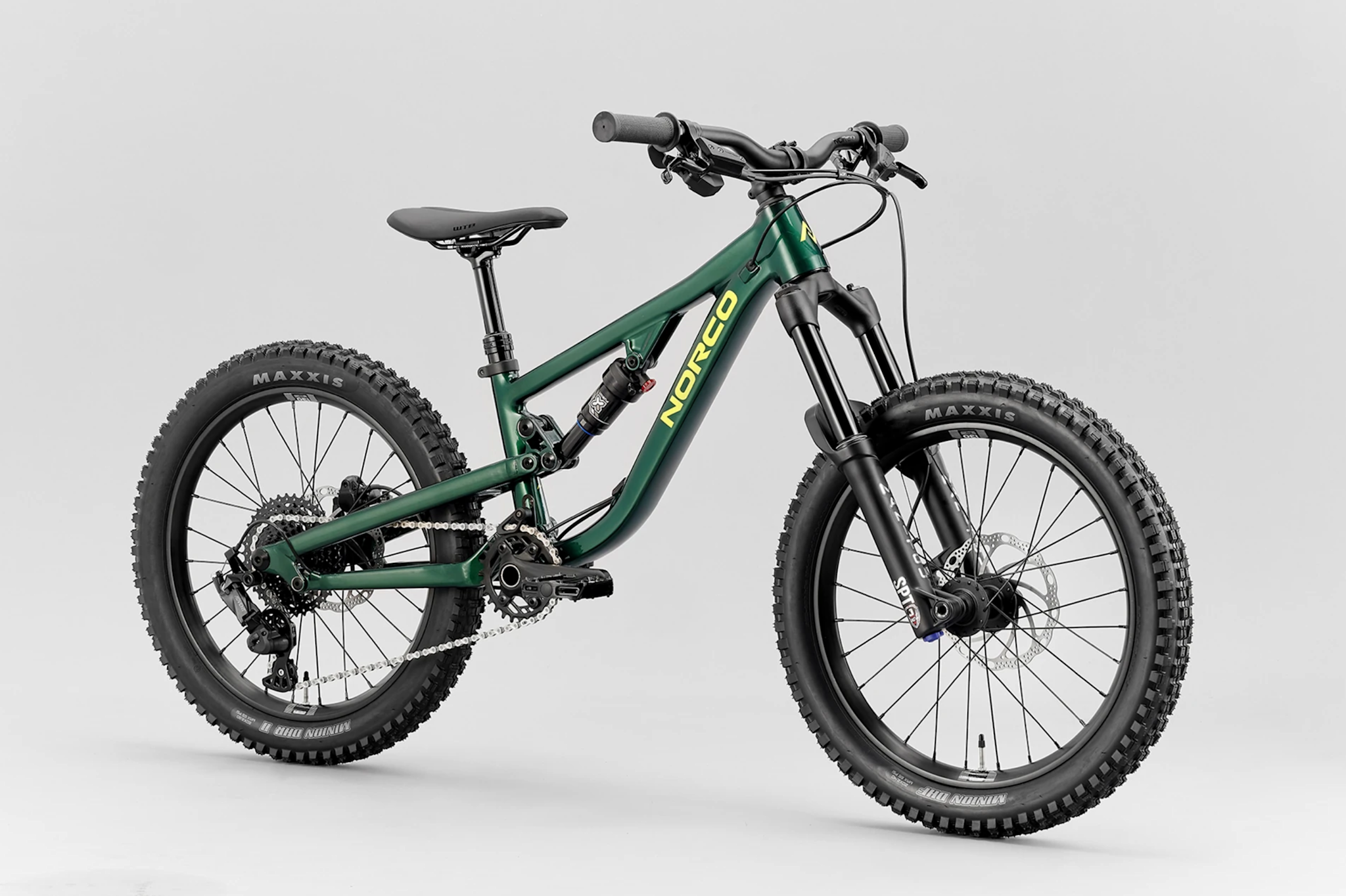

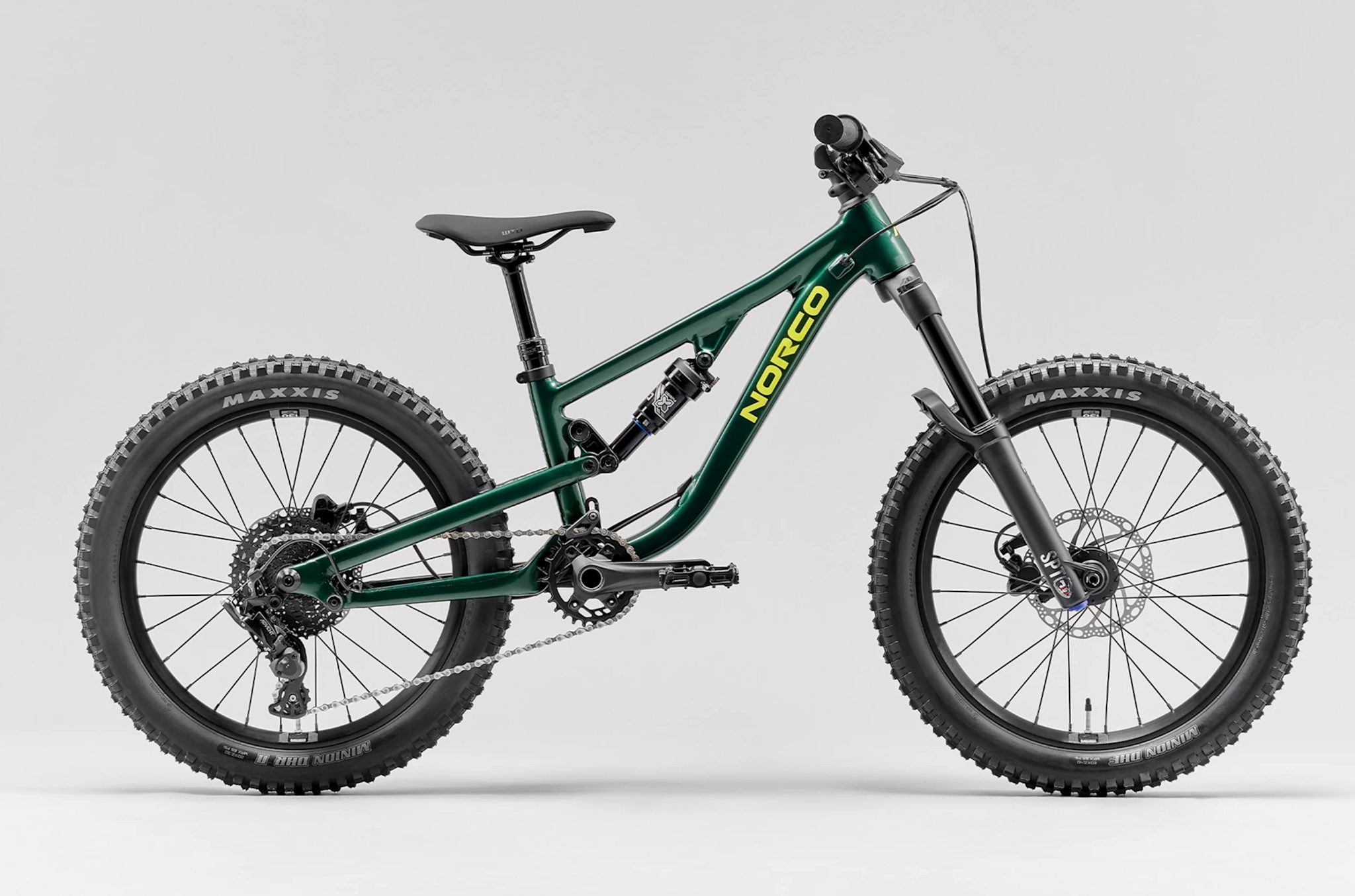

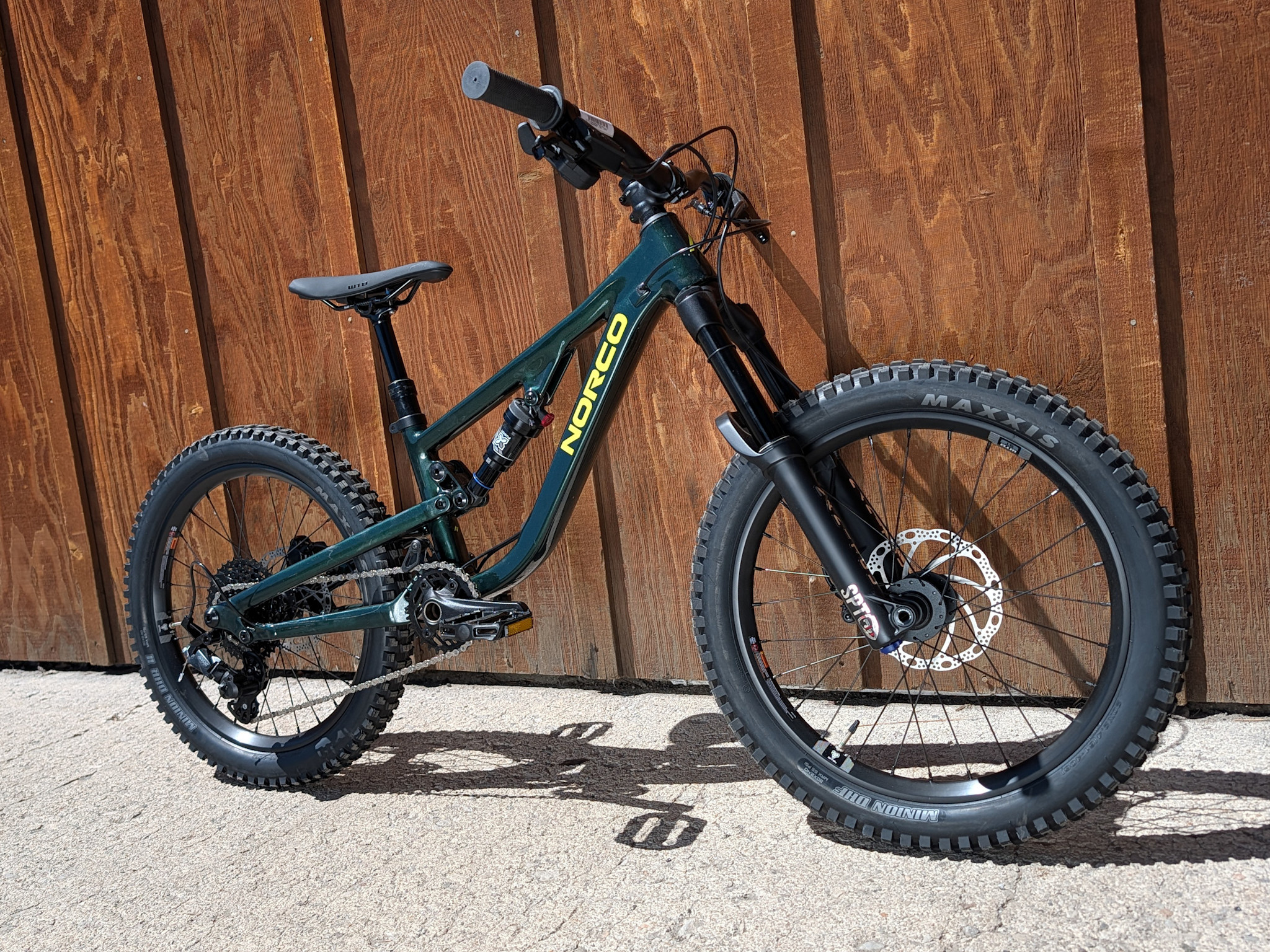

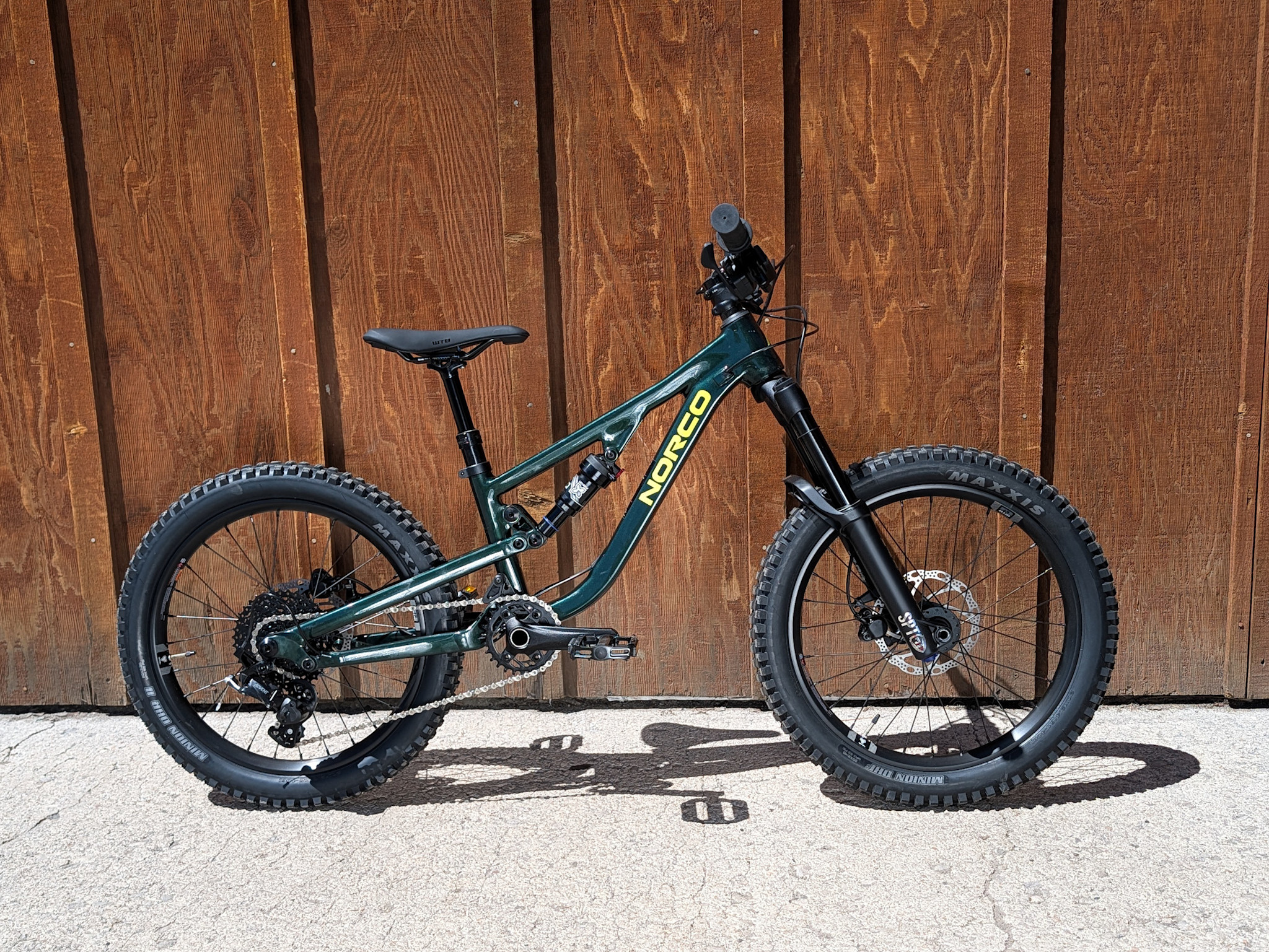

The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package.
Standover has been maximized, suspension tunes optimized and frame geometry honed to bring the distinct Norco ride to every 20 and 24-inch model.
The Fluid FS Youth’s combination of long reach, slack head tube angle and steep seat tube angle make for powerful pedaling, increased climbing traction and added grip and control.
Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so the suspension and droppers move properly under riders below 90 pounds.
Youth-specific touch points, sized to provide ample grip and support for smaller bodies, don’t sacrifice the performance and durability that dedicated riders need.
| Travel (mm front/mm rear) | 20" | 120/100 |
| Reach | 20" | 320 |
| Stack | 20" | 443 |
| Head Tube Angle | 20" | 64.0 |
| Fork Offset | 20" | 410 |
| Seat Tube Length | 20" | 255 |
| Effective Seat Tube Angle | 20" | 75.0 |
| Rear Centre Length | 20" | 355 |
| Bottom Bracket Rise/Drop | 20" | 10 |
| Bottom Bracket Height | 20" | 270 |
| Horizontal Top Tube | 20" | 439 |
| Wheelbase | 20" | 940 |
| Standover | 20" | 500 |
| Head Tube Length | 20" | 90 |
| Trail | 20" | 83 |
| Recommended Seatpost Drop | 20" | 80 |
| Maximum Post Insertion | 20" | 130 |
| Stem Length | 20" | 35 |
| Crank Length | 20" | 140 |
| Tire Size | 20" | 2.35" - 2.6" |
| Frame | 6061 Alloy, 120mm Travel, UDH |
|---|---|
| Wheel Size | 29" |
| Travel | 120mm |

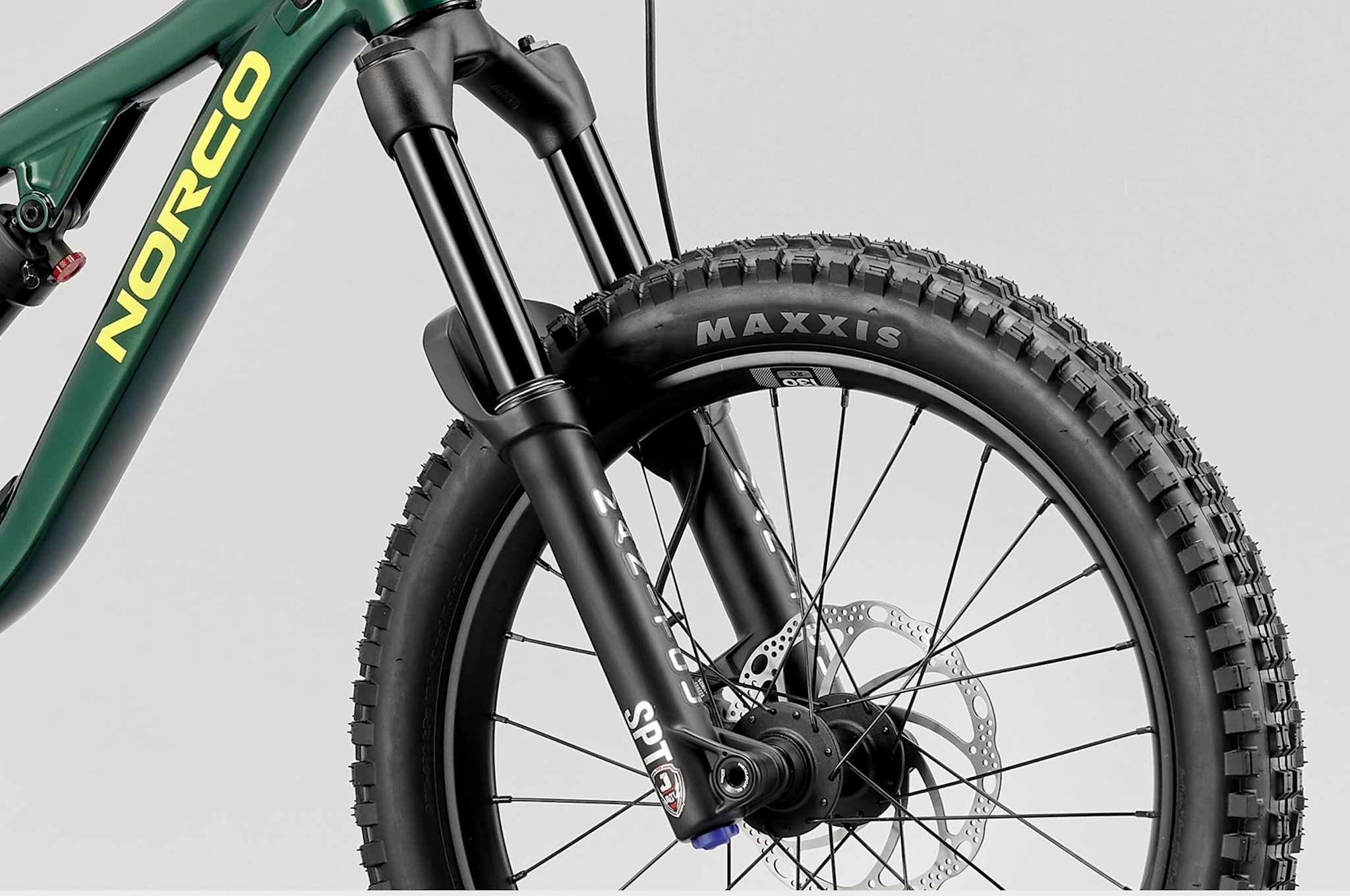

| Fork | Manitou JUNIT Sport 20", 120mm Travel, 40mm Offset, alloy stanchion |

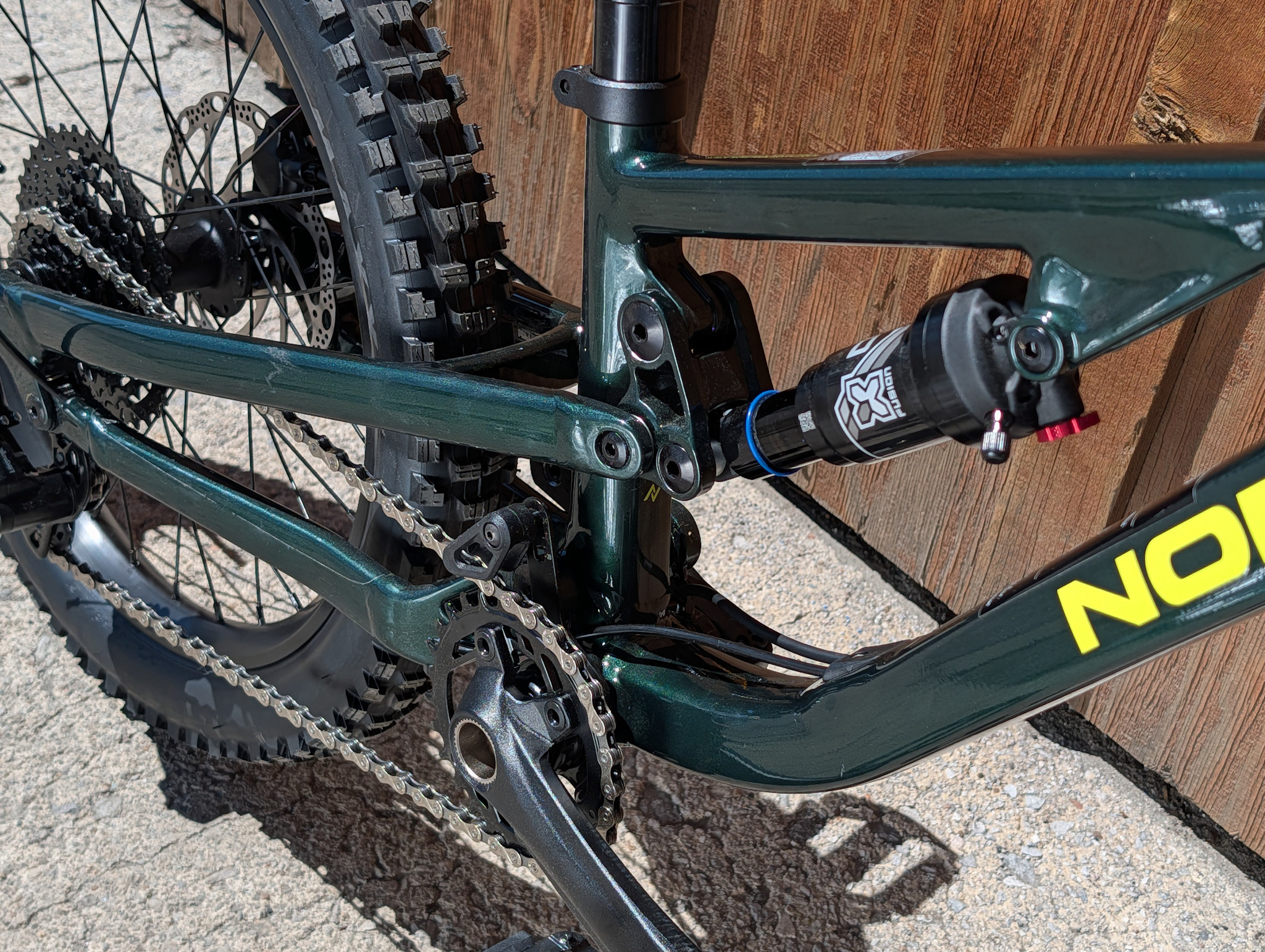

| Rear Shock | X-Fusion 02 Pro R, 170x30mm Standard, A-Tune Soft |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Bottom Bracket | Prowheel Cartridge BB |
| Shifter | microSHIFT Advent, 9spd |
| Rear Derailleur | microSHIFT Advent, 9spd, Short Cage Clutch |
| Cassette | microSHIFT Advent, 11-38T, 9spd |
| Chain | KMC X9, 9spd |
| Chainring | 28T |
| Crankset | Prowheel Junior Alloy, 127mm |
| Brakes | F: Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade | R: Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Rotors | F: Tektro TR160-22, 160mm, 6-bolt | R: Tektro TR160-22, 160mm, 6-bolt |
| Seatpost | TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune |
| Handlebar | Norco 6061 Alloy DB , 660mm, 20mm rise |
| Stem | Norco 6061, 35mm Length, 31.8mm Clamp |
| Grips | Norco Youth Lockon, 115mm Length |
| Saddle | WTB Solano Med, 142x240 mm, Steel Rails |
| Pedals | N/A |
| Front Wheel | WTB TCS 2.0, 27mm ID, 28H |
| Rear Wheel | WTB TCS 2.0, 27mm ID, 28H |
| Front Tire | Maxxis Minion DHF, EXO, 20"x2.4", Folding |
| Rear Tire | Maxxis Minion DHR II, EXO, 20" x 2.3", Folding |
| Sizes |
