40% off
Kona

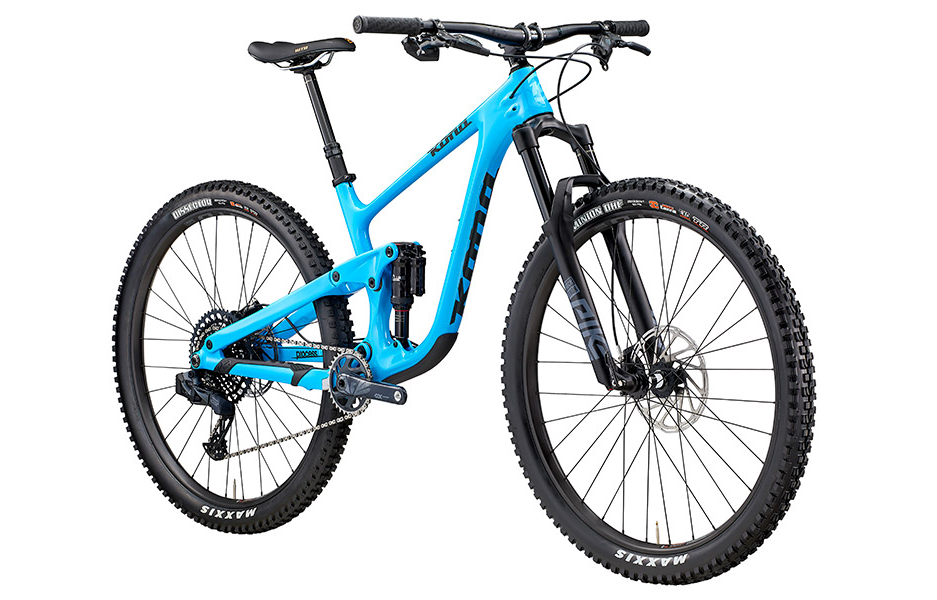

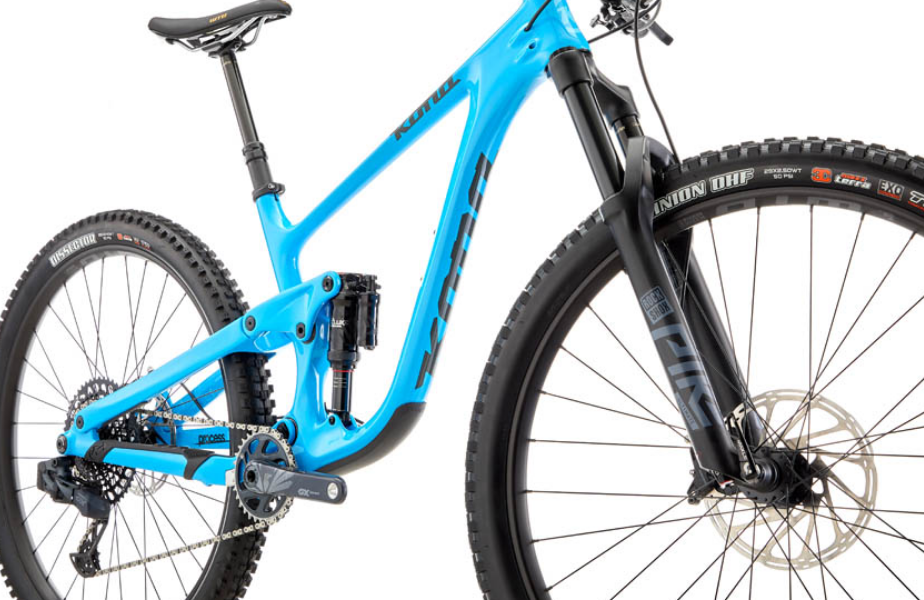

2022 Kona Process 134 CR/DL 29" | X-Large

$4,199.00 $6,999.00
In store: Check availability

Available in store

SKU: B22134CD2906

29" Wheels | 134mm Rear/140 Front Travel | 66° HT

Add to compare Add to wishlist
Delivery time: 5-7 Business Days

Description

FROM THE MANUFACTURER

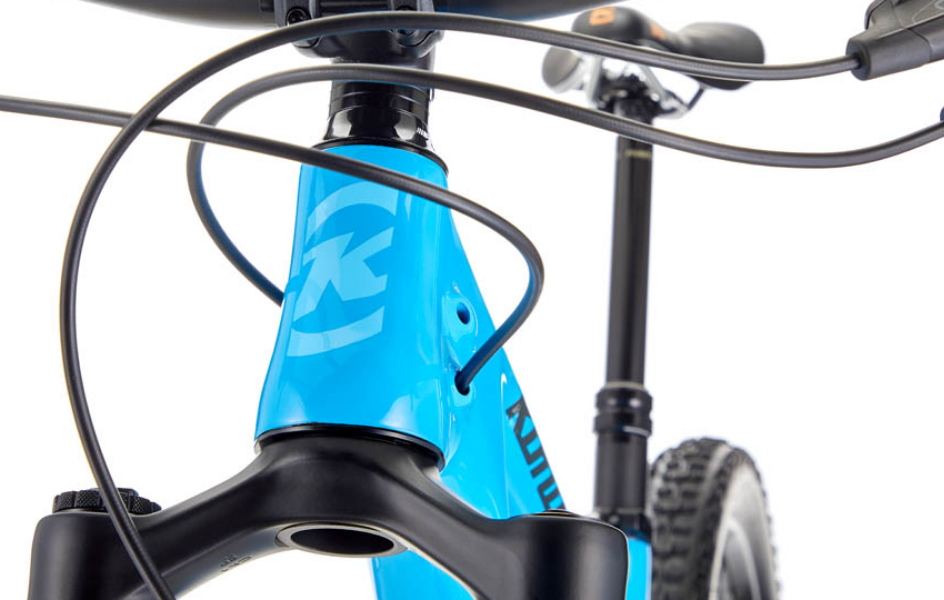

The Process 134 CR DL is the Beauty and the Beast of Kona's lineup. It’s sleek, cable-free lines and killer top-of-the-line spec will turn heads all season long. Meanwhile the 134mm of rear travel descends like nothing you’ve ever experienced on a mid-travel trail bike. This bike is Kona's secret weapon. It climbs lightning fast and rips downhills like hungry cougar chasing an ill-fated deer.
Sorry, deer. Your time is up.


FEATURES



  • Frame Material: Kona Carbon 134mm Travel
  • Wheels: WTB KOM Team i30 TCS
  • Front/Rear Suspension: 140/134mm
  • Rear Shock: RockShox Super Deluxe Ultimate Trunnion
  • Fork: RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm Tapered 110mm Spacing
  • Drivetrain: SRAM X01/GX 12spd



 SIZING & GEOMETRY



KONA Geometry



  Size S M L XL
1 ST Length 385 410 450 485
2 TT Length 569 596 625 664
3 Reach 425 450 475 510
4 Stack 601 605 615 625
5 Standover 715 725 725 725
6 HT Angle 66
7 HT Length 93 98 109 120
8 ST Angle 76.5 76.5 76.3 76.2
9 CS Length 427 427 427 427
10 BB Drop 33
11 BB Height 342
12 Wheelbase 1159 1186 1216 1255
13 Front Center 734 761 791 830
14 Fork Length 551
15 Fork Offset 51

Measured in mm



Don't forget your pedals!

Specifications

Frame Kona Carbon 134mm Travel
Wheel Size 29"
Travel 134mm Rear/140 Front
Fork RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm Tapered 110mm Spacing

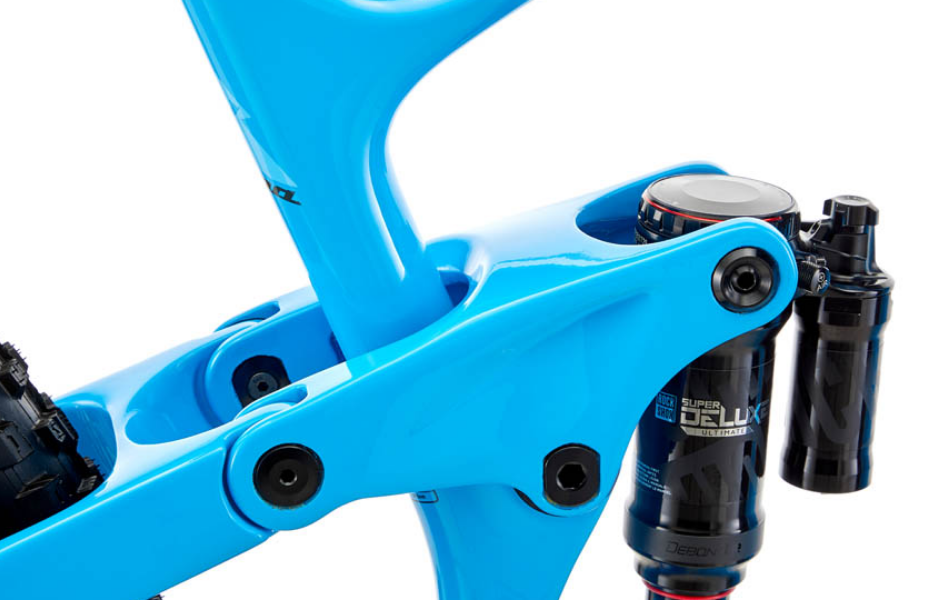

Rear Shock RockShox Super Deluxe Ultimate Trunnion
Headset FSA Orbit 1.5 E ZS
Bottom Bracket SRAM DUB PF92
Shifter SRAM GX AXS

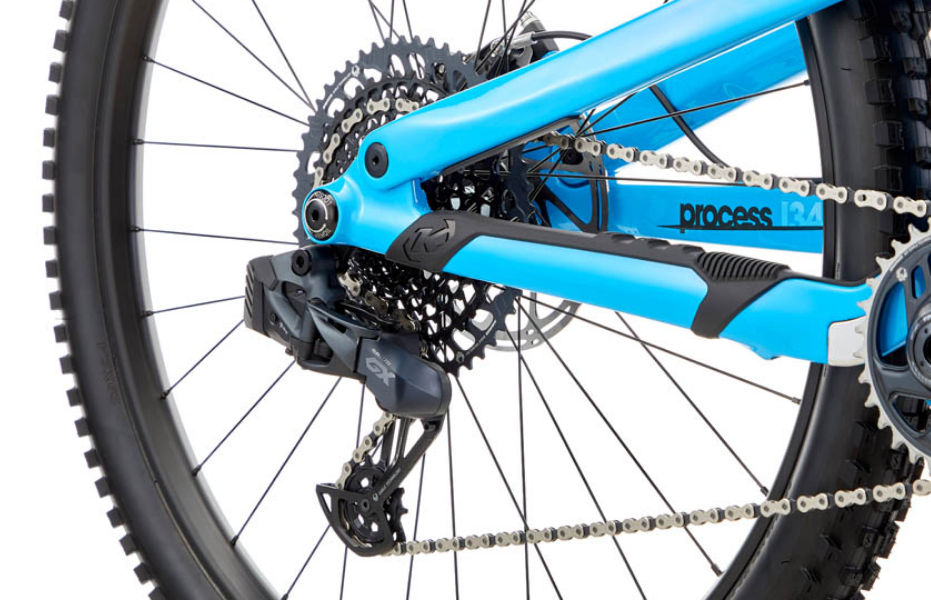

Rear Derailleur SRAM GX AXS
Cassette SRAM X01-Eagle 10-52t 12spd
Chain SRAM GX-Eagle
Chainring 32t X-Sync Eagle
Crankset SRAM GX Carbon DUB
Brakes SRAM G2 RSC
Rotors SRAM Centerline, 200mm Front | SRAM Centerline, 180mm Rear

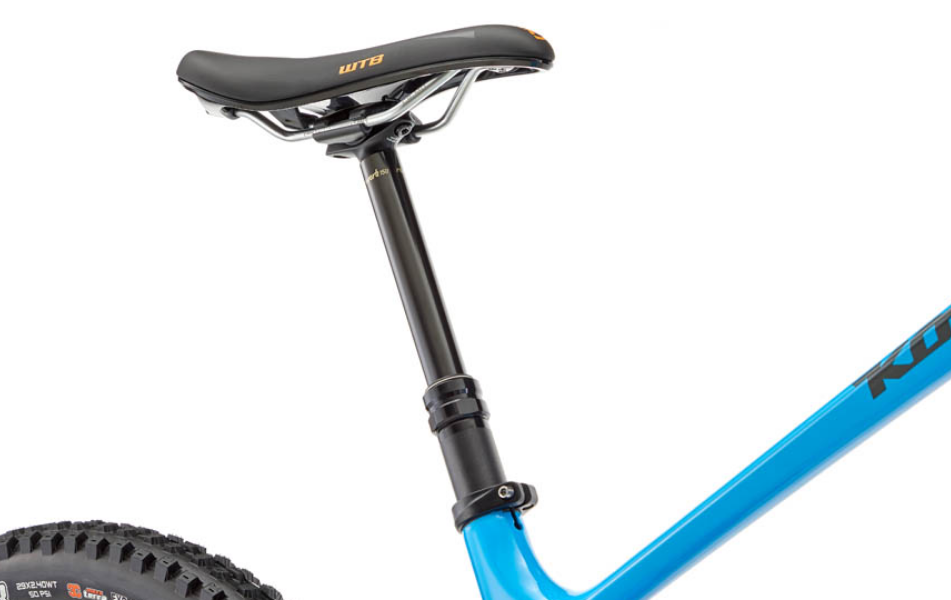

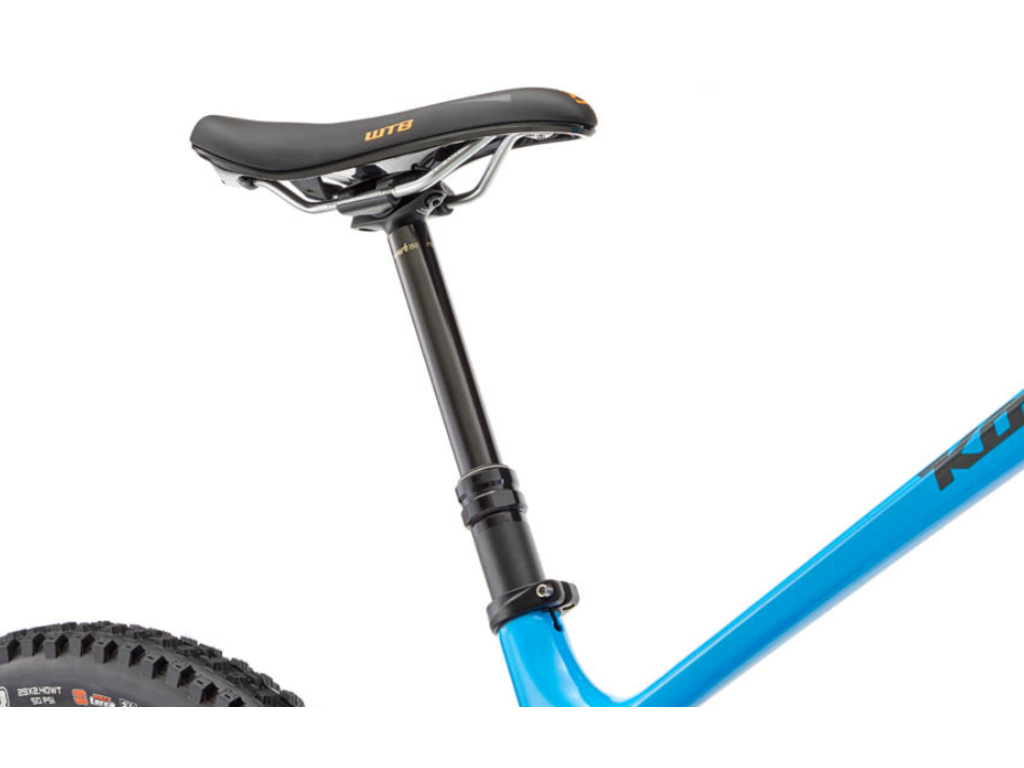

Seatpost Rock Shox Reverb w/1x Remote Lever 31.6mm
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35
Grips Kona Key Grip
Saddle WTB Volt
Pedals N/A
Front Wheel Rim WTB KOM Team i30 TCS | Hub DT Swiss 350 110x15mm | Spokes Double Butted Spokes – 14/15/14g
Rear Wheel Rim WTB KOM Team i30 TCS | Hub DT Swiss 350 148x12mm | Spokes Double Butted Spokes – 14/15/14g
Front Tire Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear Tire Maxxis Dissector EXO TR 3C 29x2.4" WT
Sizes S, M, L, XL
