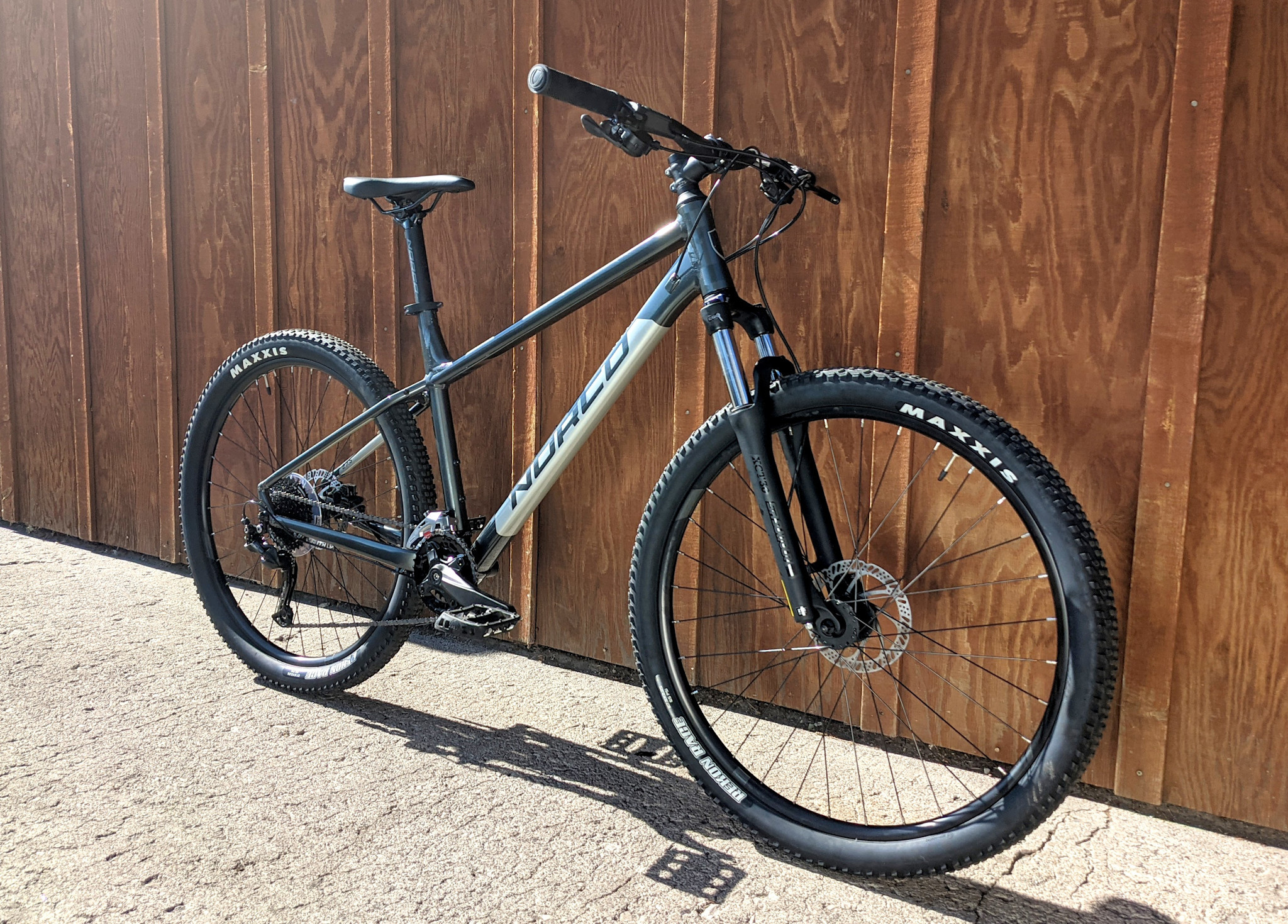

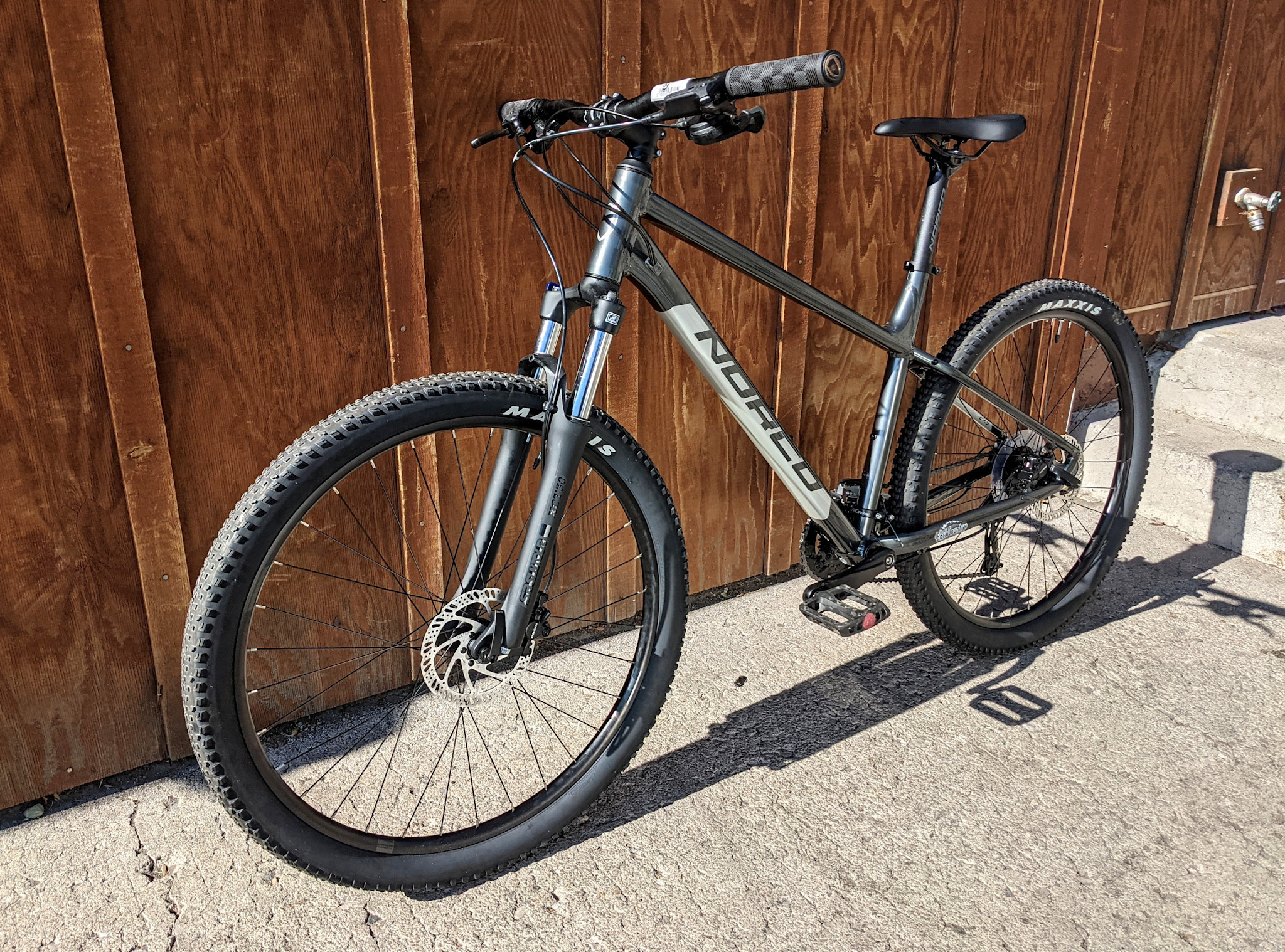

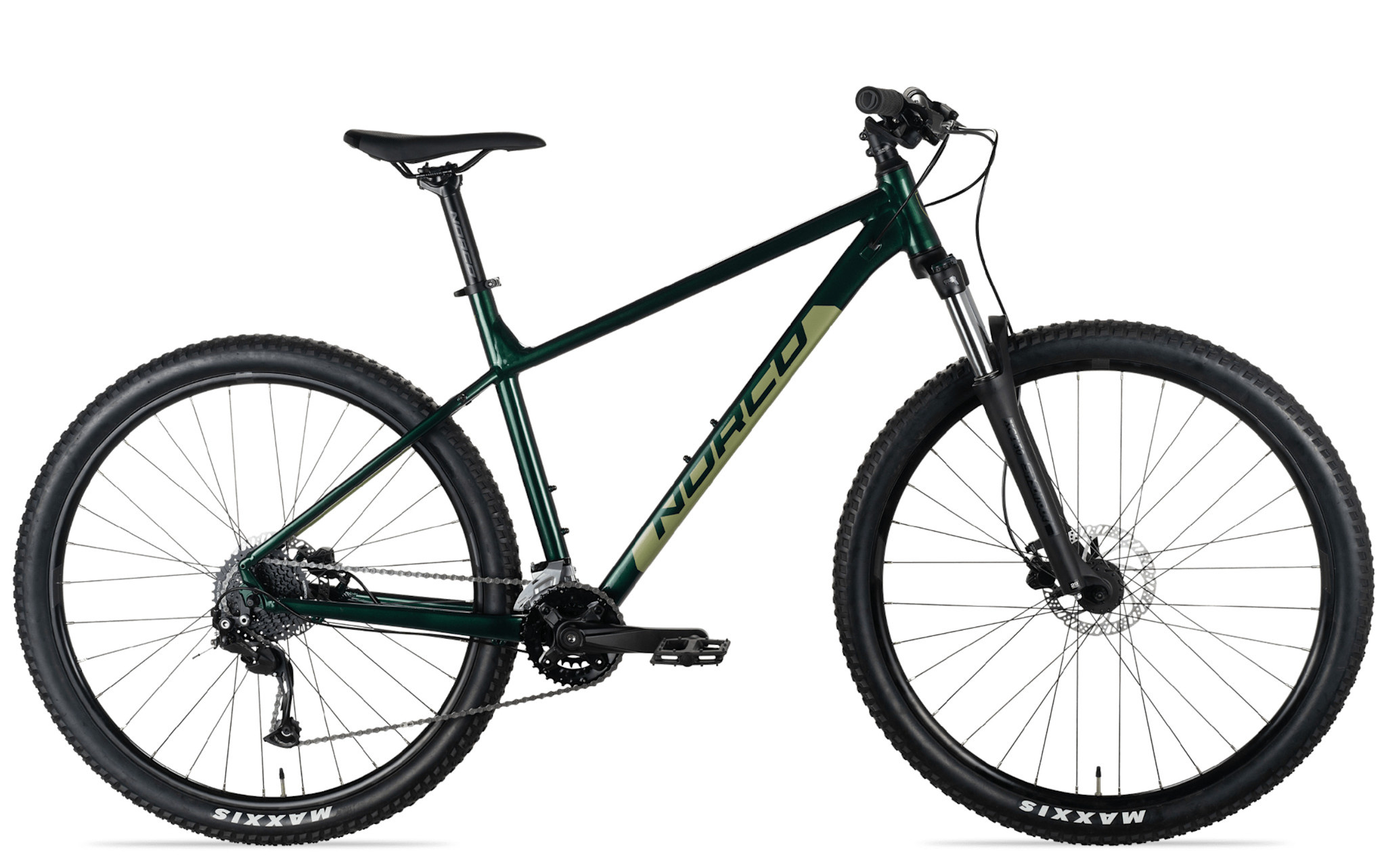

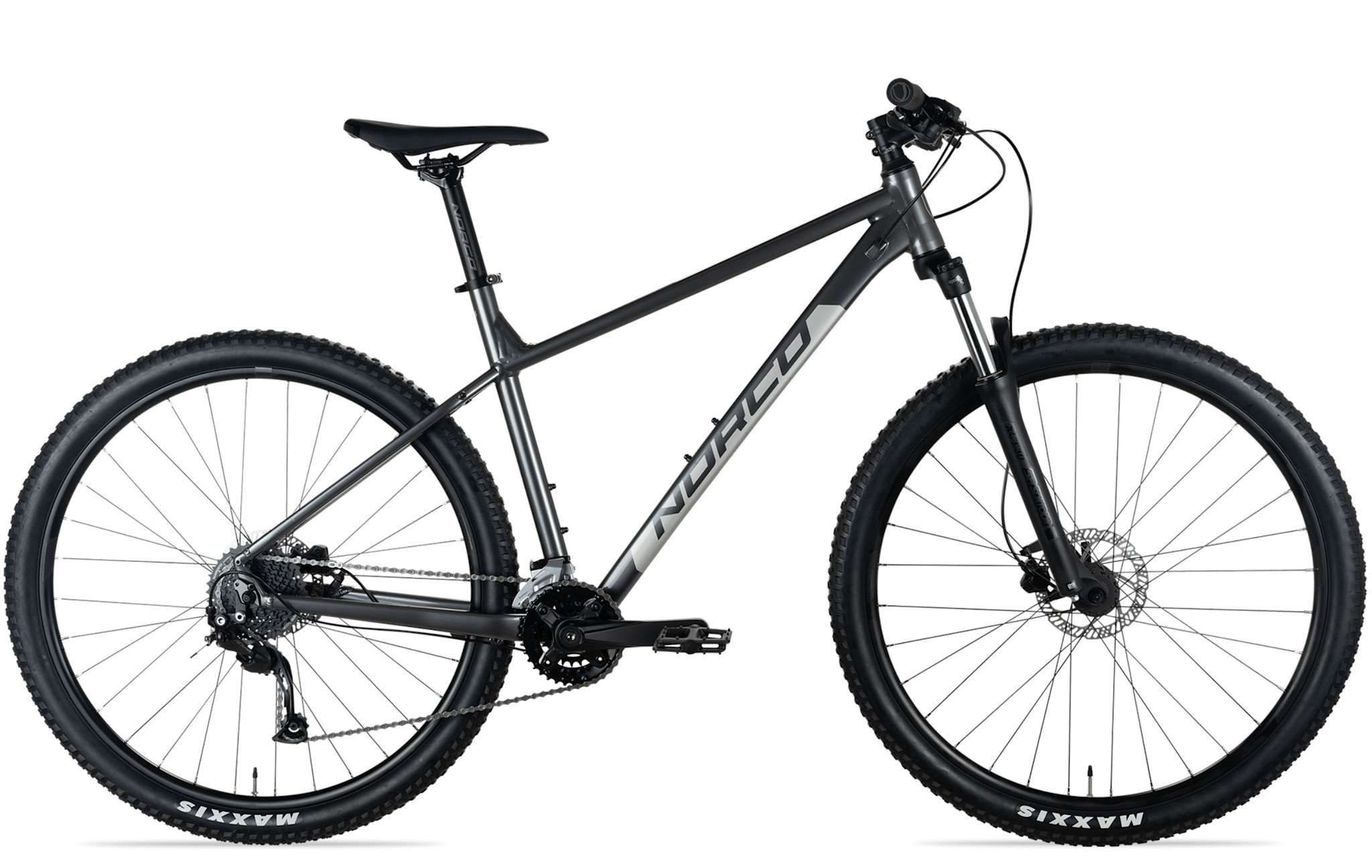

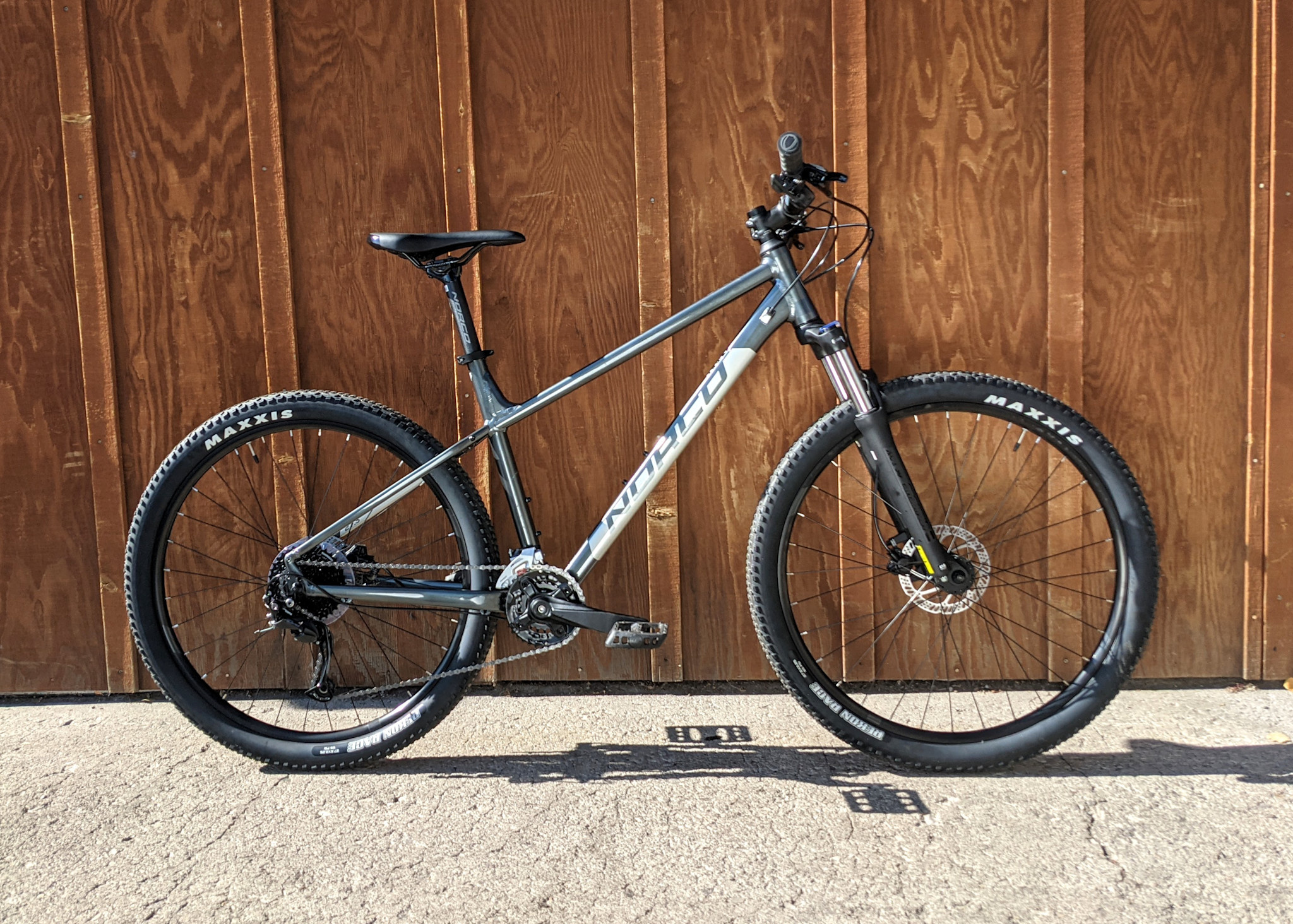

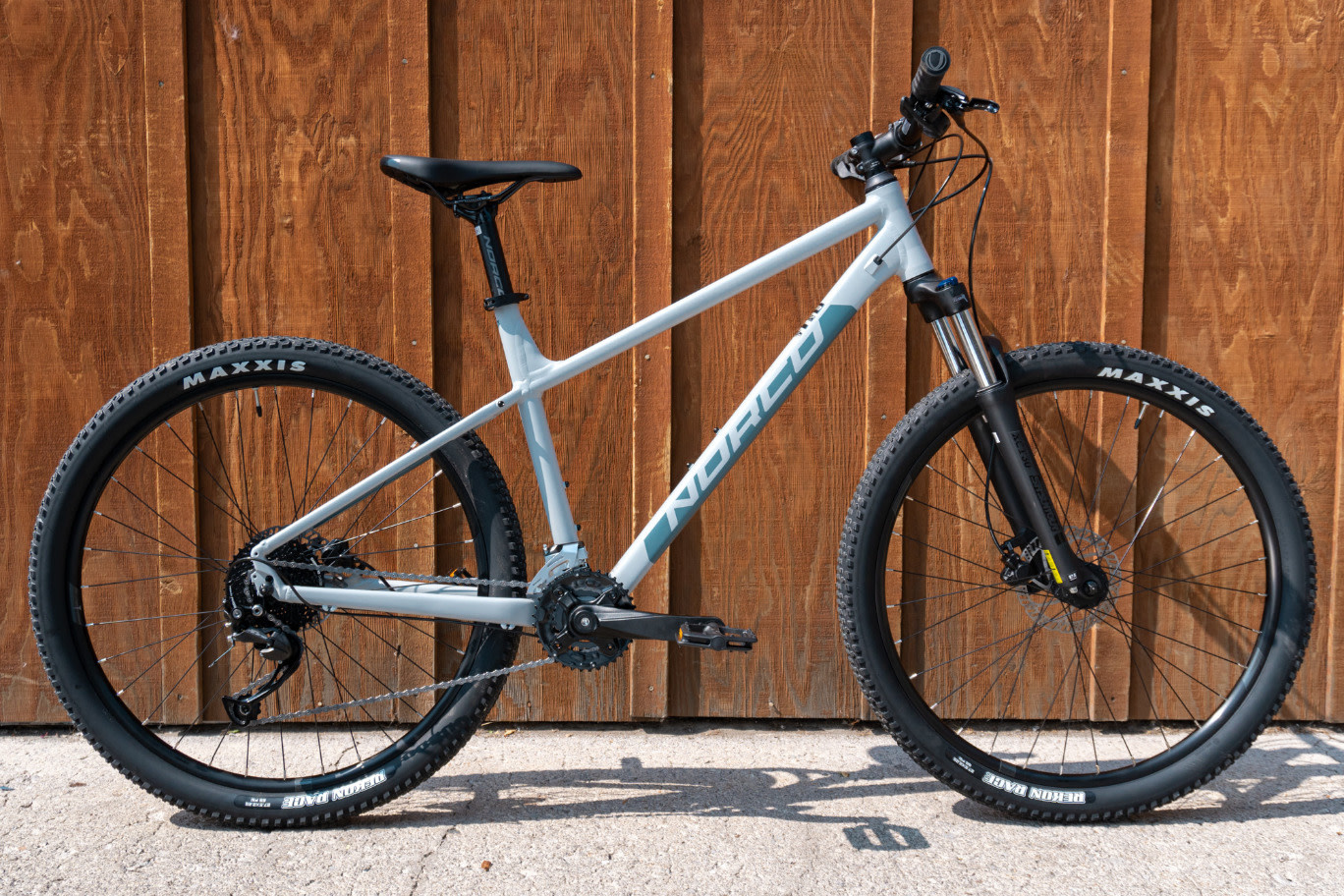

2021 Norco Storm 3 29"

FROM THE MANUFACTURER

The Norco Storm 3 is a bike built to go where road ends & the gravel begins and gives you a chance to see what biking is about.

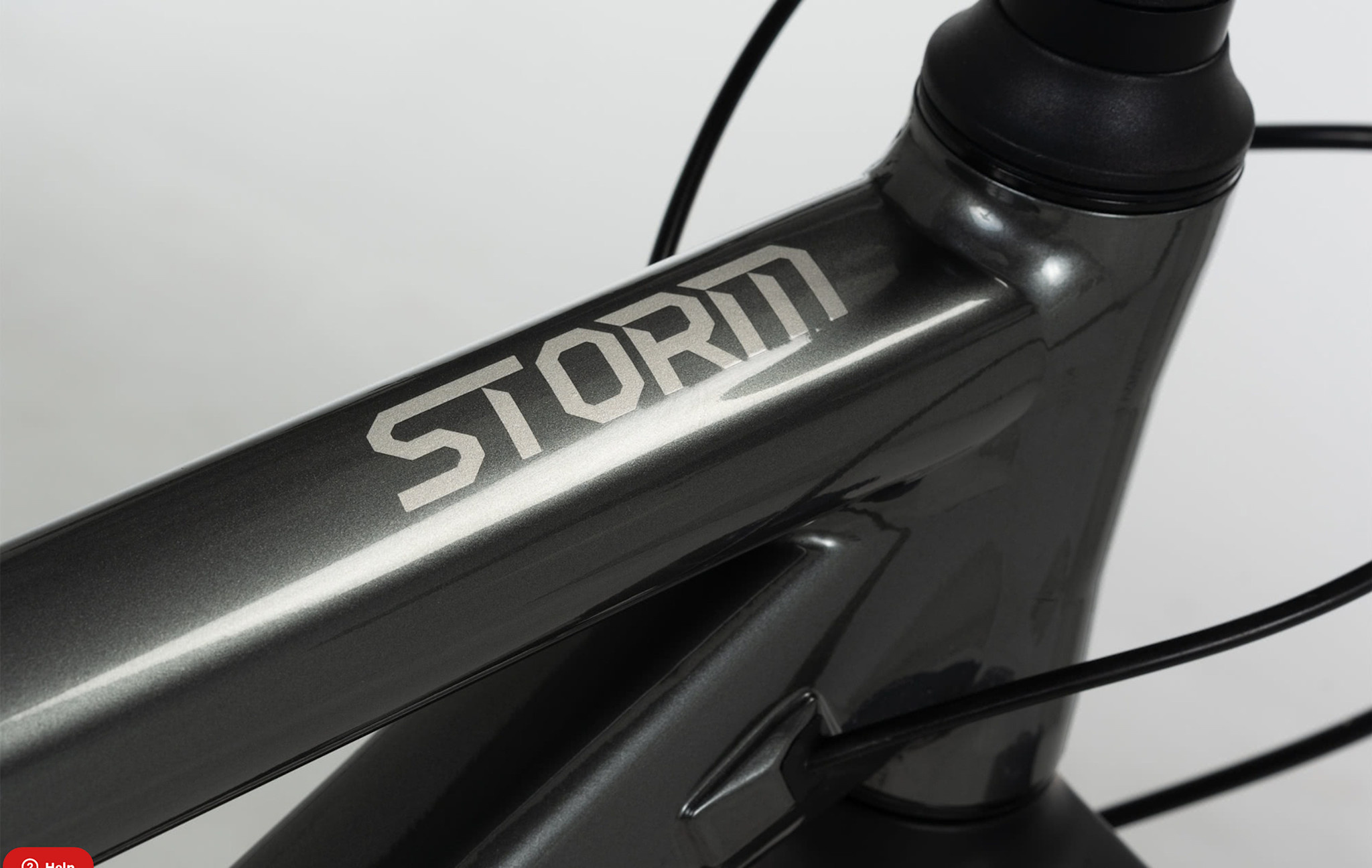

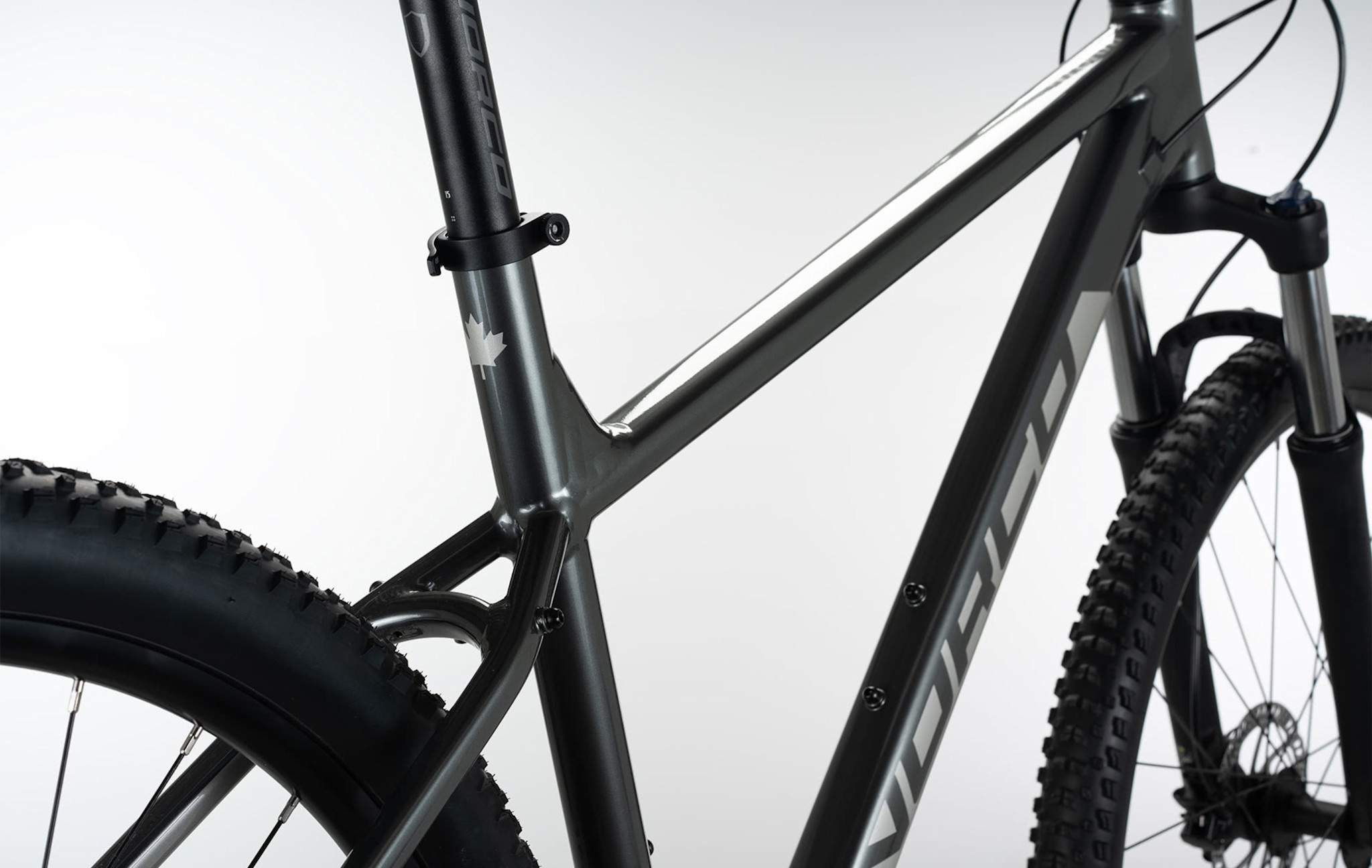

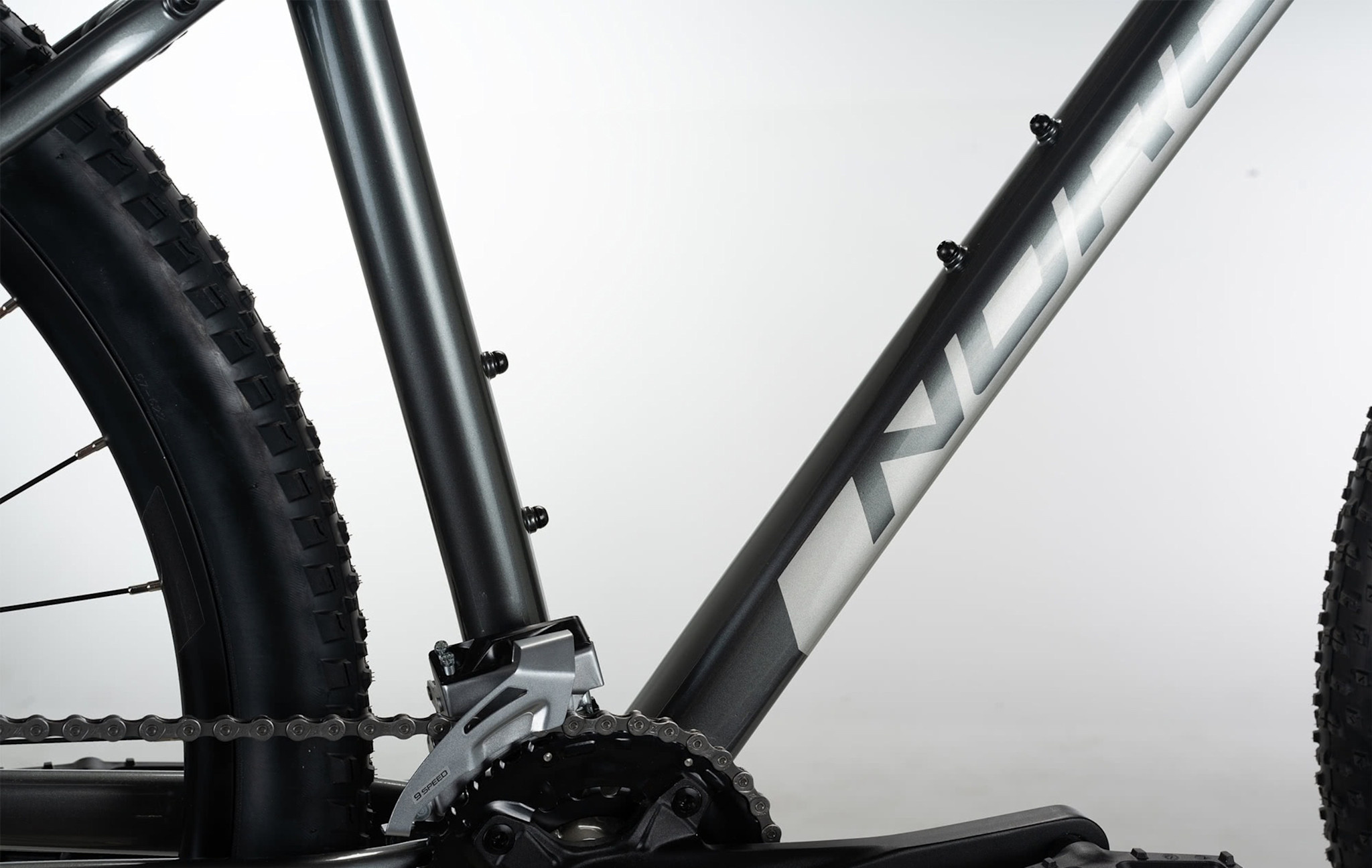

Constructed with a comfortable and capable off-road design with a 6061 aluminum frame, the bike is off-road worthy and able of leading a double life both on city streets and roaming around park paths. The holistic approach to fit and geometry allows for a longer reach, slacker head tube angle, and steep seat tube angle allows more powerful and efficient pedaling with increased climbing traction and added grip and control.

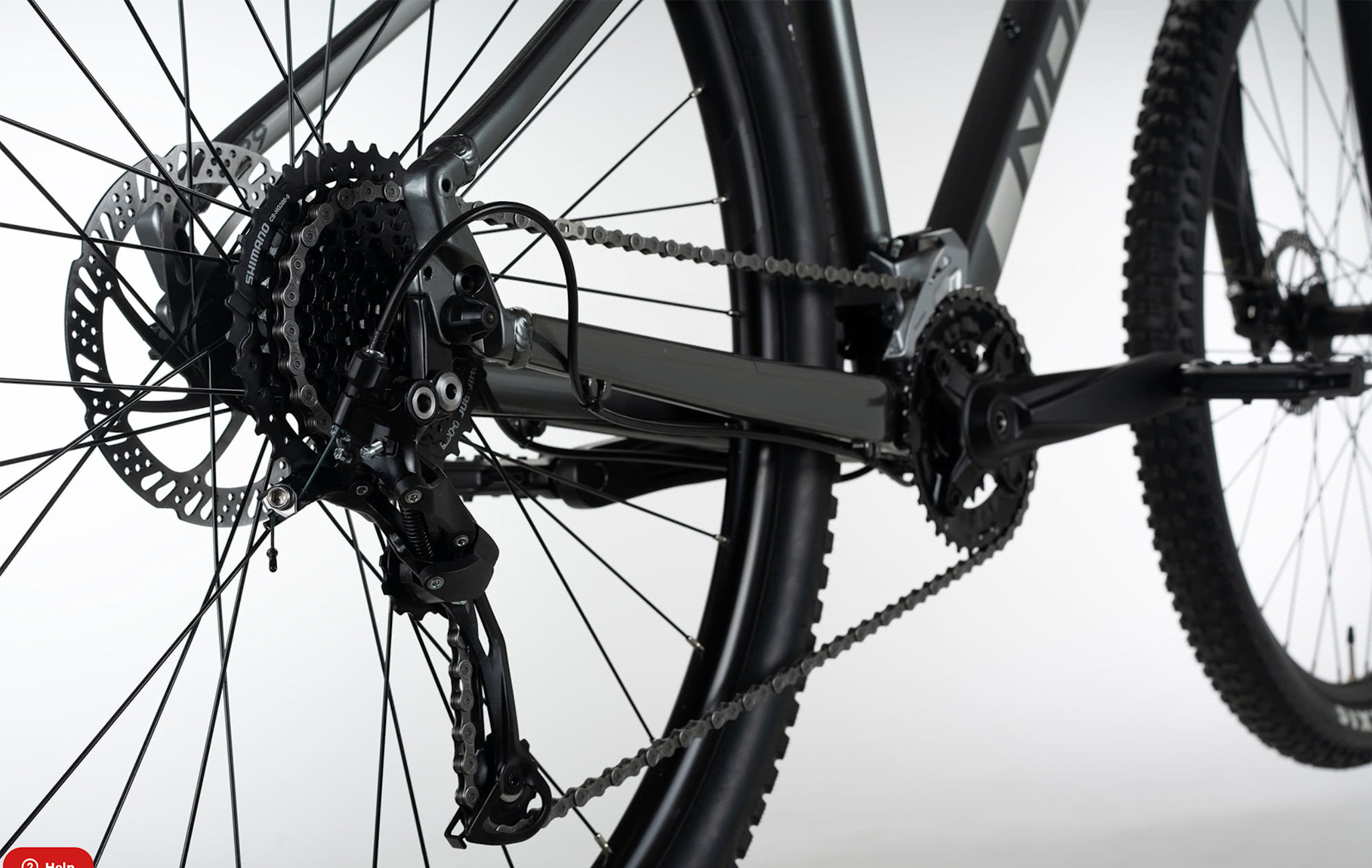

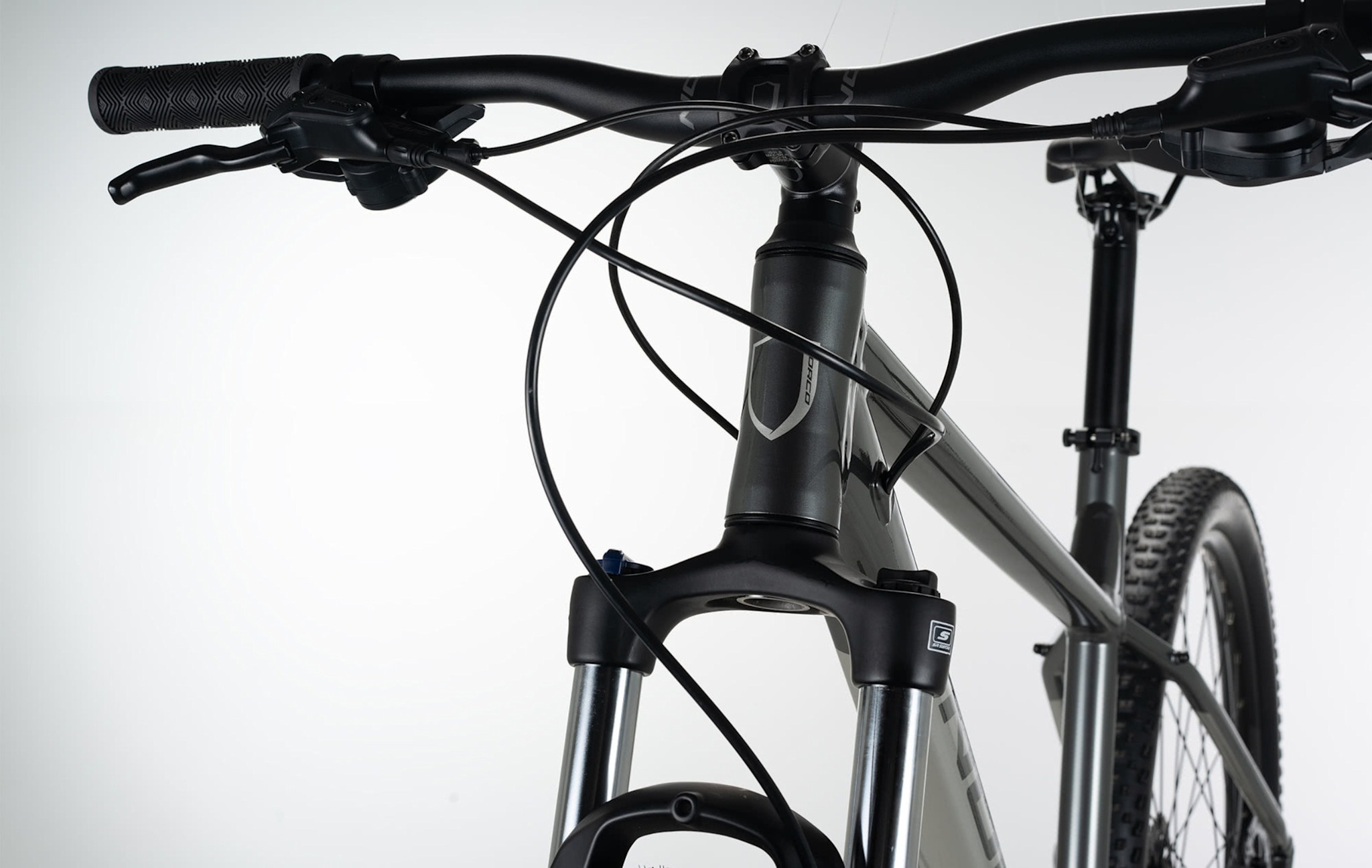

Complementing its 100mm of SR Suntour XCT30 HLO DS fork travel is a solid, reliable Shimano Alivio/Acera 18 speed drivetrain, so you can always find the right gear and spend less time at the shop. The Tektro hydraulic disc brakes provide controllable power for confident, safe stops on and off of the road.

SIZING & GEOMETRY

* Bike available in 29" wheel size OR 27.5" wheels



Frame Size:	M	L	XL
Travel (mm front):	100
Reach:	425	455	485
Stack:	624	633	643
Head Tube Angle:	68.5
Fork Offset:	51
Seat Tube Length:	470	510	550
Effective Seat Tube Angle:	75
Rear Centre Length:	450
Bottom Bracket Drop:	63
Bottom Bracket Height:	310
Horizontal Top Tube:	592	625	657
Wheel Base:	1146	1180	1214
Stand Over:	686	721	754
Head Tube Length:	105	115	125
Trail:	92
Maximum Post Insertion:	240	280	300
Stem Length:	60
Crank Length:	175
Tire Size:	2.0" – 2.35"
Water Bottle Compatible:	2 x 750 mL



Sizing

XS: 4'9.5" - 5'1.5"

S: 5'1" - 5'5"

M: 5'4.5" - 5'8.5"

L: 5'8" - 6'

XL: 5'11.5" - 6'3.5"
