Norco

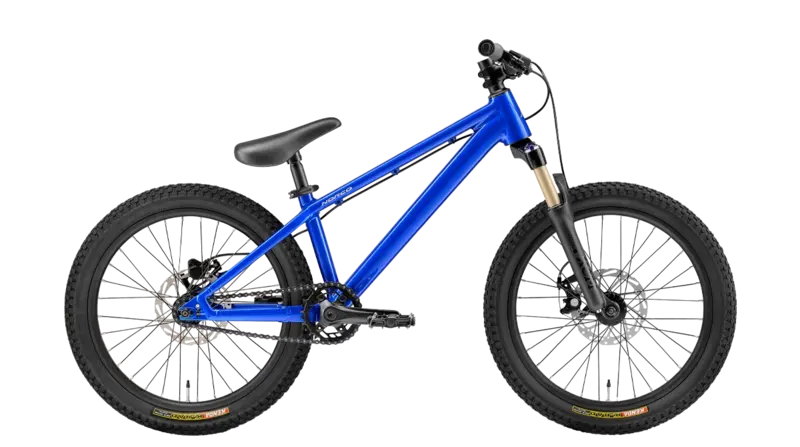

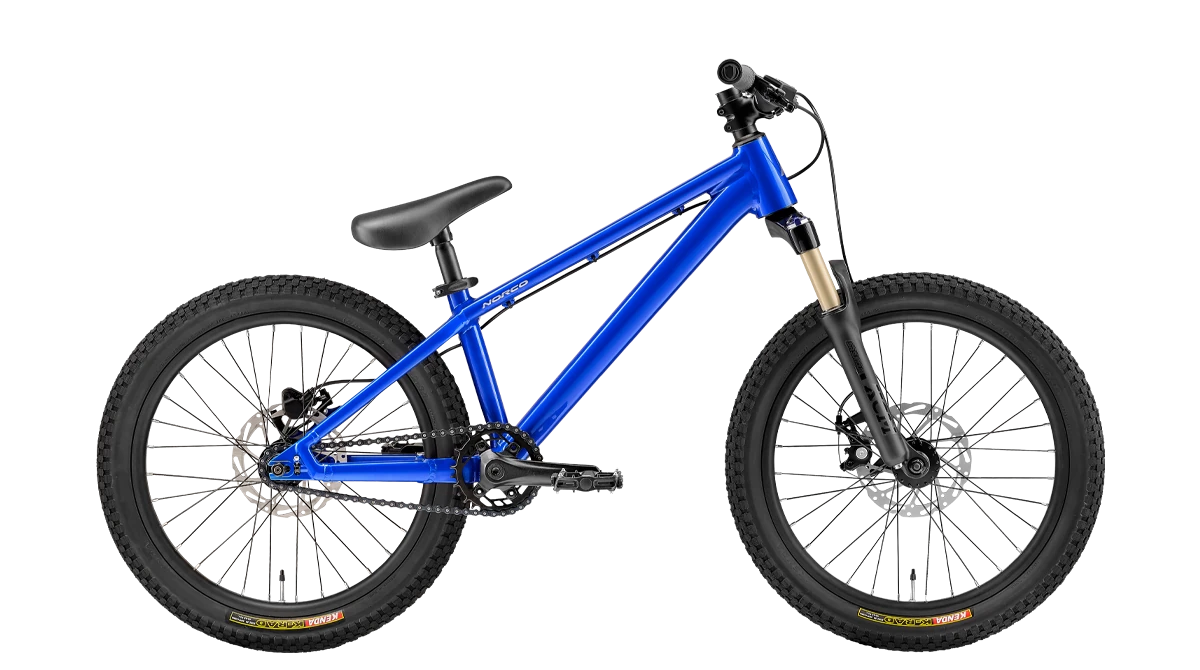

Norco 2025 Norco Rampage Youth 20" Radiant Blue

$749.00

In store: Check availability

20" Wheels | 80mm Front Travel | 68.5° HT

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Description

FROM THE MANUFACTURER

The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.

FEATURES

Frame		Smooth, seamless look for aluminum frame. With all of the finished features of our grown-up models, the Rampage Youth has a strong hydroformed aluminum frame – the welds are virtually invisible. Look good while you shred, it's as smooth as the jumps you'll flow. Slotted dropouts offer low-profile chain tension adjusters, a tapered, gyro-compatible head tube adds strength and fork compatibility, and there’s now more tire clearance at the bottom bracket yoke.
Geometry		Purpose-built for big air. The Rampage Youth brings the latest pro-rider-inspired dirt jump frame design to riders who, despite their size, need a bike that lives up to their skills. Short chainstays along with added tire clearance, and low standover, means the bike sends big air for little rippers.
Components		Components custom-built selected for reliability. Tough 2 & 3-piece cranks, BMX-style, compact single speed drivetrains, and disc brakes with lots of line for bar spins and tailwhips. Components are hand-picked for function with a BMX mindset so you can ride hard every day without second guessing.

GEOMETRY

Size		Small

Travel		80
Reach		345
Stack		444
Head Tube Angle		68.5
Fork Offset		40
Seat Tube Length		260
Effective Seat Tube Angle		75
Rear Center Length		295
Bottom Bracket Drop		0
Bottom Bracket Height		261.5
Horizontal Top Tube		464
Wheelbase		858
Standover		492
Head Tube Length		100
Trail		60
Maximum Post Insertion		212
Stem Length		35
Crank Length		127
Tire Size		2.35" - 2.5"

Specifications

Frame	Aluminum DJ 20"
Wheel Size	20"
Travel	80mm Front
Fork	SR Suntour XCM Jr Air, 80mm, 9x100mm
Rear Shock	N/A
Headset	Tapered 1-1/8"- 1.5",(ZS44/28.6 \| ZS56/40)
Bottom Bracket	Square Taper, 73mm, 122.5mm axle
Shifter	N/A
Rear Derailleur	N/A
Cassette	Single speed
Chain	KMC Z1 natural black 1/2 x 3/32" single speed chain
Chainring	13T
Crankset	Prowheel 3pc, 30T, 127mm
Brakes	Front: Tektro MD-280, Mechanical, Resin pads \| Rear: Tektro HD-M286, Hydraulic, Resin pads
Rotors	TR 160-24, 160mm , 6 bolt
Seatpost	Integrated w/saddle, 27.2mm ID, 200mm Length
Handlebar	Norco 6061 alloy, 640mm, 30mm rise
Stem	Norco, 40mm Length, 31.8 Clamp
Grips	Norco JR Single lock on, 92mm length
Saddle	Norco One Piece
Pedals	FM Composite Jr Flat Pedal
Front Wheel	XD-181 DW, 32h, F/R-20", 24.7mm ID w/ KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt
Rear Wheel	XD-181 DW, 32h, F/R-20", 24.7mm ID w/ KT sealed bearing, 3/8" nutted axle, 32H, 13T SS sproket, 6 bolt
Front Tire	Kenda K-Rad, 20x2.35", Wire Bead
Rear Tire	Kenda K-Rad, 20x2.35", Wire Bead
