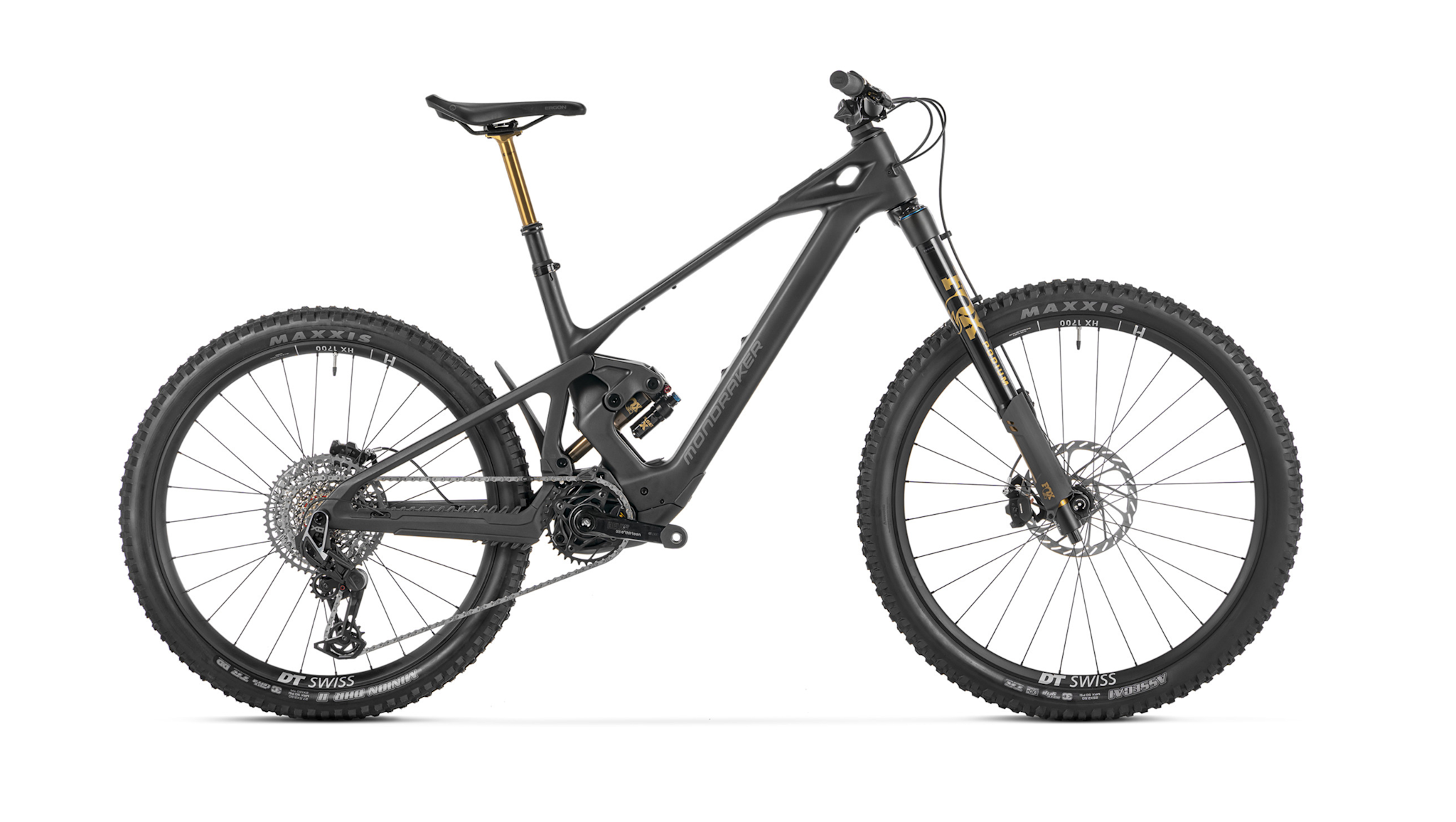

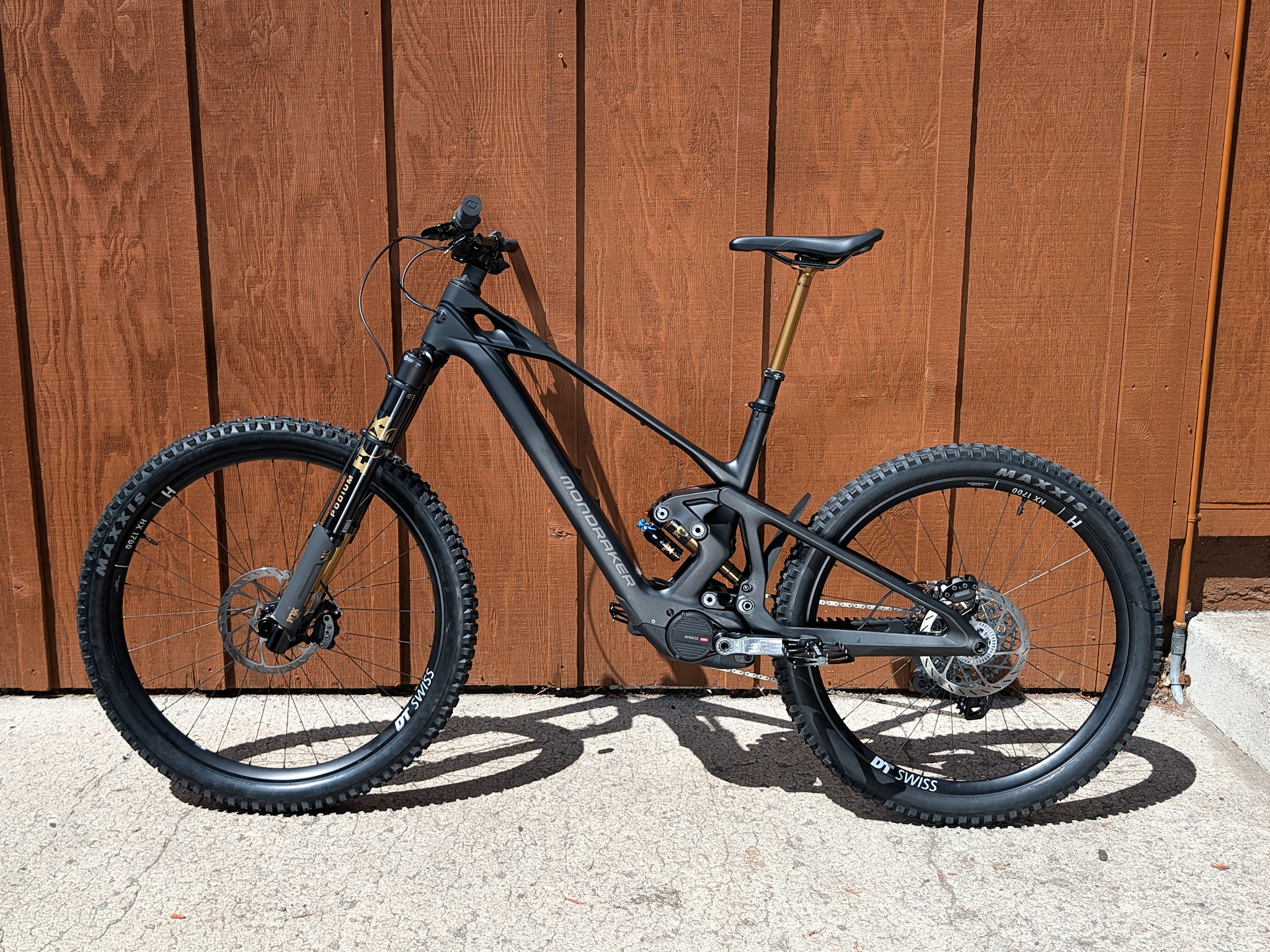

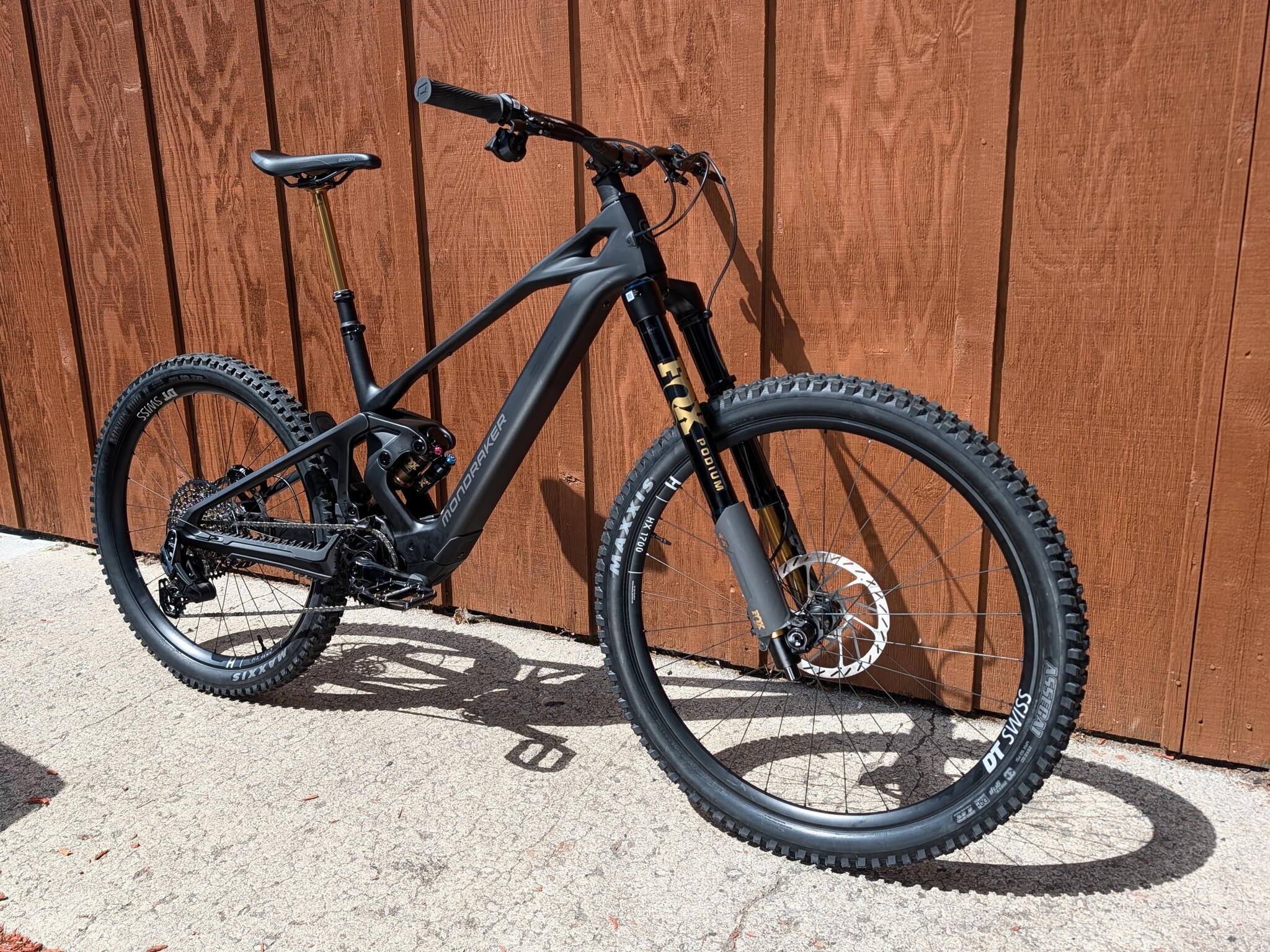

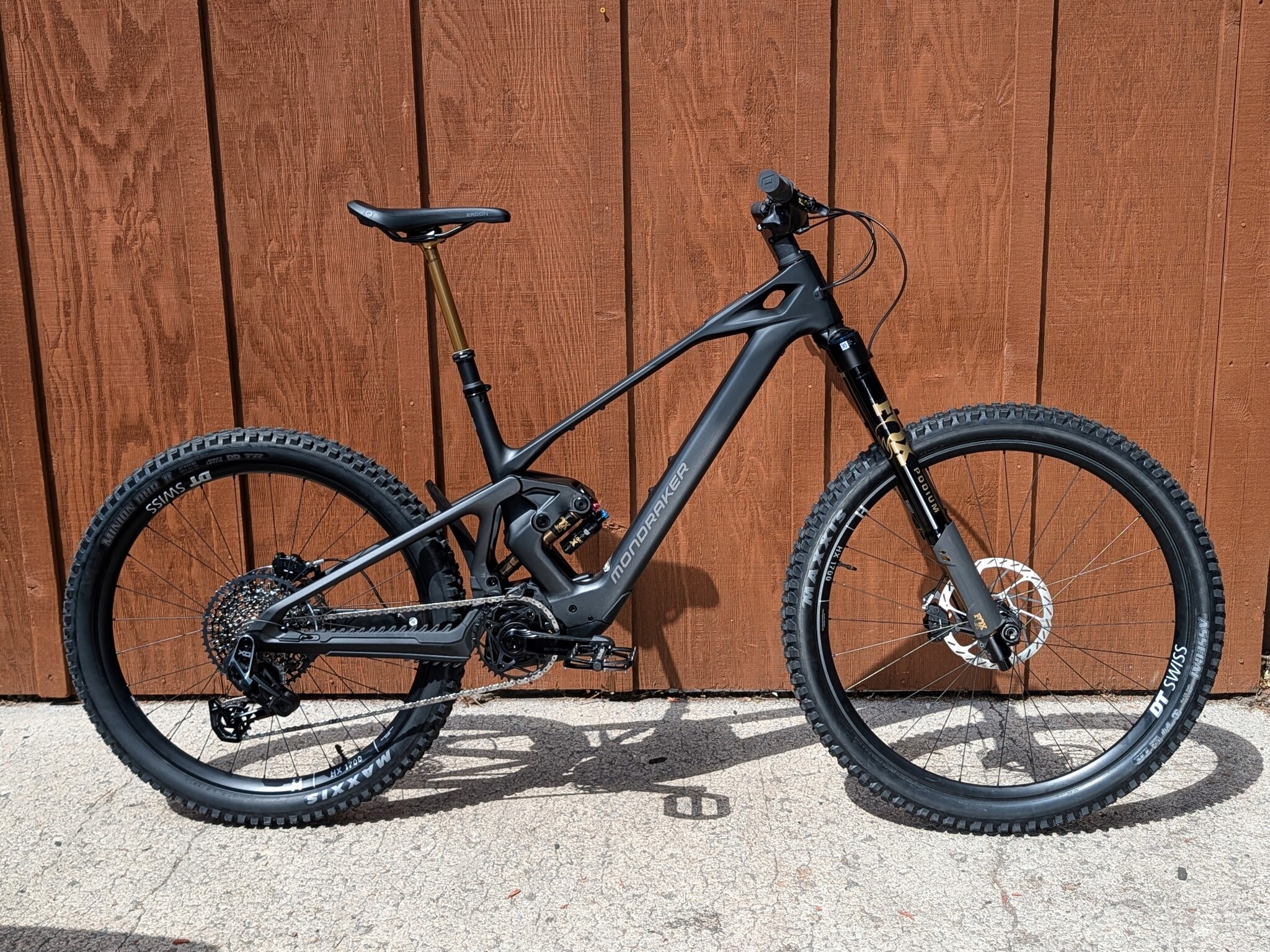

29/27.5" MX | 170 Front / 165mm Rear | Avinox M2S Motor
Announcing the all-new ZENDIT,
the flagship Mondraker e-MTB that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful new Avinox M2S drive system.
Designed for aggressive riding on the nastiest climbs and descents, ZENDIT is the result of over 11 years of e-MTB development, combined with the no-holds-barred approach to suspension performance from the Mondraker Factory Racing development team.
Zendit was created for those who see the mountains as a challenge, as a place to push the boundaries. A bike with character, energy, and an almost instant response to every challenge. When the slope steepens, the ride gets faster and the terrain becomes unpredictable, everything falls into place. Zendit unleashes its full potential.
Feel the freedom of seamless power and unrivalled performance. Lean into every ride with the confidence and determination of being in total control, even in the most demanding situations.
ZENDIT is constructed from the ground up around the latest Avinox M2S drive system.
With 165mm of rear wheel travel, a mixed wheel configuration as standard and the next evolution of the ZERO suspension platform, ZENDIT is by far the most capable Mondraker bike to date.
STEALTH AIR CARBON THE NEXT EVOLUTION

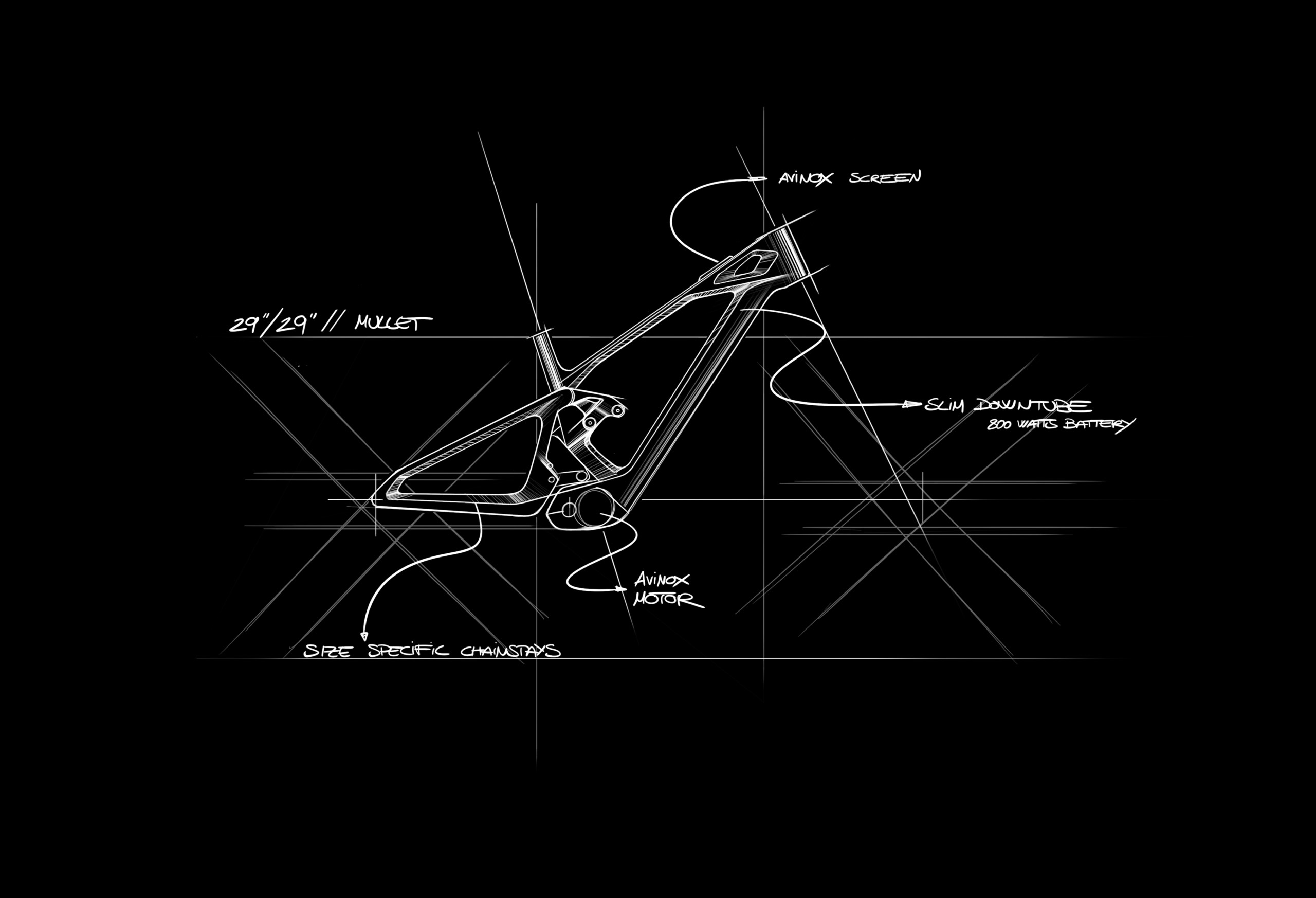

Rather than adapting an existing platform, the ZENDIT frame was designed to house the most advanced motor system on the market.
This frame is highly advanced in both design and manufacture. For the first time 6-Axis CNC machines are used for frame drilling and finishing in place of hand finished frames.

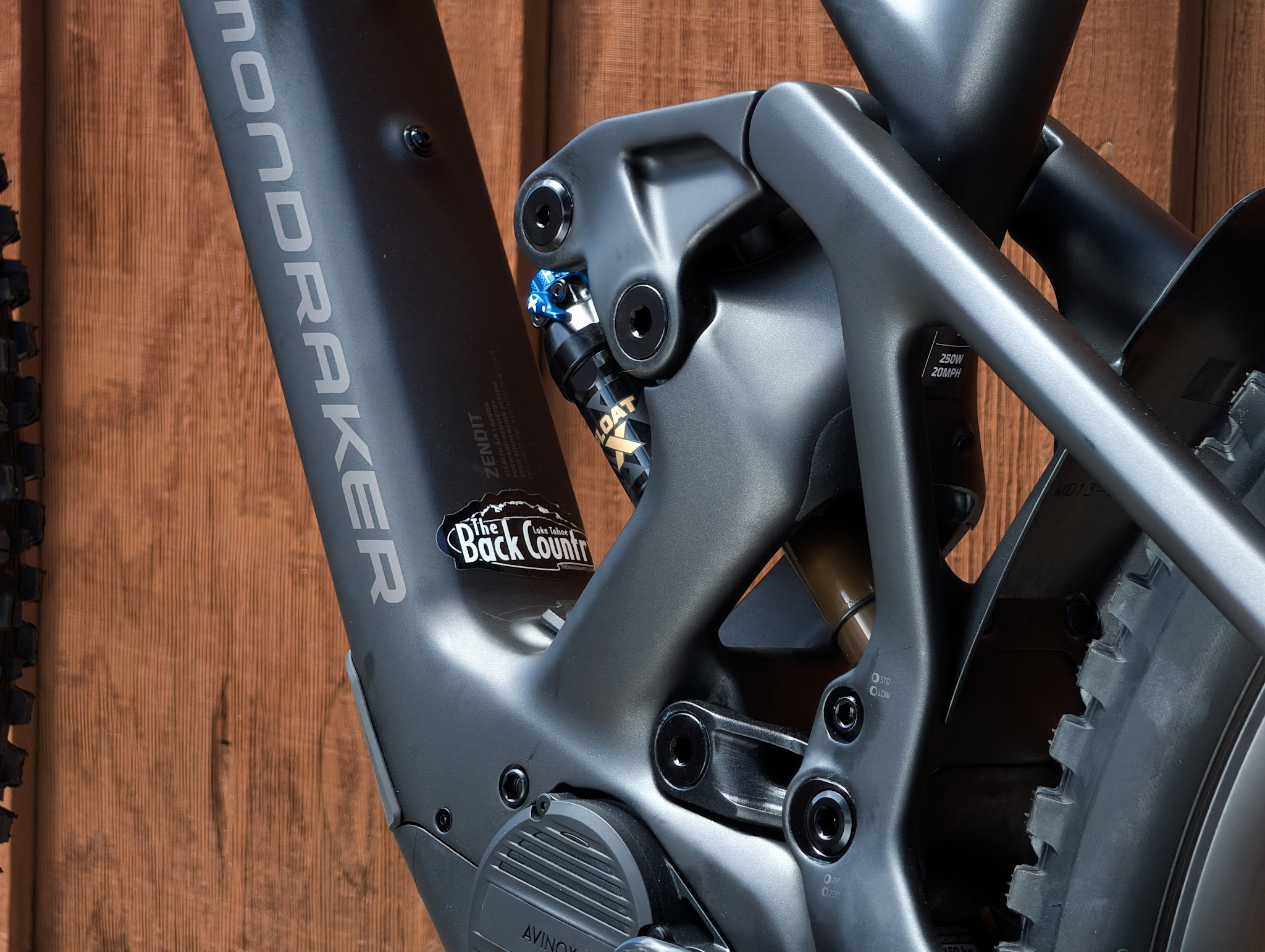

ZENDIT takes advantage of everything learnt from the MFR DH development team and uses the same pivot system as the new and proven Summum DH frame.
With single-size Enduro Max bearings throughout, maintenance becomes easier and two additional rubber seals help the bearings last longer.

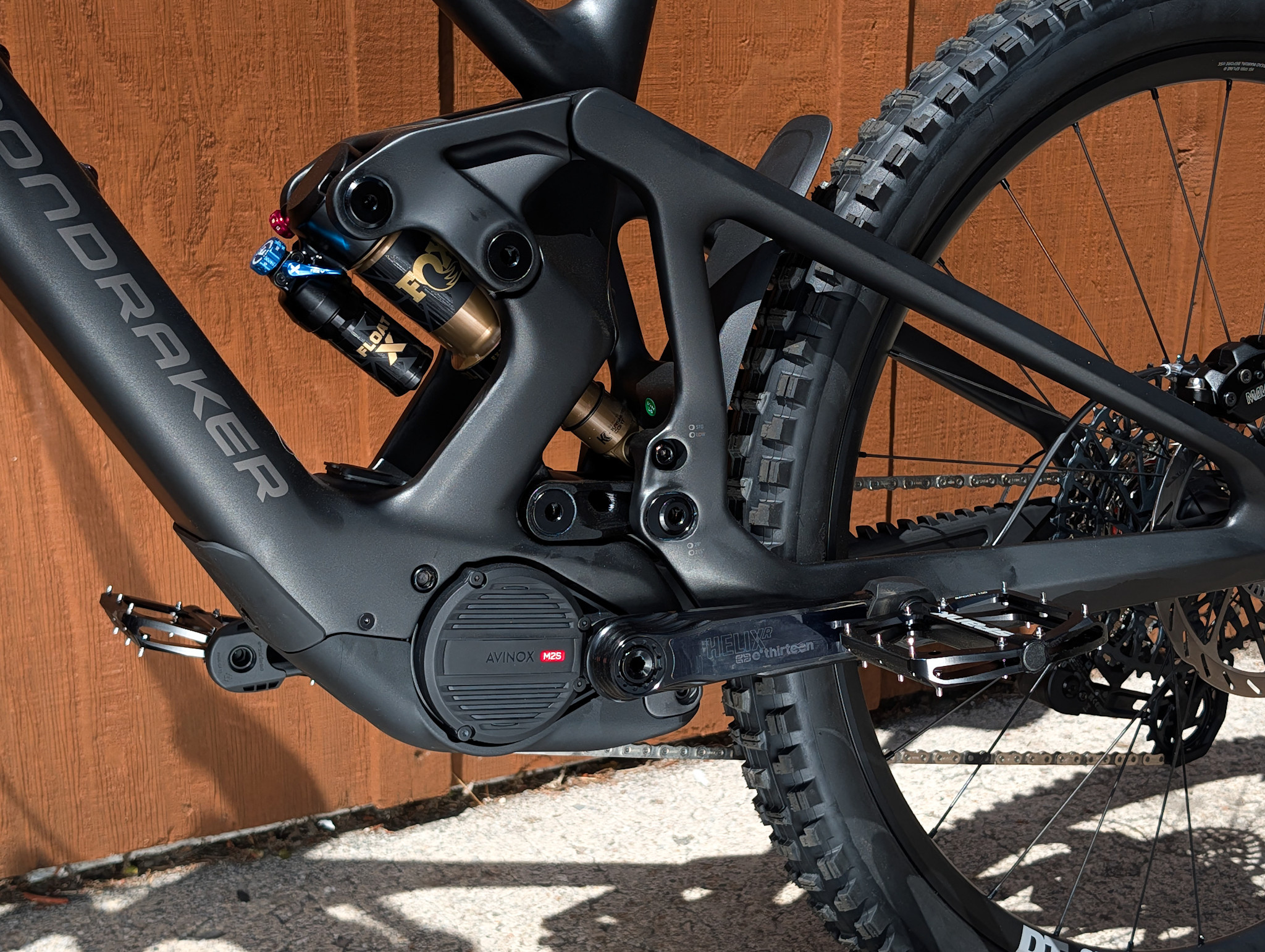

The ZERO suspension kinematics are completely revised to reflect what the Avinox M2S motor can output. There is more support and a more active suspension action to make sure the increased power gets to the trail.
A 36-tooth chainring further enhances drivetrain durability, whilst optimised Anti-Squat figures maintain a balanced, efficient ride with every pedal stroke.

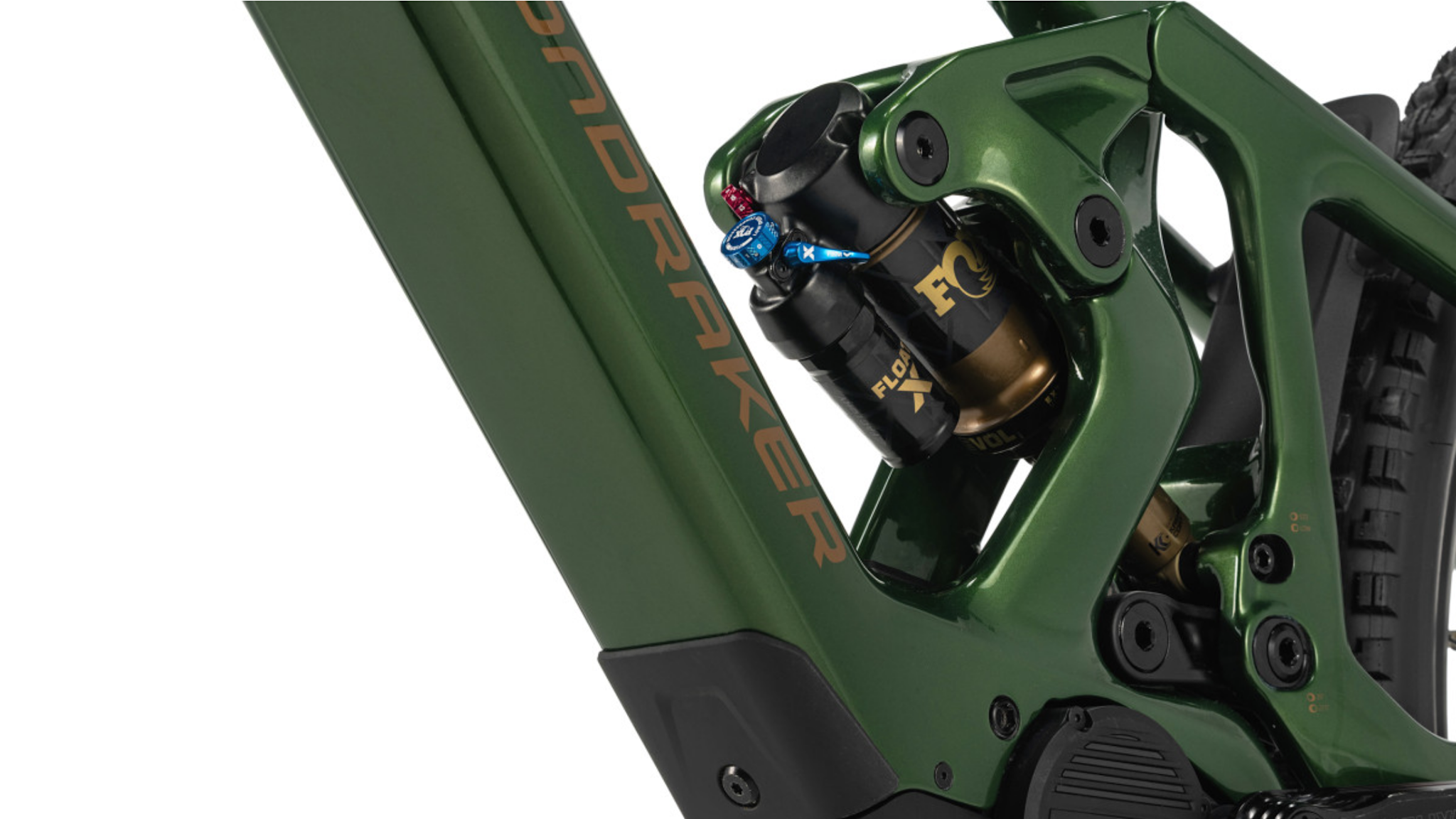

Mondraker and Fox have worked closely to offer the best performance for ZENDIT in terms of rear suspension. The latest Fox Float X shocks on the RR and RR S models as well as the latest Fox Float X2 shock on the XR model have a specific tunning adapted to the kinematics of the bike, maximizing its performance and ride feel.
PROPORTION MATTERS
As with other bikes over 150mm of rear wheel travel, ZENDIT comes stock with a mixed wheel configuration - it’s the best overall performance for the aggressive riding. But it can easily rock 29’’ wheels for even more climbing capability!
ZENDIT features proportional chainstay lengths depending on the sizes. S; M and M/L sizes offer the same 450mm chainstay length, whereas the L and XL models are 5mm longer at 455mm. By slightly adjusting pivot placement in all sizes, the same leverage ratio is achieved throughout. So, no matter what size you need, you get the same ride qualities.
To use 29’’ wheels, there is a lower flip-chip that increases chainstay length by 7mm, but crucially does not have any effect on the suspension kinematics. Bottom Bracket height and key angles remain the same too.
130Nm torque | 150Nm torque in Boost Mode
1300w Peak Power | 250w Nominal Power
800% Assistance level
COMPACT
107mm (H) x 172mm (L)
2.65kg
800Wh, integrated
Approx: 3.77kg
Self-discharge, Sate Of Health (SOH) management and Voltage Reduction to maximise battery life
Maintains 80% of capacity after 500 charge cycles
Fully customisable riding modes to suit different riding conditions.
ECO: Efficiently enhance long-range riding. Features lower assistance for tackling flatter terrain.
AUTO: Utilise the multi-sensor fusion to automatically and continuously adjust assistance based on riding resistance.
TRAIL: Aimed at mixed technical trails, enabling riders to effectively overcome terrain challenges.
TURBO: Assists with steep climbs and empowers riders to navigate challenging obstacles and terrain.
BOOST: Up to 60 seconds of 150Nm torque and max 1300 Watts power output for extreme terrain.
| Frame | Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, o |
|---|---|
| Wheel Size | 29" |
| Travel | |

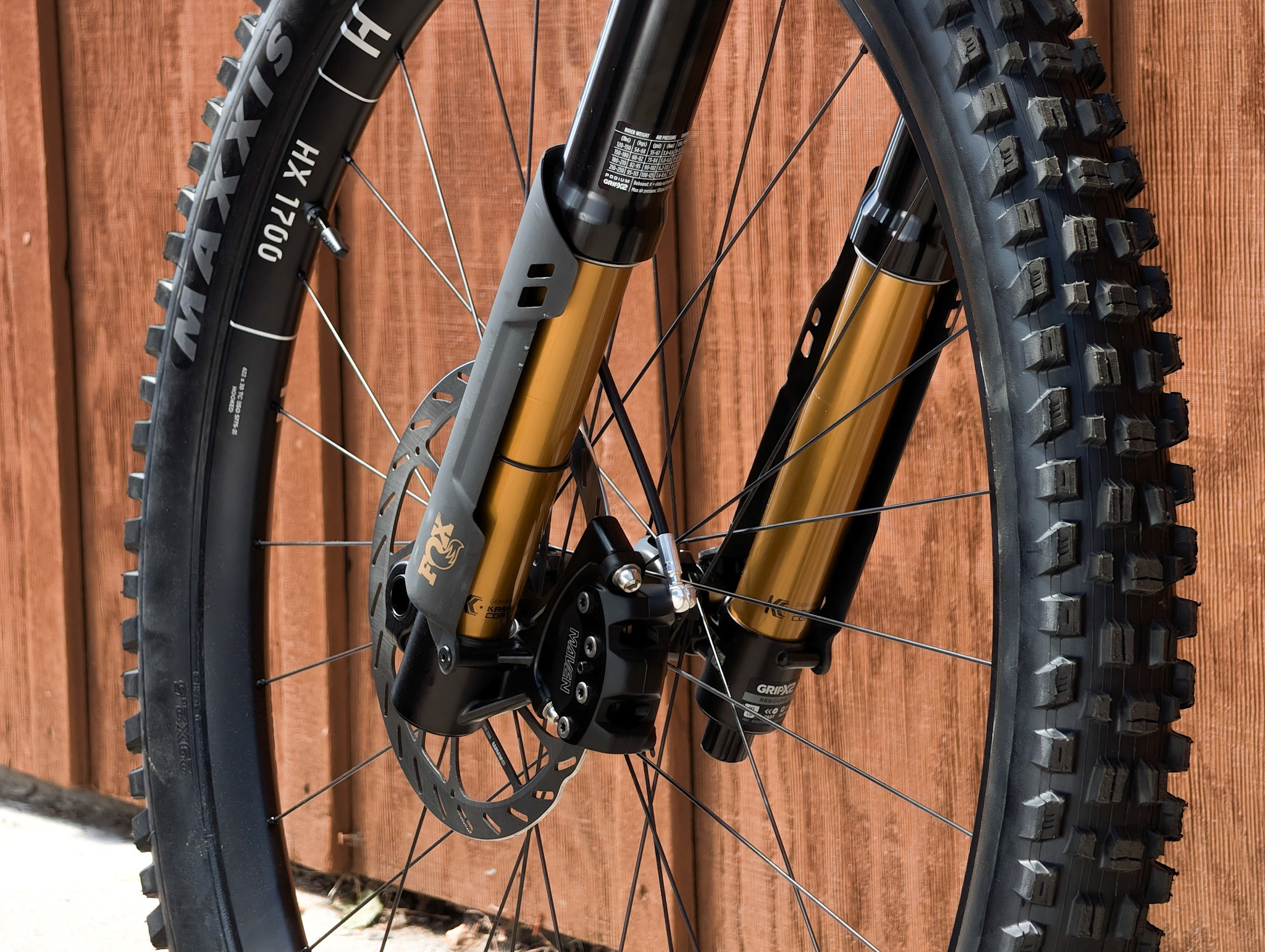

| Fork | Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload. |
| Rear Shock | Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings. |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock. |
| Shifter | Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s |
| Rear Derailleur | Sram X0 Eagle AXS T-Type, 12s |
| Cassette | Sram XS 1275, 10-52T, T-Type, 12s |
| Chain | Sram GX Eagle T-Type, 12s Flattop, w/Powerlock |
| Chainring | Sram Eagle 36T T-Type, 104BCD, steel, CL55 |
| Crankset | e*thirteen Helix Race e*spec alloy. All sizes: 155mm |

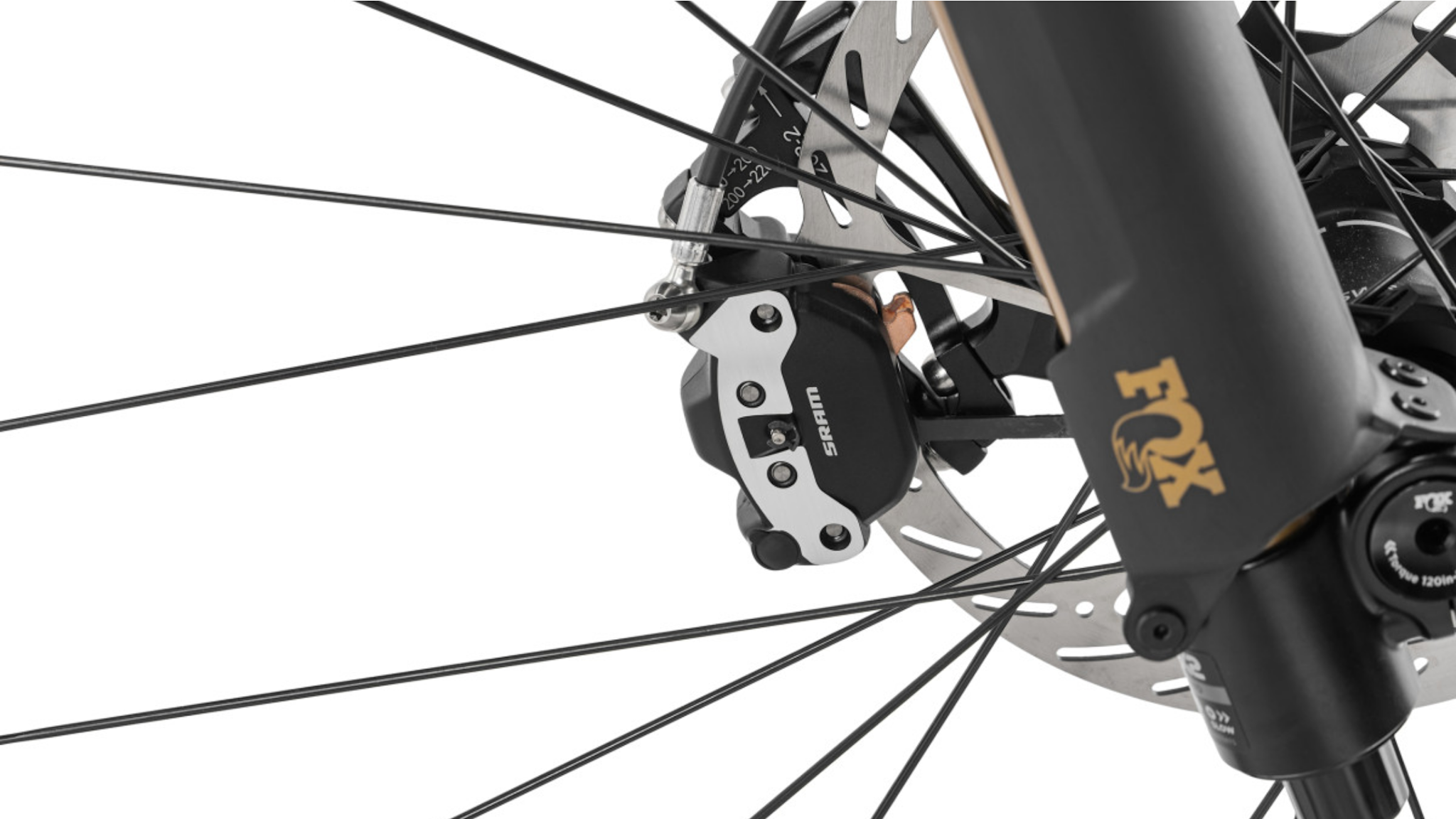

| Brakes | Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust |

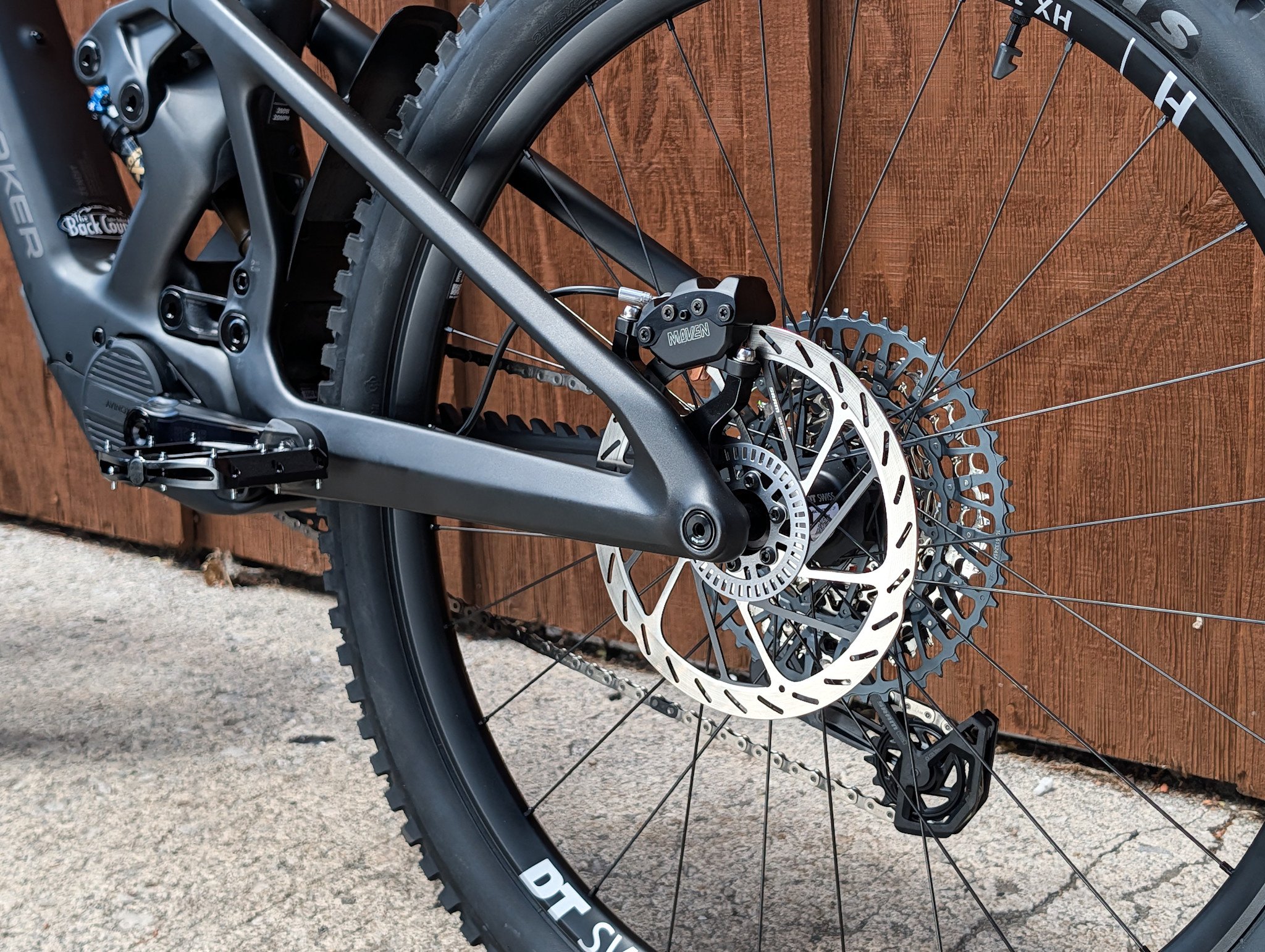

| Rotors | F: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads | R: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Seatpost | Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm |
| Handlebar | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size. |
| Saddle | Ergon SM10 E-Mountain Black. |
| Pedals | N/A |
| Front Wheel | DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes| Hub: DT Swiss 350, Boost 20x110mm, IS 6 bolts |
| Rear Wheel | DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes | Hub: DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Drive Unit | Avinox M2S |
| Battery | Avinox 800Wh Battery |

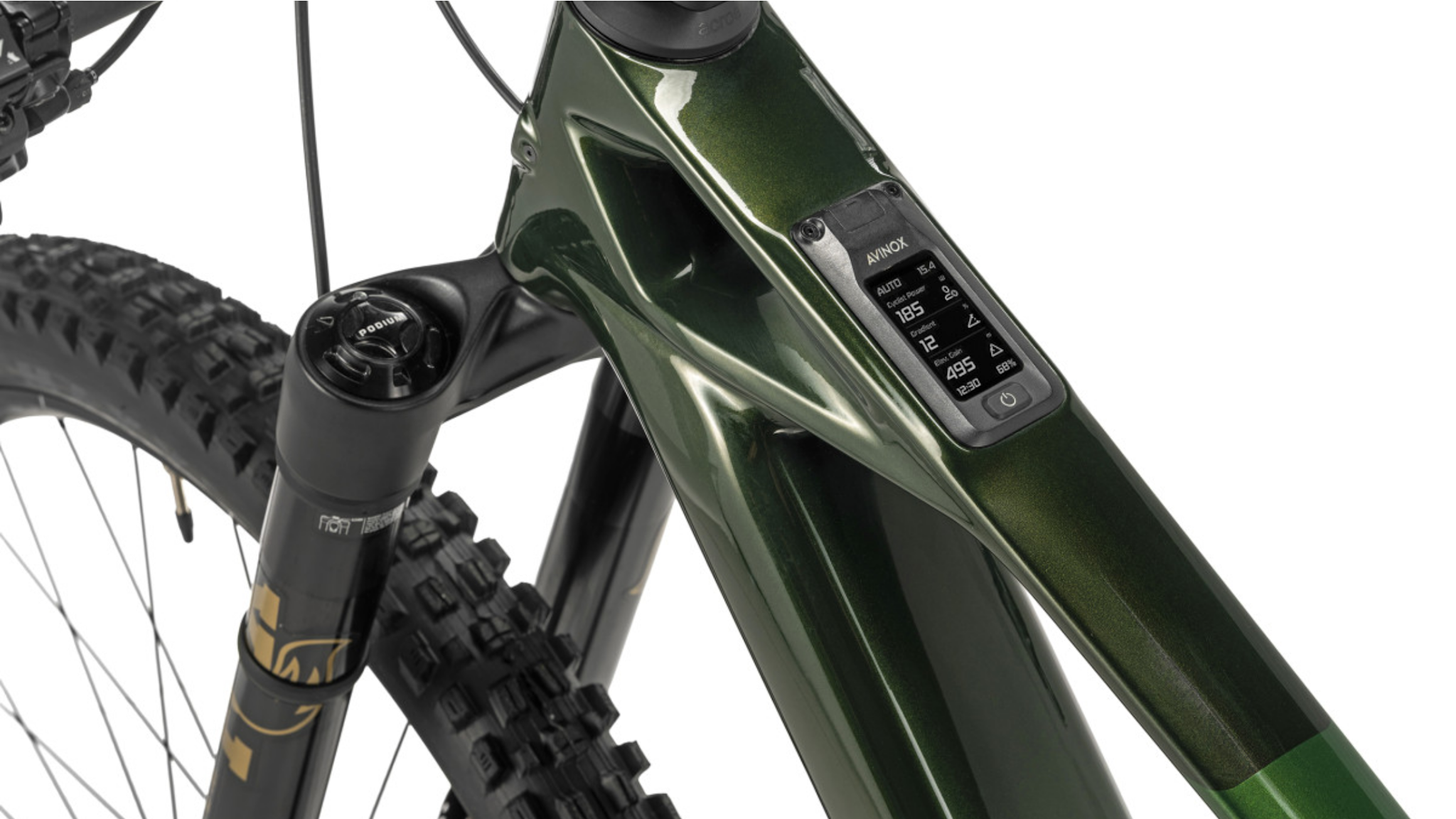

| Display | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
| Extras | N/A |
| Sizes |
