From the manufacturer

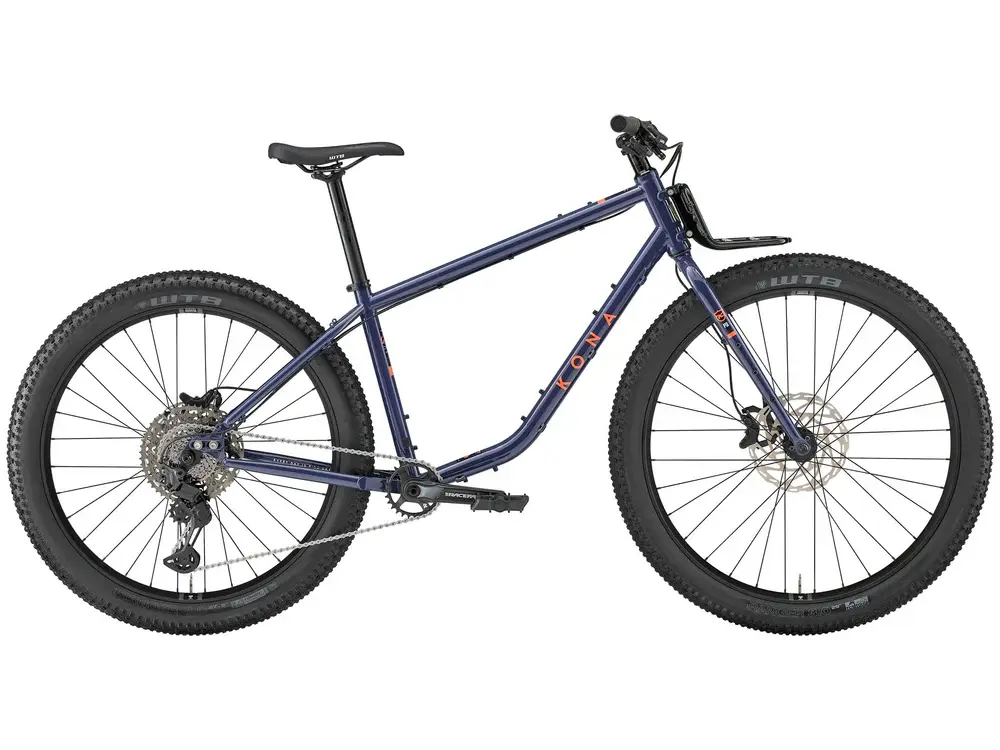

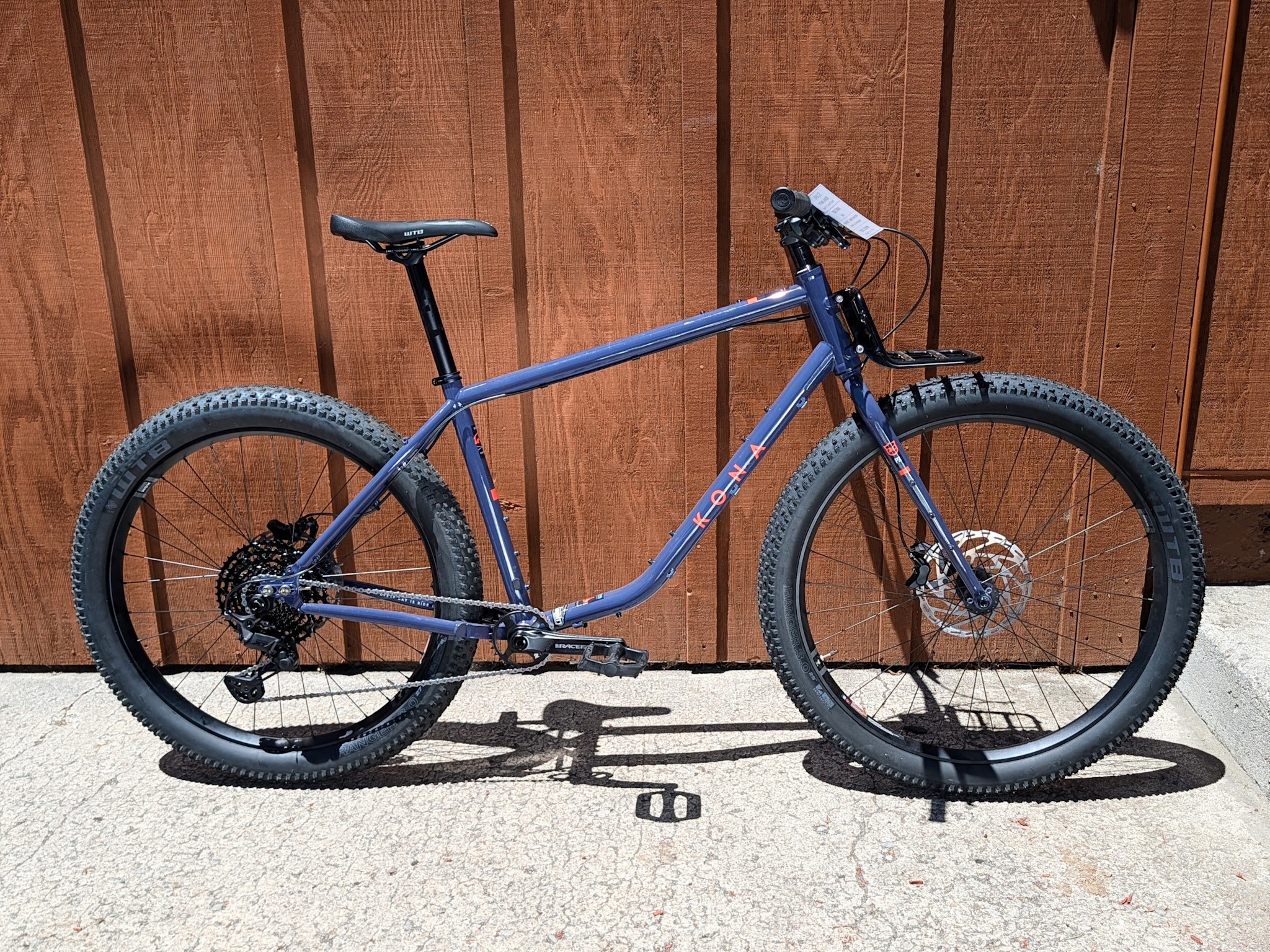

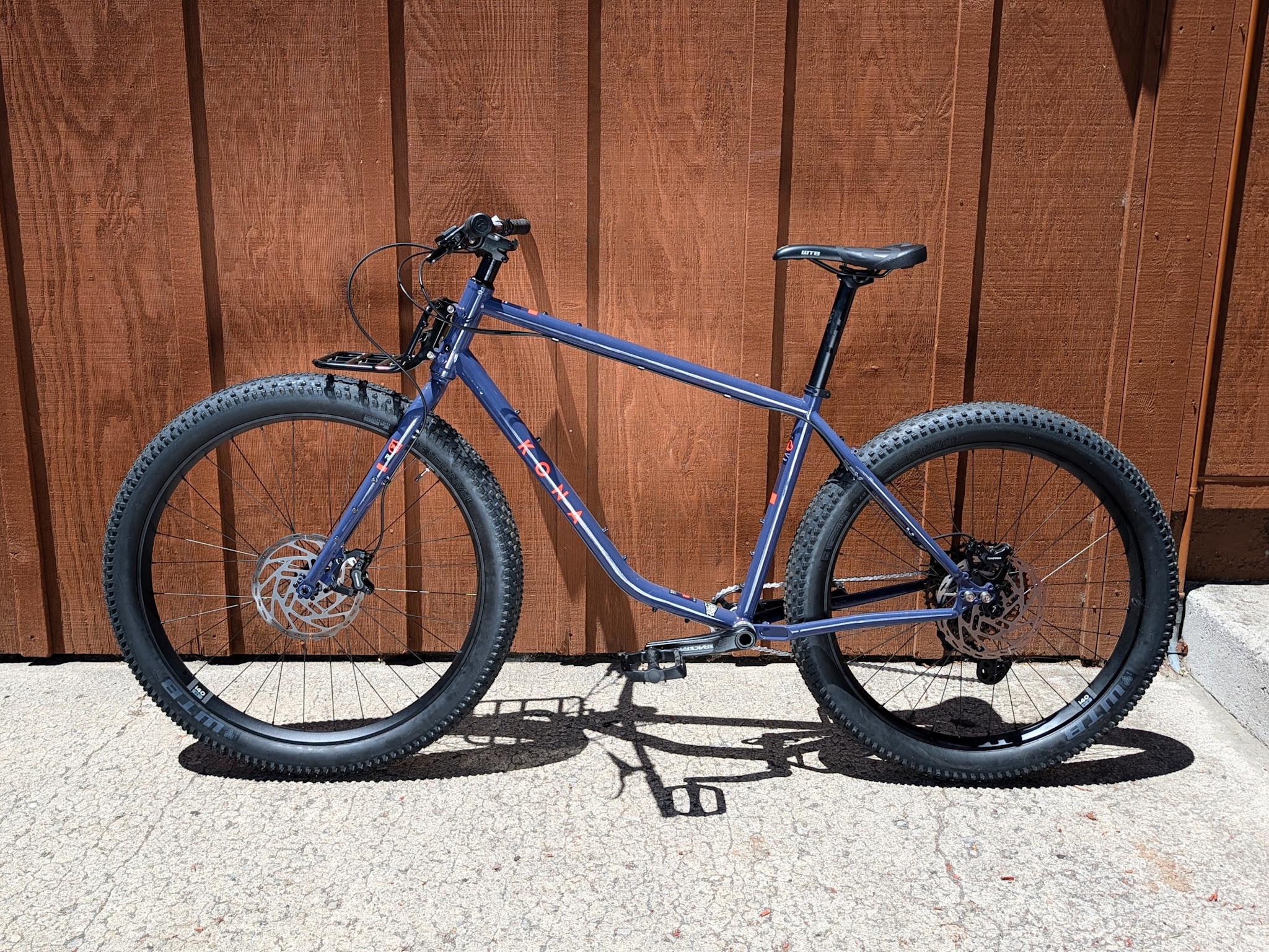

Bikepacking has evolved and its enthusiasts have cried out—in its echo, a new Kona has burst onto the scene: the Unity. It might be the ultimate utilitarian bike, but it would be rude to put it in just one box. It’s a mountain bike. It’s a gravel bike. It’s a bikepacking mule and a burly beast of burden built to go further, deeper, and more rugged than most bikes dare.
We wanted big tires. And mixed wheels! Trendy? Maybe. But we chose MX because it brings the center of gravity where we want it, makes a stronger rear wheel, and allows for more clearance when it comes to rear racks and seat bags.
We wanted BIGGER LOADS, but weren’t willing to sacrifice ride quality. So, we optimized the geometry for riding under load, dialing in fork offset and handling to stay predictable when you’re fully packed.

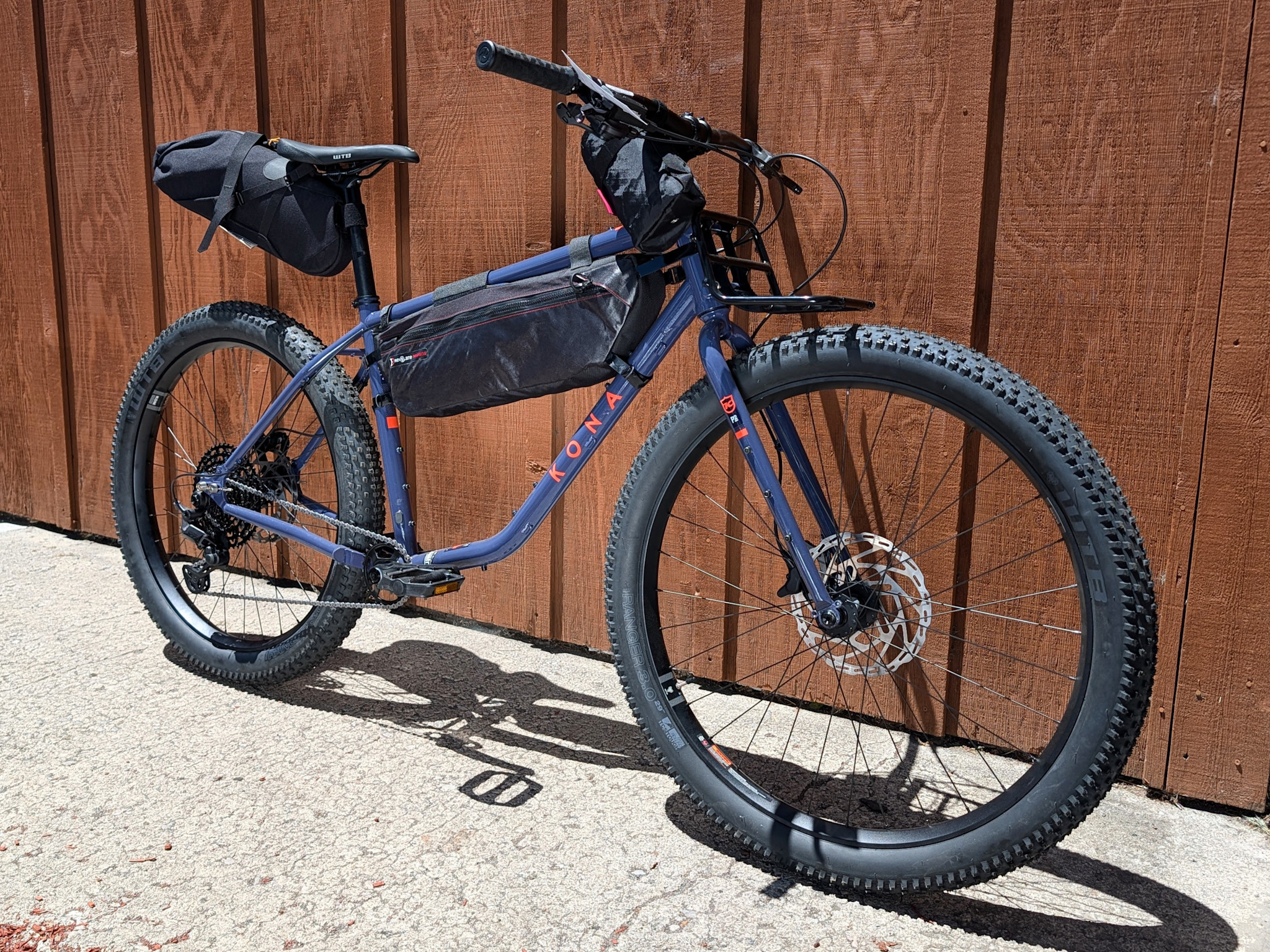

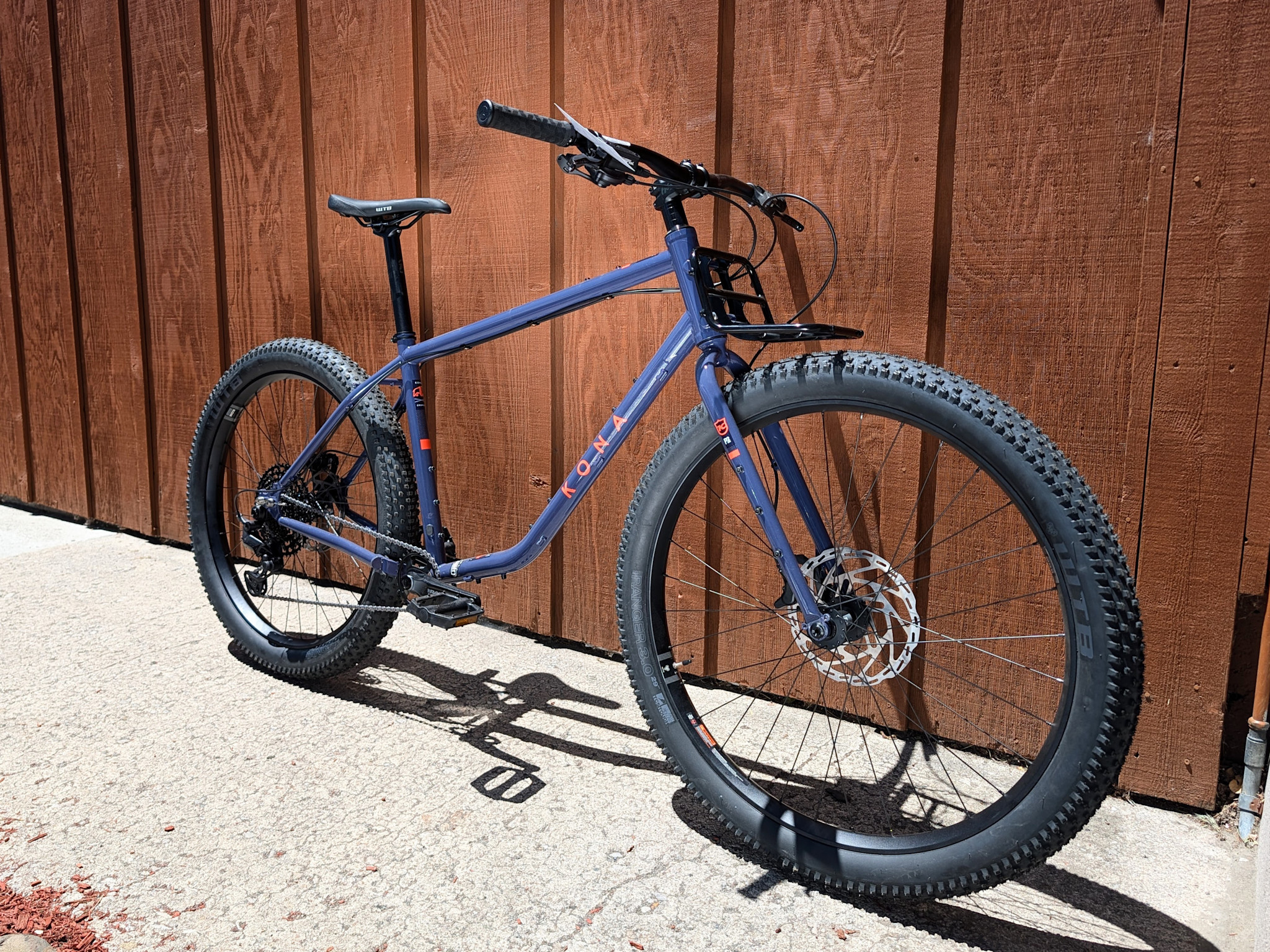

With a custom integrated cargo rack up front and an oversized front triangle built for max frame bag space, the Unity is ready for your biggest missions.
Whether you’re riding across a mountain range or building an off-grid battle cruiser, the Unity has your back—and your front.
Features
| Frame |
|

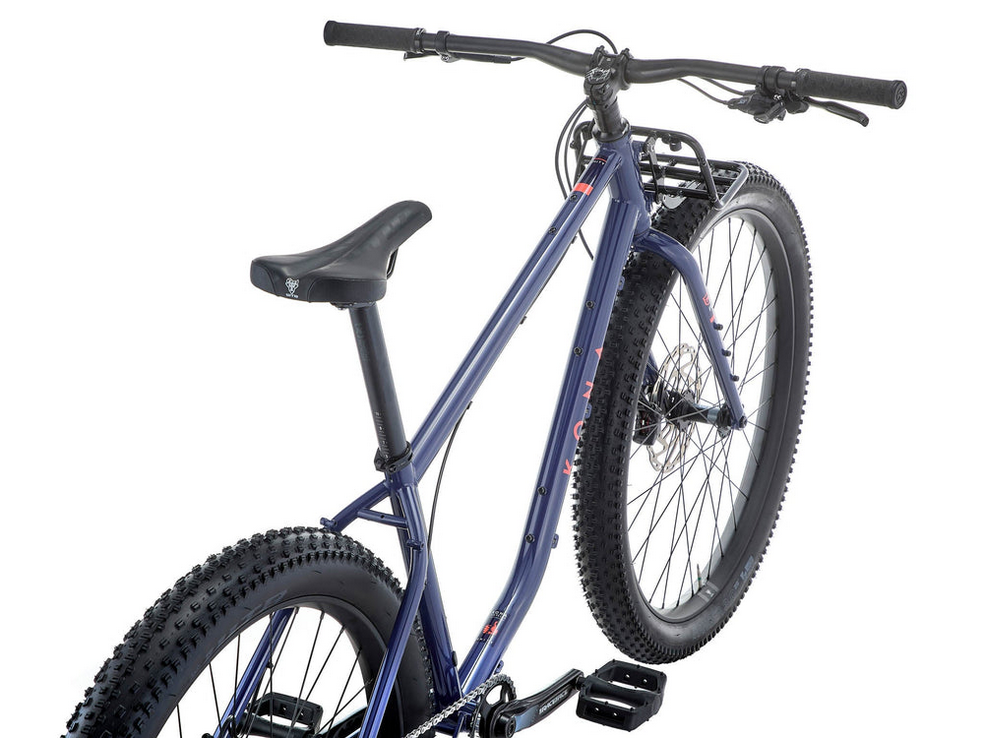

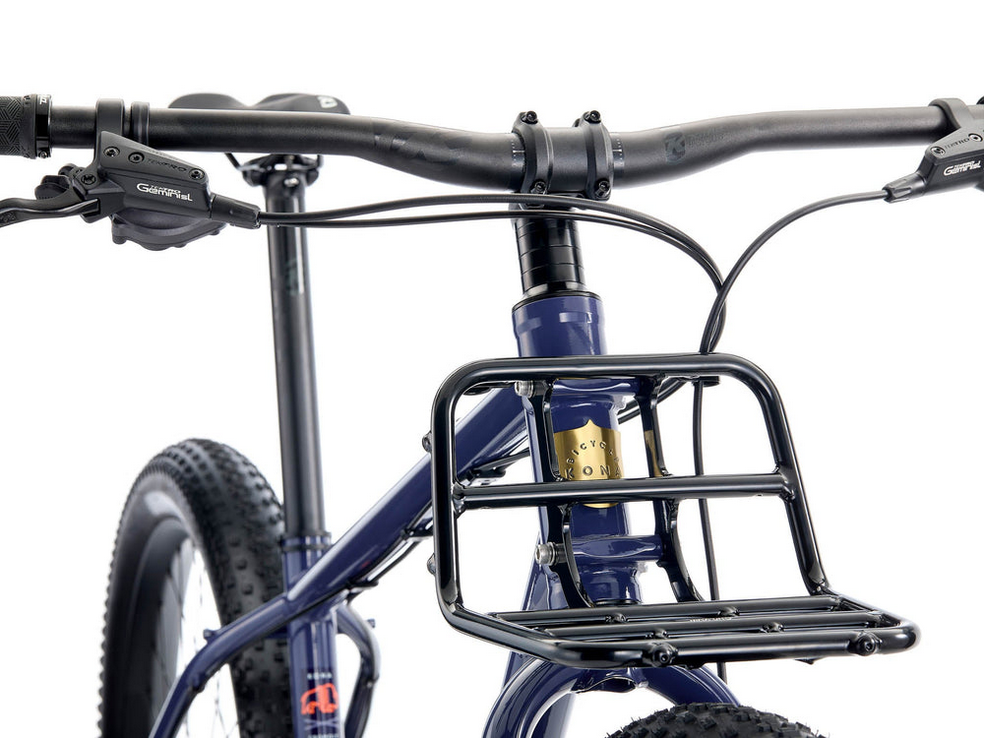

- Custom frame-mounted front rack
Bolted directly to the frame, the Unity’s integrated front rack carries the load without influencing your steering. No flop, no sway, no wrestling with weight up front—just predictable handling, even with a week’s worth of gear strapped on.
- Compatible with popular aftermarket carriers
No headache. It plays nicely with the most common third-party front and rear carriers, giving you freedom to expand capacity or tweak your setup based on the mission.

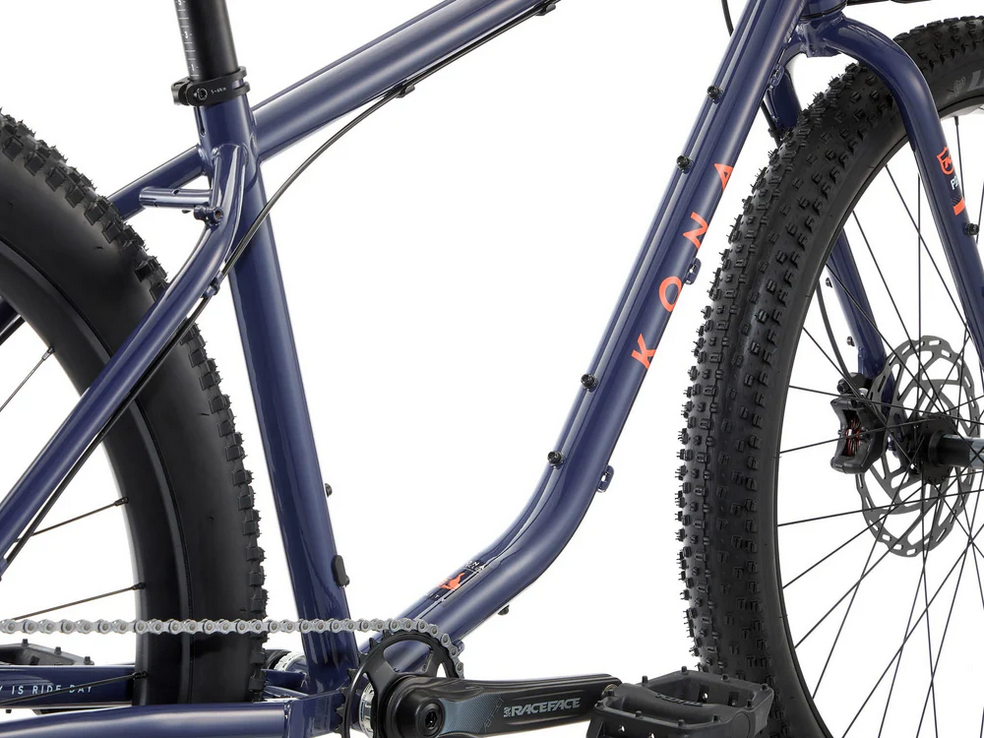

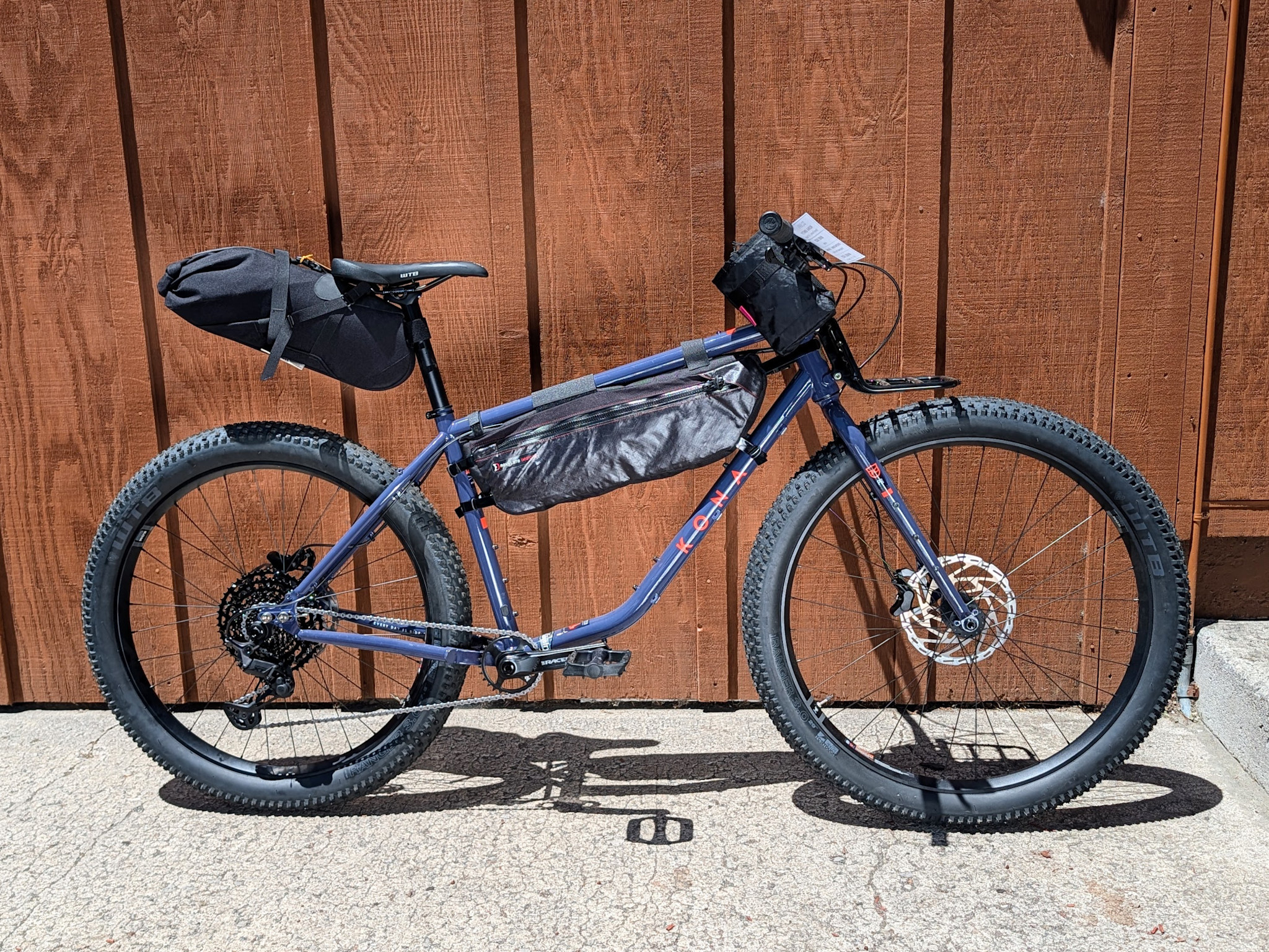

- Maximum front triangle space
A purpose-built, oversized front triangle gives you the biggest possible footprint for frame bags. Whether you’re carrying water, tools, camera gear or a full pantry, the Unity has room for it.

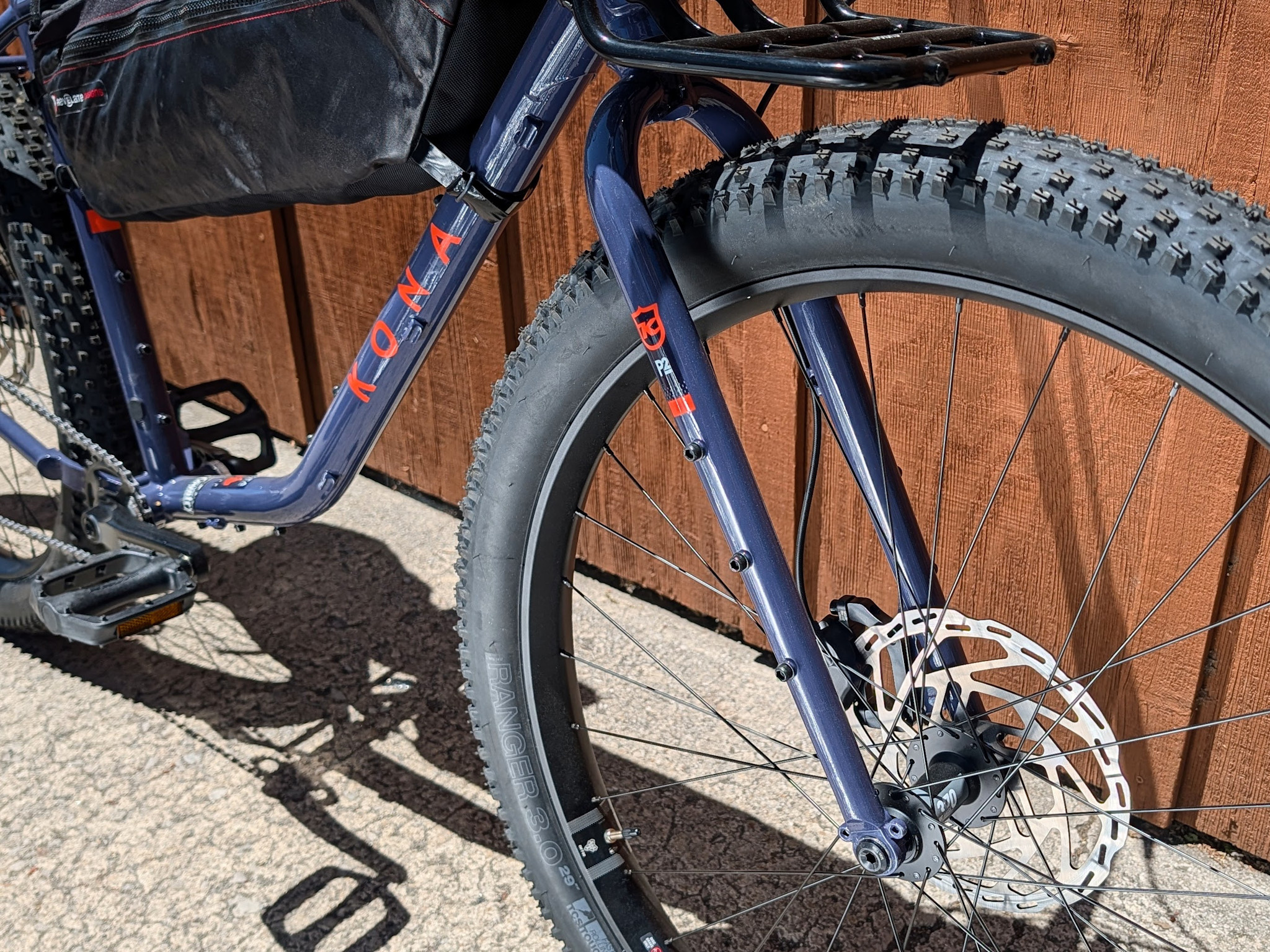

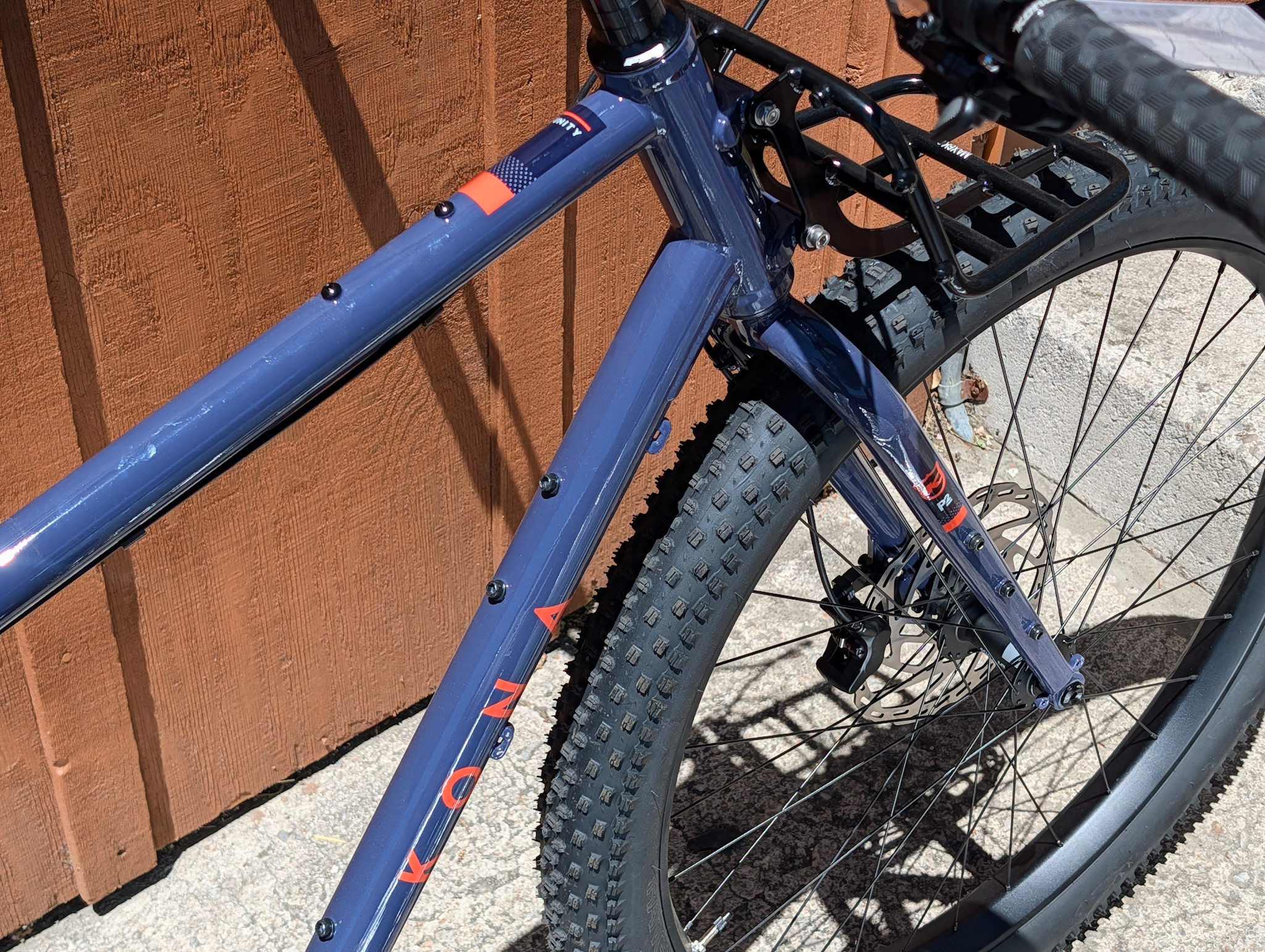

- Multiple accessory mounts everywhere you want them
Bosses on the top tube, down tube, fork legs, and stays give you endless modular set-up options. Bottles, cargo cages, tool carriers—if you can bolt it on, the Unity’s ready for it.
- UDH / T-Type compatibility with sliding dropouts + 5mm offset stays
Modern drivetrain compatibility meets real-world utility. The Unity runs SRAM T-Type and UDH, and the sliding dropouts let you fine-tune wheel position or run it single-speed in a pinch. Offset stays keep tire and rack clearance on point.
- Dropper-friendly by design (170-200mm travel)
Bikepacking doesn’t mean you should give up real descending. The Unity accommodates long-travel droppers, so you stay confident on steep terrain—even with the kitchen sink strapped to the bike.
|
| Spec Highlights |
|
- Shimano XT Linkglide 11-speed
Built for longevity and smooth shifting under load, Linkglide shines when your bike weighs as much as your weekend pack. Durable, reliable, and made for real-world abuse.
- RaceFace Aeffect cranks with steel 28T chainring
A tough, no-nonsense crankset matched with a steel direct-mount ring for unmatched durability. Low gearing to keep you spinning when the trail turns vertical and your bags turn heavy.
- Tektro Gemini 4-piston brakes + 2.3mm / 203mm rotors
Serious stopping power for serious cargo. Oversized rotors and a stout brake platform give you the control and heat management needed when you’re descending with days of gear onboard.
- DT 370 hubs with upgraded 36T star ratchet
A proven hub platform with a faster-engaging ratchet upgrade for better responsiveness on technical climbs. Easy to service, built to last.
- WTB KOM Tough i40 rims
Wide, burly, and ready for punishment. The KOM Tough rims offer excellent support for big tires and heavy loads without compromising reliability.
- WTB Ranger TCS Tough tires
Big volume, real traction, and a casing that refuses to quit. Rangers in TCS Tough spec are perfect for loaded travel over unpredictable terrain.
|
| FAQ's |
|
- How many mounting bosses do the frame and fork have in total?
- Frame: 20 points
- Fork: 11 points
- Front rack: 12 points
- Is the handling optimized for front-loaded, rear-loaded, or balanced setups?
- The Unity is designed to handle front-loaded, rear-loaded, or balanced setups effectively. Its geometry and stiffness are intended to remain stable and predictable across a wide range of load configurations.
- What's the lowest gear ratio achievable?
- The Unity ships with a 28T front chainring and a 50T cassette, delivering a very low climbing gear (approximately 0.56 gear ratio).
- The setup is ideal for steep climbs under load. Final rollout will depend on tire size and drivetrain choice.
- Can the Unity be run single-speed if the derailleur fails?
- Can I run a 29" rear wheel instead of 27.5"?
- Sure! You can run a 29" rear wheel, provided it's paired with a lower-volume tire, such as a 29 x 2.5", to maintain proper clearance.
- What's the largest tire size I can run?
- Tire clearance varies by brand and casing, but we recommend staying within the following maximum sizes: 29x3.0", 27.5x3.0"
- What's the recommended maximum load for the front rack?
- Can I run a suspension fork on the Unity?
- No, it is not compatible with front suspension forks. A suspension fork would interfere with the front rack and cable routing could cause damage.
|
Geometry
| Size |
Small |
Medium |
Large |
X-Large |
| Seat Tube Length |
370 |
420 |
470 |
530 |
| Top Tube Length |
591 |
623 |
656 |
691 |
| Reach |
435 |
460 |
485 |
510 |
| Stack |
615 |
620 |
629 |
643 |
| Standover |
725 |
760 |
816 |
849 |
| Head Tube Angle |
65.8° |
| Head Tube Length |
160 |
165 |
175 |
190 |
| Seat Tube Angle |
75.8° |
75.3° |
74.8° |
74.3° |
| Chainstay Length |
440-456 |
| BB Drop |
70 |
| BB Height |
311 |
| Wheelbase |
1176-1191 |
1203-1219 |
1232-1248 |
1263-1279 |
| Front Center |
745 |
772 |
796 |
831 |
| Fork Length |
450 |
| Fork Offset |
59 |
