From the manufacturer

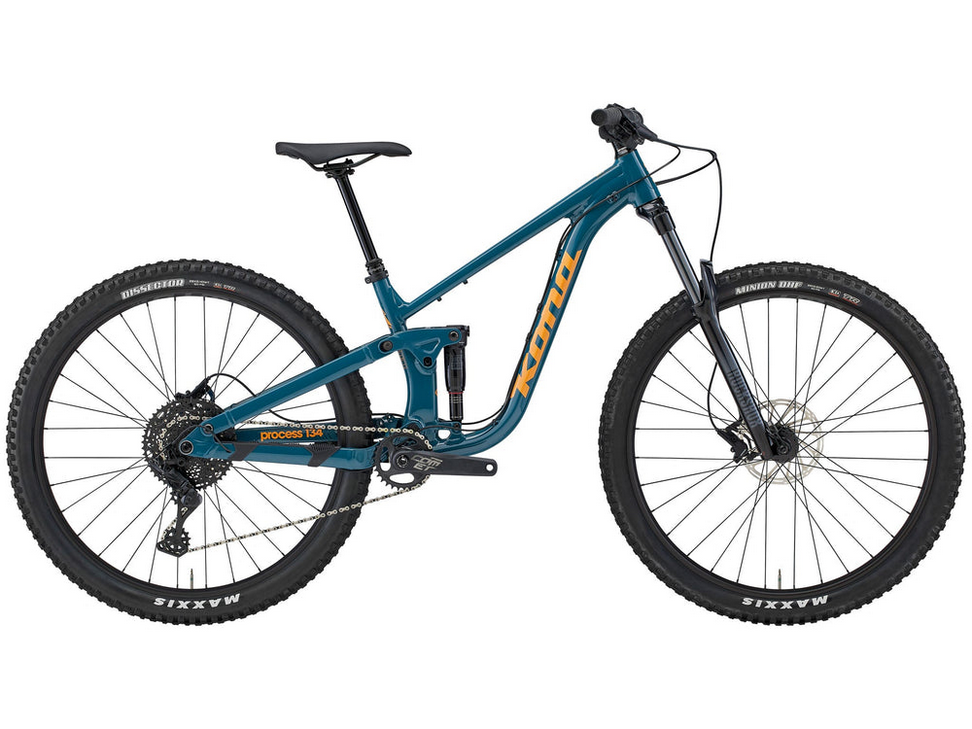

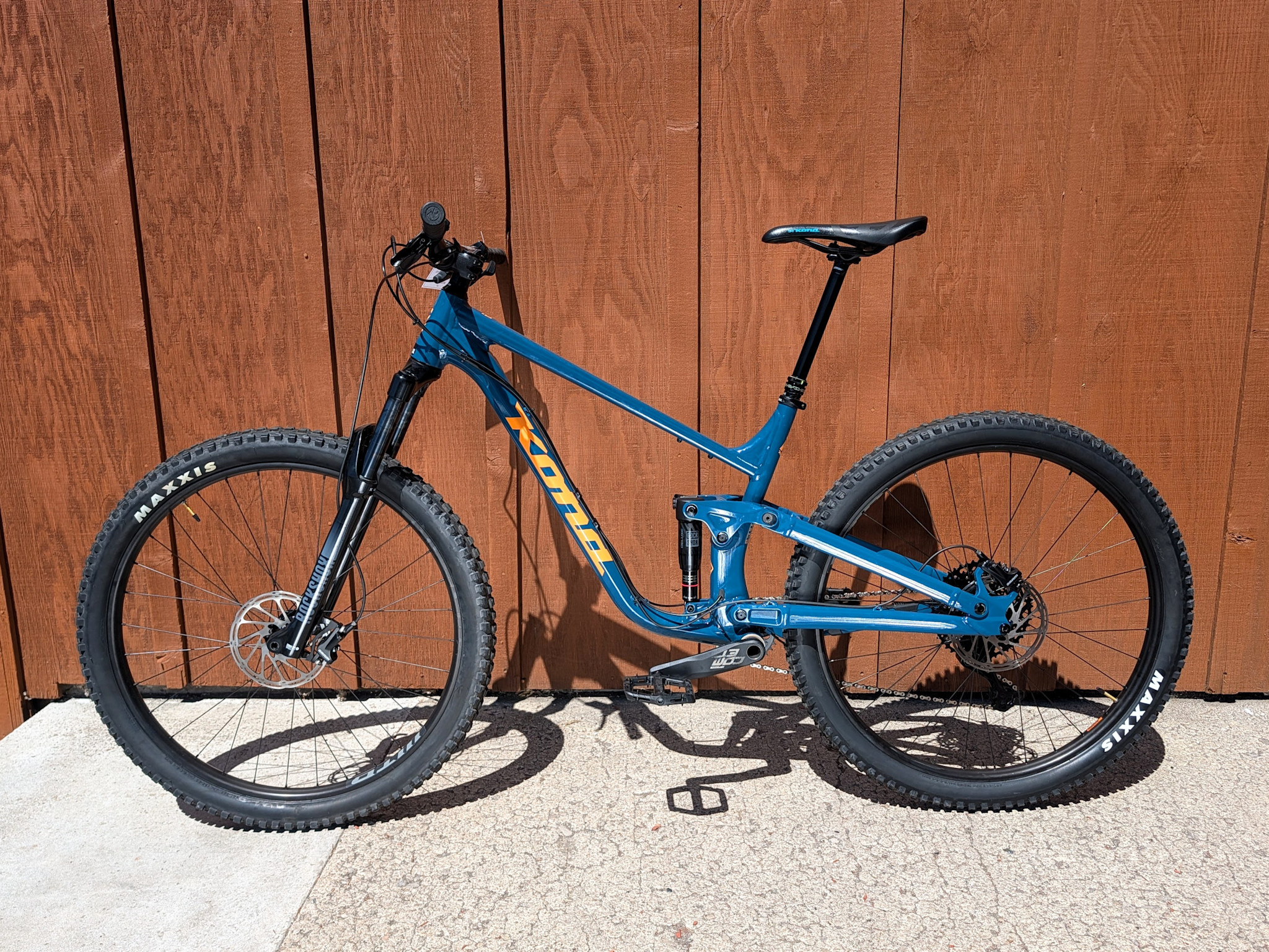

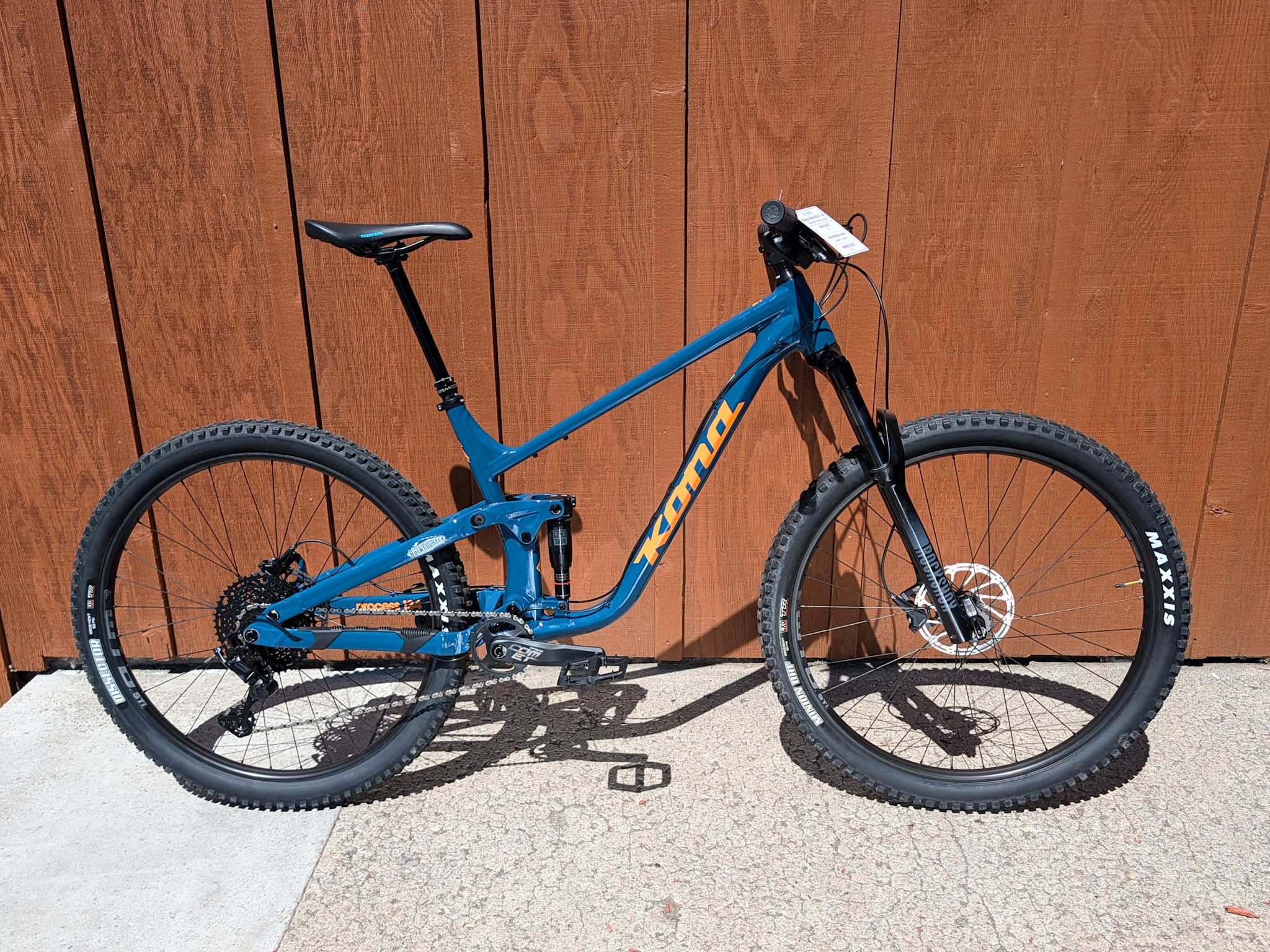

Looking for that totally dependable singletrack sidekick with solid kung fu skills? Look no further. The Process 134 is ready for any kind of riding you want to explore, from the sublime to the sketchy. Refined progressive geometry never sets a wheel wrong, and new suspension kinematics that are perfect out of the box not only keep the wheels railing smooth but can smoothly incorporate any amount of upgrade you want to throw in down the line. Smart spec ensures ripping good times and peace of mind. The Process 134 offers all the legendary durability, flip-chip versatility and jib-friendly behavior of its bigger siblings at an unbeatable price.
Features
| Customizable |
|

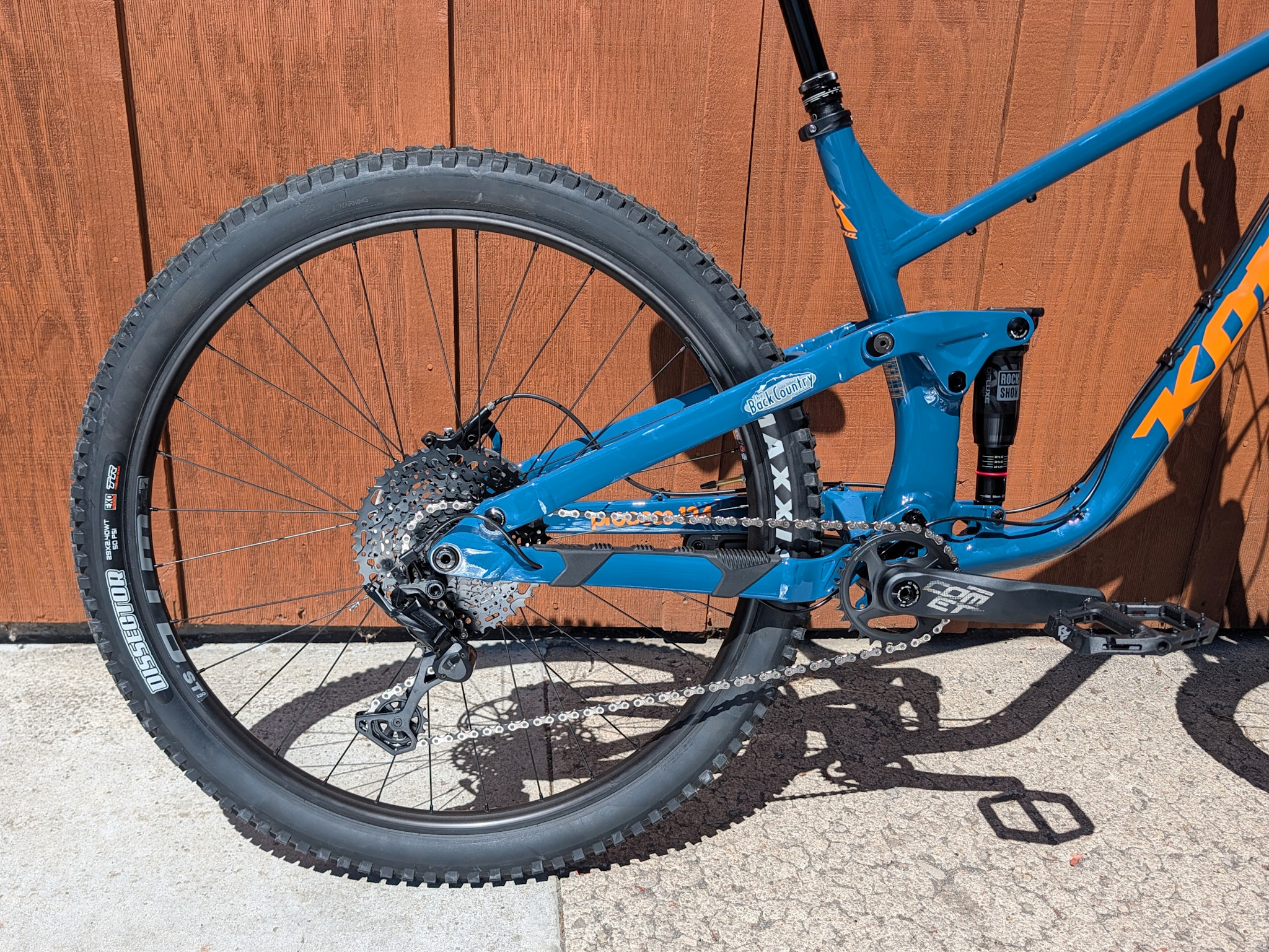

- Mullet Flip Chip - Choose your wheel size; 27.5 for maximum play, 29 for speed to plow. A convenient flip chip located on the seat stay / rocker connection makes choosing between rear wheel sizes a snap. Size Small comes stock with a 27.5” rear wheel and all other sizes come with 29” rear wheels
- Compatible with UDH and Sram T-Type drivetrain

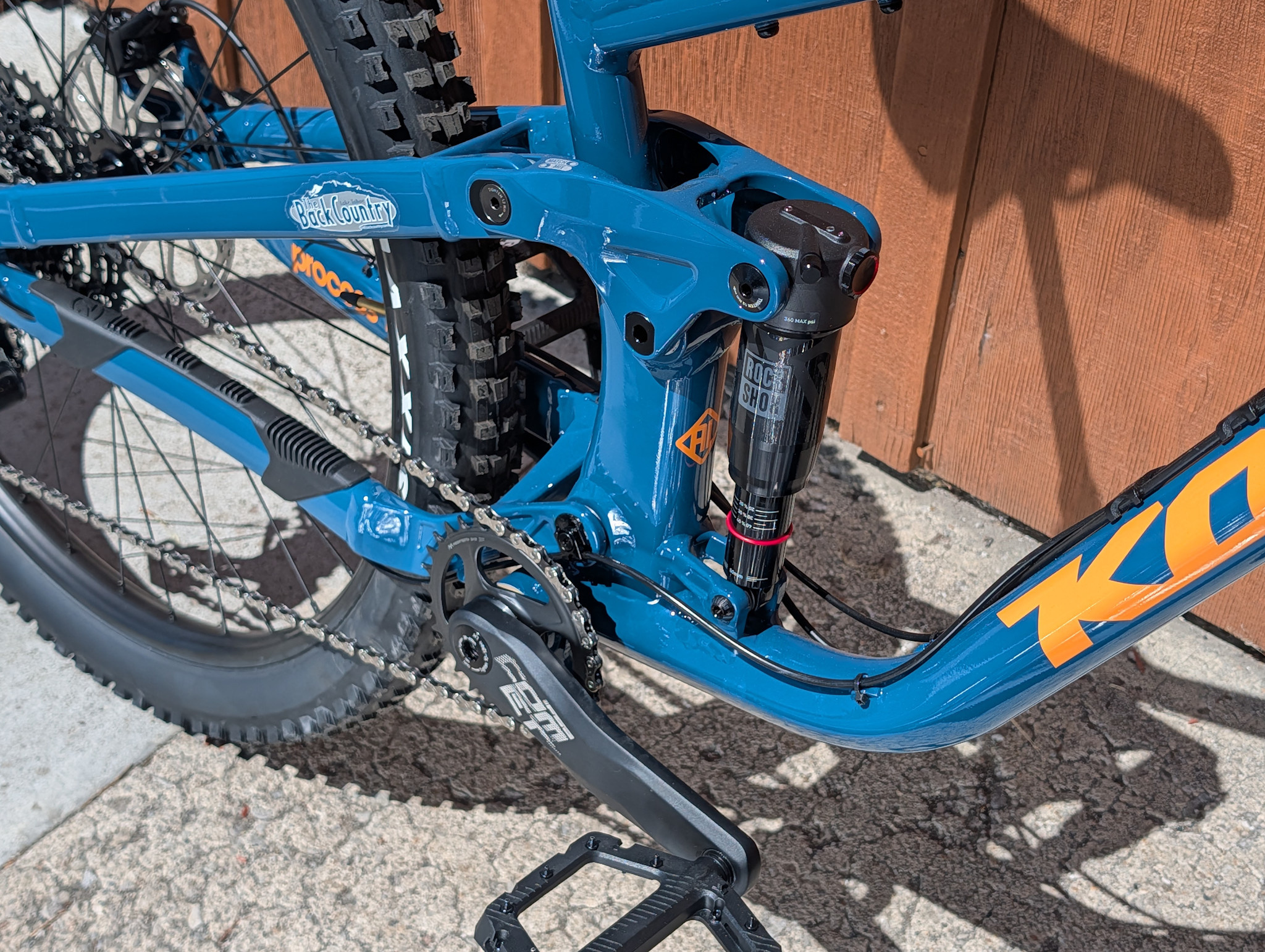

- Air or coil rear shock compatible. Revised suspension kinematics for improved small bump sensitivity and balanced progressivity whether running air or coil.
- Shorter seat tube, deeper seat post insertions
|
| Functional: Peace of Mind |
|
- Improved water bottle clearance, more water bottle mounts
- Integrated tool / accessory mount on underside of top tube
- Enhanced frame protection
- Carbon frames feature fully guided internal cable / hose routing with a Y connector allowing clean hose direction for either moto or regular style brakes. This is internal routing done right!
- Aluminum frames feature full external cable / hose routing (except for dropper post) for unbeatable user friendly, hassle-free performance and serviceability
- Bearing and pivot hardware cross-compatibility – all Process models use the same dependable, easily sourced hardware
|
| FAQ's |
|
- Q: What's the longest dropper post I can install?
- A: The XL and L bikes come with 200mm post and the M and S sizes come with 175mm post. Some aftermarket 240mm posts will fit on the XL and L sizes. But it is best to double check with the seat post manufacturer.
- Q: What stroke is the rear shock?
- A: The shock has an eye-to-eye measurement of 185mm and a stroke of 50mm.
- Q: What are the headset specs?
- A: The Process line of bikes use a 44m Zero Stack upper cup and a 56mm Zero Stack lower cup.
- Q: What size is the rear post mount and what is the largest rotor I can fit on the rear?
- A: 180mm direct post mount; 200mm maximum.
- Q: What chainline do these bikes use?
- A: Carbon models use 55mm chainline and aluminum models use 52mm chainline.
- Q: How do I switch to mullet?
- A: There is a flip chip located on the Seatstay / Rocker connection. Size small Process 134/153 all ship with 27.5” rear wheel installed - all other sizes come with 29” rear wheel.
- Q: Will switching to mullet configuration mess up my handling?
- A: Nope. That’s what the flip chip is there for – it keeps the geometry the same regardless of whether you are running 27.5” or 29” rear wheels.
- Q: Can I run a chainguide?
- A: Yep! All Process frames come with built-in ISCG tabs.
|
Geometry
| Size |
Small |
Medium |
Large |
X-Large |
| Seat Tube Length |
380 |
380 |
420 |
450 |
| Top Tube Length |
572 |
599 |
628 |
666 |
| Reach |
430 |
455 |
480 |
515 |
| Stack |
611 |
615 |
625 |
635 |
| Standover |
700 |
700 |
710 |
720 |
| Head Tube Angle |
65.5° |
| Head Tube Length |
100 |
105 |
116 |
127 |
| Seat Tube Angle |
76.9° |
76.9° |
76.7° |
76.6° |
| Chainstay Length |
435 |
| BB Drop |
23 |
33 |
33 |
33 |
| BB Height |
342 |
| Wheelbase |
1171 |
1200 |
1230 |
1269 |
| Front Center |
740 |
767 |
797 |
836 |
| Fork Length |
551 |
| Fork Offset |
44 |
