140mm Front/130mm Rear | 26" | 65.5° HT

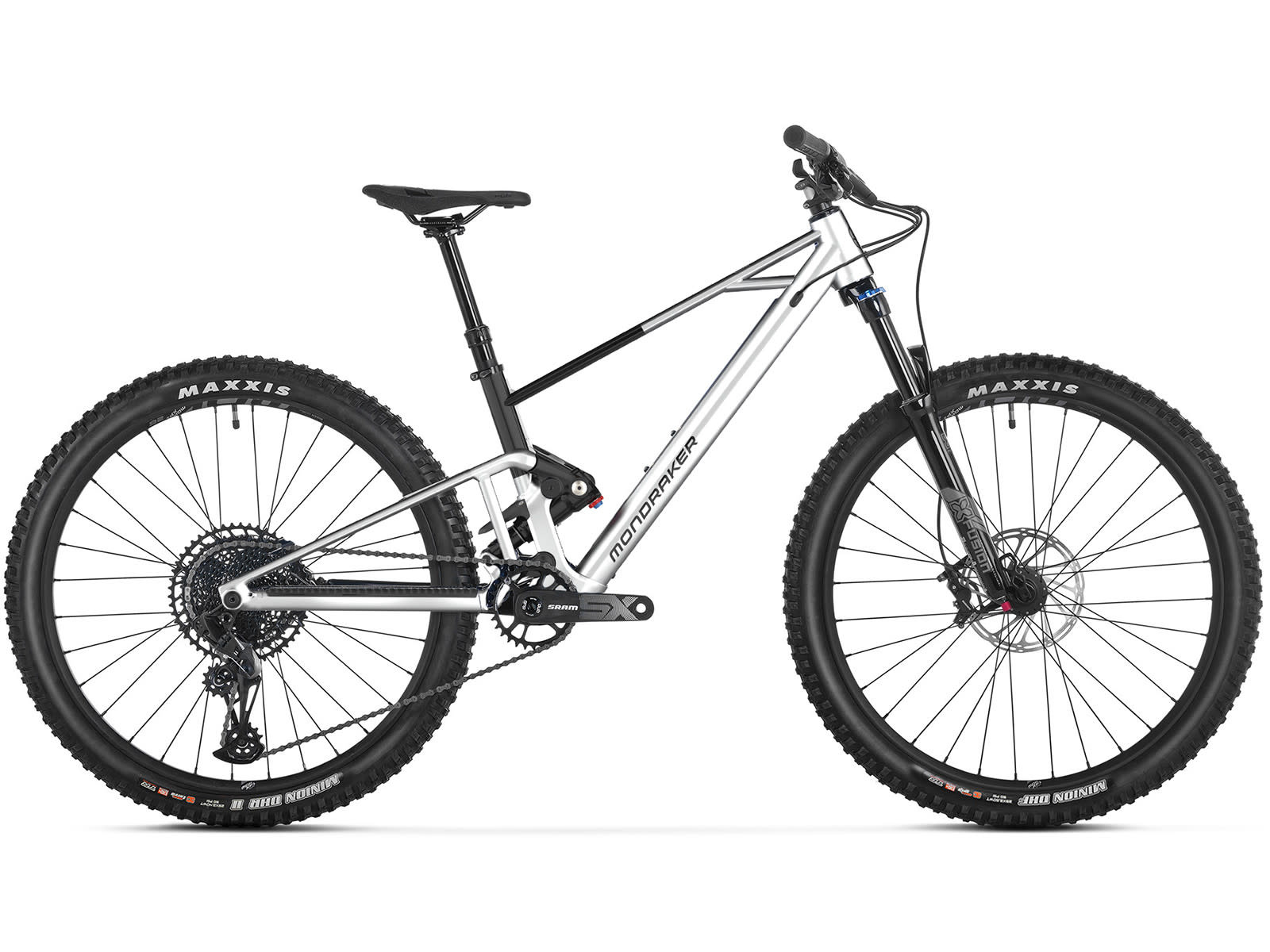

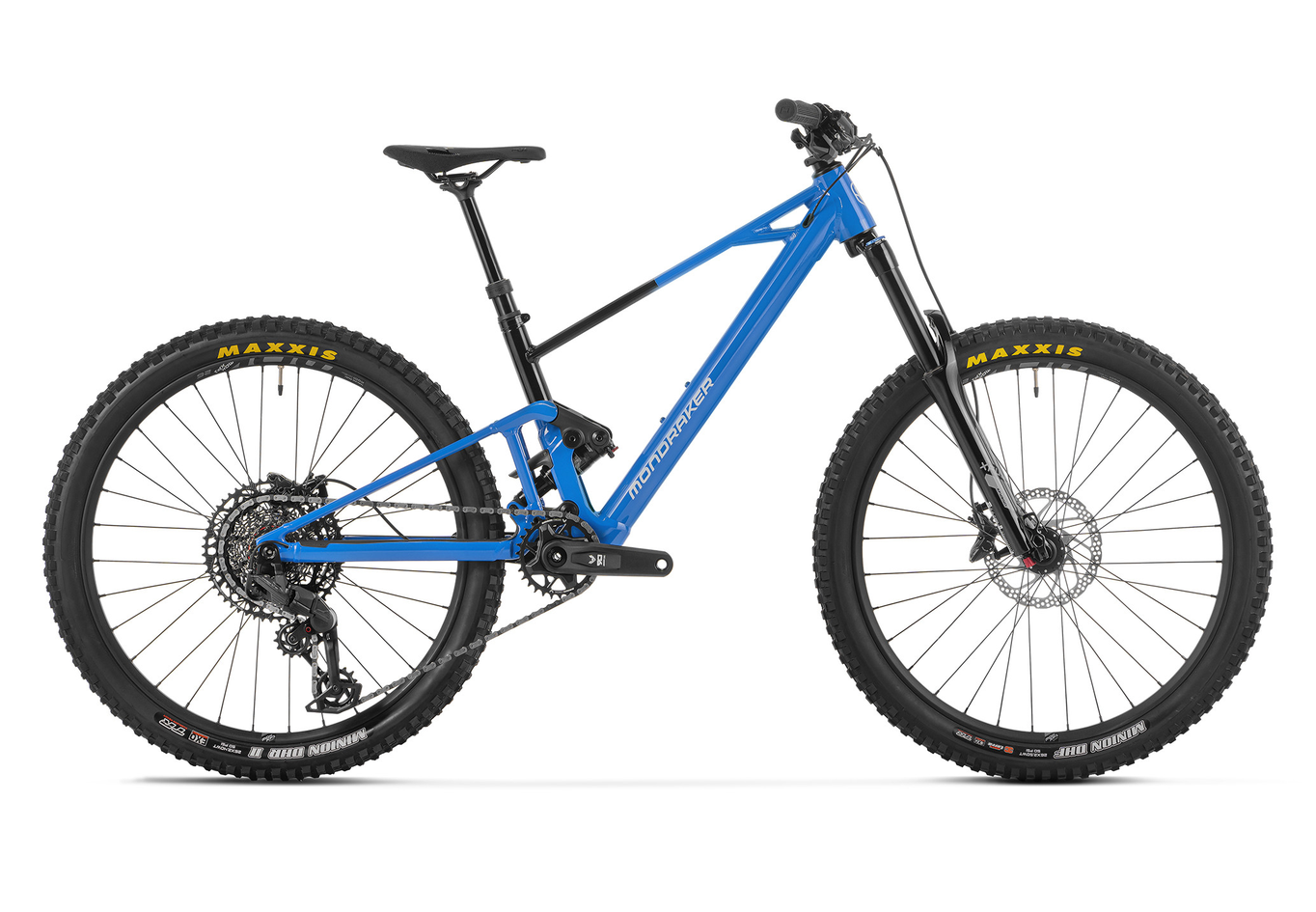

F-TRICK: FULL SUSPENSION AND DOUBLE THE FUN
The all-new F-Trick full suspension range, has so many things in common with the high-end adult bikes that we’re hard pressed to call it a kids bike. Forward Geometry, the Updated Zero Suspension System, 120mm and 130mm travel, dropper posts, 12x148mm drop-outs, 30mm stems, 4 piston brakes and 2.4” tyres. It’s enough to leave you out of breath.
Picking up the baton from the old Factor range, the F-Trick comes in 24” and 26” flavours. As such the F-Trick 24” is perfect for kids from 8 to 11 years old (135-155cm) and the F-Trick 26” suits anyone from 10 to 14 years old (145-165cm).
At first sight it might be hard to tell if the F-Trick is a kids bike or a bike for adults. The design language is straight out of the NEAT or F-PODIUM handbook, with minimalistic tubes and straight lines that soften the aesthetic to give the bike a true Mondraker personality, only in small form format. The icing on top is the same new Forward Geometry as on the adult bikes but tweaked to suit kids’ needs, and details like 30mm stems to keep the steering sharp but stable.
UPDATED ZERO WITH MORE TRAVEL THAN EVER BEFORE

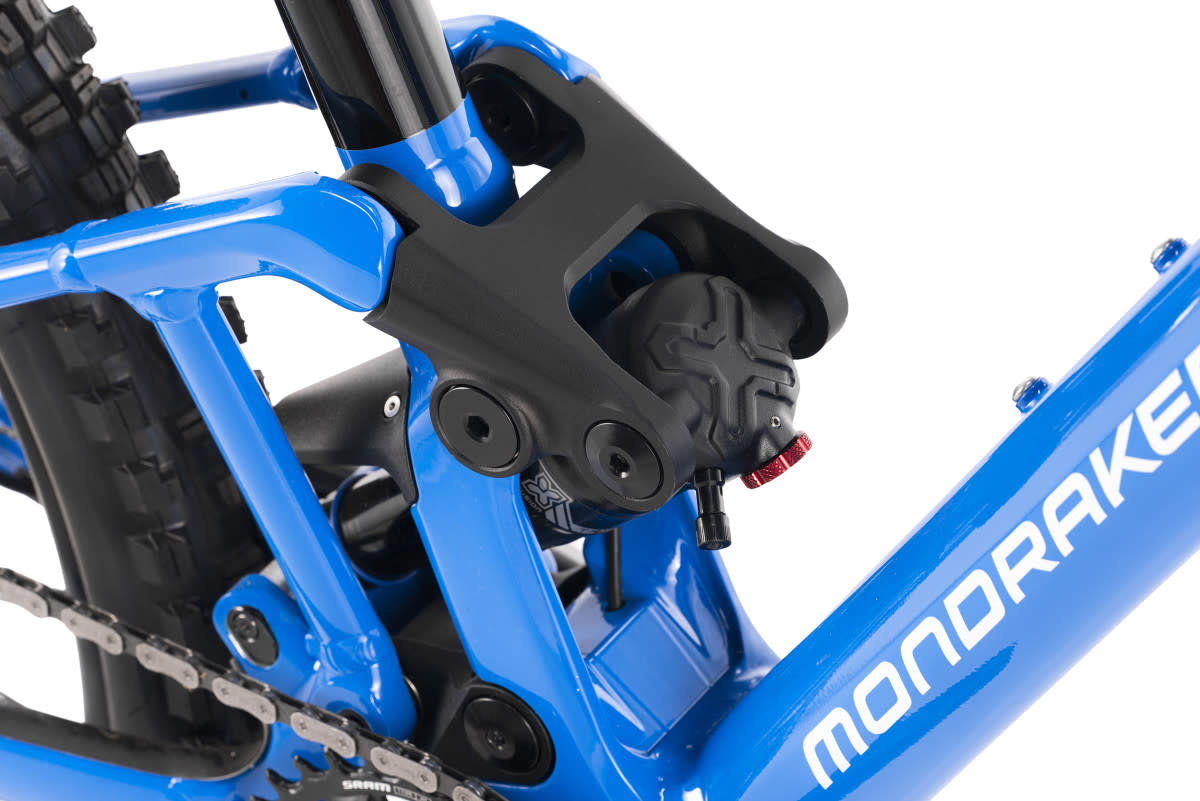

One of the raddest features of the new F-Trick range is that both the 24” and 26” versions come with the all new Updated Zero Suspension System. The F-Trick is only the third range to feature this new take on our Zero system, following hard on the heels of the recently launched Neat and F-Podium models. It’s a gift that keeps giving when you consider it gives 120mm of travel on the smaller-wheeled version (up from 100mm) and 130mm on the 26” model (compared to 120mm on the Factor it replaces) as well as the many other advantages well detail later. The forks have also been upgraded, from 120mm on the 24” bike (100mm on the Factor 24”) and 140mm on the 26” bike (up from 120mm on the Factor 26”).
| Frame | F-Trick 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, 12x148mm rear axle, UDH, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design. |
|---|---|
| Wheel Size | 29" |
| Travel | 140mm Front/130mm Rear |

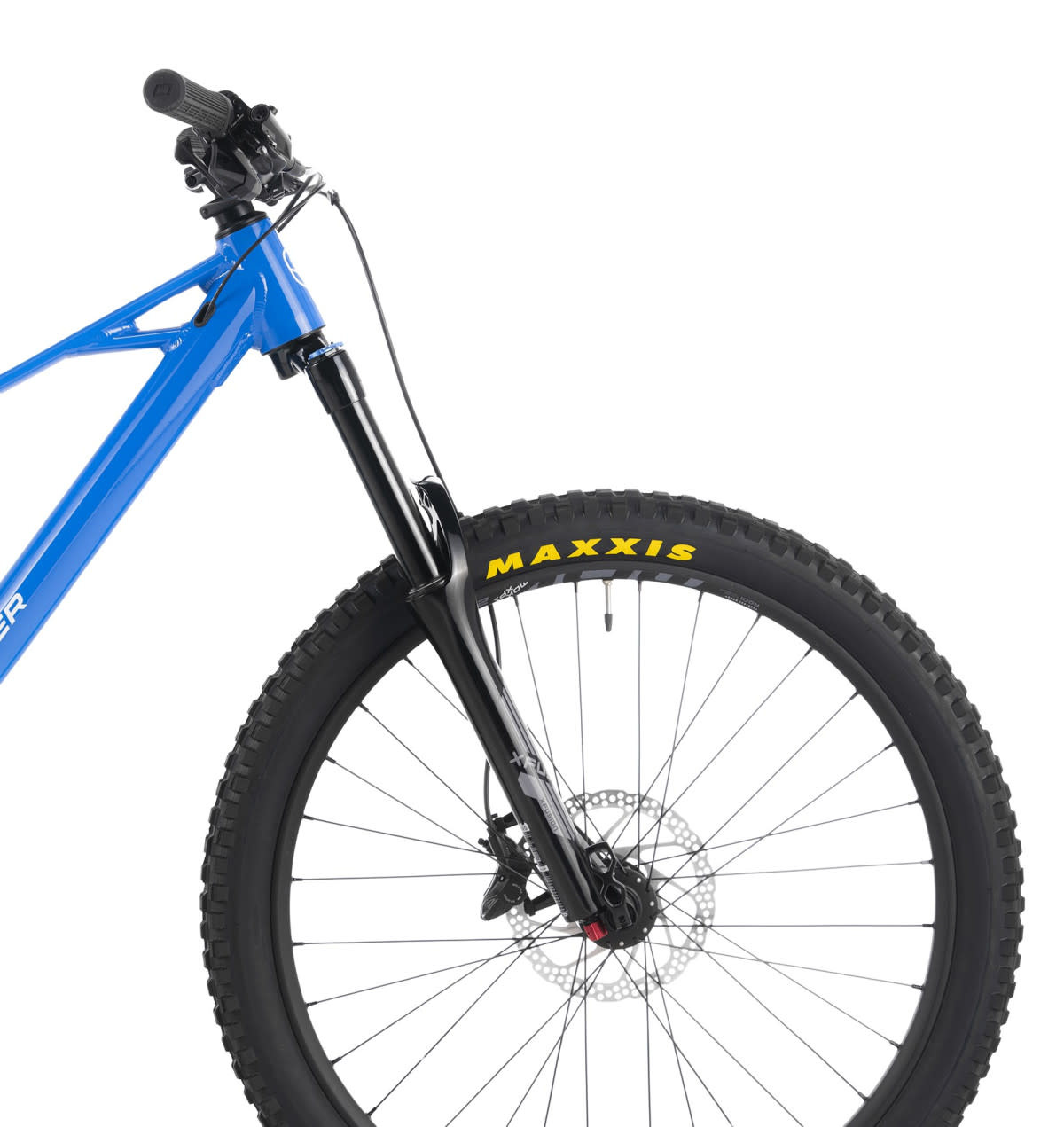

| Fork | X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| Rear Shock | X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Shifter | Sram Trigger 70, 12s, T-Type Actuation |
| Rear Derailleur | Sram 70 Eagle, T-Type, 12s |
| Cassette | Sram XS-1270, 10-52T, 12s |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Chainring | |

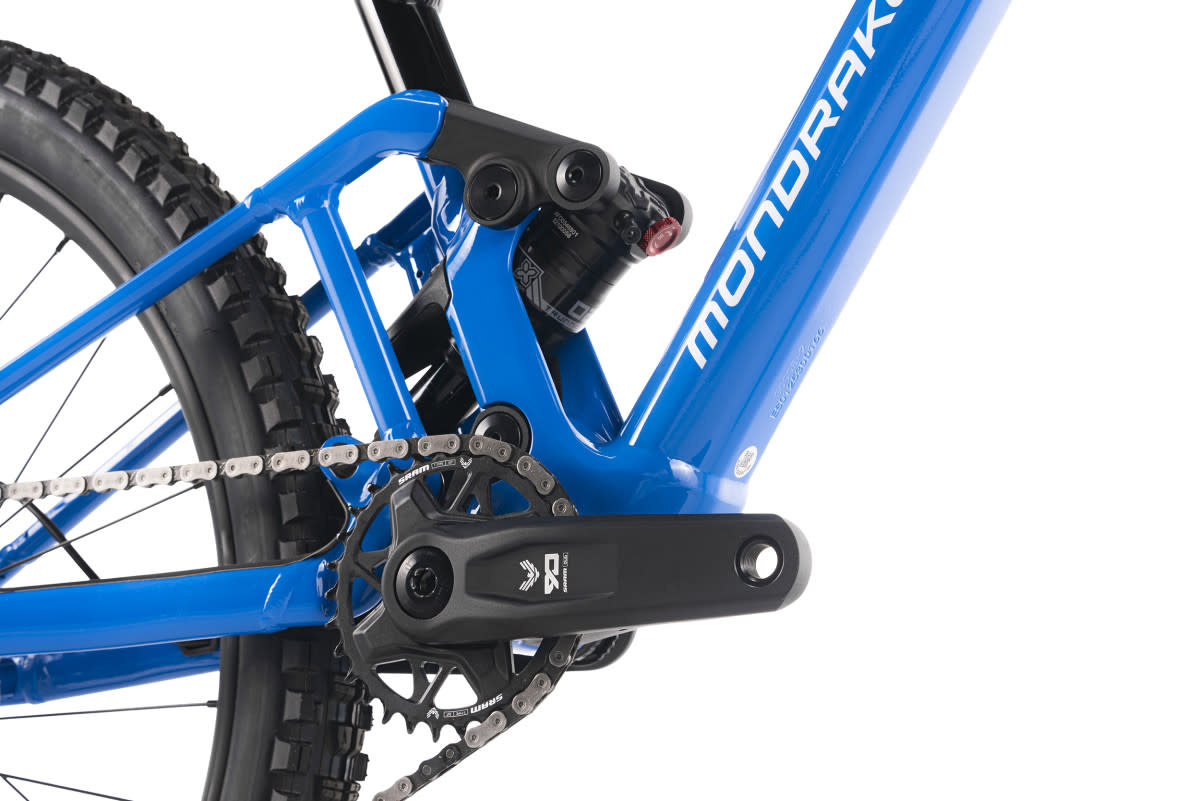

| Crankset | Sram 90 T-Type, DUB axle, Direct mount chain ring, 155mm |
| Brakes | Shimano MT520, 4-piston caliper, resin pads |
| Rotors | RT56 180mm IS 6 bolts rotor |
| Seatpost | X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm |
| Handlebar | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Saddle | SDG Fly JR |
| Pedals | N/A |
| Front Wheel | MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes; DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Wheel | MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes; DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead |
| Sizes | One size: 350mm |
