Pivot

2027 Pivot Shuttle AMP'd Pro X0 29/27.5"

$11,999.00

In store: Check availability

SKU: 27SAMP1MXAXOB--BBFLGDRPRNSA2-C

160mm Front/ 150mm Rear | Avinox M2S | 800Wh | 63.7° HT

Color:

Size:

Add to compare Add to wishlist

Delivery time: 5-7 Business Days | *Bicycle shipping calculated at checkout.

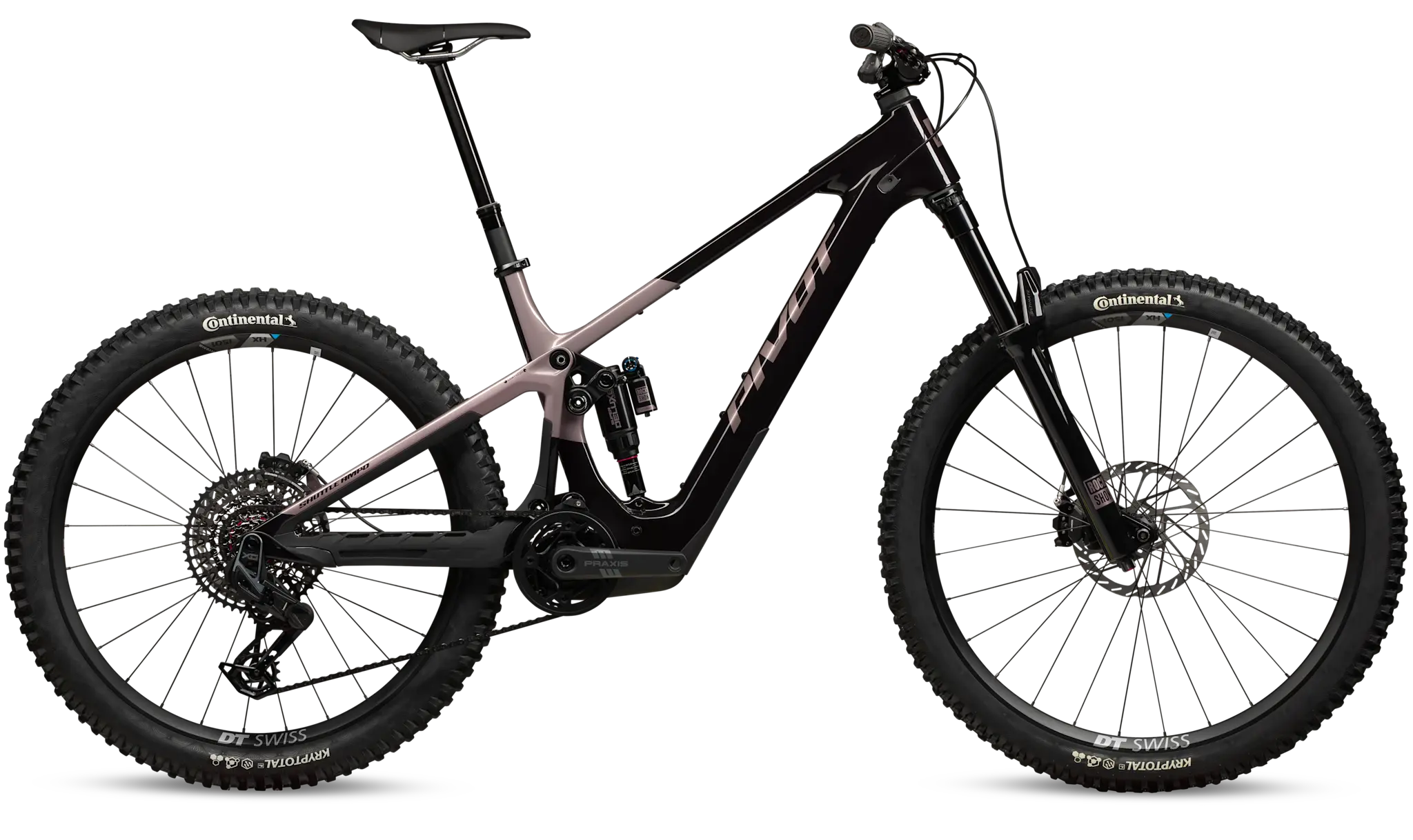

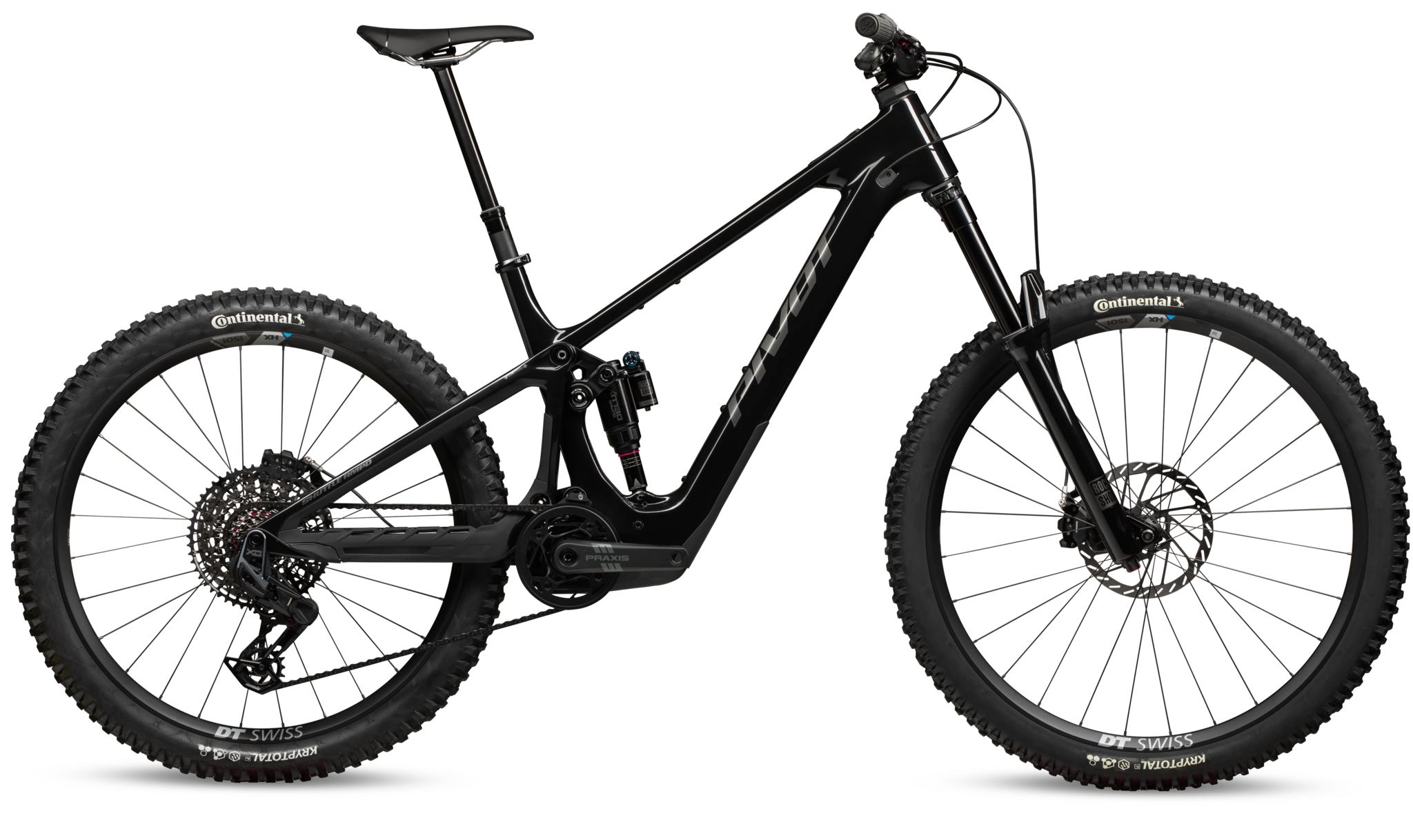

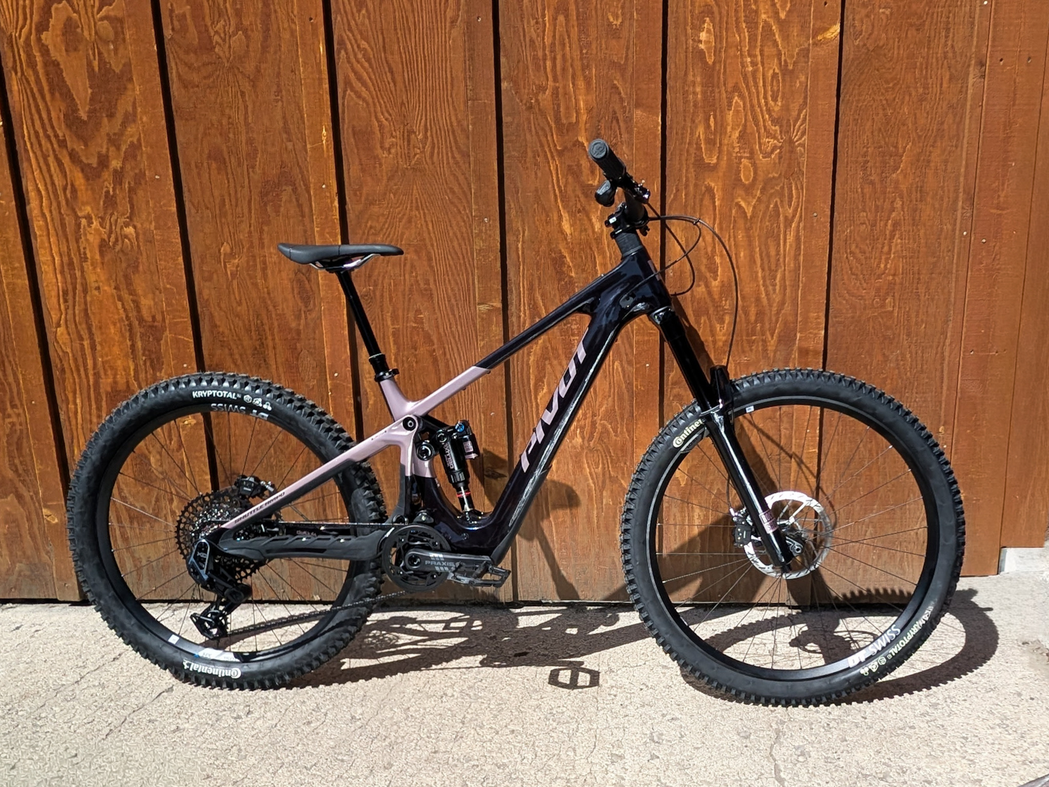

Pivot 2027 Pivot Shuttle AMP'd Pro X0 29/27.5"

2027 Pivot Shuttle AMP'd Pro X0 29/27.5" — "Color: Burgundy Berry Freeze","Size: Large"

Description

From the manufacturer

This One Goes to Eleven
Built for riders who don’t dial it back — more drive, more bite, more command — the AMP’d is a showcase of what the Avinox M2S can unleash when paired with a chassis forged through two decades of suspension design. The platform works in harmony with the motor, driving the rear wheel, and turning power into speed. dw-link's renowned kinematics maintain traction while providing a plush but supportive foundation that wants to slash turns and pop off even the smallest side hits. Pedaling is distinctly efficient; impacts are dead calm—but the trail stays raw and alive. With 150mm of rear travel, a 160mm up front and a gravity-derived build kit, the AMP’d delivers a ride that feels alert, connected and quietly rebellious.

Smashin' Watts
The Avinox M2S drive unit packs serious performance into a compact 2.6 kg package, producing 130 Nm of torque and up to 1300 W of peak power for instant acceleration with smooth control on technical terrain. An integrated 800 Wh battery delivers extended range while its compact cross-section enables slimmer frame profiles and cleaner integration. When it’s time to recharge, the Avinox 508 W fast charger—standard on Pro and Team builds—gets you powered back up at the pace of a snack break.

Features

Highlights		Ultra light Hollow Core carbon frame Avinox M2S drive unit and long-range 800Wh battery across all build levels Available in XS to XL frame sizes Full-color, OLED touchscreen display Wireless Avinox remotes 160mm travel fork 150mm of progressive rear suspension travel Mixed-wheel setup Geo flip chip via upper link mount Full internal routing with Pivot Cable Port System Injection molded rubberized frame protection Pivot dock tool system compatible Water bottle clearance on all sizes

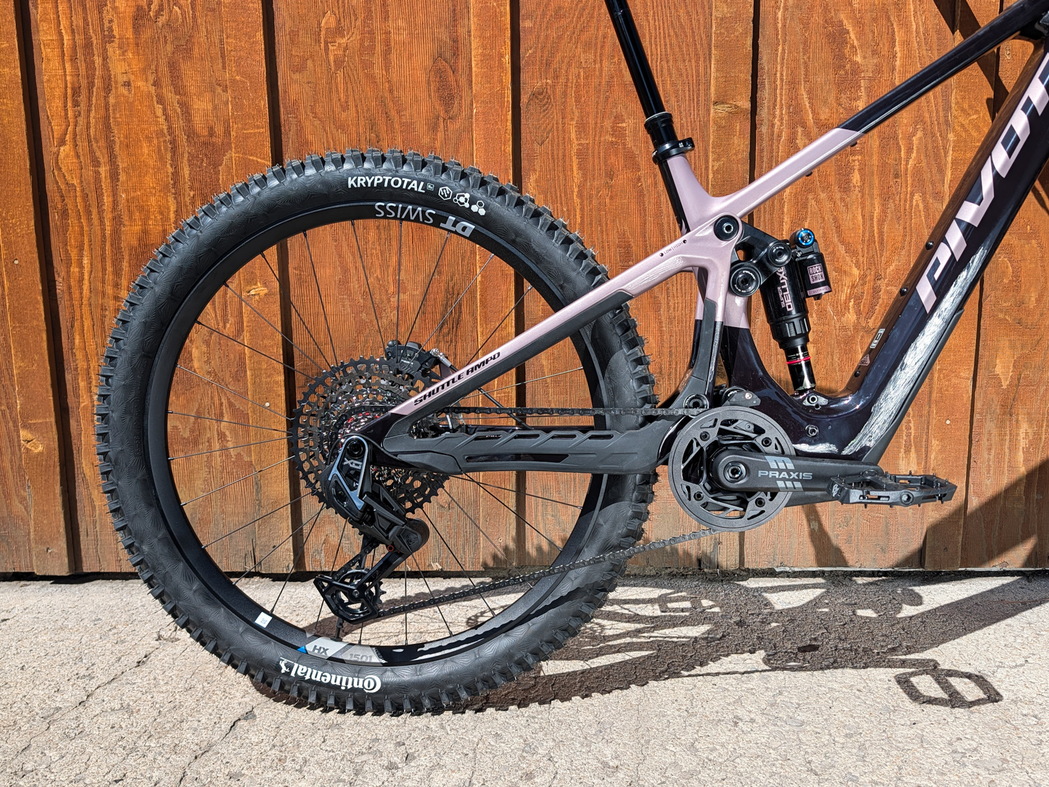

Drivetrain		Seamless Drivetrain Integration The AMP’d eliminates the SRAM derailleur battery by hardwiring it directly into the Avinox system, creating instant communication between the drivetrain and motor. This enables Avinox SmoothShift, an automated power delivery system that produces smoother shifts under load and even allows riders to shift while coasting. If the main battery is depleted, a partitioned reserve ensures the derailleur still functions so riders can continue to shift for the rest of their ride.
Motor		Smart-Assist Traction Control Avinox's Smart-Assist traction control system uses a 42-point rear speed sensor and gyroscope to detect wheel slip, instantly eliminating unwanted slippage of the rear wheel in even the roughest of climbs.
Control Unit		Touchscreen Control Unit The color OLED touchscreen is both a full-featured cycling computer and a central control unit, recording ride data and allowing complete management of the drive unit. It places ride modes, system data and tuning controls exactly where you need them, and remains fully functional with wet fingers or gloves. Clear, intuitive and positioned for quick access, it keeps adjustments seamless without breaking concentration on the trail.
Rear Suspension		New FOX 38 & Float X The new 38 features completely redesigned lowers, updated dampers, and the GlideCore air spring, while the game-changing Float X gets all-new internals with a high-flow piston and improved bumpers for a quieter, smoother, more controlled ride.

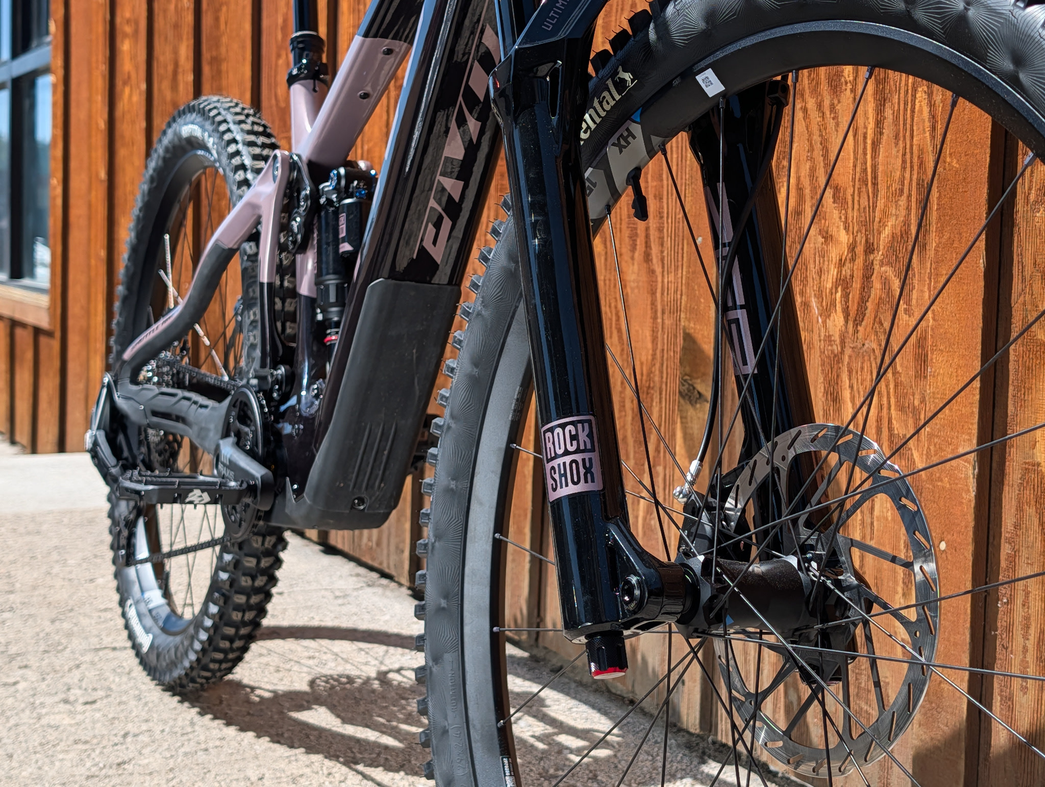

Front Suspension		New RockShox ZEB & Super Deluxe The new ZEB Ultimate fork and Super Deluxe shock bring innovations like the Linear XL air spring, ButterWagonTech and Adjustable Bottom Out to match the all-out, no filter character of the AMP’d.
Battery		Battery System and Fast Charger An 800Wh battery delivers extended range in a compact cross-section design that allows for slimmer frame profiles and improved integration. At 3.74kg, the system balances capacity with packaging efficiency. The Avinox 508W fast charger, standard on Pro and Team builds, charges the battery at the speed of a snack break for longer days and quicker turnarounds.

Geometry

Low BB

	XS	SM	MD	LG	XL
Seat Tube Length (C-T)	34.3 cm	37.8 cm	39.87 cm	43.18 cm	47.0 cm
Top Tube Length (Eff.)	57.57 cm	60.55 cm	63.29 cm	65.03 cm	67.27 cm
Head Tube Length	9.5 cm	11.0 cm	12.0 cm	13.0 cm	14.0 cm
Head Tube Angle	63.3°	63.3°	63.3°	63.3°	63.4°
Seat Tube Angle (Eff.)	76.1°
Chain Stay Length	44.3 cm
Bottom Bracket Height	33.5 cm
Bottom Bracket Drop	2.3 cm
Standover Height	64.0 cm	65.8 cm	66.6 cm	66.6 cm	67.7 cm
Wheelbase	118.9 cm	121.86 cm	124.79 cm	126.72 cm	129.15 cm
Stack	61.63 cm	63.6 cm	64.53 cm	65.45 cm	66.38 cm
Reach	41.6 cm	43.1 cm	45.6 cm	47.1 cm	49.1 cm

High BB

	XS	SM	MD	LG	XL
Seat Tube Length (C-T)	34.3 cm	37.8 cm	39.87 cm	43.18 cm	47.0 cm
Top Tube Length (Eff.)	57.46 cm	60.44 cm	63.18 cm	64.91 cm	67.15 cm
Head Tube Length	9.5 cm	11.0 cm	12.0 cm	13.0 cm	14.0 cm
Head Tube Angle	63.7°
Seat Tube Angle (Eff.)	76.5°
Chain Stay Length	44.3 cm
Bottom Bracket Height	34.0 cm
Bottom Bracket Drop	1.8 cm
Standover Height	64.5 cm	66.3 cm	67.1 cm	67.1 cm	68.2 cm
Wheelbase	118.78 cm	121.76 cm	124.69 cm	126.62 cm	129.05 cm
Stack	61.34 cm	63.3 cm	64.22 cm	65.14 cm	66.05 cm
Reach	42.0 cm	43.5 cm	46.0 cm	47.5 cm	49.5 cm

Specifications

Frame	Shuttle AMPD
Wheel Size	29"/27.5"
Travel	160mm Front/ 150mm Rear
Fork	RockShox Zeb Ultimate 29", 44mm offset, 160mm
Rear Shock	RockShox Super Deluxe Ultimate
Headset	Pivot Precision Sealed Cartridge
Shifter	Sram AXS Pod Controller
Rear Derailleur	Sram X0 Eagle Transmission 12-speed
Cassette	SRAM GX 1275 Eagle Transmission 10-52t
Chain	Sram X0 Eagle Flattop 12-speed
Chainring
Crankset	Praxis Alloy eCranks E-MTB 34t - 155mm

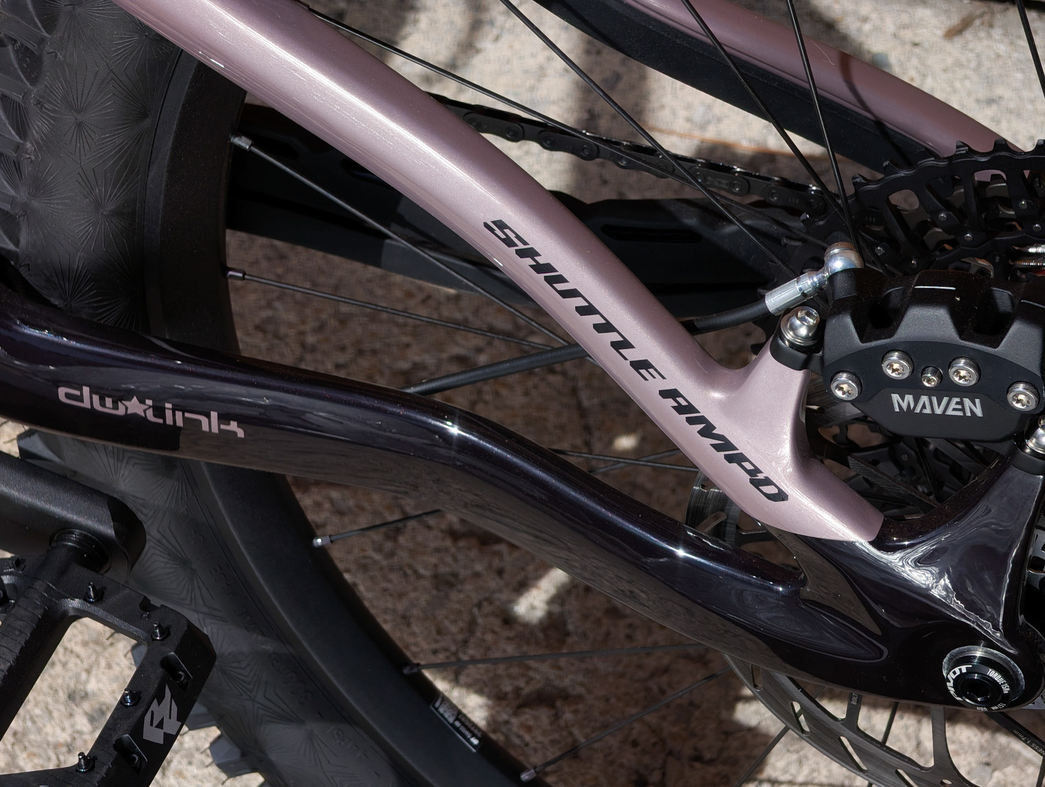

Brakes	Sram Maven Silver 4-piston
Rotors	Sram HS2 6 bolt - 200mm
Seatpost	OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL)
Handlebar	Phoenix Team Carbon - 20mm Rise 760mm(XS), 20mm Rise 780mm(SM), 35mm Rise 780mm(MD-XL)
Stem	Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)
Grips	Phoenix Factory Lock-On
Saddle	Pivot Pro E-Bike
Pedals	N/A
Front Wheel	DT Swiss Hybrid HX1501, 30mm - 15 x 110
Rear Wheel	DT Swiss Hybrid HX1501, 30mm - 12 x 157
Front Tire	Continental Kryptotal 29" x 2.4" Super Soft Compound Enduro Casing
Rear Tire	Continental Kryptotal 27.5" x 2.6" Soft Compund Enduro Casing
Drive Unit	Avinox M2S 800Wh
Battery	800Wh
Display	Full-color, OLED touchscreen display
Extras	N/A
Sizes	XS, SM, MD, LG, XL
