Norco

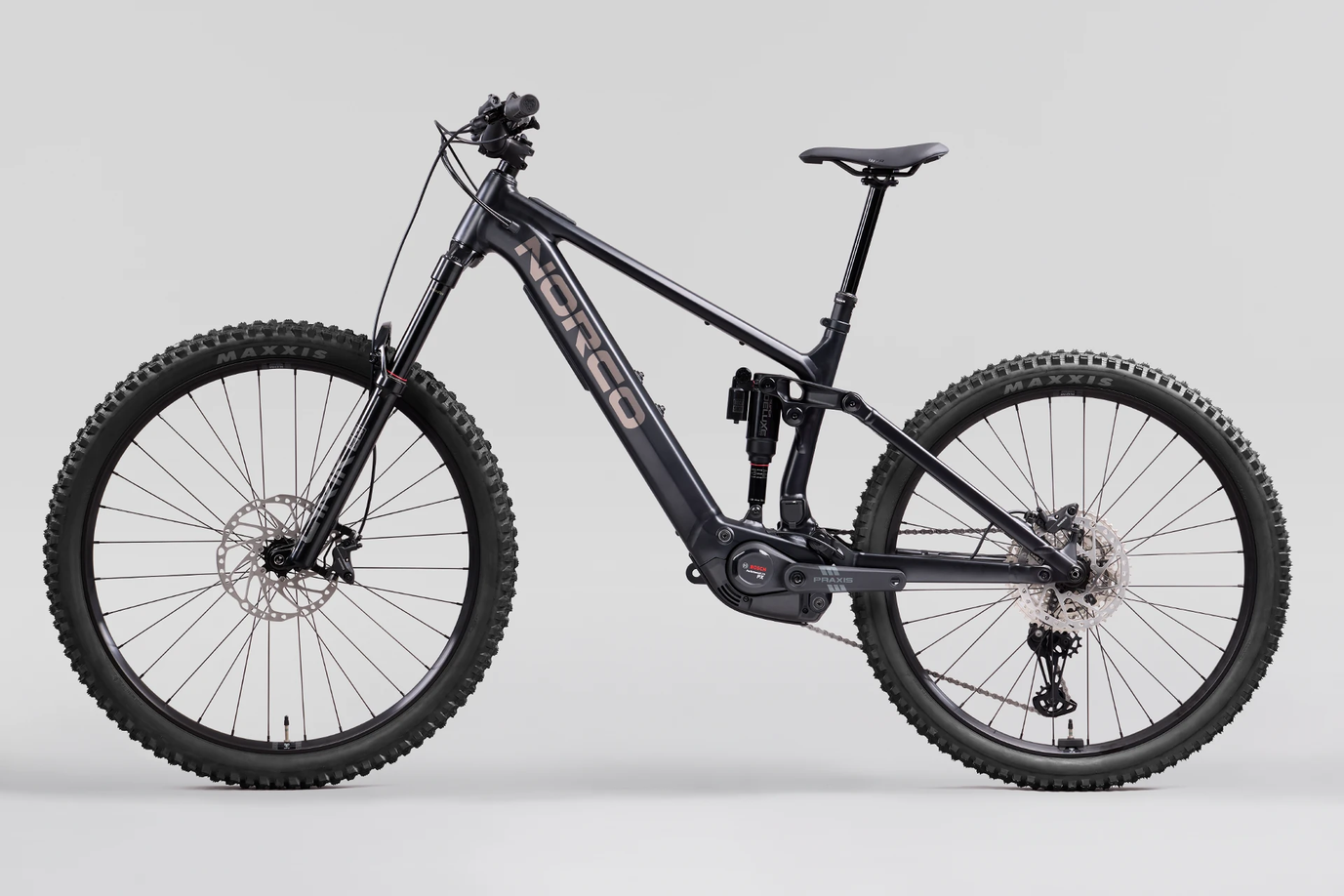

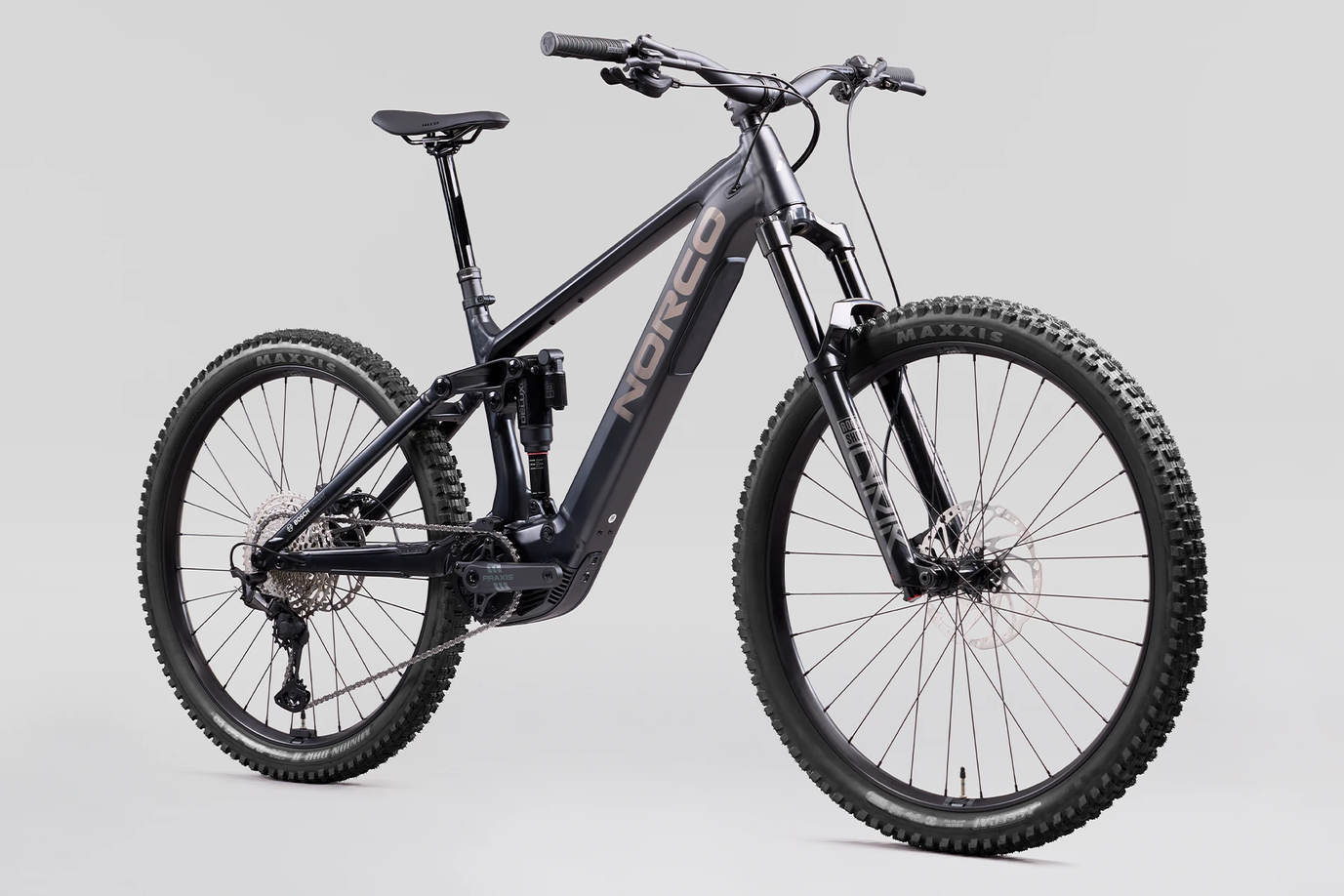

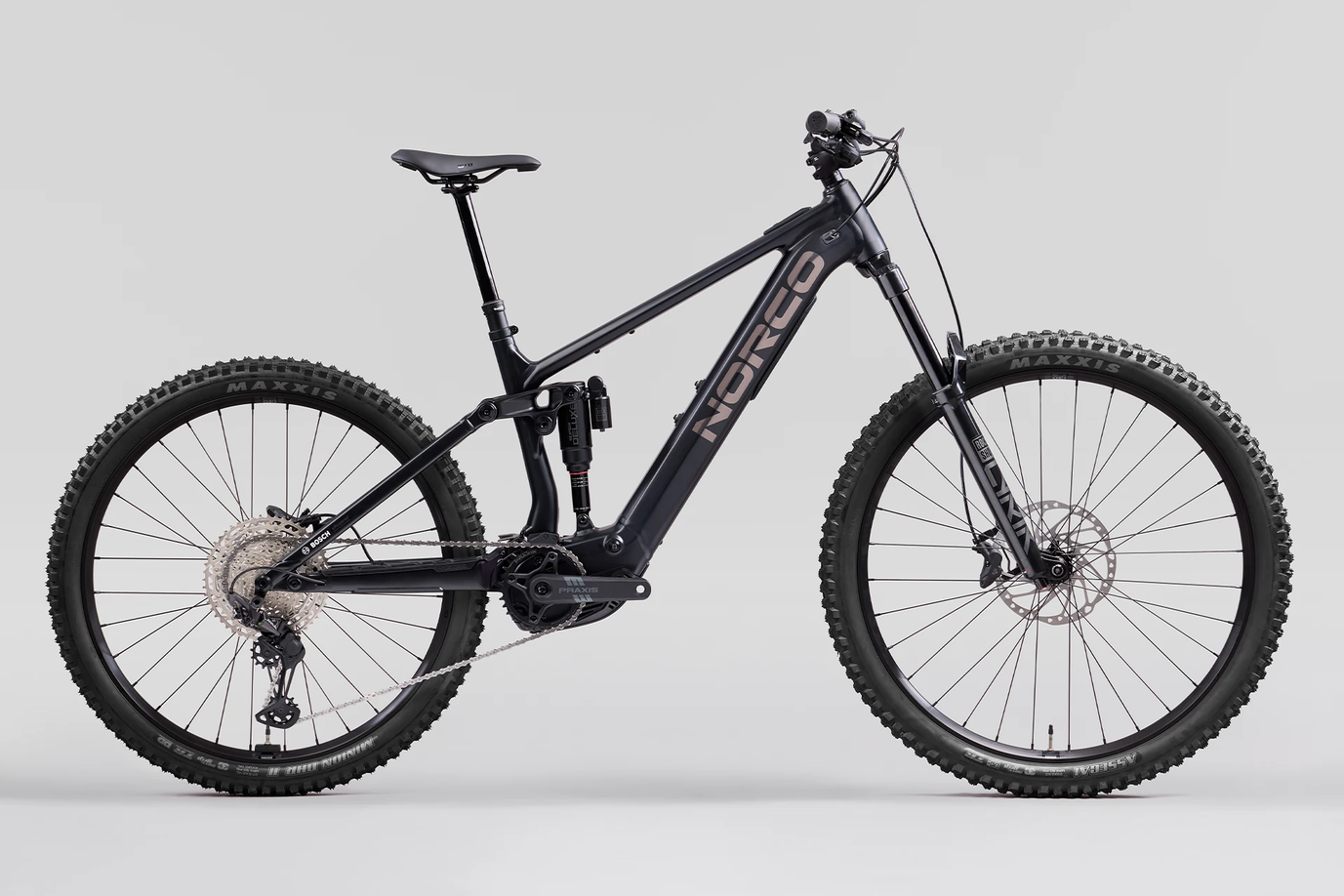

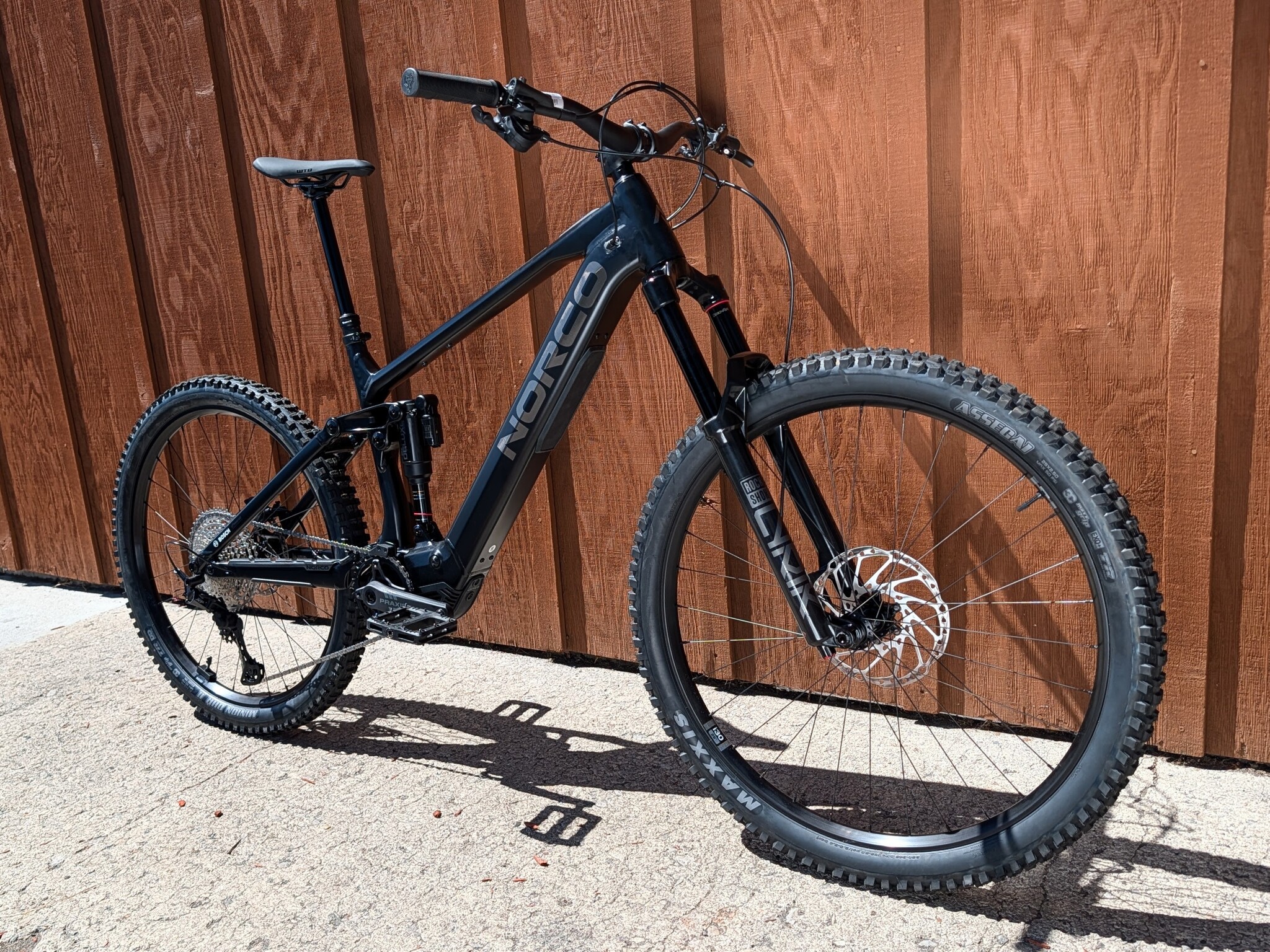

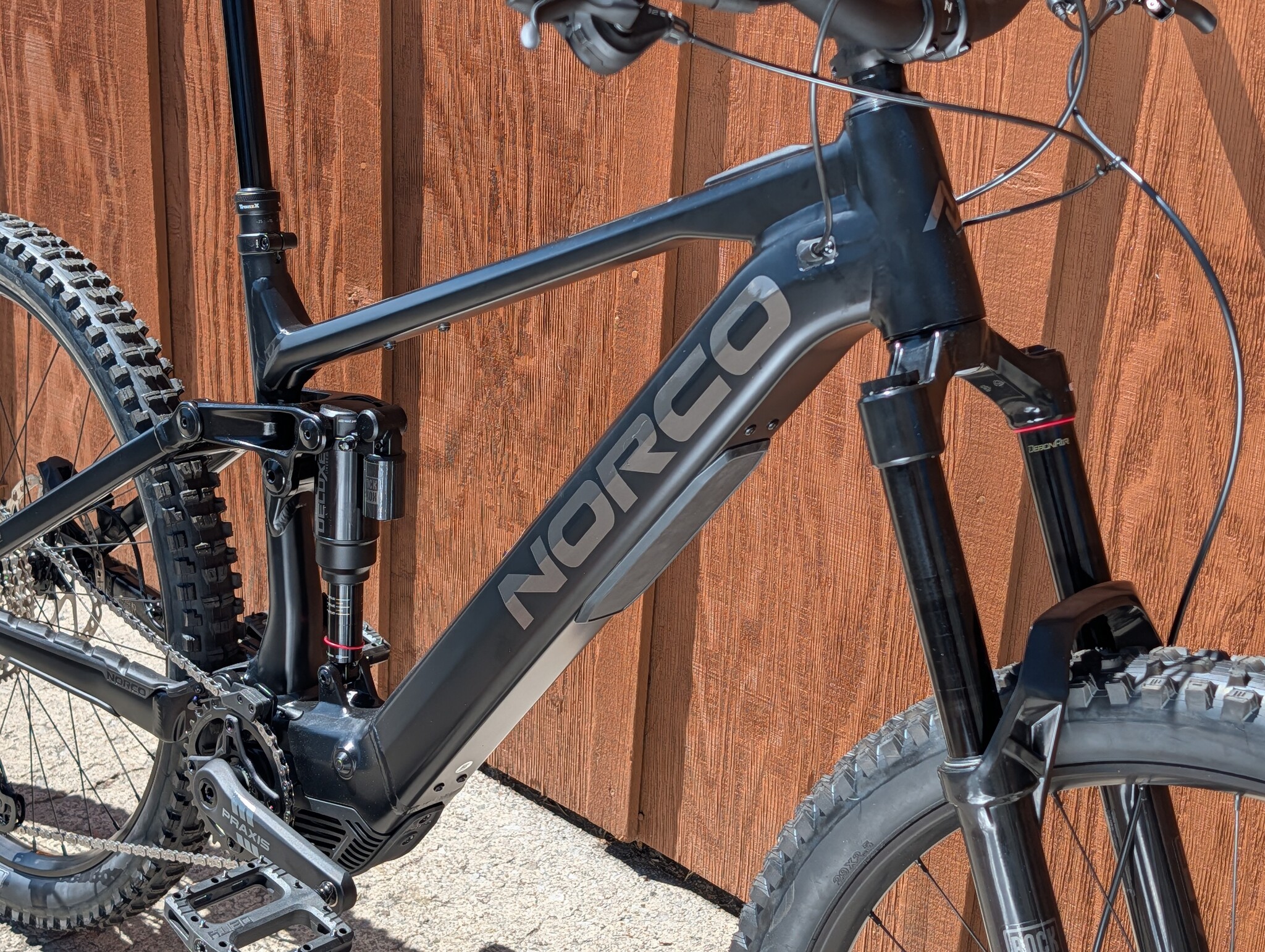

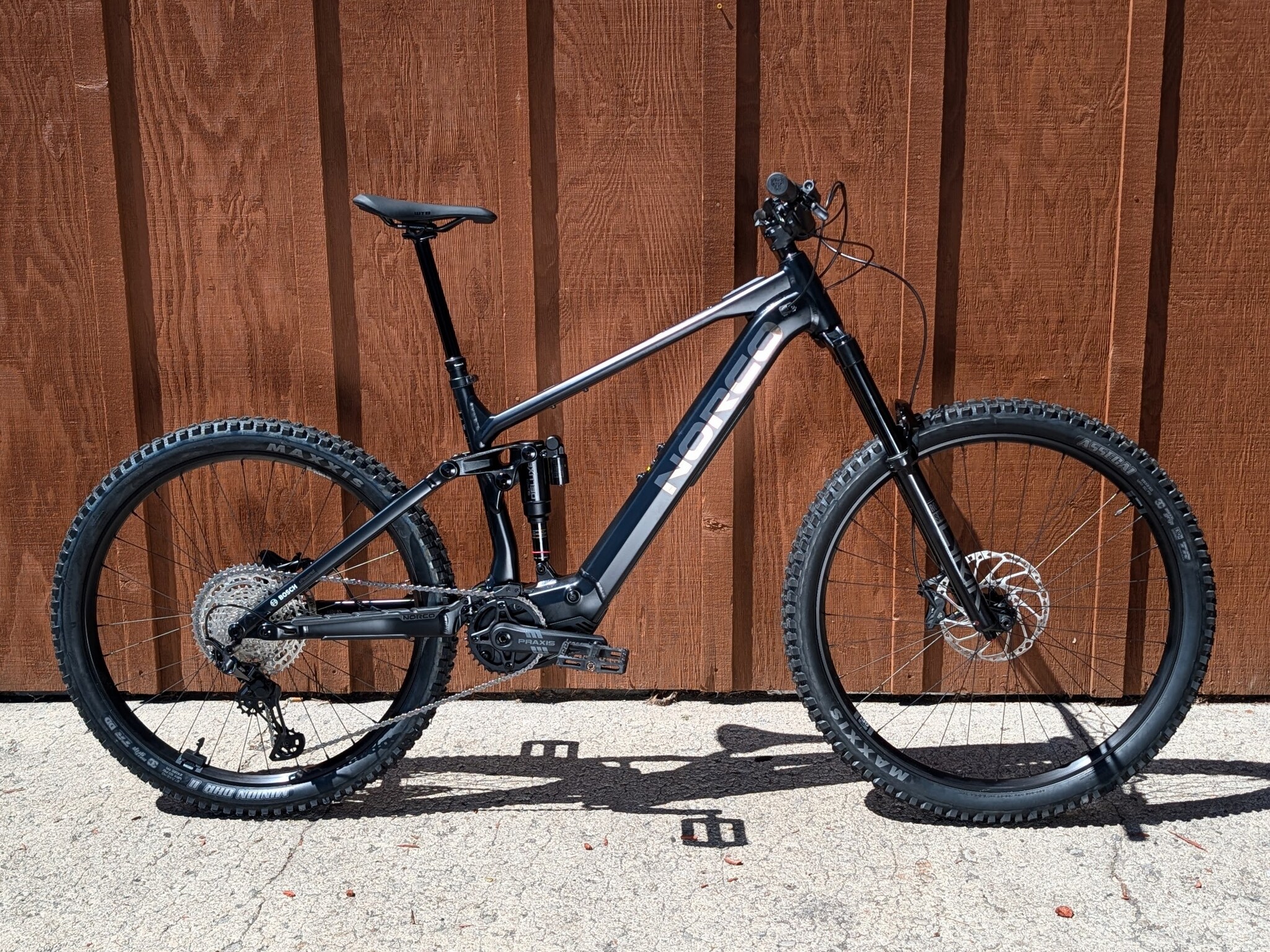

2027 Norco Sight VLT Bosch A2 29/27.5"

$5,699.00
In store: Check availability

Available in store

SKU: 0286417155

Bosch Performance Line PX 90Nm/700W | 150mm Rear/160mm Front | 64° HT

Delivery time: 5-7 Business Days | *Bicycle shipping calculated at checkout.

Description


From the manufacturer



Sight VLT Bosch A2 delivers full-power eMTB performance where it matters most. No fluff, just composure and confidence. Designed for easy maintenance and serviceability, built for all-mountain riding. With 160 mm of travel in the front and 150 mm in the rear, with Norco’s proven VPS platform and dependable system. Everything you need to get out and go, more.

Performance and control where it counts.

The Norco Sight VLT Bosch A2 delivers top-tier ride quality and exceptional value, without compromising what matters most. At its core, the Bosch PX motor provides the power and torque to conquer the steepest climbs, delivering up to 90Nm of torque and up to 700W of peak power. Progressive all-mountain geometry and a mixed-wheel setup give the versatility to tackle any terrain with ease. Size-specific geometry ensures balanced weight distribution and a precise fit across every frame. Meticulously tuned VPS suspension and powerful brakes keep every ride controlled and confident.



Features



Up to 90Nm Torque
Up to 90Nm Torque
Full-Powered Motor

Up to 700W Power
Up to 700W Power
With up to 600% Pedal Assist with the Bosch Performance Upgrade 2.0

600Wh Battery
600Wh Battery
+ 250Wh Range Extender compatible (size 3+ or with an inline shock)

Class 1 eMTB
Class 1 eMTB
32 Km/h (20mph)

Bosch Drive System
Bosch Drive System
Performance Line PX

Bosch eBike Flow App
Bosch eBike Flow App
Personalize Your Ride





Geometry



Size 1 2 3 4 5
Travel (mm front/mm rear) 1160/150 2160/150 3160/150 4160/150 5160/150
Reach 1430 2450 3470 4490 5510
Stack 1616 2625 3634 4643 5652
Head Tube Angle 164 264 364 464 564
Fork Offset 144 244 344 444 544
Seat Tube Length 1385 2395 3415 4445 5475
Effective Seat Tube Angle 177 277.25 377.5 477.75 578
Rear Centre Length 1432 2436 3440 4444 5448
Bottom Bracket Drop (Front/Rear) 127/8 227/8 327/8 427/8 527/8
Bottom Bracket Height 1347 2347 3347 4347 5347
Horizontal Top Tube 1571 2587 3604 4621 5638
Wheelbase 11202 21226 31255 41283 51311
Standover 1696 2704 3706 4723 5745
Head Tube Length 1100 2110 3120 4130 5140
Trail 1133 2133 3133 4133 5133
Recommended Seatpost Drop 1125 2150 3170 4200 5230
Maximum Post Insertion 1240 2250 3270 4300 5330
Stem Length 140 240 340 440 540
Crank Length 1155 2155 3155 4160 5160
Tire Size 12.35" – 2.5" 22.35" – 2.5" 32.35" – 2.5" 42.35" – 2.5" 52.35" – 2.5"
Water Bottle Compatible 11 x 620mL 21 x 750mL 31 x 750mL 41 x 750mL 51 x 750mL

Specifications

Frame Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Wheel Size 29"/27.5
Travel 150mm Rear/160mm Front

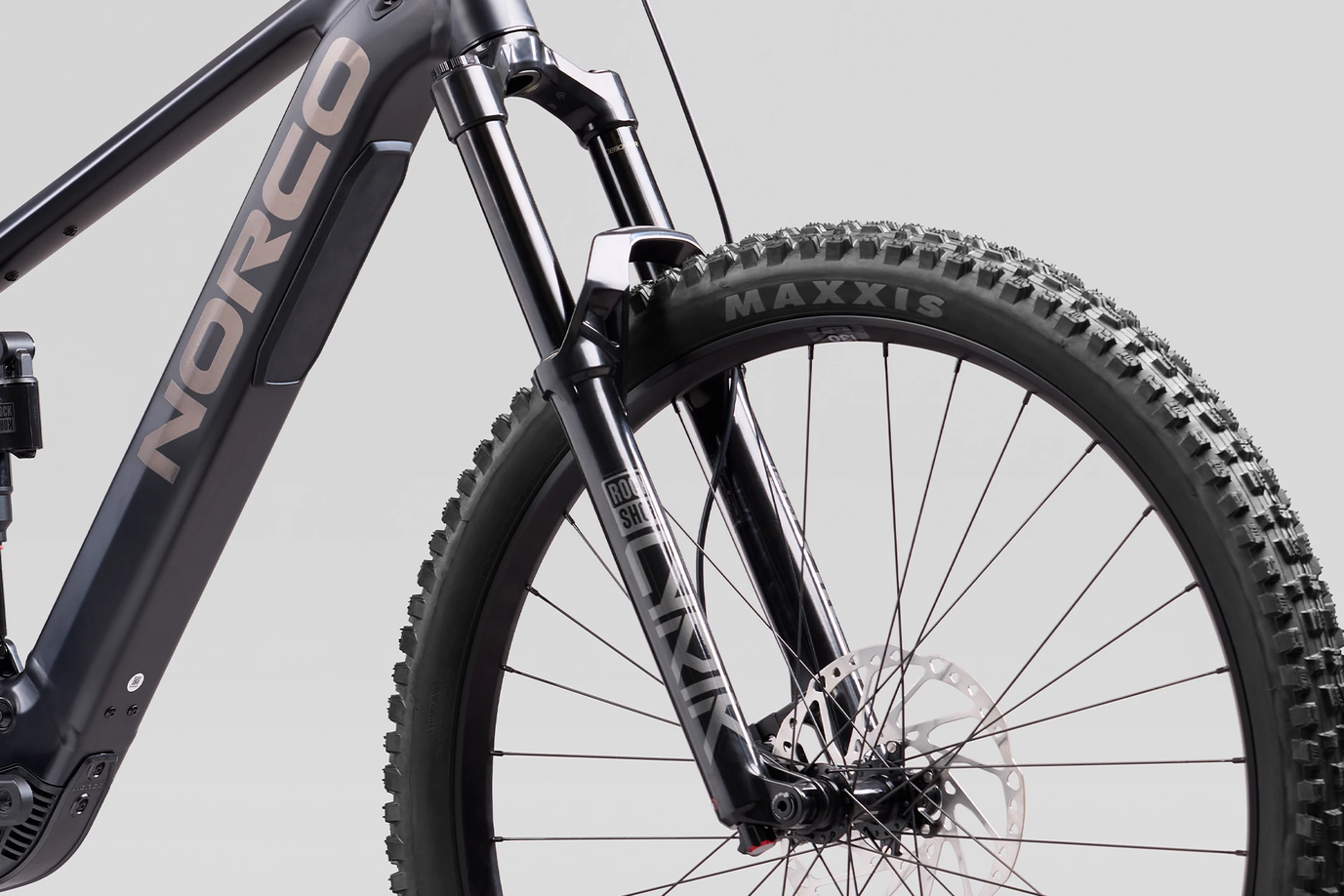

Fork RockShox Lyrik Base RC, 160mm, 44mm offset, Fender Included

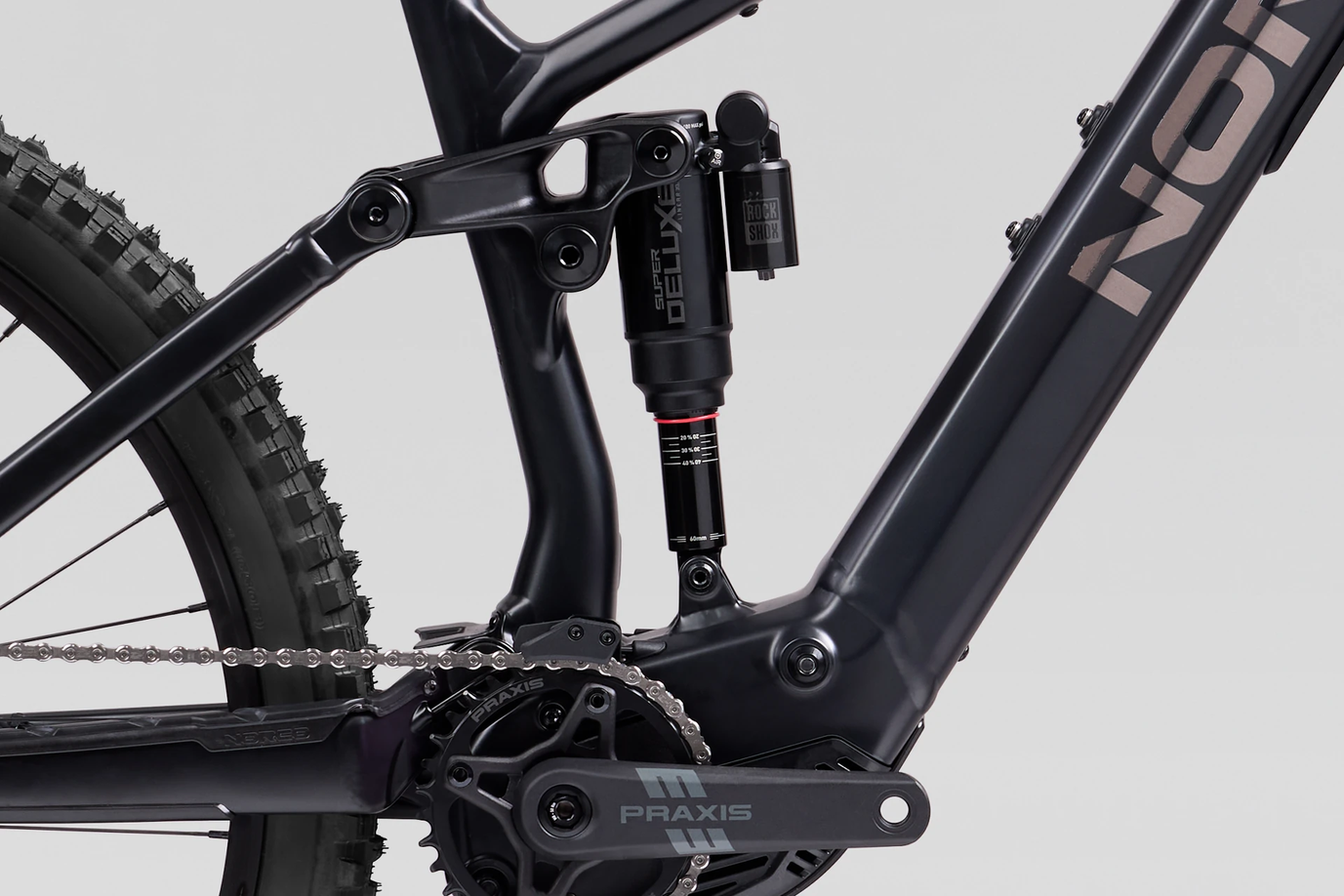

Rear Shock Rock Shox Super Deluxe Base w/ HBO, 205x60mm TR
Headset FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )

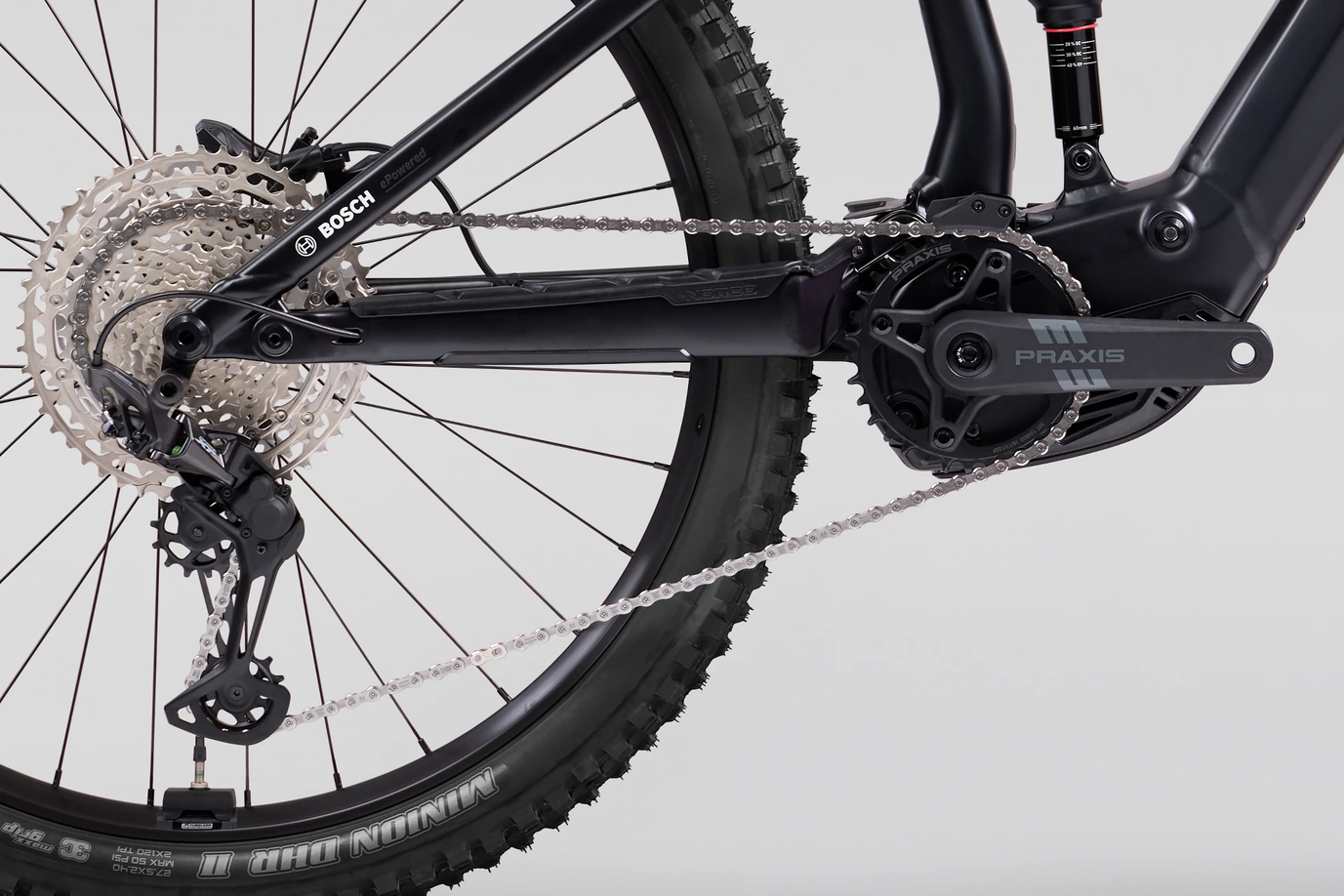

Shifter Shimano Deore SL-M6100-R, 12spd
Rear Derailleur Shimano XT RD-M8100, SGS, 12spd
Cassette Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain Shimano Deore CN-M6100, 12sp
Chainring
Crankset Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
Brakes Front: Shimano Deore M6120 4-P, metallic pads; Rear: Shimano Deore M6120 4-P, metallic pads
Rotors Front: Shimano RT-64, 203mm, C-Lock, Rear: Shimano RT-64, 180mm, C-Lock
Seatpost TranzX YSI160 RAD+, 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)

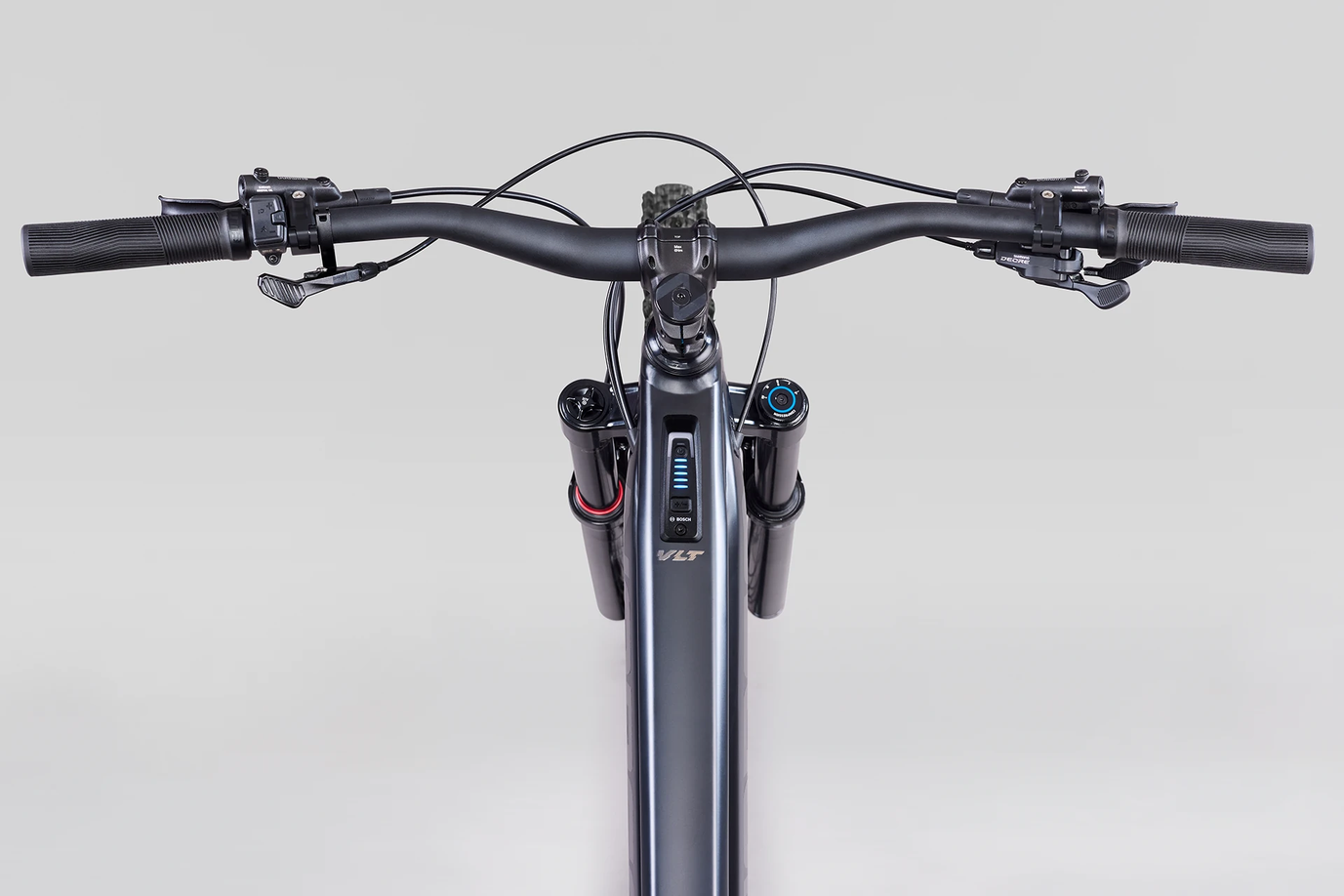

Handlebar Norco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
Stem Norco 6061, 40mm Length, 35mm Clamp
Grips WTB Wavelength, 140mm Length
Saddle WTB Solano Med, 142x240 mm, Steel Rails
Pedals N/A
Front Wheel WTB KOM Trail i30 TCS 2.0, 30mm, 32H, 29"-27.5 F/R; Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
Rear Wheel WTB KOM Trail i30 TCS 2.0, 30mm, 32H, 29"-27.5 F/R; Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Front Tire Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
Rear Tire Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding

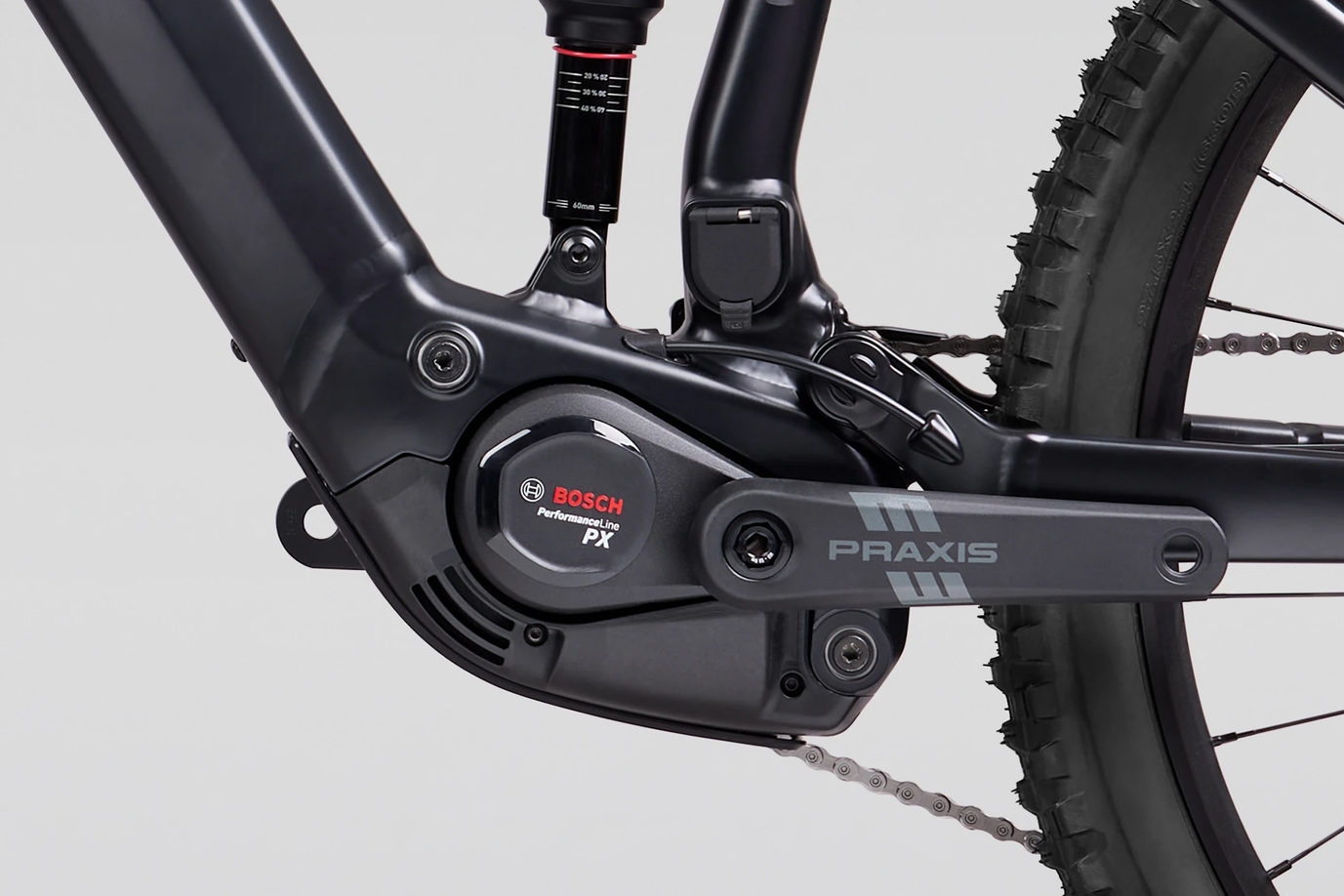

Drive Unit Bosch Performance Line PX, 90 Nm / 700W
Battery Bosch PowerTube 600 Wh
Display
Extras N/A
Sizes 1, 2, 3, 4, 5
