Pivot

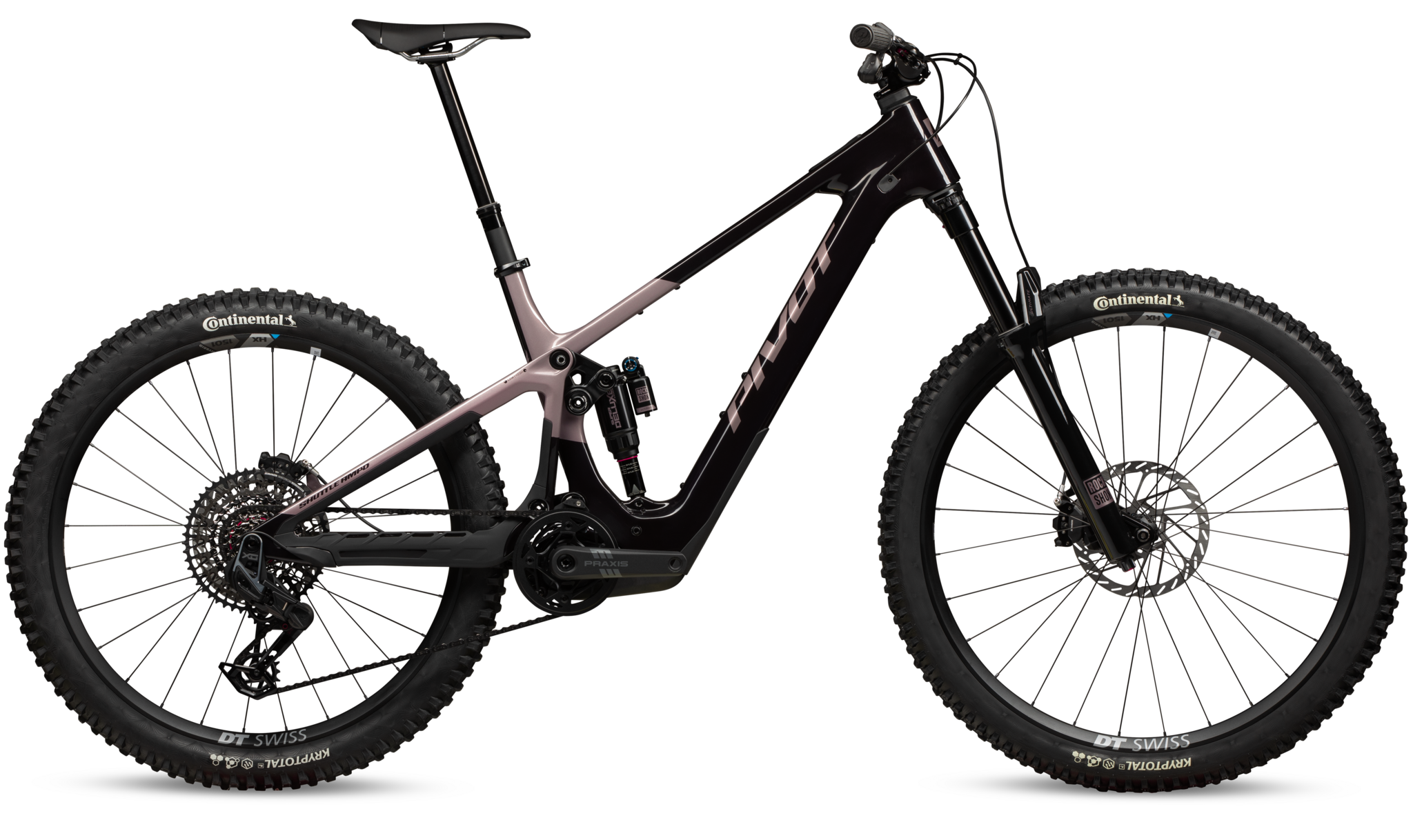

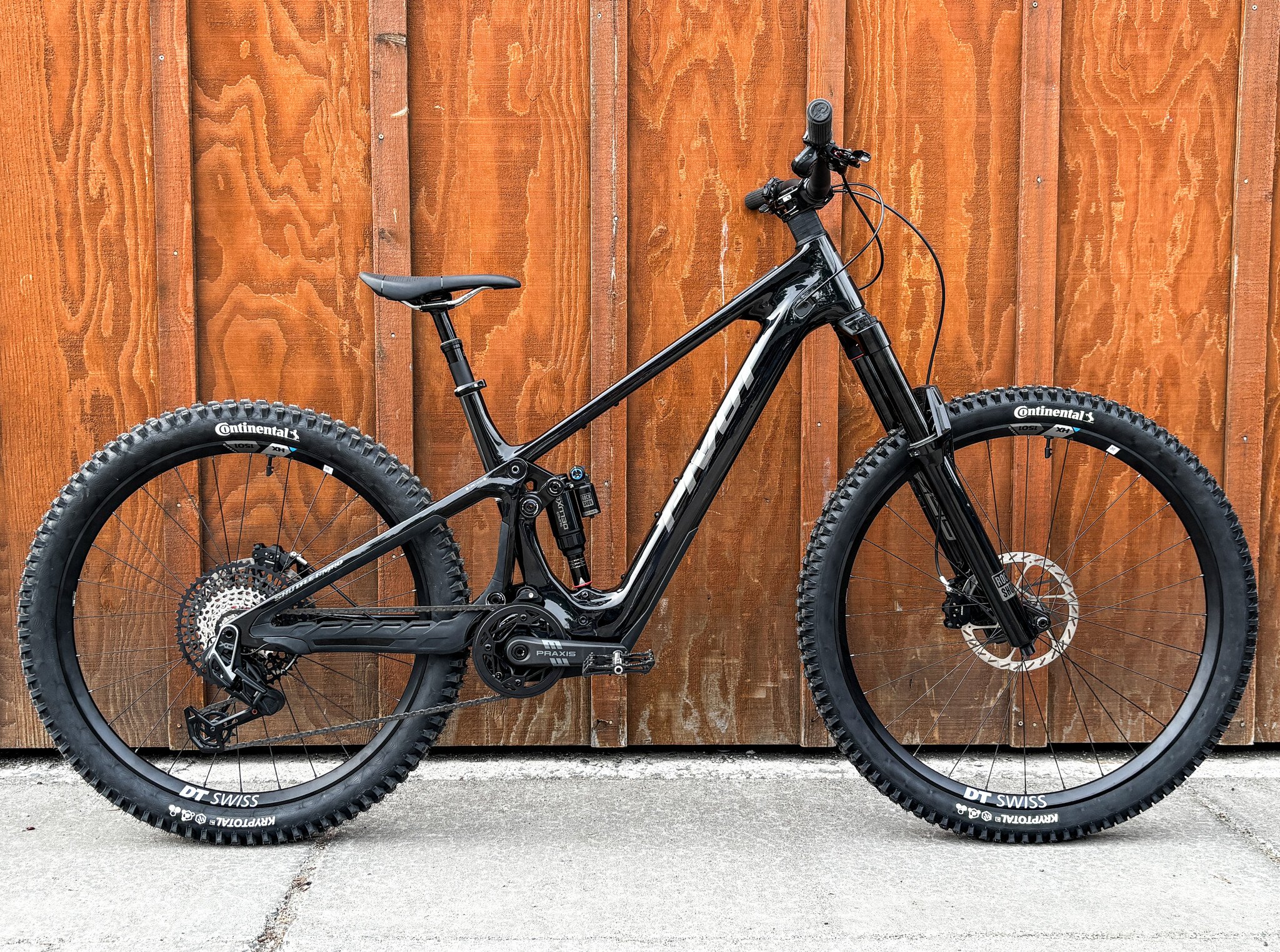

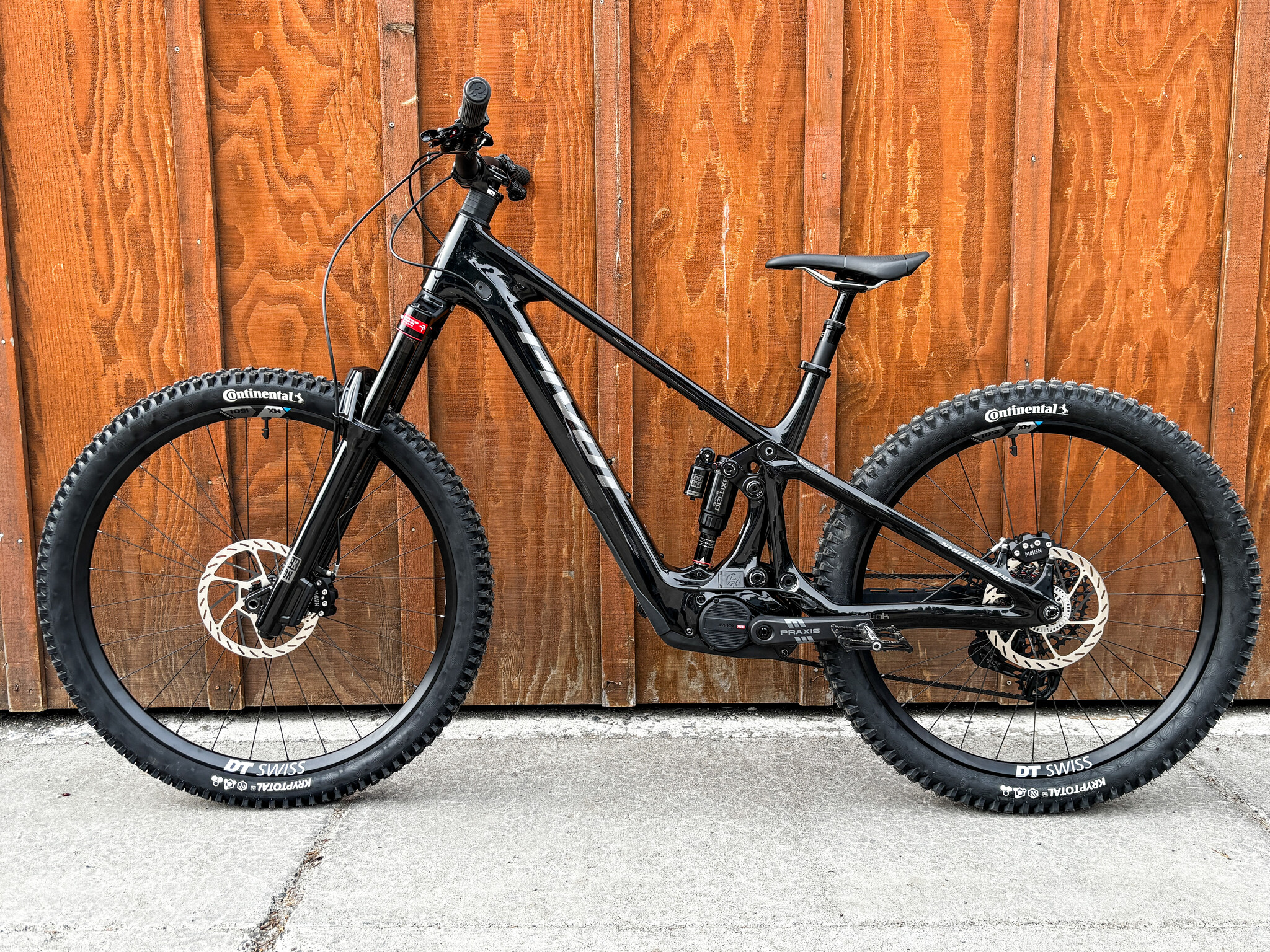

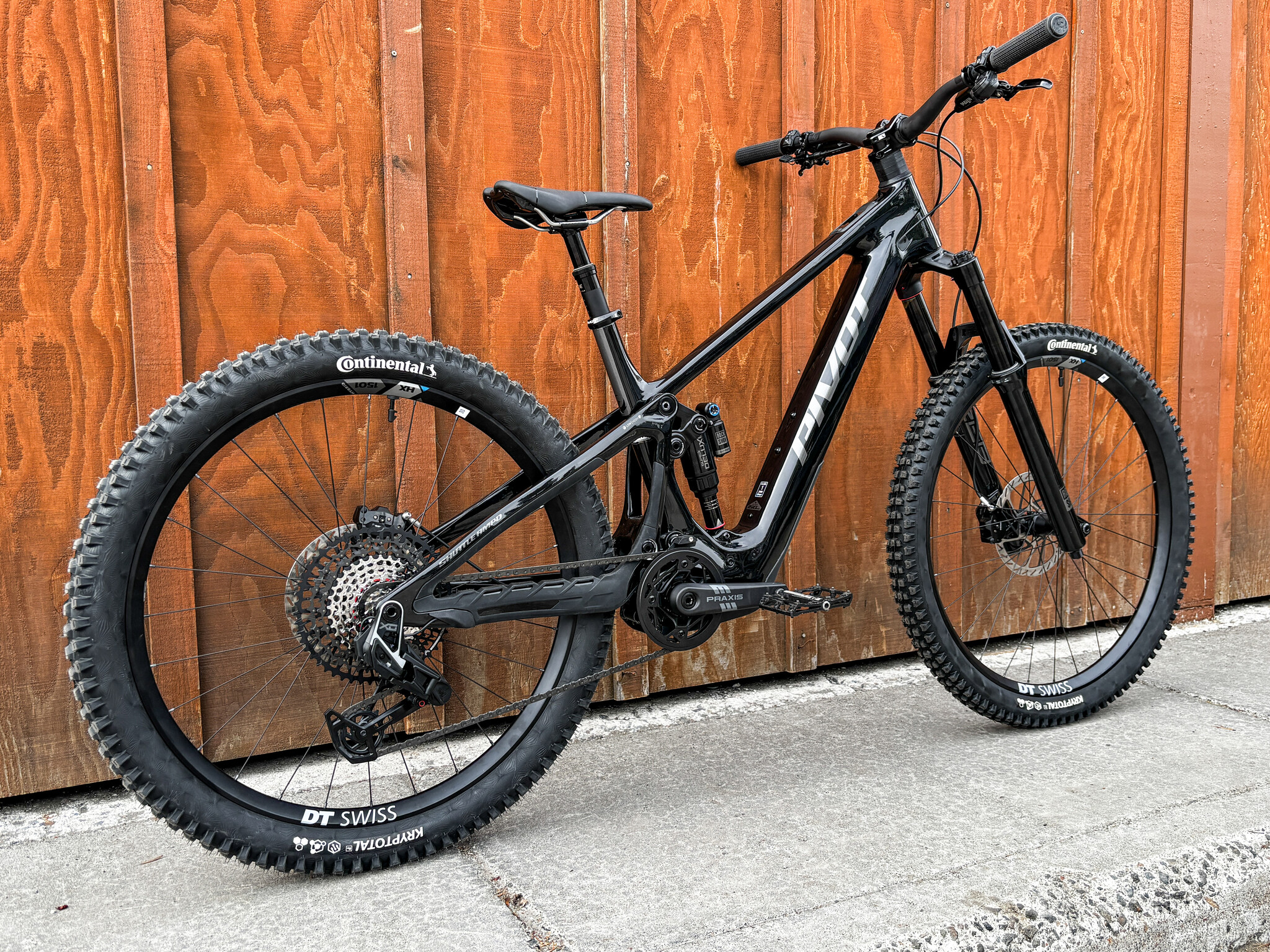

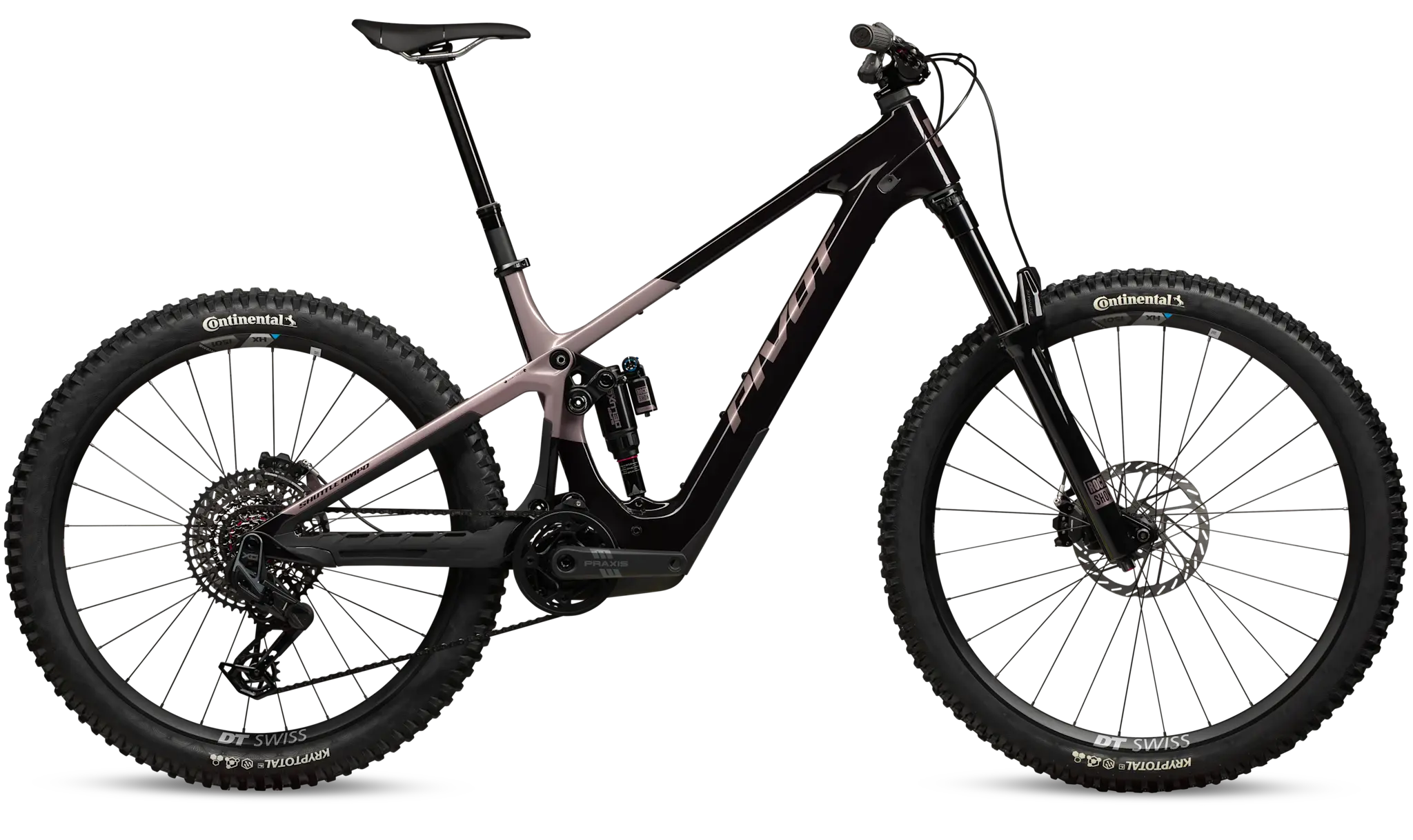

2026 Pivot Shuttle AMPD Pro X0 29"/27.5"

$11,999.00
In store: Check availability

Available in store

SKU: 27SMAP1MXAXOB--BMSLGDRPRN-SA1

Add to compare Add to wishlist
Delivery time: 5-7 Business Days

Description

Avinox M2S 800Wh | 160mm F/ 150mm R Travel | 63.7° HT


From the manufacturer



Built for riders who don’t dial it back — more drive, more bite, more command— the AMP’d is a showcase of what the Avinox M2S can unleash when paired with a chassis forged through two decades of suspension design. The platform works in harmony with the motor, driving the rear wheel, and turning power into speed.



Features



  • Ultra light Hollow Core carbon frame

  • Avinox M2S drive unit and long-range 800Wh battery across all build levels

  • Available in XS to XL frame sizes

  • Full-color, OLED touchscreen display

  • Wireless Avinox remotes

  • 160mm travel fork

  • 150mm of progressive rear suspension travel

  • Mixed-wheel setup

  • Geo flip chip via upper link mount

  • Full internal routing with Pivot Cable Port System

  • Injection molded rubberized frame protection

  • Pivot dock tool system compatible

  • Water bottle clearance on all sizes



Geometry



High XS SM MD LG XL
Seat Tube Length (C-T) 34.3 cm 37.8 cm 39.87 cm 43.18 cm 47.0 cm
Top Tube Length (Eff.) 57.46 cm 60.44 cm 63.18 cm 64.91 cm 67.15 cm
Head Tube Length 9.5 cm 11.0 cm 12.0 cm 13.0 cm 14.0 cm
Head Tube Angle 63.7° 63.7° 63.7° 63.7° 63.7°
Seat Tube Angle (Eff.) 76.5° 76.5° 76.5° 76.5° 76.5°
Chain Stay Length 44.3 cm 44.3 cm 44.3 cm 44.3 cm 44.3 cm
Bottom Bracket Height 34.0 cm 34.0 cm 34.0 cm 34.0 cm 34.0 cm
Bottom Bracket Drop 1.8 cm 1.8 cm 1.8 cm 1.8 cm 1.8 cm
Standover Height 64.5 cm 66.3 cm 67.1 cm 67.1 cm 68.2 cm
Wheelbase 118.78 cm 121.76 cm 124.69 cm 126.62 cm 129.05 cm
Stack 61.34 cm 63.3 cm 64.22 cm 65.14 cm 66.05 cm
Reach 42.0 cm 43.5 cm 46.0 cm 47.5 cm 49.5 cm

Low XS SM MD LG XL
Seat Tube Length (C-T) 34.3 cm 37.8 cm 39.87 cm 43.18 cm 47.0 cm
Top Tube Length (Eff.) 57.57 cm 60.55 cm 63.29 cm 65.03 cm 67.27 cm
Head Tube Length 9.5 cm 11.0 cm 12.0 cm 13.0 cm 14.0 cm
Head Tube Angle 63.3° 63.3° 63.3° 63.3° 63.4°
Seat Tube Angle (Eff.) 76.1° 76.1° 76.1° 76.1° 76.1°
Chain Stay Length 44.3 cm 44.3 cm 44.3 cm 44.3 cm 44.3 cm
Bottom Bracket Height 33.5 cm 33.5 cm 33.5 cm 33.5 cm 33.5 cm
Bottom Bracket Drop 2.3 cm 2.3 cm 2.3 cm 2.3 cm 2.3 cm
Standover Height 64.0 cm 65.8 cm 66.6 cm 66.6 cm 67.7 cm
Wheelbase 118.9 cm 121.86 cm 124.79 cm 126.72 cm 129.15 cm
Stack 61.63 cm 63.6 cm 64.53 cm 65.45 cm 66.38 cm
Reach 41.6 cm 43.1 cm 45.6 cm 47.1 cm 49.1 cm

Specifications

Frame Shuttle AMPD; Hollow Core carbon frame
Wheel Size 29" (front), 27.5" (rear)
Travel Front: 160mm; Rear: 150mm
Fork RockShox Zeb Ultimate 29", 44m offset, 160mm

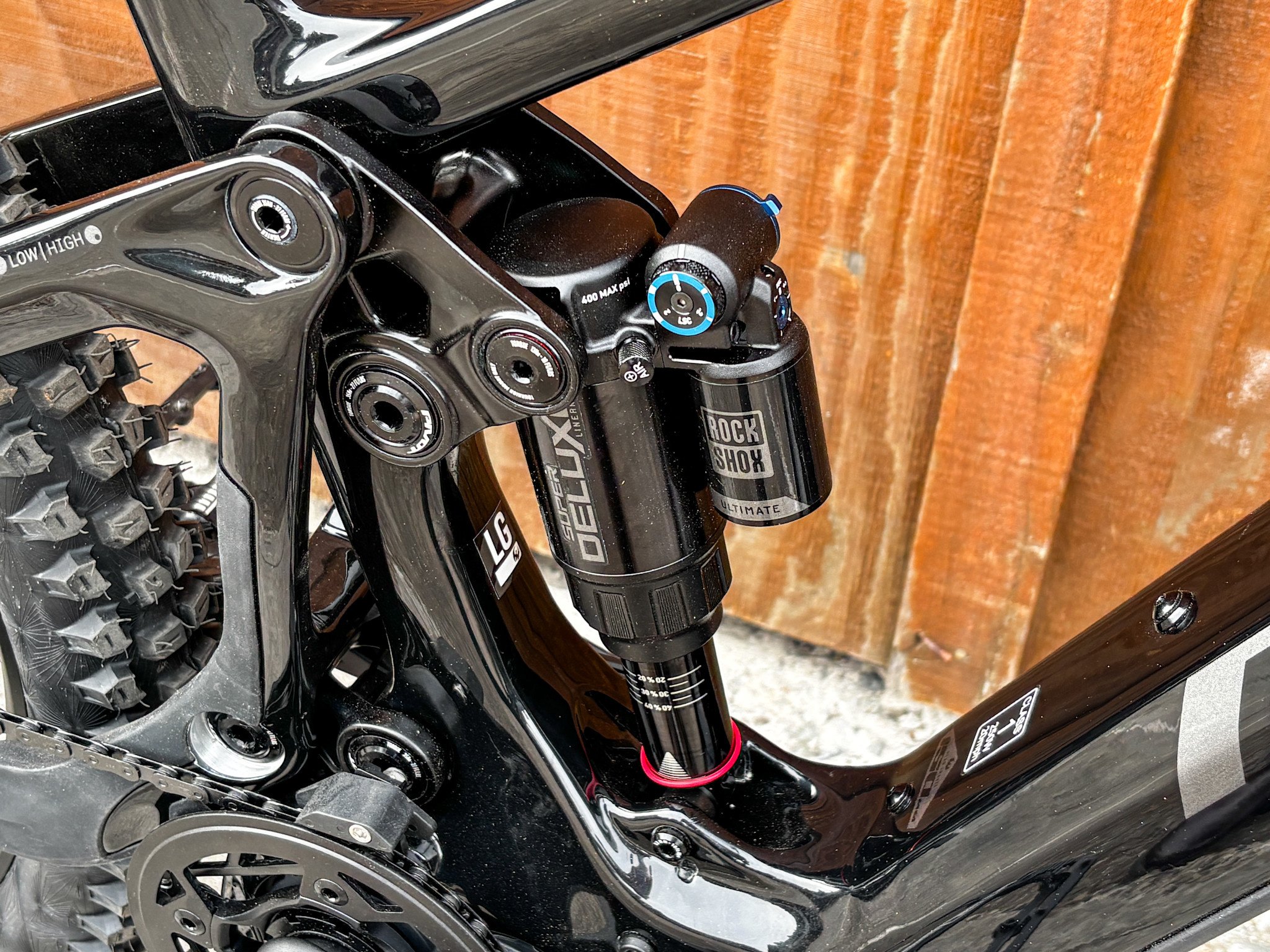

Rear Shock RockShox Super Deluxe Ultimate
Headset Pivot Precision Sealed Cartridge
Shifter Sram AXS Pod Controller

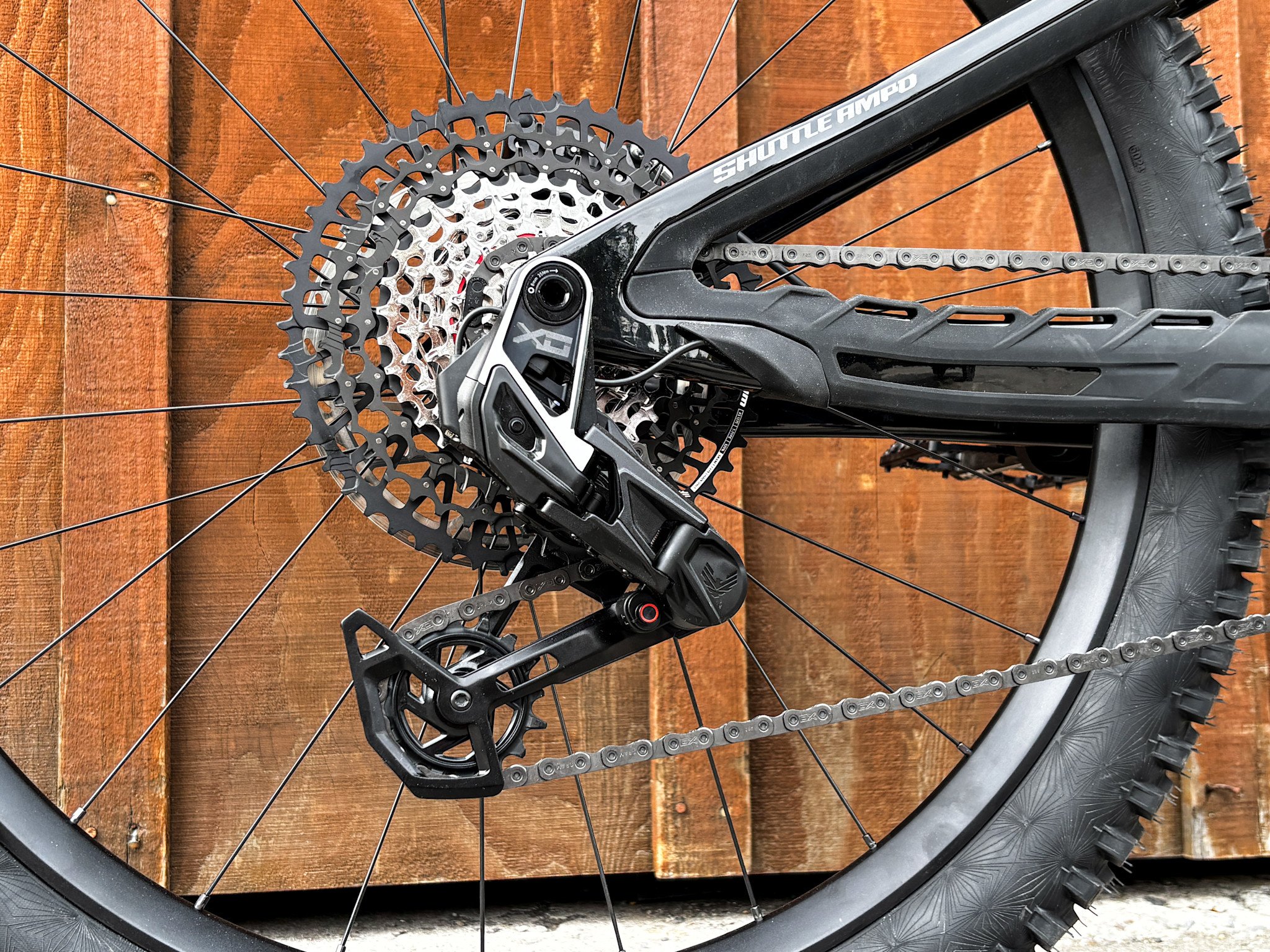

Rear Derailleur Sram X0 Eagle Transmission 12-Speed
Cassette SRAM GX 1275 Eagle Transmission 10-52t
Chain Sram X0 Eagle Flattop 12-speed
Chainring

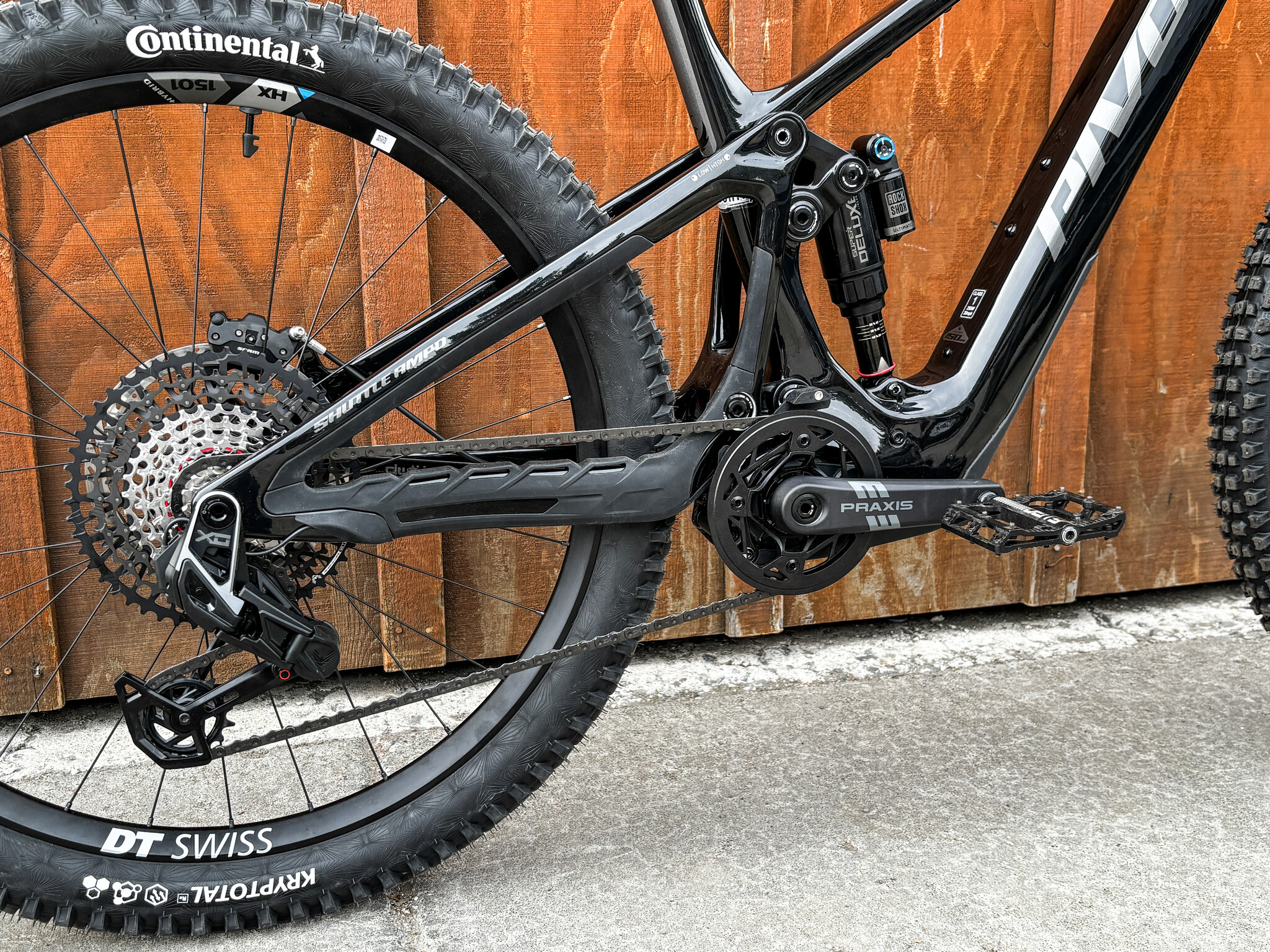

Crankset Praxis Alloy eCranks E-MTB 34t - 155mm
Brakes Sram Maven Silver 4- piston
Rotors Sram HS2 6 bolt - 200mm
Seatpost OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL)
Handlebar Phoenix Team Carbon - 20mm Rise 760mm(XS), 20mm Rise 780mm(SM), 35mm Rise 780mm(MD-XL)
Stem Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)
Grips Phoenix FActory Lock-On
Saddle Pivot Pro E-Bike
Pedals N/A
Front Wheel DT Swiss Hybrid HX1501, 30mm - 15 x 110
Rear Wheel DT Swiss Hybrid HX1501, 30mm - 12 x 157
Front Tire Continental Kryptotal 29" x 2.4 Super Soft Compound Enduro Casing
Rear Tire Continental Kryptotal 27.5" x 2.6 Super Soft Compound Enduro Casing
Drive Unit Avinox M2S 800Wh
Battery 800Wh

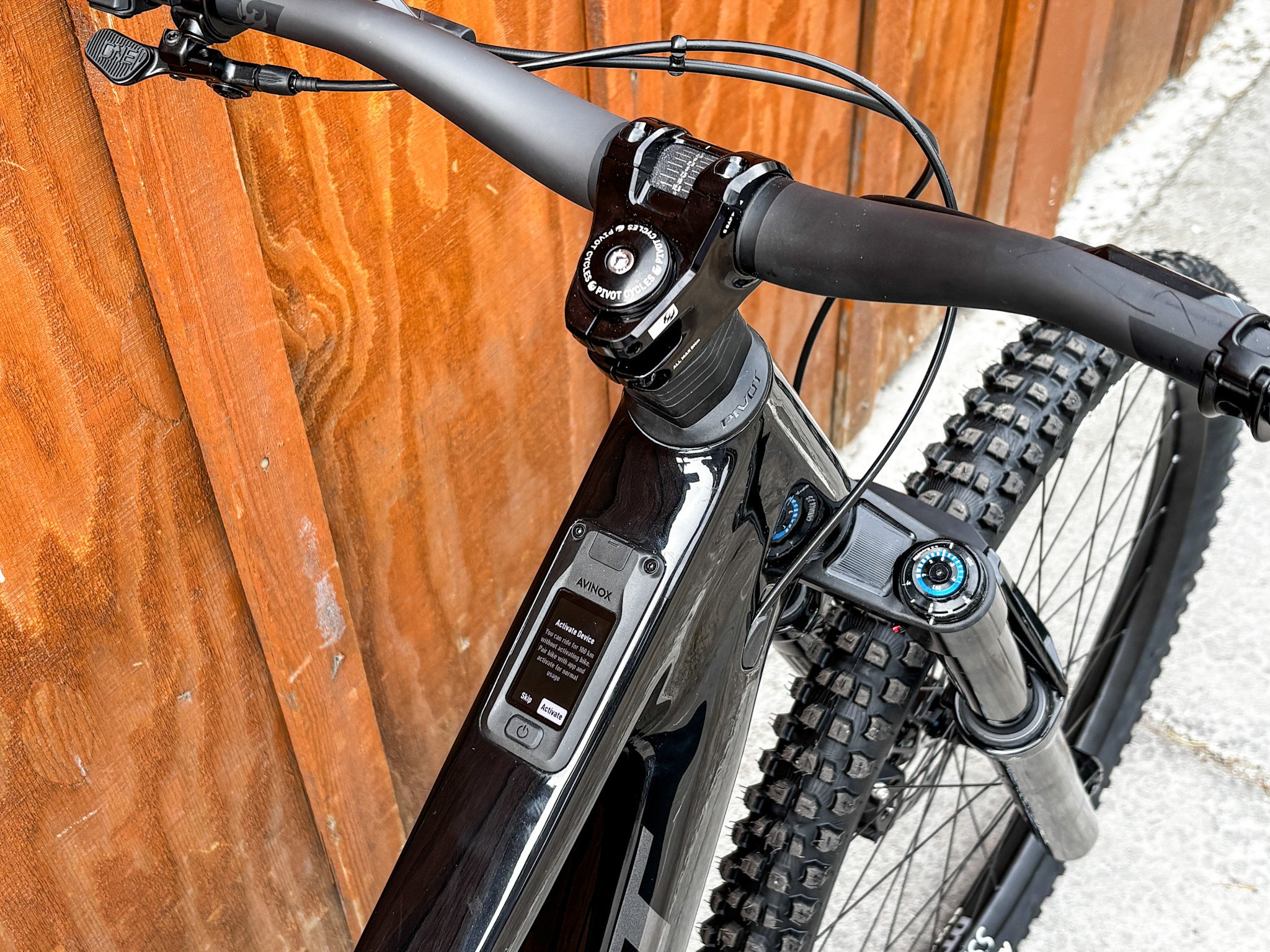

Display Full-color, OLED touchscreen display
Extras N/A
Sizes XS, SM, MD LG, XL
