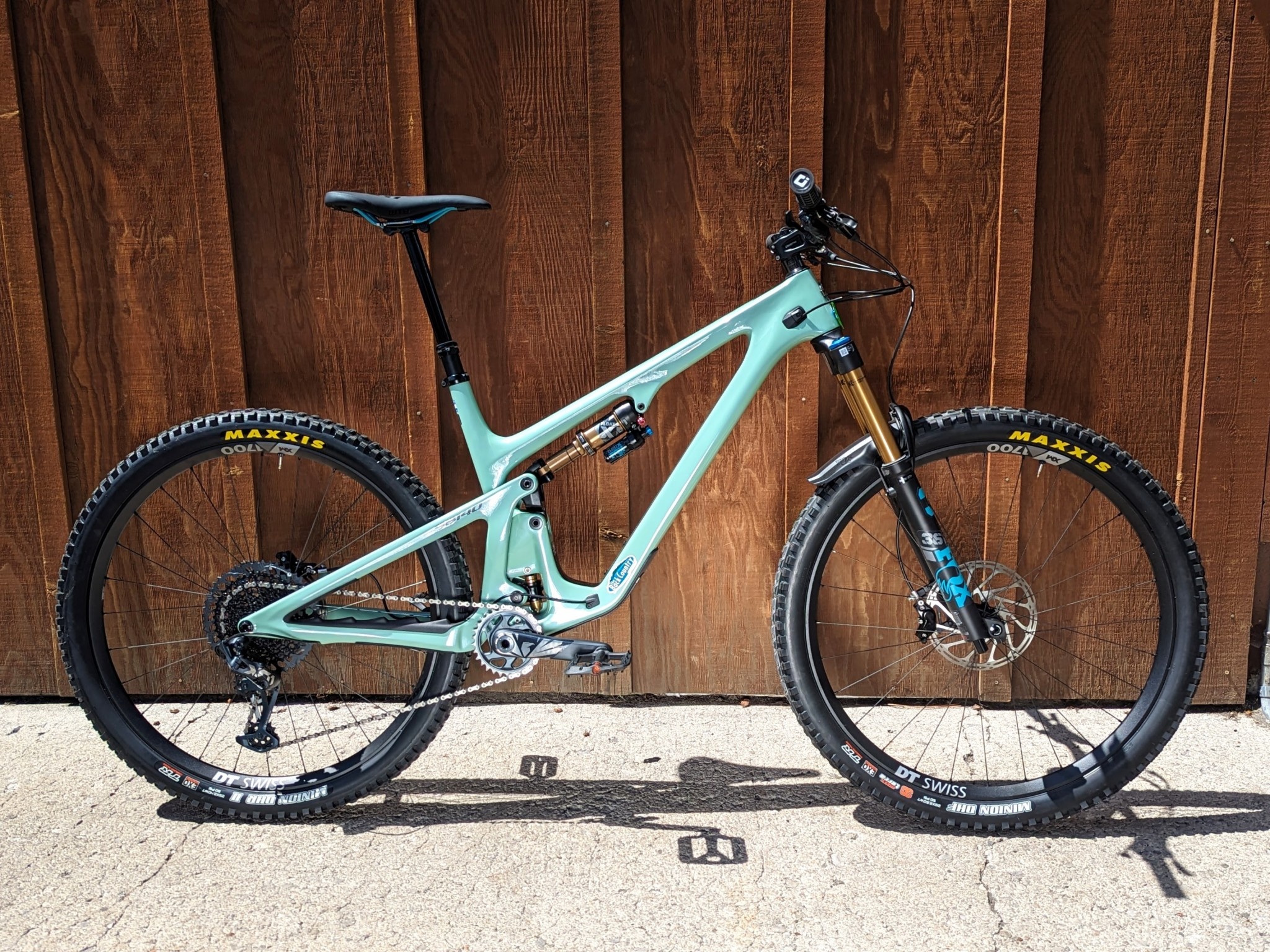

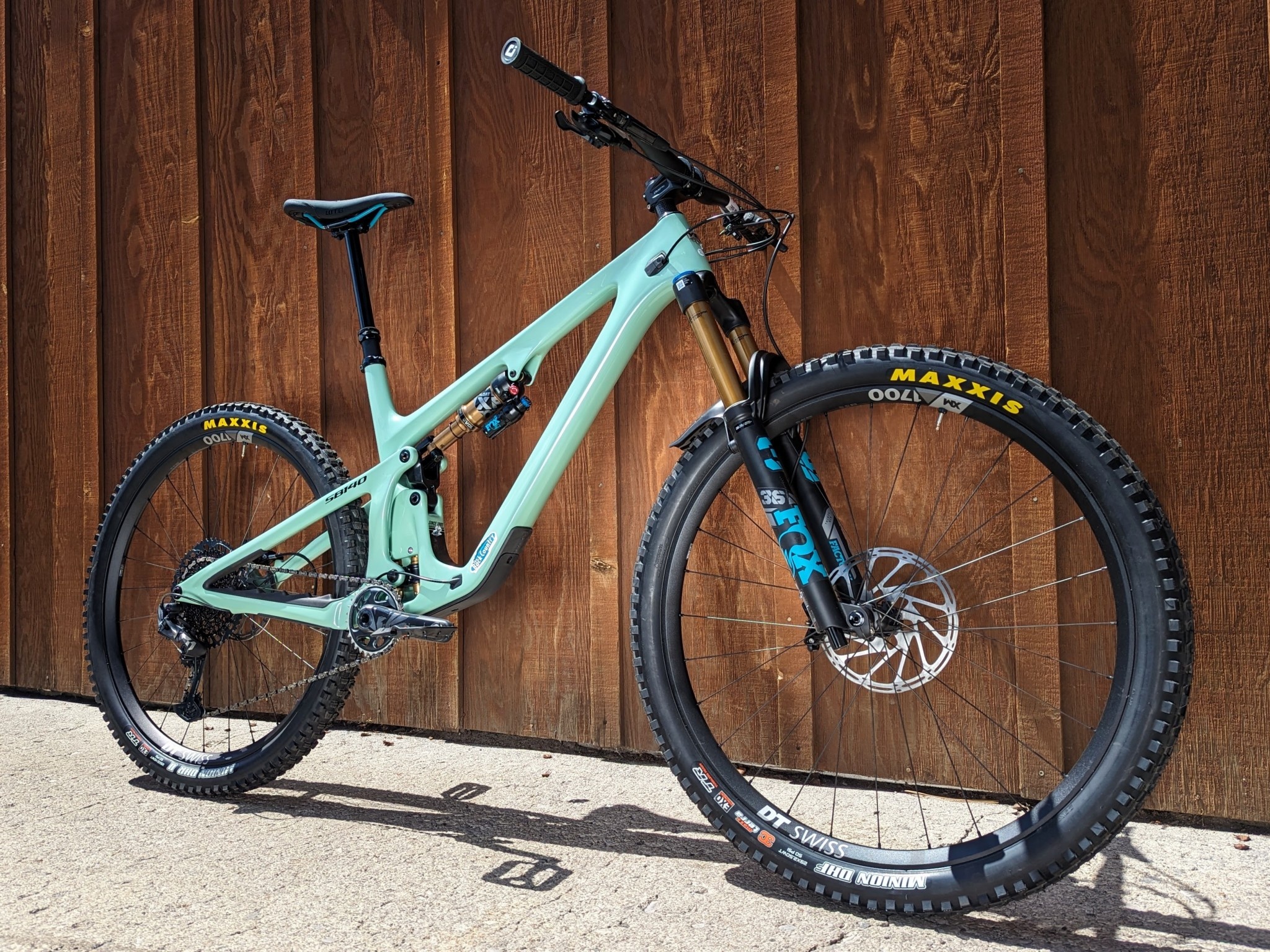

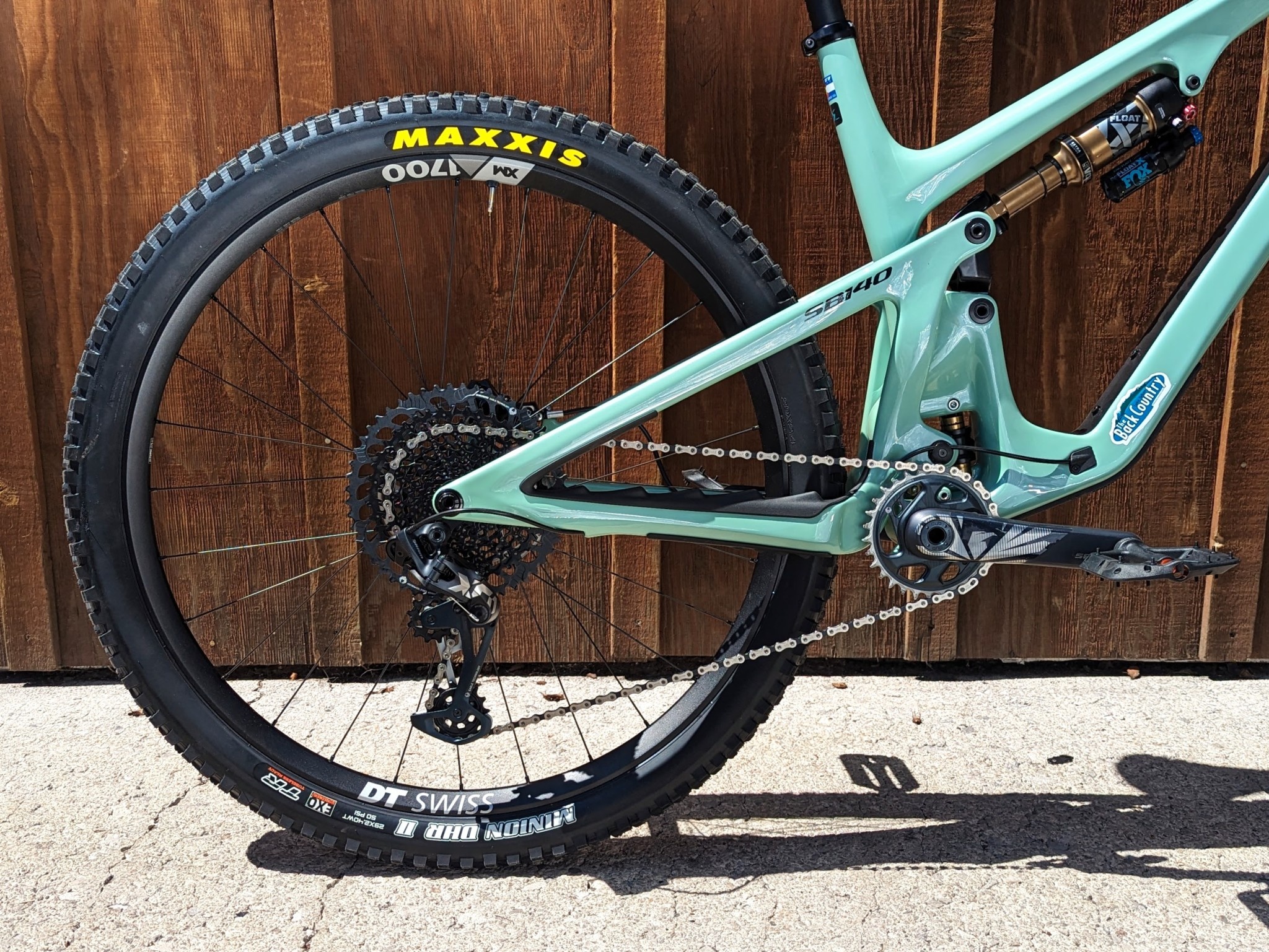

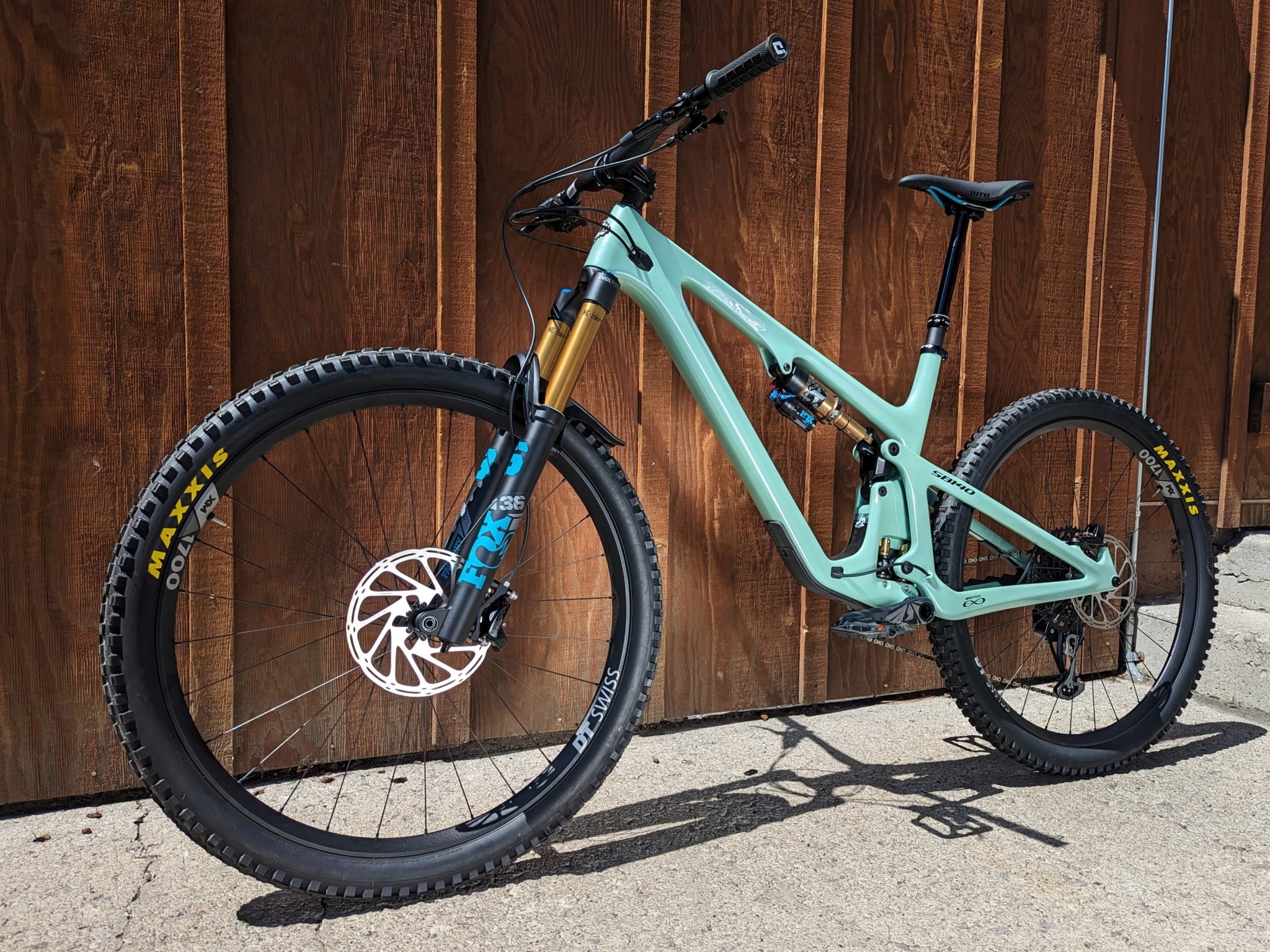

2023 Yeti SB140 LR T1 29"

$8,200.00 $6,560.00
Available in store: Check availability

Available in store

Close
29" Wheels | 160mm Front / 140mm Rear | 65° HT
Add to cart
Size guide
Delivery time: 5-7 Business Days

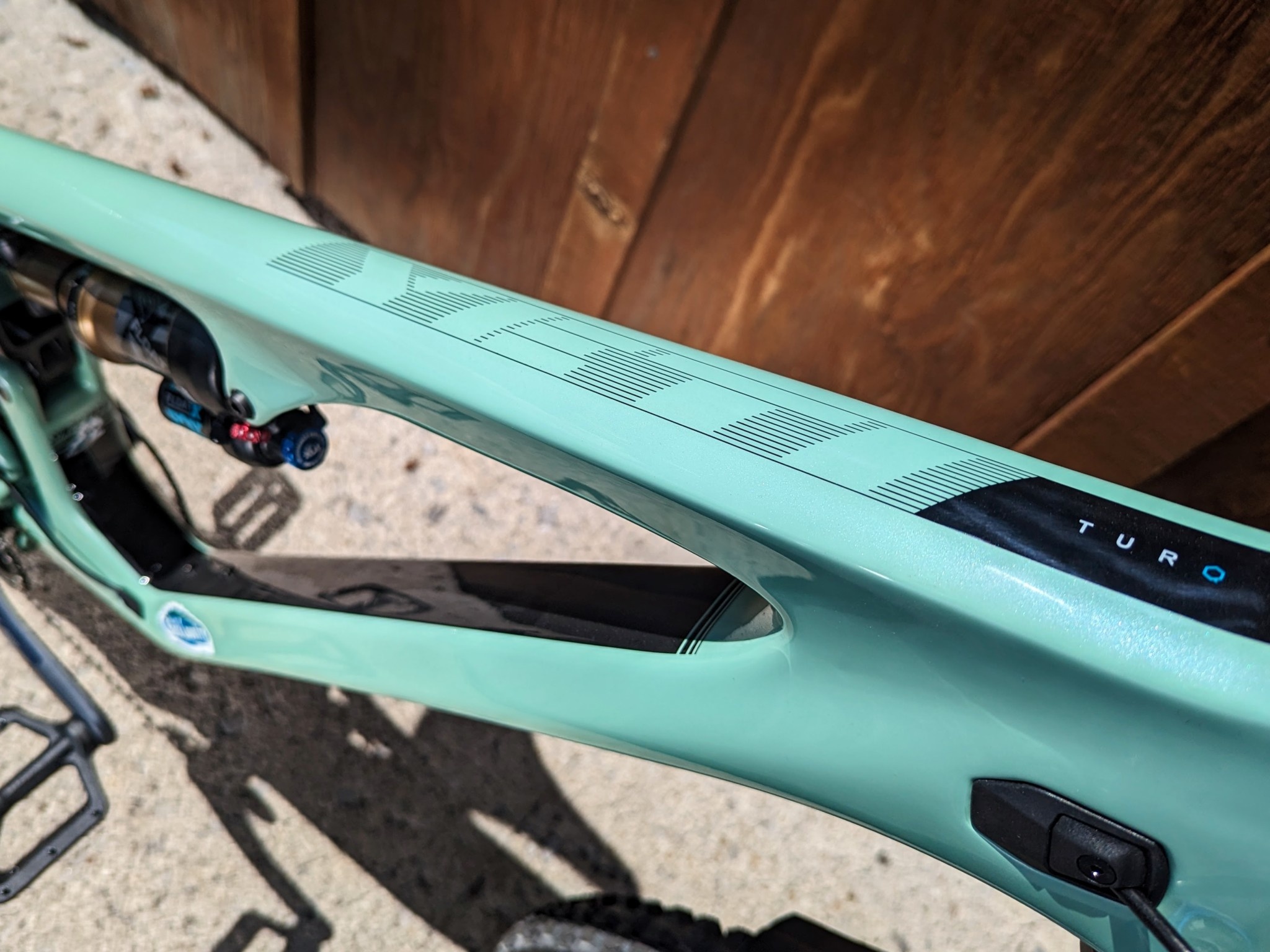

Frame TURQ Series Carbon
Wheel Size 29"
Travel 160mm Front | 140mm Rear
Fork Fox Factory 36 GRIP 2 | 160mm
Rear Shock Fox Factory Float X | 140mm
Headset Cane Creek 40 Integrated
Bottom Bracket SRAM Dub BSA 73
Shifter SRAM GX Eagle
Rear Derailleur SRAM X01 Eagle
Cassette SRAM GX Eagle 1275 10-52
Chain SRAM GX Eagle
Chainring
Crankset SRAM X1 EAGLE 30T 170mm
Brakes SRAM Code RSC
Rotors SRAM Centerline 200 | SRAM Centerline 180
Seatpost Fox Transfer 31.6mm / SM: 150mm, MD: 175mm, LG-XXL: 200mm
Handlebar Yeti Carbon 35x780mm
Stem Burgtec Enduro MK3 35x50mm
Grips ODI Elite Pro
Saddle Silverado Custom
Pedals N/A
Front Wheel DT SWISS XM1700 30mm
Rear Wheel DT SWISS XM1700 30mm
Front Tire Maxxis Minion DHF 2.5 EXO
Rear Tire Maxxis Minion DHR II 2.4 EXO
Sizes S, M, L, XL, XXL
FROM THE MANUFACTURER



Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The Mountain Bike.



FEATURES



Construction

Switch Infinity. Recalculated.
Discover the next-generation of translating pivot suspension designs. Setting new expectations for kinematics, longevity, sensitivity, and strength.

Cable Management
Internally routed cable tubes with secure closures at entry and exit points eliminates rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.

Threaded BB
Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now durable, cleaner, and easier to service.

Universally Ready
If a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface -- the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.

Full Drop
As the capability of our bikes continues to increase, so does their ability to run modern day, full-stroke dropper posts. Our seat tube is shorter to allow for a longer dropper post. Most riders will be able to use a 150mm dropper post on small frames*, 175mm on medium frame* and 200mm+ dropper posts on L-XXL frames* respectively.

*Dependent on actual seat height on specific bike size.

Patented Compact Wishbone.

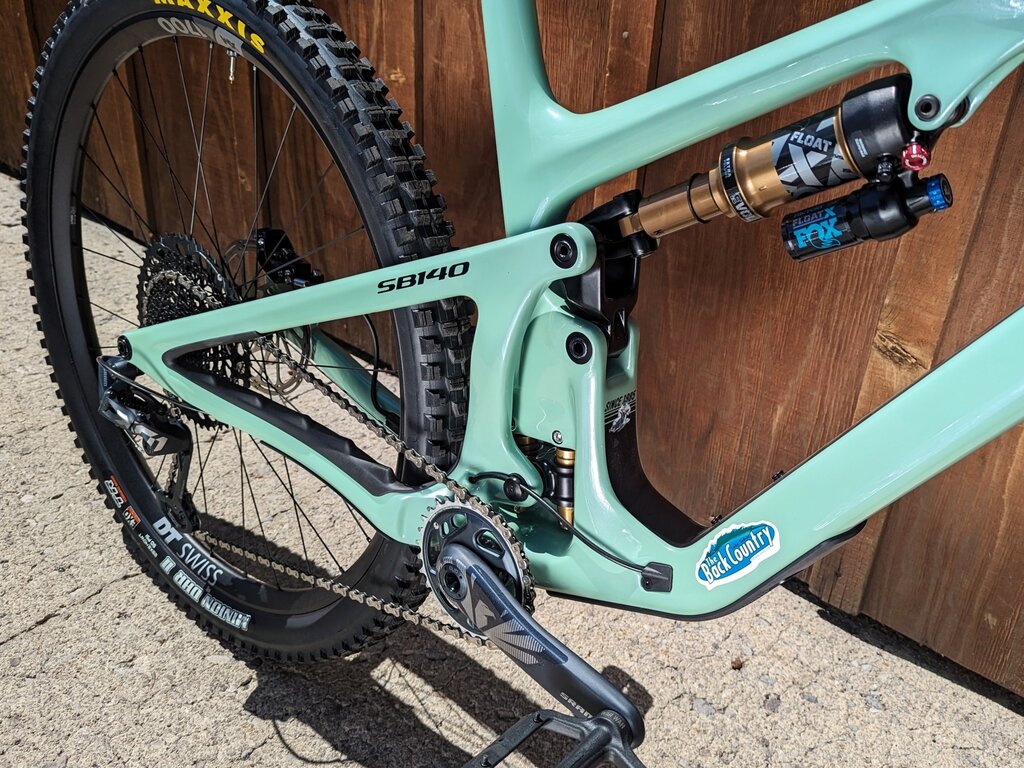

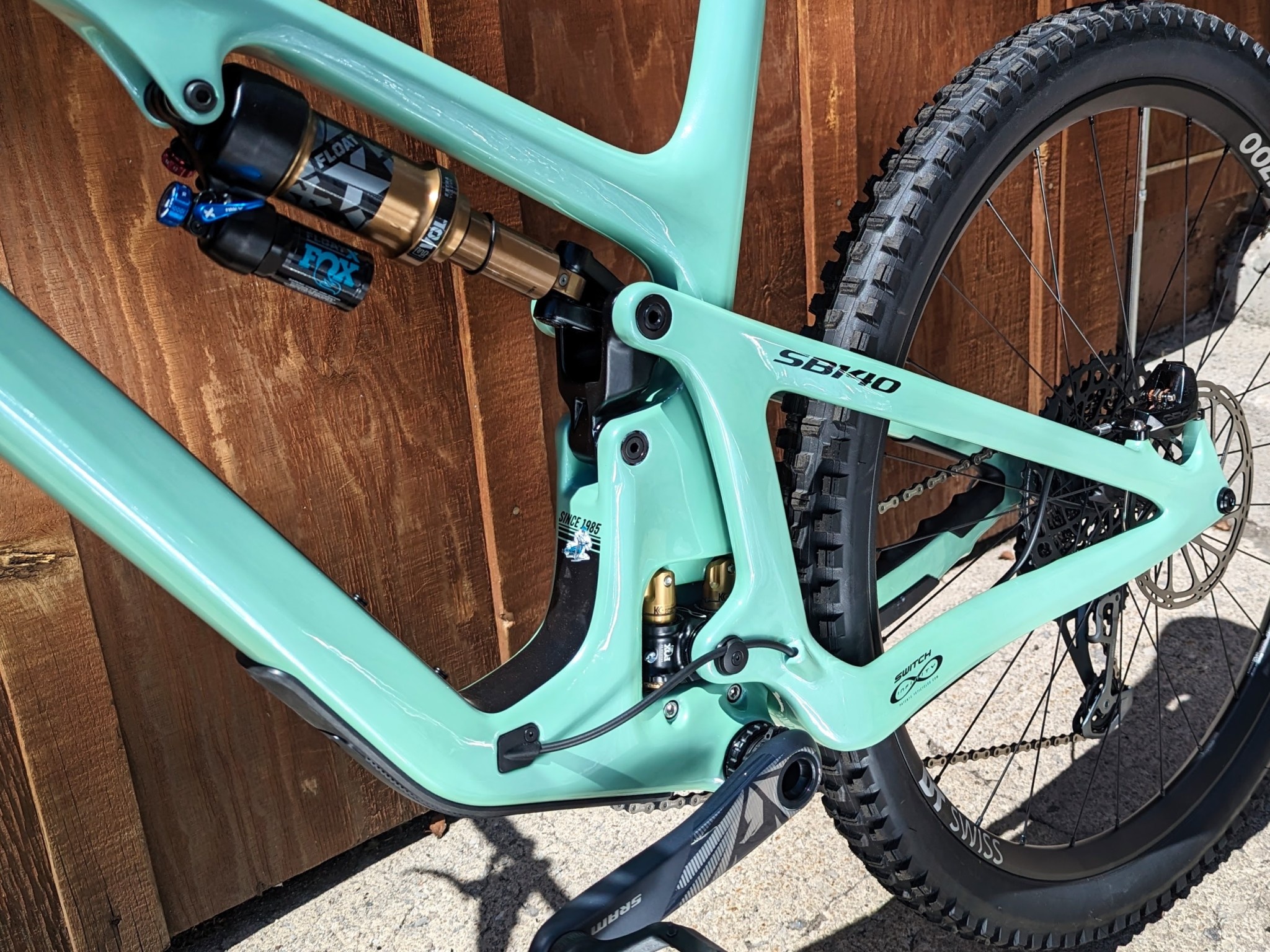

Our patented, two-piece wishbone shock extender optimizes leverage rate while pushing the shock forward in the frame. This forward positioning allows for a large range of shock compatibility, decreases stand over height, reduces shock tab sizes, increases water bottle compatibility, and increases downtube clearance. When it's time for service, shock removal is quick and easy.

Speed Metal.
Our new pivot designs use 100% standard sized cartridge bearings secured with precision-- machined floating collet axles. All bearings are pressed into the linkage assembly vs the swingarm or front triangle.



Characteristics


Refined New Look. Still Distinctly Yeti.
The refined main frame and swingarm silhouette is more than just striking good looks - it's an engineering approach that packages Switch infinity and shock linkage in a tighter, more efficient frame with added impact clearance. Holistic frame chassis stiffness has increased, along with frame ground clearance.

Unparalleled Feel. For All Riders.
Every rider deserves a frame feel that's tuned for them, regardless of frame size. Over the course of hundreds of virtual simulation comparisons and back-to-back carbon prototype testing, we've refined our carbon layups to deliver consistent torsional stiffness and flex profiles across all frame sizes. The feel is precise yet compliant while structurally balancing light weight and durability.

A Smarter Leverage Rate.
Designed around a relatively linear progression curve, with slightly more progression at the end of the stroke for the added travel of the bike. SB140 Riders get great small bump sensitivity, an incredibly supportive mid stroke and a composed, bottomless feel. It's a progression curve that delivers quality full travel capability, for mountain biking. Other bikes might have more progressive curves. The question is, what for?




SPECIFICATIONS



  • 34mm More downtube clearance
  • 2.6" Tire clearance with room to spare
  • Floating collet pivot axles enhance frame stiffness and bearing life
  • 5 size specific geometries



GEOMETRY



https://images.prismic.io/yeticyclescom/07500833-f325-4389-a935-2ffb2262b86b_YetiCycles_GeoChart_web_SB140-2.jpg?auto=format&q=100&lossless=1&rect=0,0,2880,2225&w=1240&h=958



  S M L XL XXL
Seat Tube 14.4 15.7 17.3 18.5 19.1
Eff. Top Tube Length 22.5 23.7 24.5 25.6 26.4
HT Angle 65° 65° 65° 65° 65°
Eff. Seat Tube Angle 77° 77° 77° 77° 77°
Actual Seat Tube Angle 71.8° 72.2° 72.4° 72.8° 73.3°
Chainstay Length 17.2 17.2 17.3 17.4 17.5
Wheelbase 46.8 48.1 49 50.3 51.3
Est. BB Height 13.5 13.5 13.5 13.5 13.5
Standover 28.6 28.8 29.0 29.1 29.3
HT Length 3.6 3.7 4.0 4.4 5.3
Fork Axle to Crown 22.6 22.6 22.6 22.6 22.6
Fork Offset 1.7 1.7 1.7 1.7 1.7
Stack 24.3 24.4 24.6 25.7 26.4
Reach 16.9 18.1 18.9 19.9 20.5
Front Center 29.6 30.8 31.7 32.9 33.8
Vertical Fork Travel 5.7 5.7 5.7 5.7 5.7
