Pivot

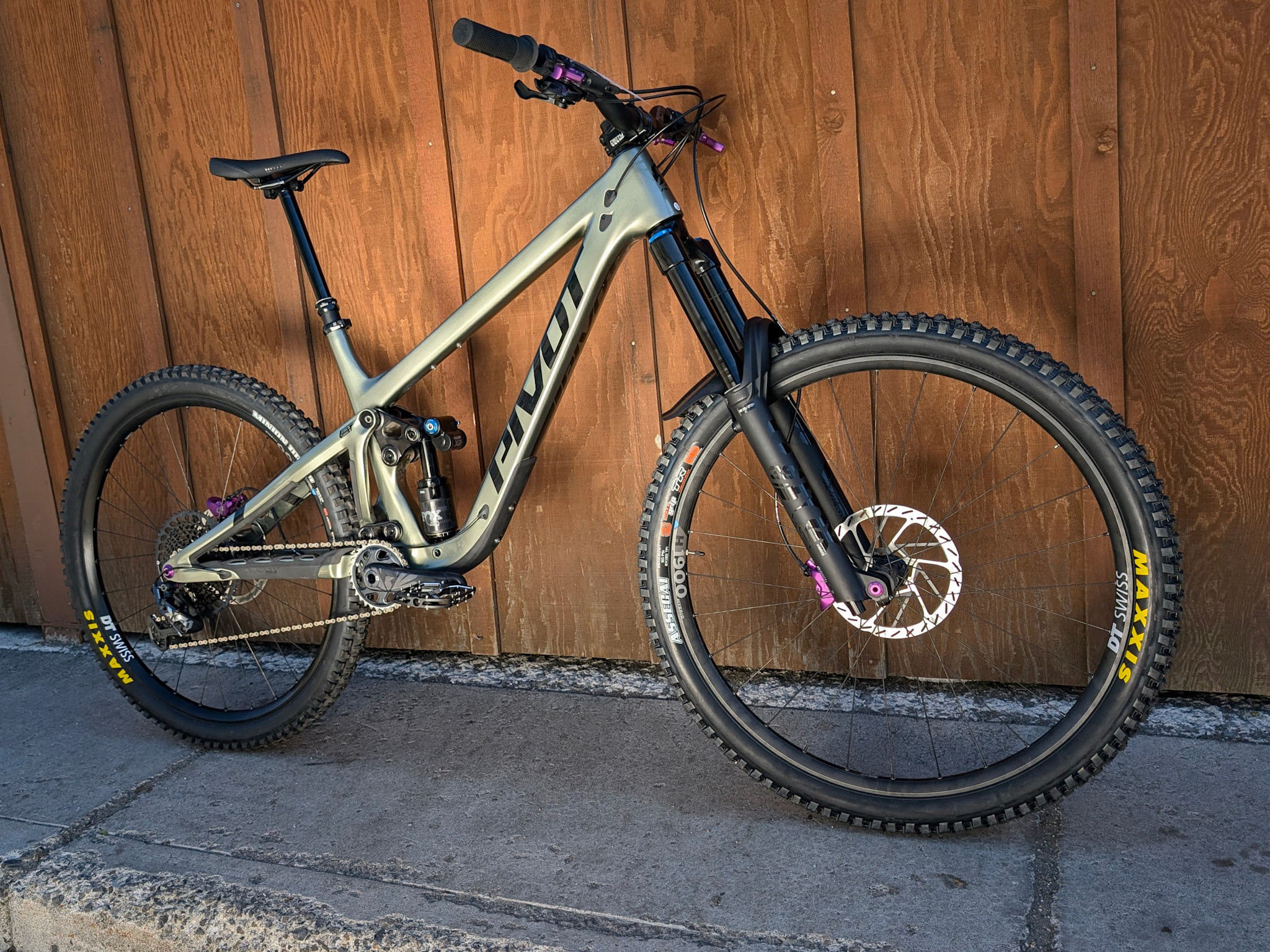

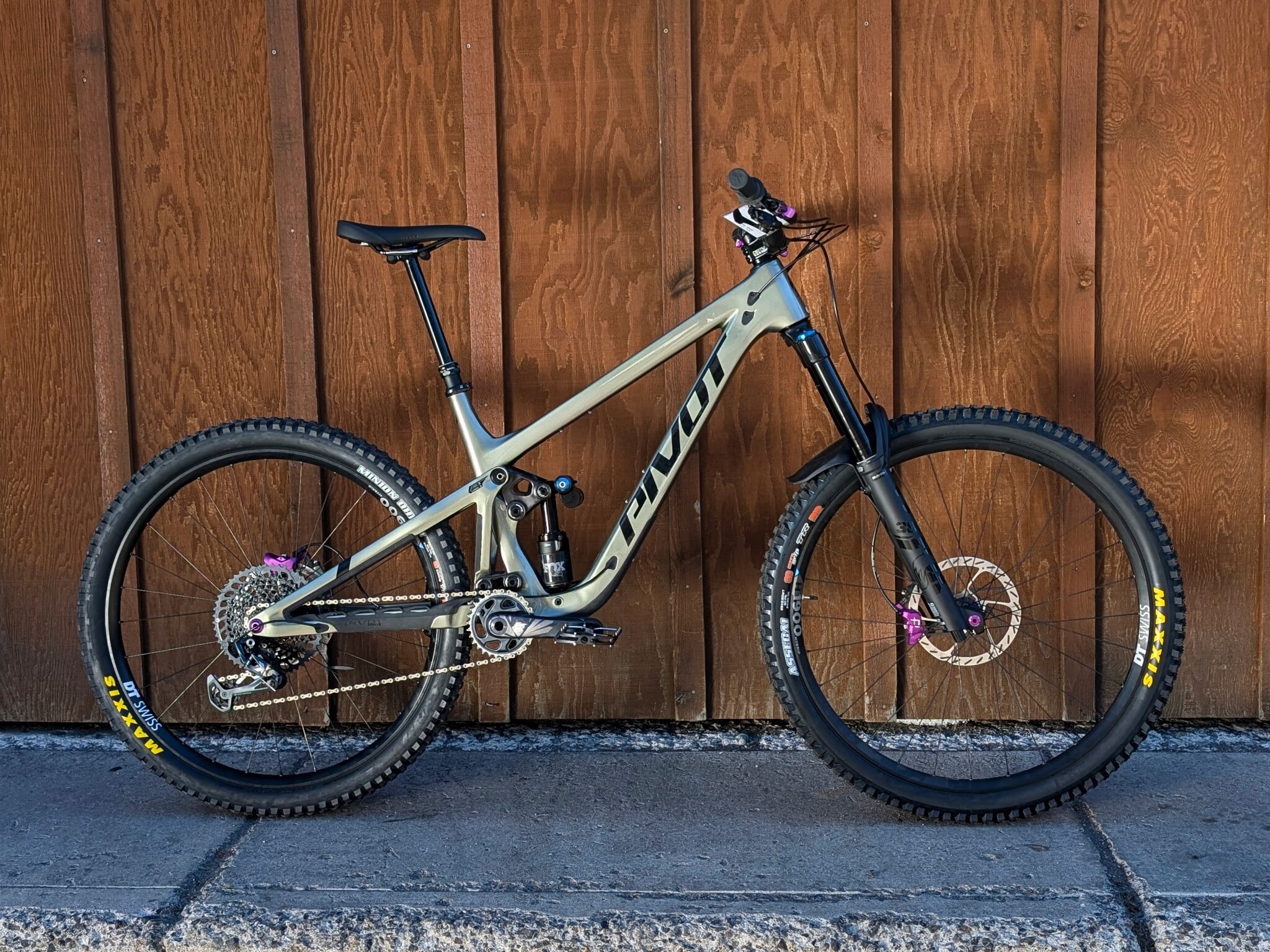

Pivot Firebird Custom Build 29"

$7,000.00

In store: Check availability

29" Wheels | 170mm Front/165mm Rear | 64-64.6° HT Angle

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Description

From the manufacturer

The DNA of Velocity
Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Fast up, fast down. Fast.

Not As Sweet As It Looks
The Firebird's Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!

Features

Frame		Pivot's full carbon frame features size-specific tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5'2" to 6'9" has a bike that feels perfect and performs at the optimum level for their size. Long and low geometry for a confident, and size-specific chainstay length refine the EWS podium performance for different sized riders. Phoenix DH-inspired longer dw-link® maximizes the Firebird's rearward wheel-path for erasing square edge bumps and maximizing control.
Suspension		165mm of supple-yet-effective dw-link™ suspension travel featuring a vertically mounted metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance. Equipped with a 44mm offset 170mm-travel Fox Factory and Performance Series 38 FIT Grip2 forks. Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options.
Wheels		Compatible with both 29" and 27.5" wheel sizes without compromise thanks to the adjustable geometry for 29", 27.5" or MX wheel setups. Fits tires up to 29x2.6" or 27.5x2.8" wide.
Seatpost		31.6mm size seatpost match with the Firebird's short seat tube with deep insertions for longer travel posts.
Other Features		Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world. 1.5" headtube provides increased front end stiffness and tracking. Hassle-free, full-length, internal cable routing. All sizes fit a water bottle inside the front triangle. Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame. Adjustable geometry with a flip chip upper link mount.

Geometry

Low BB Setting

	SM	MD	LG	XL
Seat Tube Length	375	410	440	470
Top Tube Length (eff.)	598	624	641	665
Head Tube Length	95	108	118	128
Head Tube Angle	64°
Seat Tube Angle (eff.)	76°	76.5°	77°	77°
Chainstay Length	431	434	438	445
BB Height	350
BB Drop	20
Standover	662	672	693	704
Wheelbase	1207	1239	1267	1300
Reach	445	468	488	510
Stack	615	627	636	645

High BB Setting

	SM	MD	LG	XL
Seat Tube Length	375	410	440	470
Top Tube Length (eff.)	597	623	640	664
Head Tube Length	95	108	118	128
Head Tube Angle	64.6°
Seat Tube Angle (eff.)	76.5°	77°	77.5°	77.5°
Chainstay Length	430	433	437	444
BB Height	356
BB Drop	14.2
Standover	667	678	699	709
Wheelbase	1206	1237	1266	1299
Reach	450	473	493	515
Stack	612	624	633	642

Specifications

Frame	Pivot Firebird - Carbon
Wheel Size	29"
Travel	170mm Front \| 165mm Rear
Fork	Fox Performance Elite 38 29", 170mm
Rear Shock	2025 Fox Factory Float X2
Headset	Cane Creek 40
Bottom Bracket
Shifter	SRAM GX Eagle

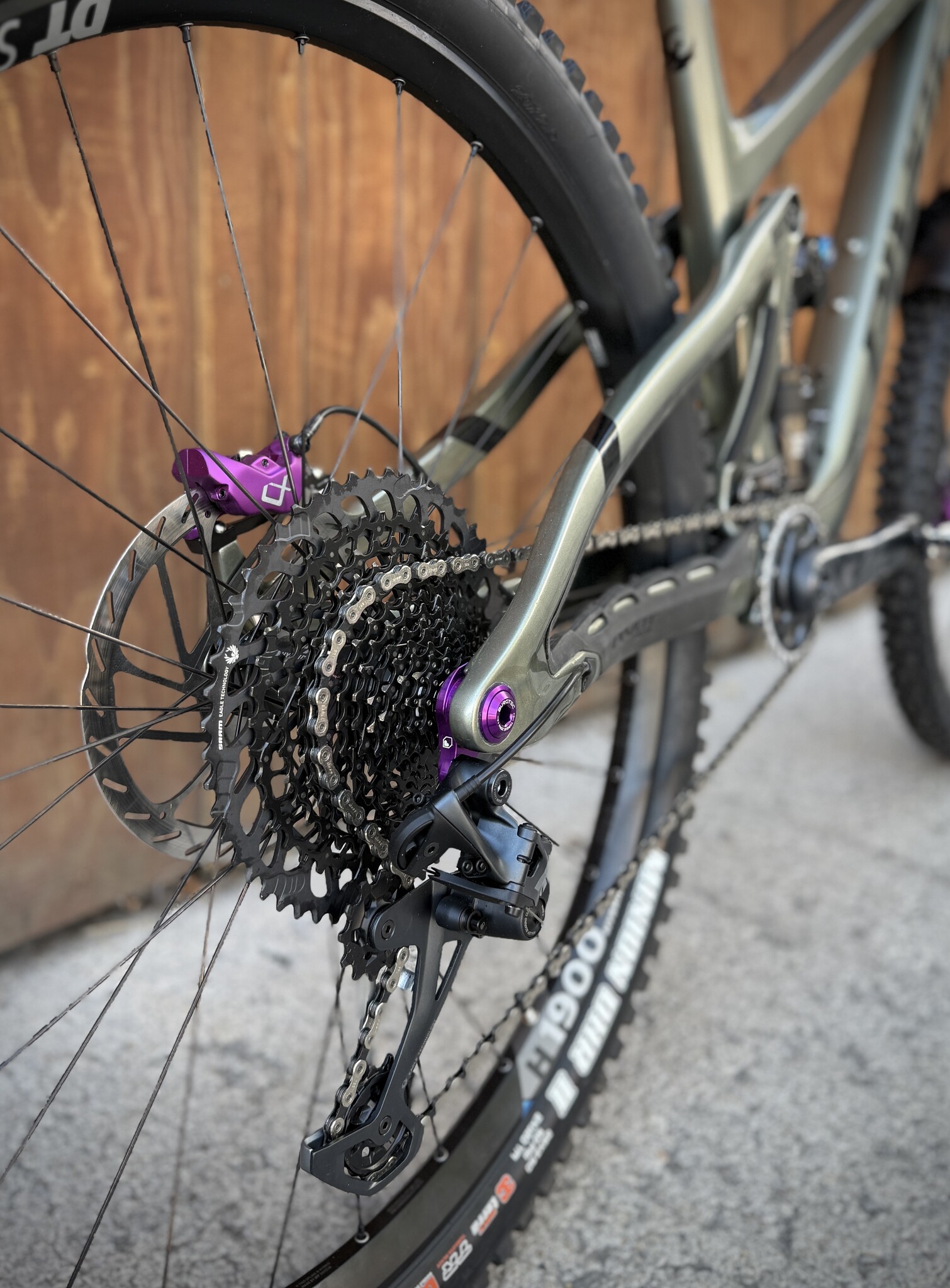

Rear Derailleur	SRAM X01 12spd
Cassette
Chain	SRAM GX Eagle
Chainring
Crankset	SRAM GX Carbon

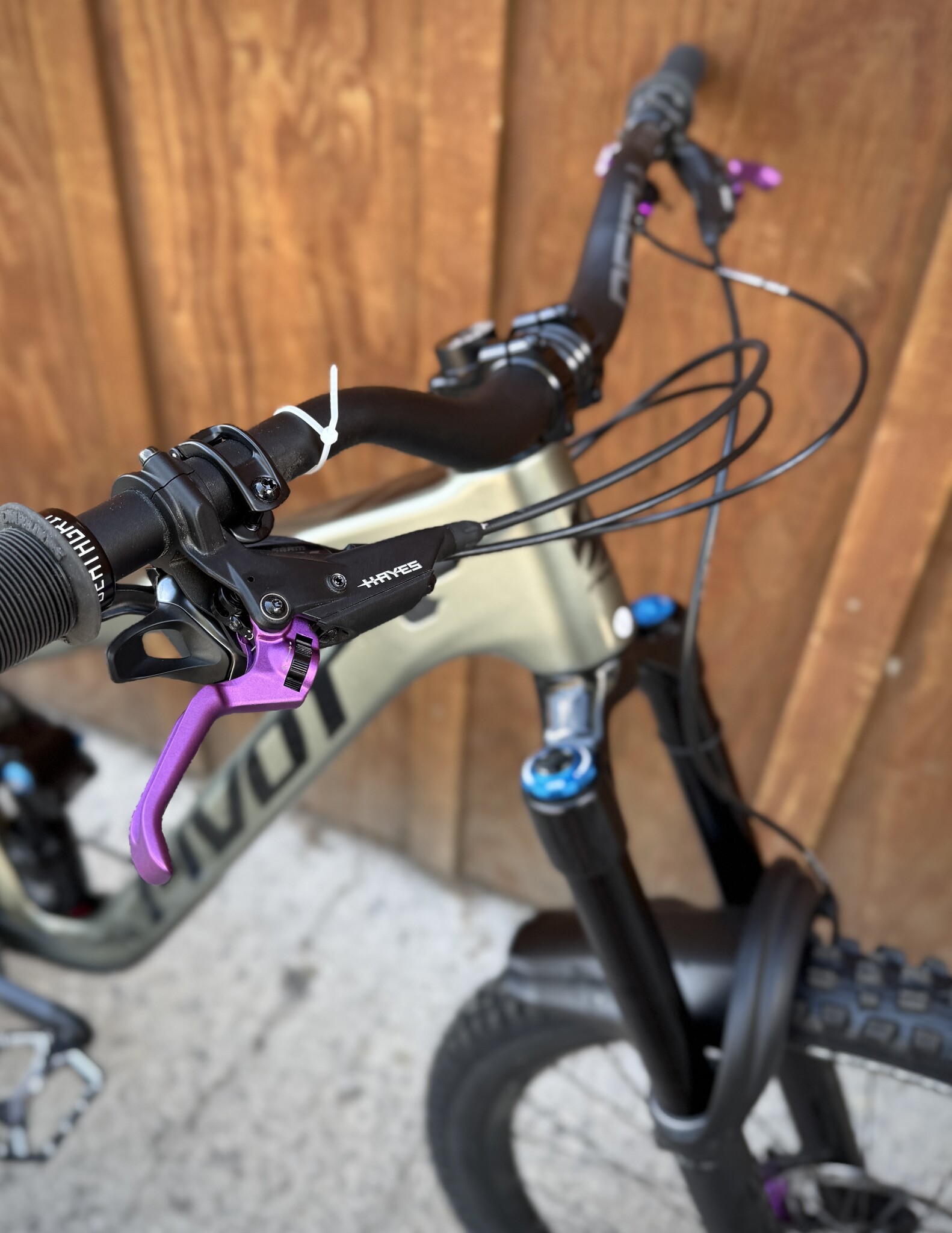

Brakes	Hayes Dominion A4
Rotors	203mm / 203mm
Seatpost	Fox Transfer Performance Elite
Handlebar	Deity Highside 35, 50mm Rise
Stem	Deity Copperhead 35
Grips	DMR Deathgrip (Flanged, Thin)
Saddle
Pedals	N/A
Front Wheel	DT Swiss Hybrid H1900 - 15x110 F
Rear Wheel	DT Swiss Hybrid H1900 - 12x157 R
Front Tire	Maxxis Assegai 29 x 2.5" WT, TR, 3C MAXXGRIP, DD
Rear Tire	Maxxis Minion DHRII 29 x 2.5" 3C MAXXTERRA, TR, DD
Sizes	Large
