  • Pivot 2026 Pivot Shuttle LT Ride 70/90 29"/27.5
Pivot

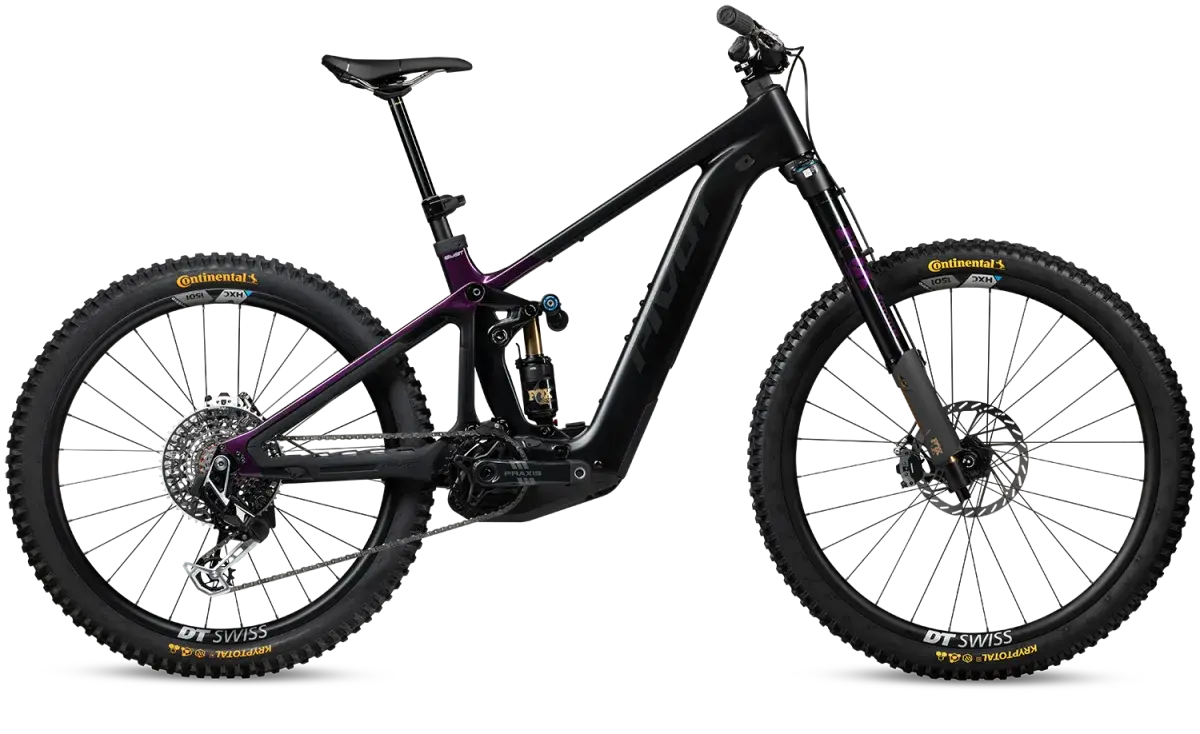

2026 Pivot Shuttle LT Ride 70/90 29"/27.5

$8,999.00
In store: Check availability

Available in store

SKU: 27SLTV3MXAE79-- BRPMDDRPINSA1-C

Bosch 250Wh PowerMore | 170mm Front/162-165mm Rear| 63.2° HT

Add to compare Add to wishlist
Delivery time: 5-7 Business Days

Description



From the manufacturer



The Shuttle LT is enduro – unleashed, electrified and honed to perfection. It channels chaos and control through a long-travel chassis shaped by enduro’s cutting edge of design. It descends with precision that’s more surgical than savage, cutting through terrain with quiet authority and razor-sharp focus. This is enduro electrified, designed for disorder, engineered for the unruly.



Features



  • Ultra light Hollow Core carbon frame
  • Featuring Bosch’s Gen 5 Performance Line CX (Ride) and CX Race motors (Pro & Team)
  • Long-range 800Wh battery on all build levels
  • Bosch 250wh PowerMore range extender compatible
  • Kiox 400C display (Pro & Team) with Wireless Bosch remote
  • 170mm fork
  • 162mm of progressive rear travel in the short chainstay setting or 165mm in the long
  • Patent pending Slacky McSteepTube(TM) adjustable seat tube angle
  • FOX Podium fork on Pro & Team builds
  • Geo flip chip via upper link mount
  • Progression flip chip via lower shock mount
  • Mixed-wheel setup
  • Pivot Dock Tool system compatible
  • Water bottle clearance on all sizes
  • Injection molded rubberized frame protection
  • Full internal routing with Pivot cable port system



Geometry



Low / Slack SM MD LG XL
Seat Tube Length 37.8 cm 39.9 cm 43.2 cm 47.0 cm
Top Tube Length (Eff.) 60.7 cm 63.4 cm 65.1 cm 67.4 cm
Head Tube Length 11.0 cm 12.0 cm 13.0 cm 14.0 cm
Head Tube Angle 63.2° 63.2° 63.2° 63.2°
Seat Tube Angle (Eff.) 75.7° 75.7° 75.7° 75.7°
Chainstay Length - Short 44.3 cm 44.3 cm 44.3 cm 44.3 cm
Chainstay Length - Long 45.1 cm 45.1 cm 45.1 cm 45.1 cm
Bottom Bracket Height 33.5 cm 33.5 cm 33.5 cm 33.5 cm
Bottom Bracket Drop 2.2 cm 2.2 cm 2.2 cm 2.2 cm
Standover 67.8 cm 67.8 cm 69.3 cm 70.9 cm
Wheelbase - Short 123.2 cm 126.1 cm 128.0 cm 130.5 cm
Wheelbase - Long 124.0 cm 126.9 cm 128.8 cm 131.3 cm
Reach 43.4 cm 45.9 cm 47.4 cm 49.4 cm
Stack 64.5 cm 65.5 cm 66.4 cm 67.3 cm
Low / Steep SM MD LG XL
Seat Tube Length 37.8 cm 39.9 cm 43.2 cm 47.0 cm
Top Tube Length (Eff.) 58.6 cm 61.3 cm 63.1 cm 65.4 cm
Head Tube Length 11.0 cm 12.0 cm 13.0 cm 14.0 cm
Head Tube Angle 63.2° 63.2° 63.2° 63.2°
Seat Tube Angle (Eff.) 77.2° 77.2° 77.2° 77.2°
Chainstay Length - Short 44.3 cm 44.3 cm 44.3 cm 44.3 cm
Chainstay Length - Long 45.1 cm 45.1 cm 45.1 cm 45.1 cm
Bottom Bracket Height 33.5 cm 33.5 cm 33.5 cm 33.5 cm
Bottom Bracket Drop 2.2 cm 2.2 cm 2.2 cm 2.2 cm
Standover 67.8 cm 67.8 cm 69.3 cm 70.9 cm
Wheelbase - Short 123.2 cm 126.1 cm 128.0 cm 130.5 cm
Wheelbase - Long 124.0 cm 126.9 cm 128.8 cm 131.3 cm
Reach 43.4 cm 45.9 cm 47.4 cm 49.4 cm
Stack 64.5 cm 65.5 cm 66.4 cm 67.3 cm
High / Slack SM MD LG XL
Seat Tube Length 37.8 cm 39.9 cm 43.2 cm 47.0 cm
Top Tube Length (Eff.) 60.5 cm 63.2 cm 64.9 cm 67.1 cm
Head Tube Length 11.0 cm 12.0 cm 13.0 cm 14.0 cm
Head Tube Angle 64.0° 64.0° 64.0° 64.0°
Seat Tube Angle (Eff.) 76.5° 76.5° 76.5° 76.5°
Chainstay Length - Short 44.3 cm 44.3 cm 44.3 cm 44.3 cm
Chainstay Length - Long 45.1 cm 45.1 cm 45.1 cm 45.1 cm
Bottom Bracket Height 34.6 cm 34.6 cm 34.6 cm 34.6 cm
Bottom Bracket Drop 2.8 cm 2.8 cm 2.8 cm 2.8 cm
Standover 68.9 cm 68.9 cm 70.4 cm 72.0 cm
Wheelbase - Short 123.2 cm 126.1 cm 128.1 cm 130.5 cm
Wheelbase - Long 124.0 cm 126.9 cm 128.8 cm 131.3 cm
Reach 44.3 cm 46.8 cm 48.3 cm 50.3 cm
Stack 63.9 cm 64.8 cm 65.7 cm 66.6 cm
High / Steep SM MD LG XL
Seat Tube Length 37.8 cm 39.9 cm 43.2 cm 47.0 cm
Top Tube Length (Eff.) 58.4 cm 61.2 cm 62.9 cm 65.2 cm
Head Tube Length 11.0 cm 12.0 cm 13.0 cm 14.0 cm
Head Tube Angle 64.0° 64.0° 64.0° 64.0°
Seat Tube Angle (Eff.) 78.0° 78.0° 78.0° 78.0°
Chainstay Length - Short 44.3 cm 44.3 cm 44.3 cm 44.3 cm
Chainstay Length - Long 45.1 cm 45.1 cm 45.1 cm 45.1 cm
Bottom Bracket Height 34.6 cm 34.6 cm 34.6 cm 34.6 cm
Bottom Bracket Drop 2.8 cm 2.8 cm 2.8 cm 2.8 cm
Standover 68.9 cm 68.9 cm 70.4 cm 72.0 cm
Wheelbase - Short 123.2 cm 126.1 cm 128.1 cm 130.5 cm
Wheelbase - Long 124.0 cm 126.9 cm 128.8 cm 131.3 cm
Reach 44.3 cm 46.8 cm 48.3 cm 50.3 cm
Stack 63.9 cm 64.8 cm 65.7 cm 66.6 cm

Specifications

Frame Shuttle LT Hollow Core carbon
Wheel Size 29" (front), 27.5" (rear)
Travel Front: 170mm | Rear: 162-165mm
Fork Fox Performance 38 29", 44mm offset, GRIP - 170mm
Rear Shock Fox Performance Float X
Headset Pivot Precision Sealed Cartridge
Shifter SRAM Eagle Mechanical Transmission 12-Speed
Rear Derailleur Sram Eagle 90 Mechanical Transmission 12-Speed
Cassette Sram XS - 1270 Eagle Transmission 12-Speed
Chain Sram Eagle 70 Flattop 12-Speed
Chainring
Crankset Praxis Alloy eCranks E-MTB 34t - 155mm
Brakes Sram Maven 4-piston
Rotors Sram Centerline Centerlock - 200mm
Seatpost JD/PIVOT YSP23GLS 150mm (SM) 170MM (MD) 200MM (MD-XL)
Handlebar Phoenix Ride Aluminum - 20mm Rise 780mm (SM), 35mm Rise 780 (MD-XL
Stem Phoenix Team Enduro V2 - 40mm (SM-LG), 50mm (XL)
Grips Phoenix Factory Lock-On
Saddle Pivot Ride E-Bike
Pedals N/A
Front Wheel DT Swiss H1900 w/ DT Swiss 370 hub, 30mm - 15x110
Rear Wheel DT Swiss H1900 w/ DT Swiss 370 hub, 30mm - 12x157
Front Tire Continental Kryptotal 29" x 2.4 Super Soft Compound Enduro Casing
Rear Tire Continental Kryptotal 27.5" x 2.6 Super Soft Compound Enduro Casing
Drive Unit Bosch Gen 5 Performance Line CX 800Wh
Battery 800Wh
Display
Extras N/A
Sizes SM, MD, LG, XL
