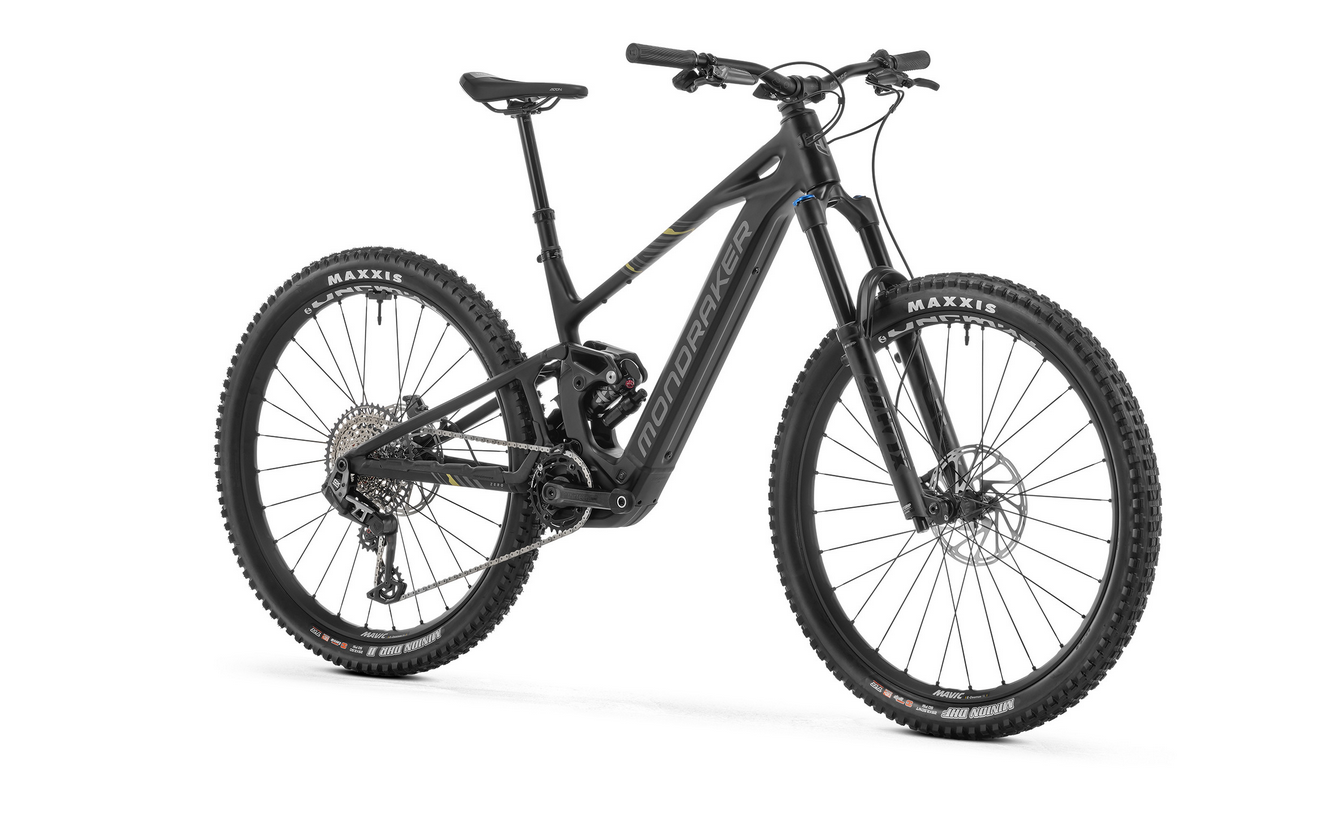

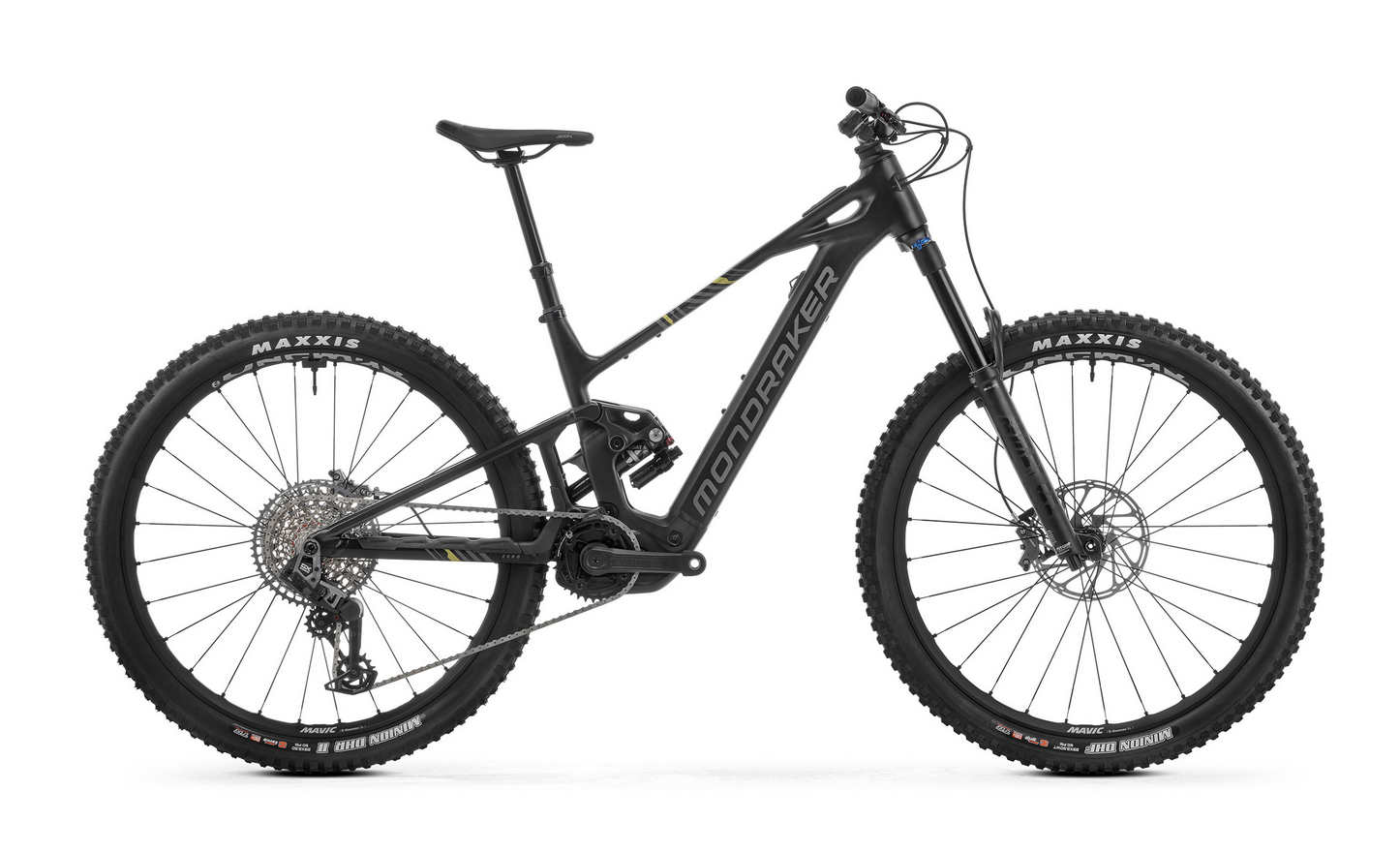

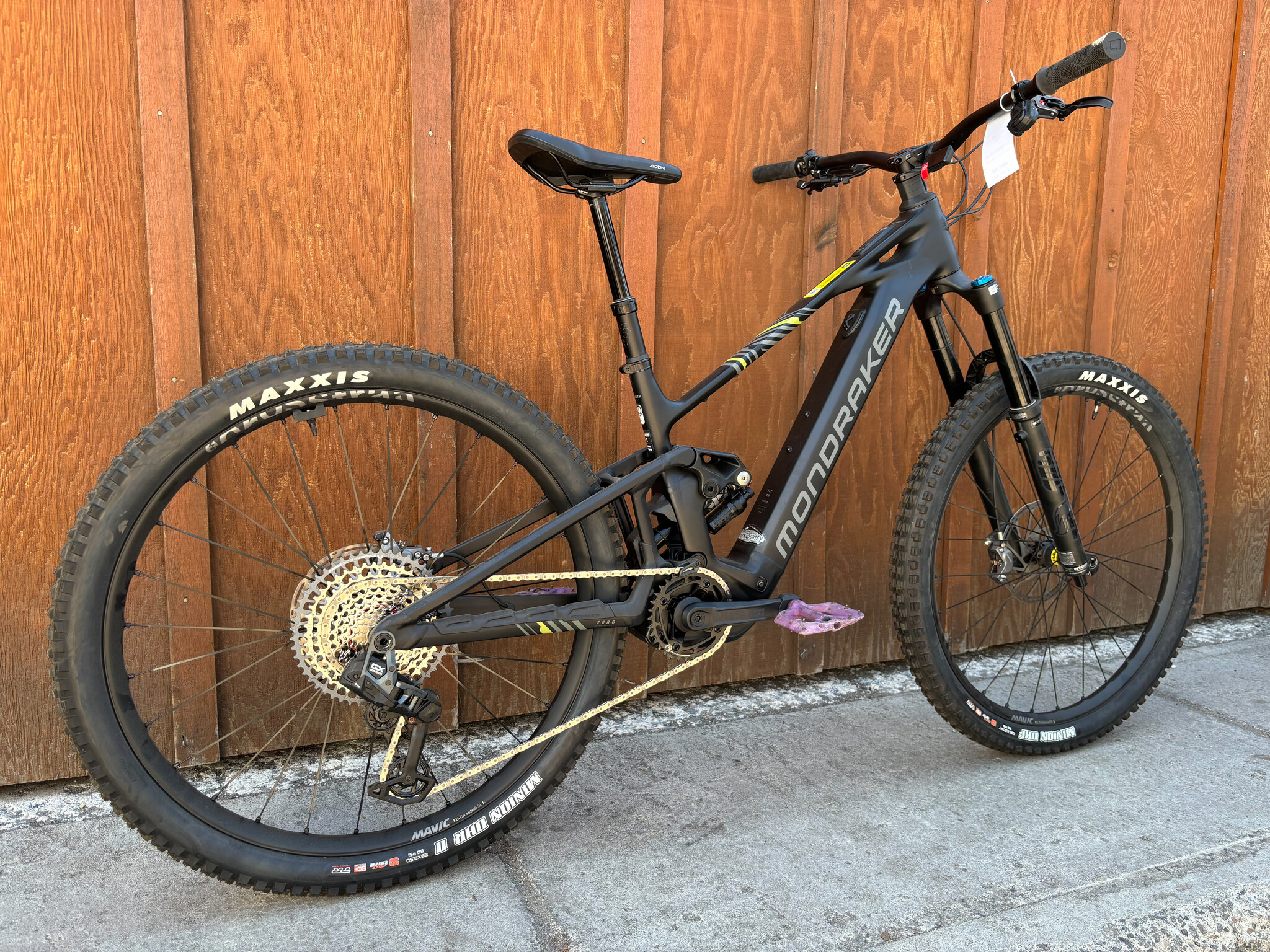

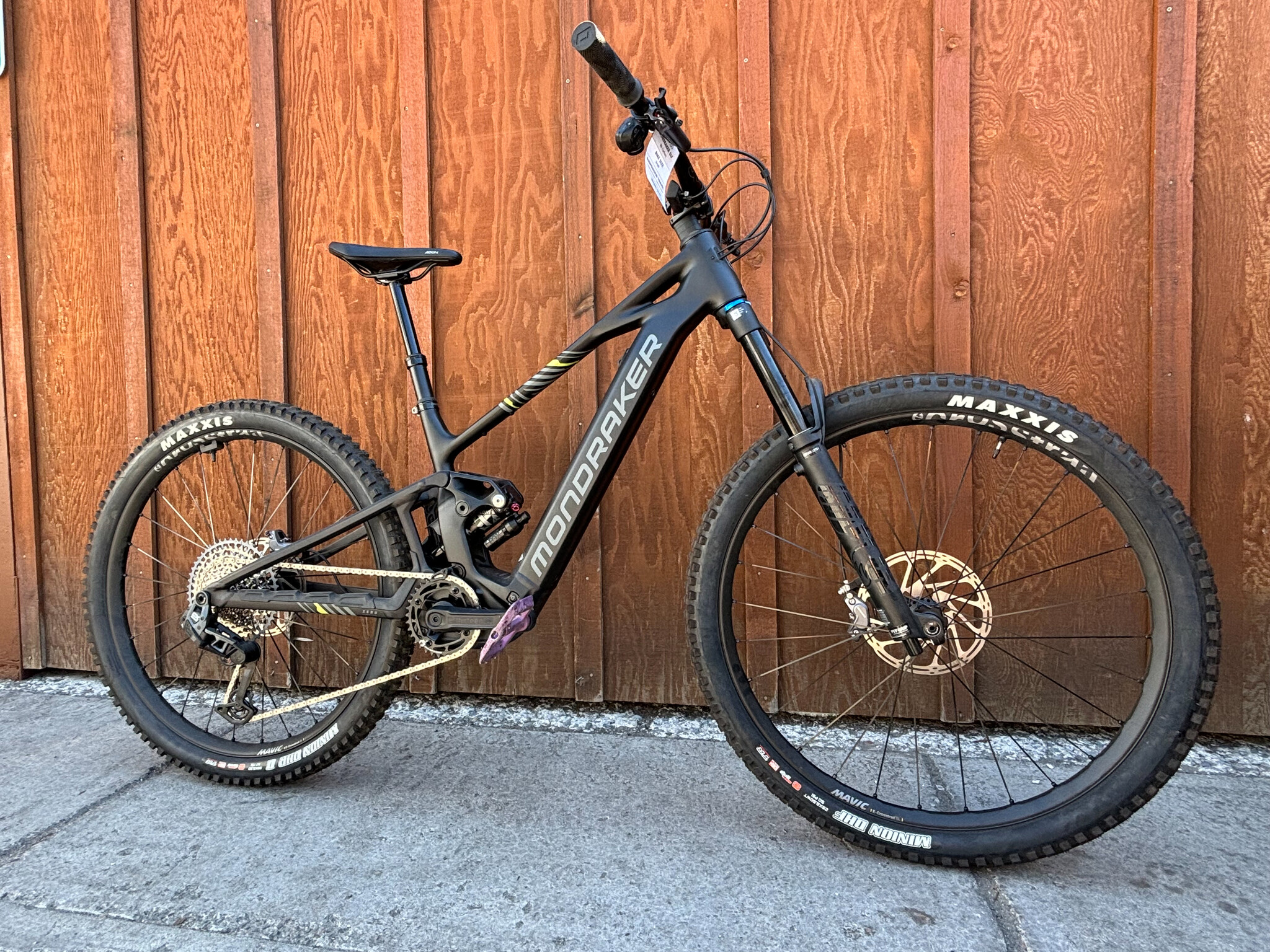

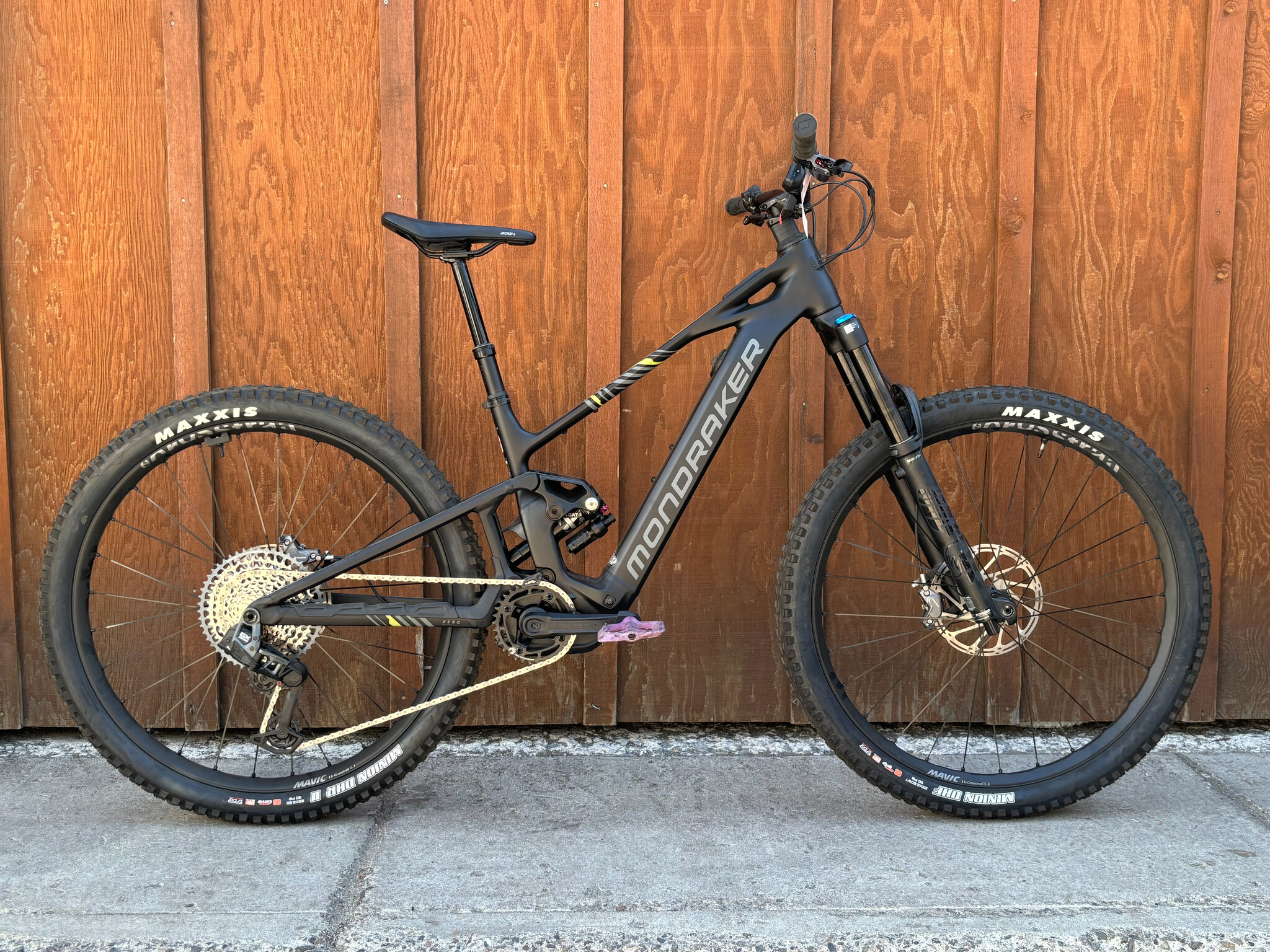

2025 Mondraker Sly RR 29"

$6,599.00

In store: Check availability

SKU: 010.25US228

Bosch Performance Line Motor | 400Wh Battery | 160mm Front / 150mm Rear Travel | 64.5° HT Angle

Color:

Size:

Add to compare Add to wishlist

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Description

FROM THE MANUFACTURER

SLY RR: DRESSED TO THE NINES

Our most high-tech Stealth Alloy frame ever deserves nothing less than the best.

The RR build is a step up if you want to get even more out of your SLY. FOX suspension provides the 160mm Fox 36 29 Float Performance GRIP fork and a Fox Float X Performance EVOL shock. SRAM Code Bronze Stealth 4 piston brakes with 200mm rotors keep things from getting out of hand on the steeps, and Mavic E-CrossTrail SL 30mm wheels offer the best balance of compliance / rigidity out there. ONOFF have you covered with a selection of components from the all new S6 range and include a carbon fibre bar, a stem, grips and the Pija seatpost with lengths varying from 140mm to 210mm depending on frame size. The SLY RR comes in the gorgeous Black / Nimbus Grey / Tonic Gold colourway.

GEOMETRY

Size	Small	Medium	Med/Large	Large	X-Large
Seat Tube Length	380	410	435	460	490
Top Tube Length	595	615	635	660	685
BB Drop	-22	-22	-22	-22	-22
BB Height	350	350	350	350	350
Chainstay	455	455	455	455	455
Seat Tube Angle	74°	74°	74°	74°	74°
Eff. Seat Tube Angle	77°	77°	77°	77°	77°
Head Tube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
Fork Offset	44	44	44	44	44
Wheelbase	1225	1250	1265	1290	1315
Head Tube Length	120	120	130	140	150
Reach	440	460	480	500	520
Stack	633	633	642	651	660

Specifications

Frame
Wheel Size	29"
Travel	160mm Front \| 150mm Rear
Fork	Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

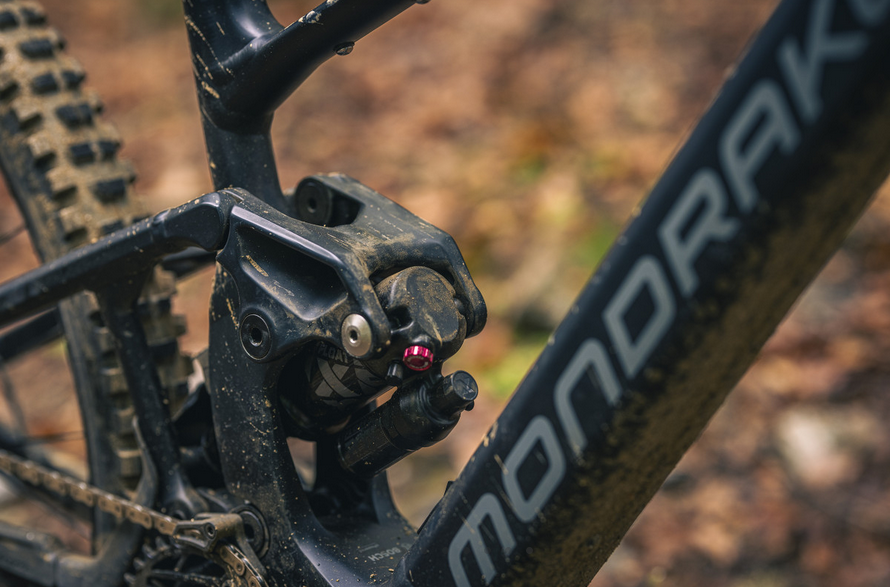

Rear Shock	Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

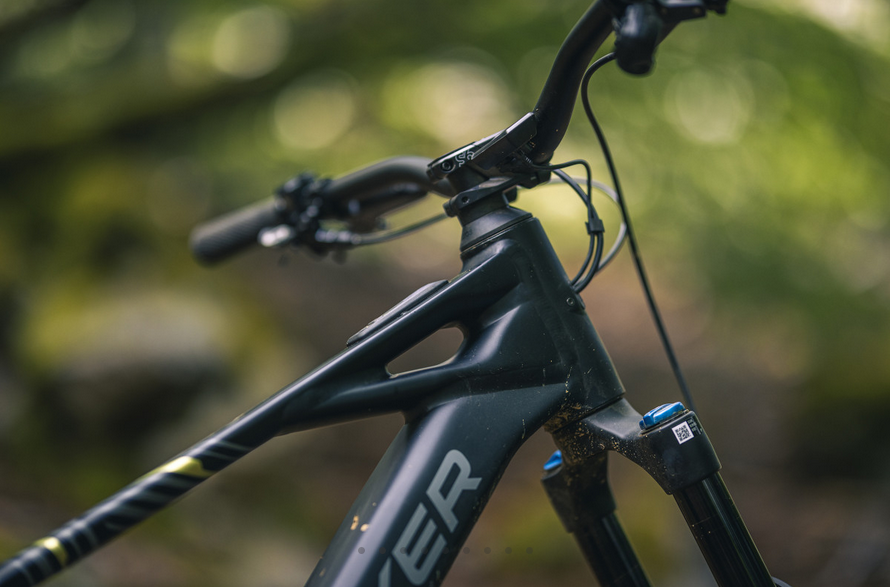

Headset	Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

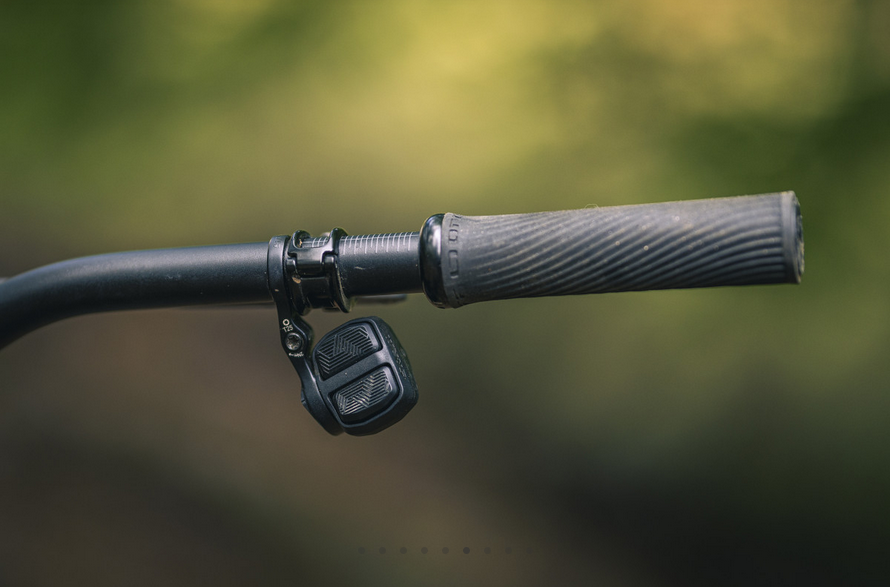

Shifter	Sram Eagle AXS Pod MMX, 12s

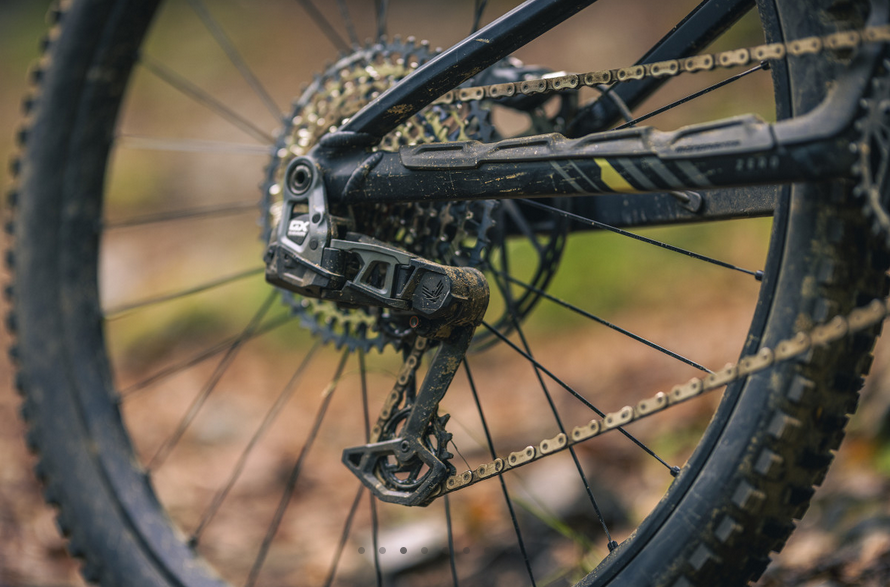

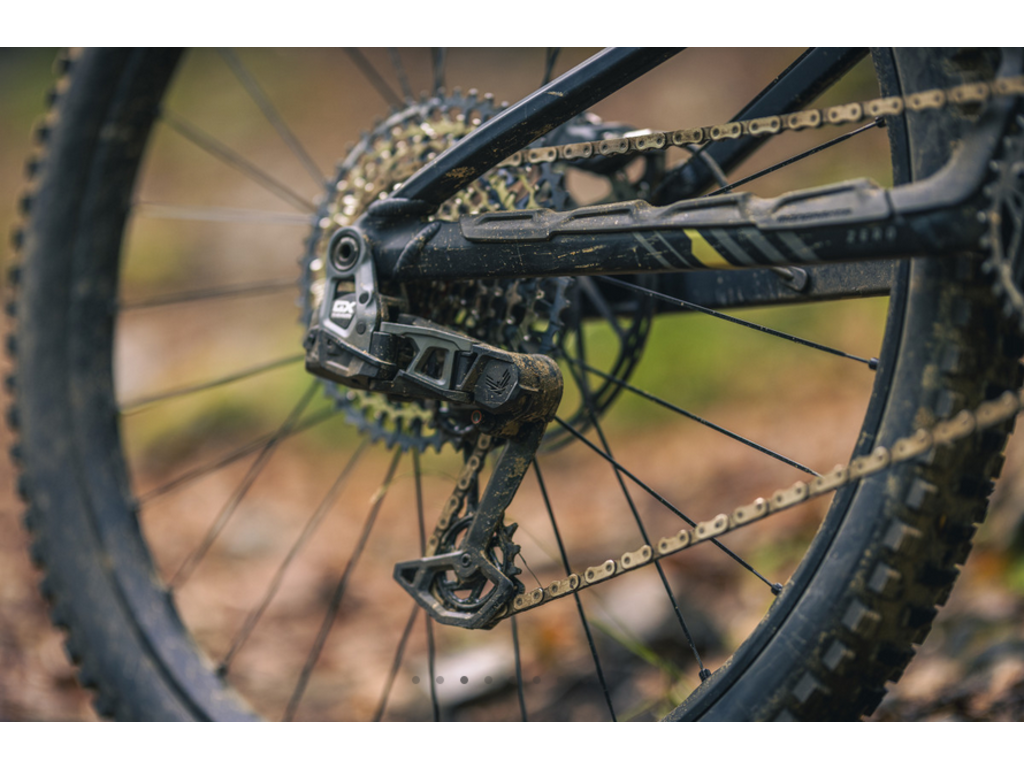

Rear Derailleur	Sram GX Eagle AXS T-Type,12s
Cassette	Sram XS-1275, 10-52T, T-Type, 12s
Chain	Sram GX Eagle T-Type, 12s, Powerlock
Chainring
Crankset	eThirteen Helix Core ESpec Plus, All sizes: 160mm
Brakes	Sram Code Bronze Stealth
Rotors	Centerline 200mm IS 6 bolts one-piece rotors
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

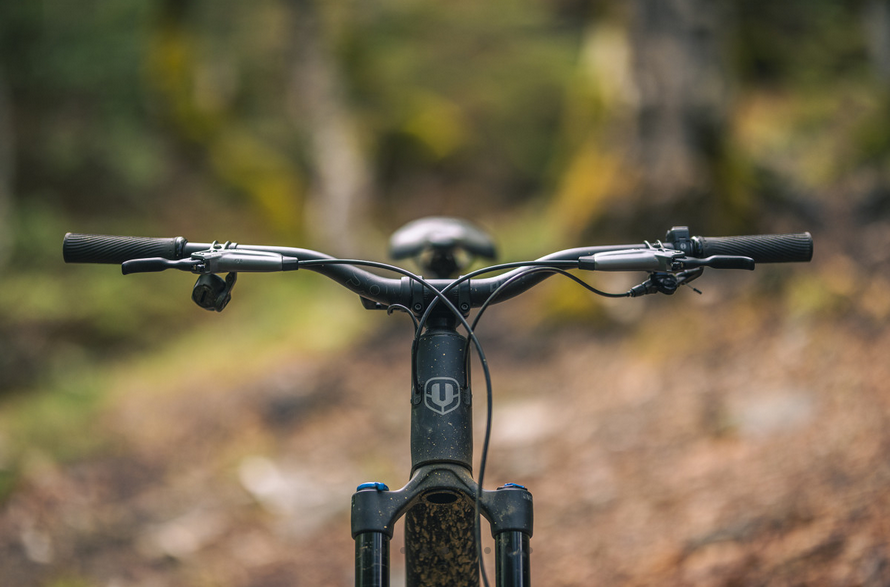

Handlebar	Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Stem	Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Grips	Onoff Forest, CNC lock-on, 135mm
Saddle	Fizik Terra Aidon X5 145mm
Pedals	N/A
Front Wheel	Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Rear Wheel	Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Front Tire	Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear Tire	Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Drive Unit	Bosch Performance Line SX (20 Mph) GEN4 SMART SYSTEM Diagonal, Wide
Battery	Bosch Compact Powertube 400Wh

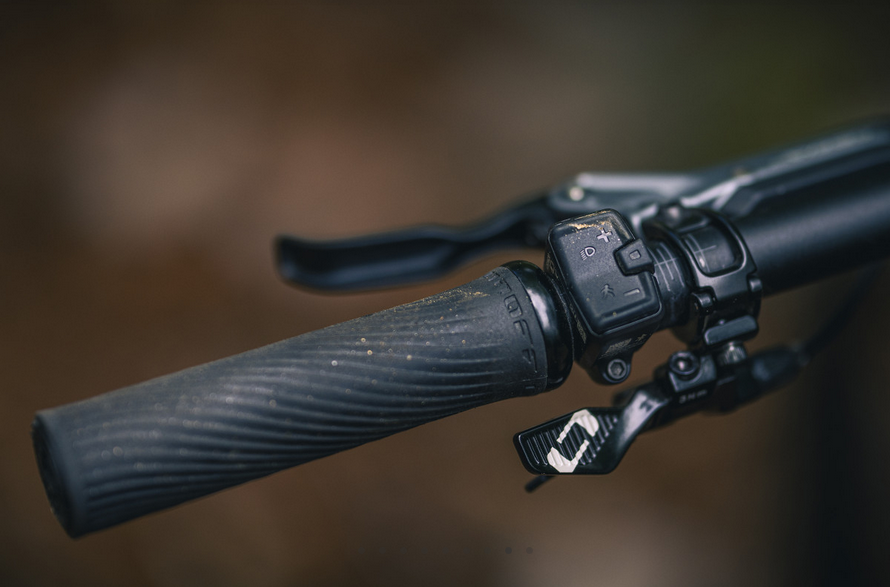

Display	Purion 400 / Bosch Mini Remote / Bosch System Controller
Extras	N/A
Sizes	SM, MD, MD/LG, LG, XL
