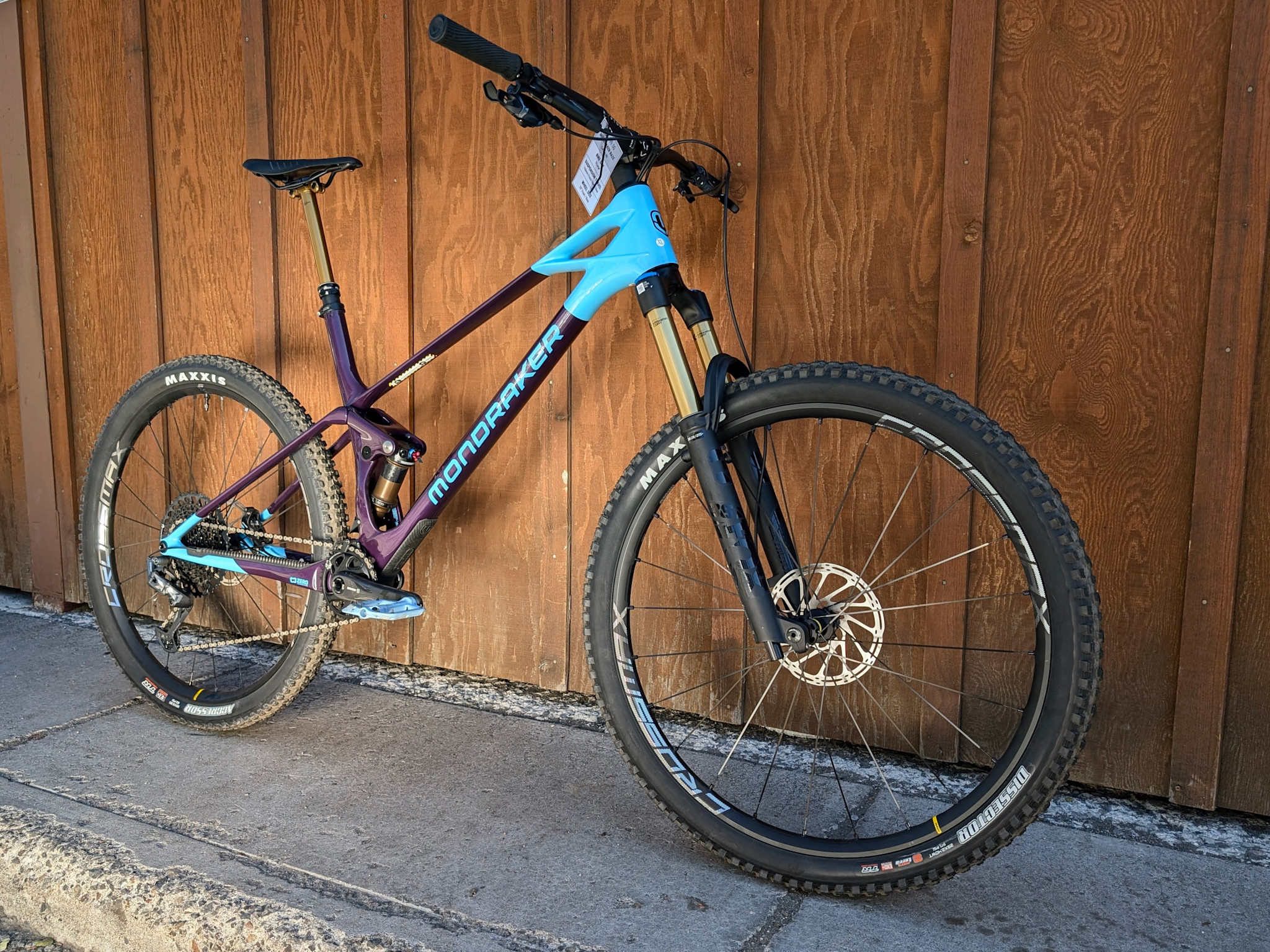

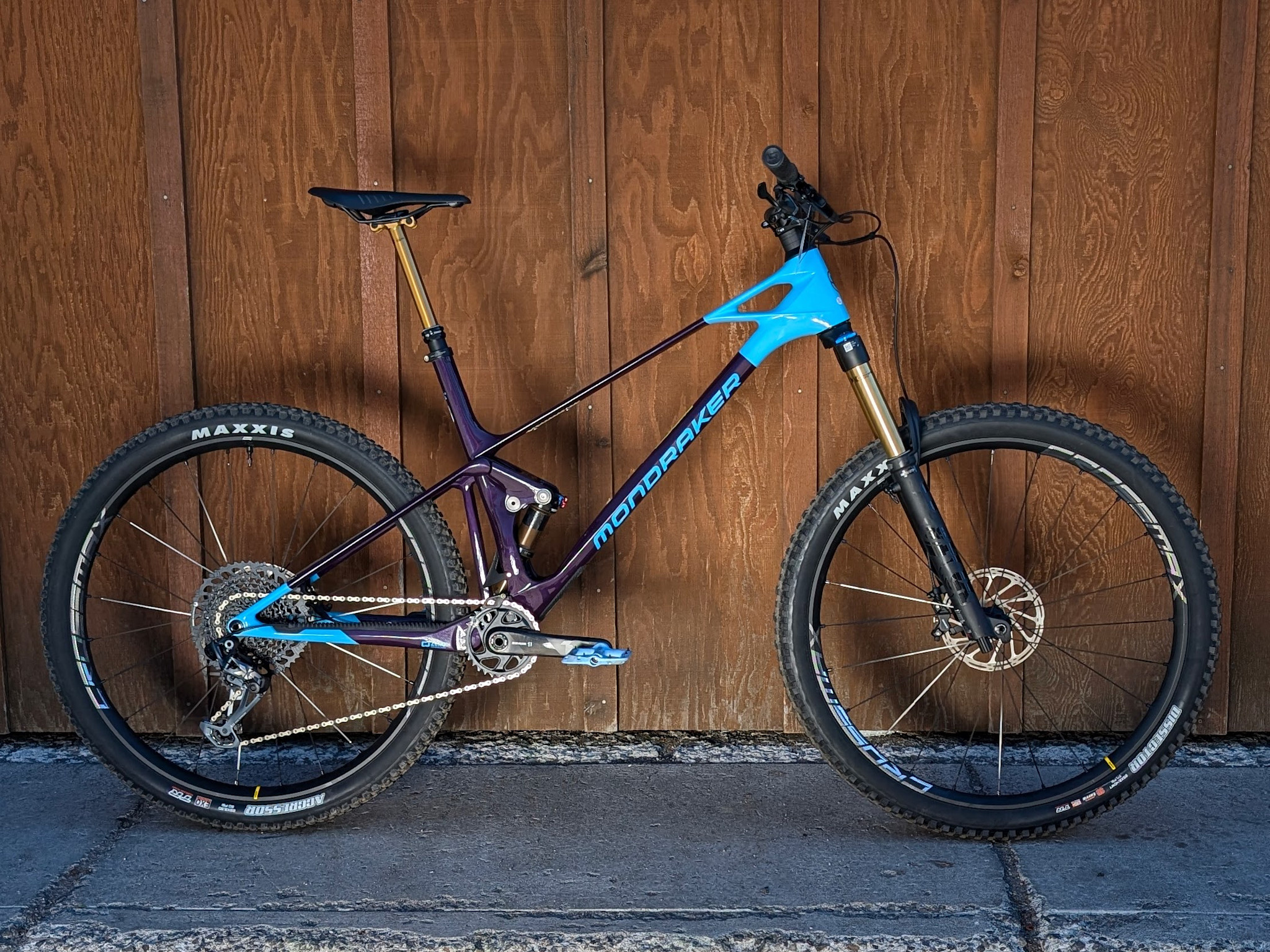

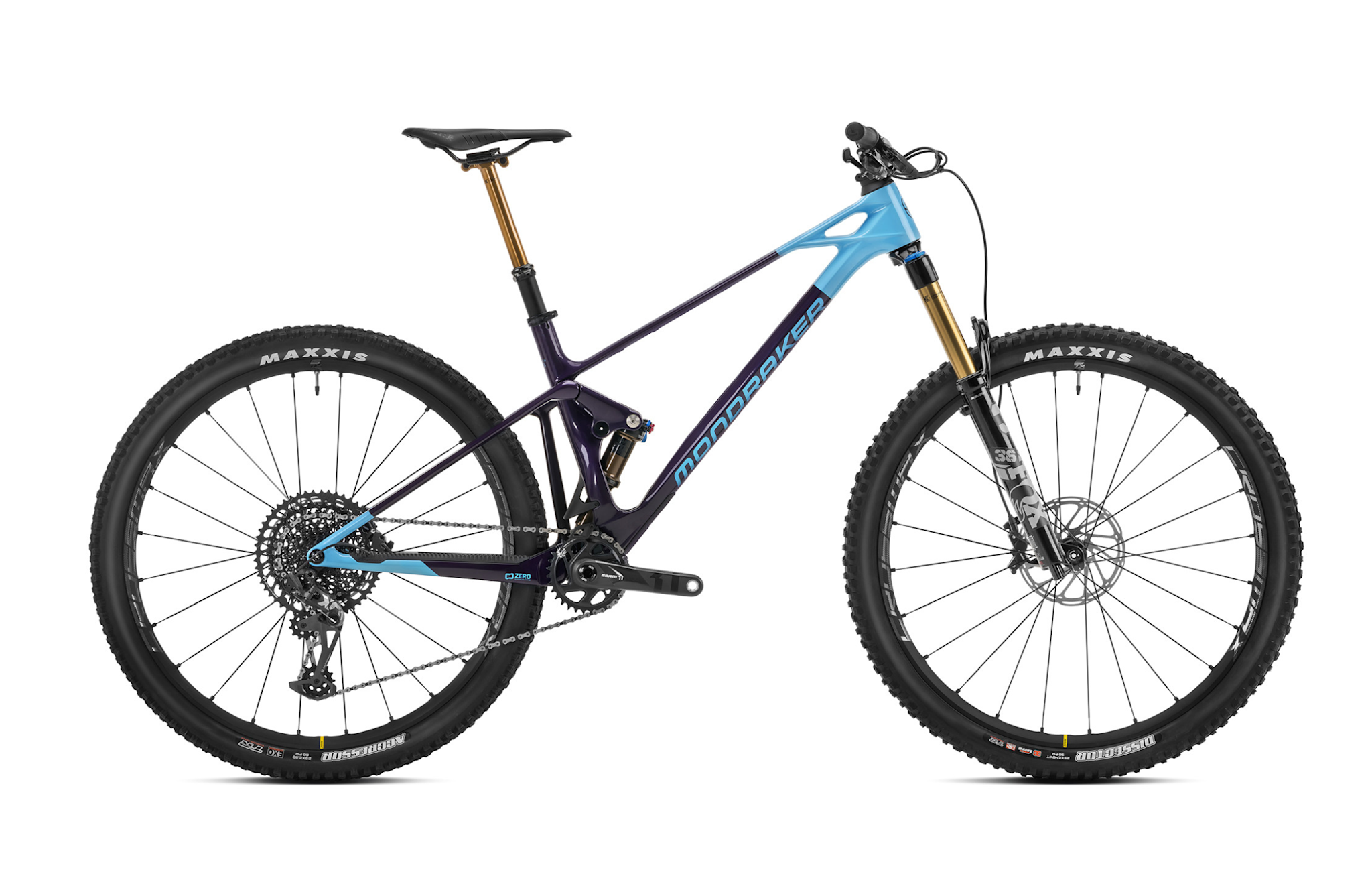

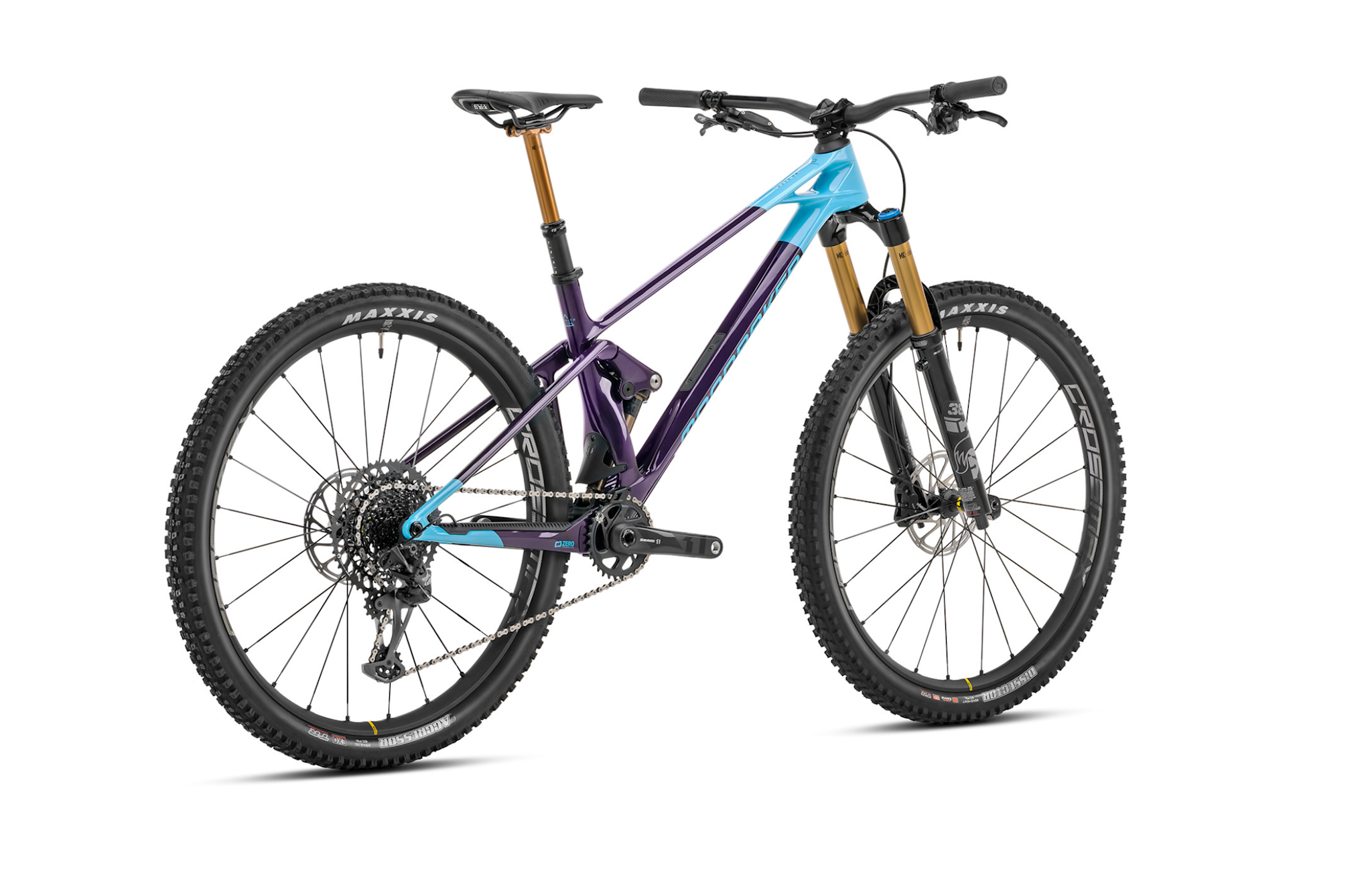

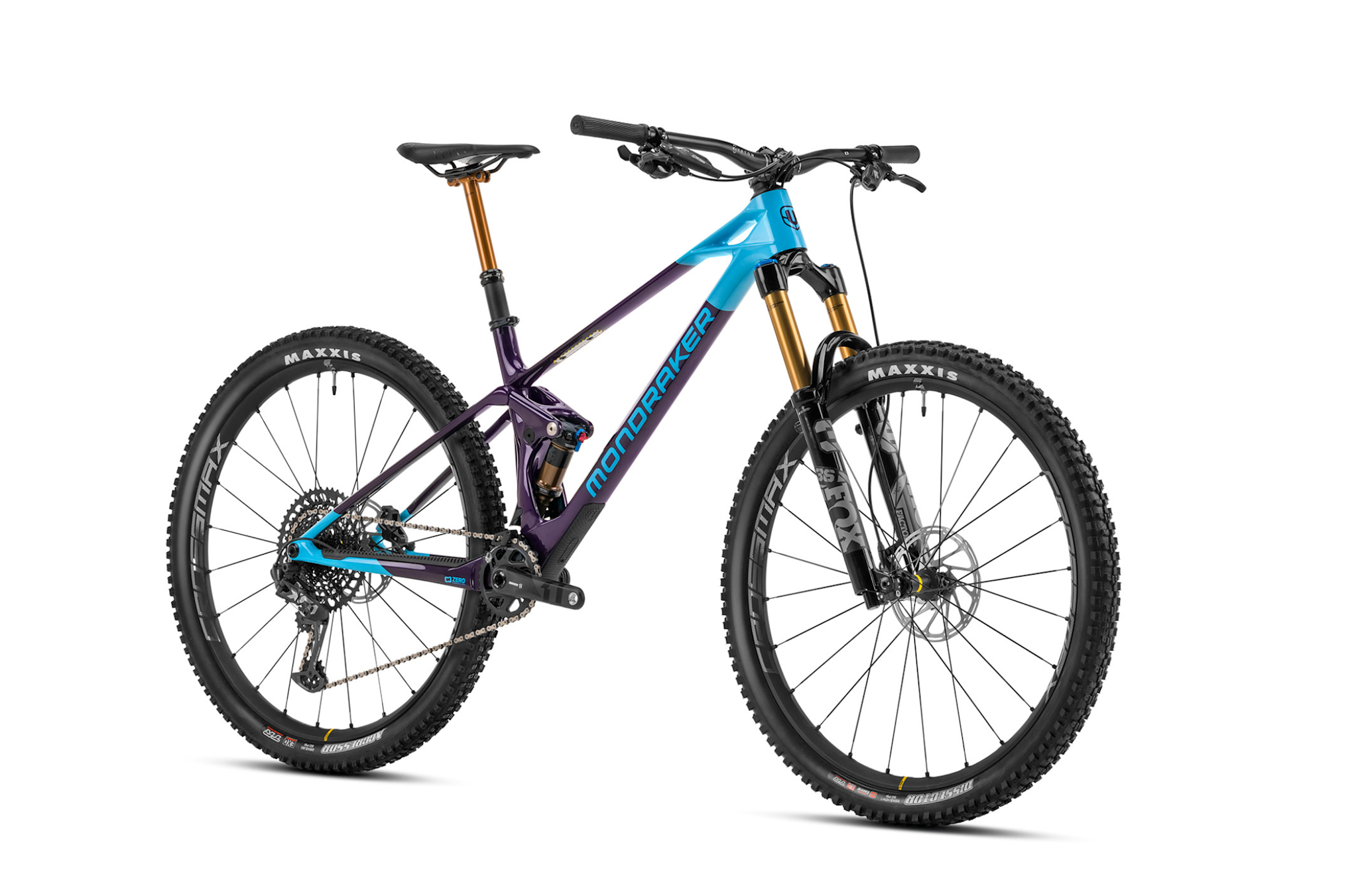

With 150mm of travel up front and 130mm at the rear, the Raze is no ordinary trail bike.
With 150mm of travel up front and 130mm at the rear, the RAZE is no ordinary trail bike. Its kinematics and the specific settings of its suspensions give it capabilities never seen before in the discipline. What’s more it boasts the market leading technologies only found on our range-topping bikes: STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND. Its carbon frame is hand built using layers which are carefully arranged, depending the area of the frame in question, to achieve specific purposes and objectives thus achieving a stylized structure that provides maximum comfort and vibration damping along with an extremely light weight combined with very high strength. Last season it was chosen as the best trail bike of 2022 by the prestigious MBR (Mountain Bike Rider) magazine in the United Kingdom.
Forward Geometry |
Key Advantages of Forward Geometry Longer Reach and Top Tube
|
|
Zero Suspension System |
ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike. ZERO superior technologies’ main advantages are Zero power loss -a completely stable ride when pedalling-, Zero pedal kickback-minimum chain growth throughout the suspension travel-, Zero brake jack –isolated braking and suspension forces- and what we call Zero bumps, its great ability to soak up any type of bump keeping the rear wheel efficiently planted on the ground.
|
|
Stealth Carbon |
STEALTH CARBON is the most advanced carbon fibre development and optimisation technology in the Mondraker range. This constantly developing technology brings all the experience gained in making aluminium frames to top of the range carbon fibre to meet the same innovation, maximum quality, minimum weight and strength requirements. Carbon fibre layers’ placement is a crucial technique with specific positioning and direction of the different quality fibres for each bike type and model. The result is a frame with the best strength / structural rigidity / trail buzz absorption / lightness ratio, exceptional reliability and a very attractive and unique 100% Mondraker look.
|
Frame | aze 29 Stealth Air full Carbon, |
---|---|
Wheel Size | 29" |
Travel | 150mm Front/ 130mm Rear |
Fork | Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
Rear Shock | Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
Shifter | Sram DUB BSA, sealed bearings, 73mm |
Rear Derailleur | Sram DUB BSA, sealed bearings, 73mm |
Cassette | Sram XG-1275, 10-52T, 12s |
Chain | Sram GX Eagle, 12s, Powerlock |
Chainring | Direct mount chain ring, |
Crankset | Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
Brakes | Sram G2 RS, SwingLink, tool-free reach adjust |
Rotors | Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm |
Handlebar | ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | ONOFF Krypton FG 30mm, CNC, 31.8mm barbore |
Grips | ONOFF Desert, 1lock-on, 135mm |
Saddle | Fizik Antares R7 |
Pedals | N/A |
Front Wheel | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
Rear Wheel | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
Front Tire | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Rear Tire | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
Sizes | S-XL |
