2025 Kona Sutra LTD 29" | The BackCountry in Truckee, CA - The BackCountry

Open Daily 8a-6p | 530-582-0909 | [email protected]

Slideshow Items

Kona

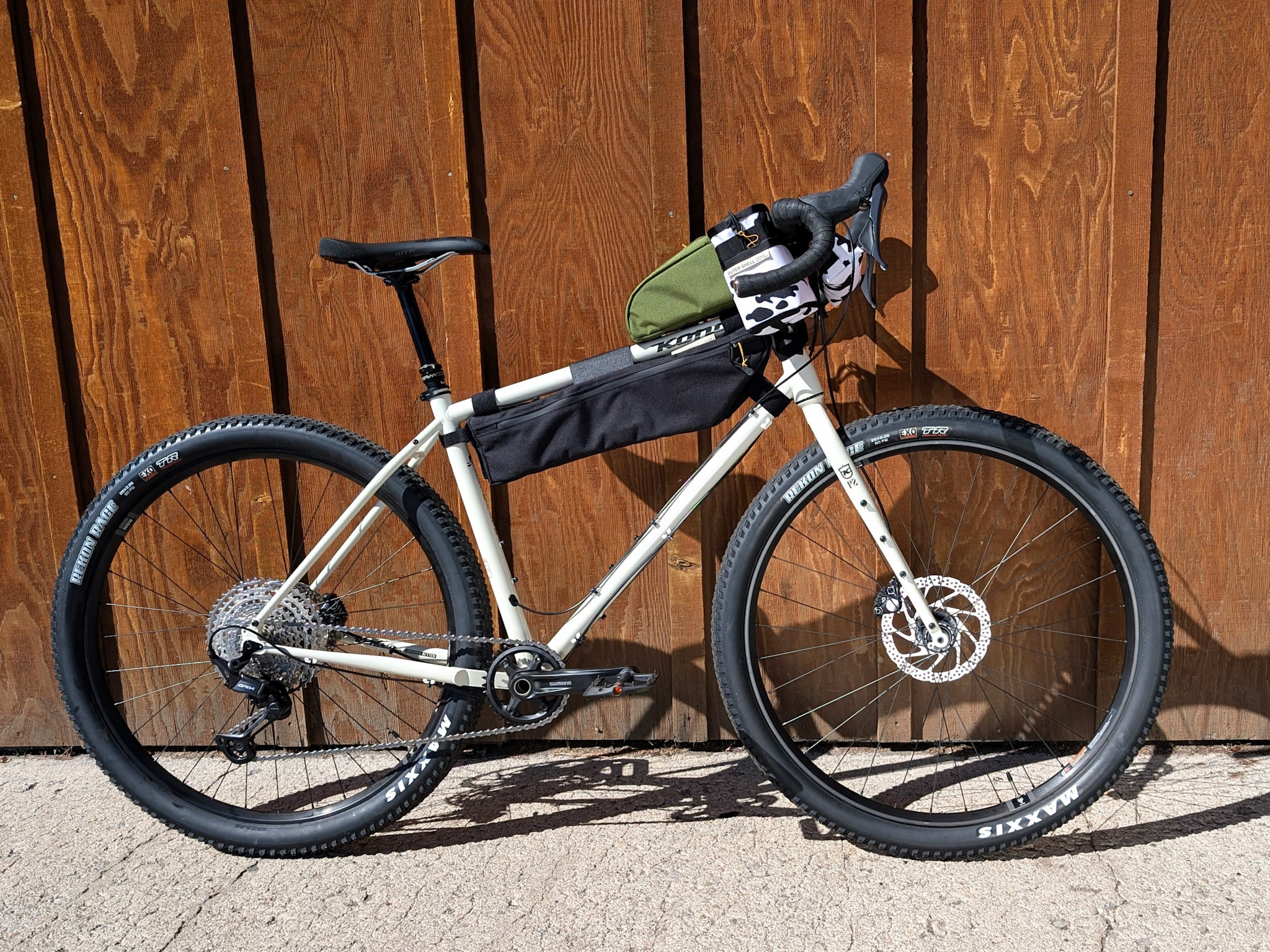

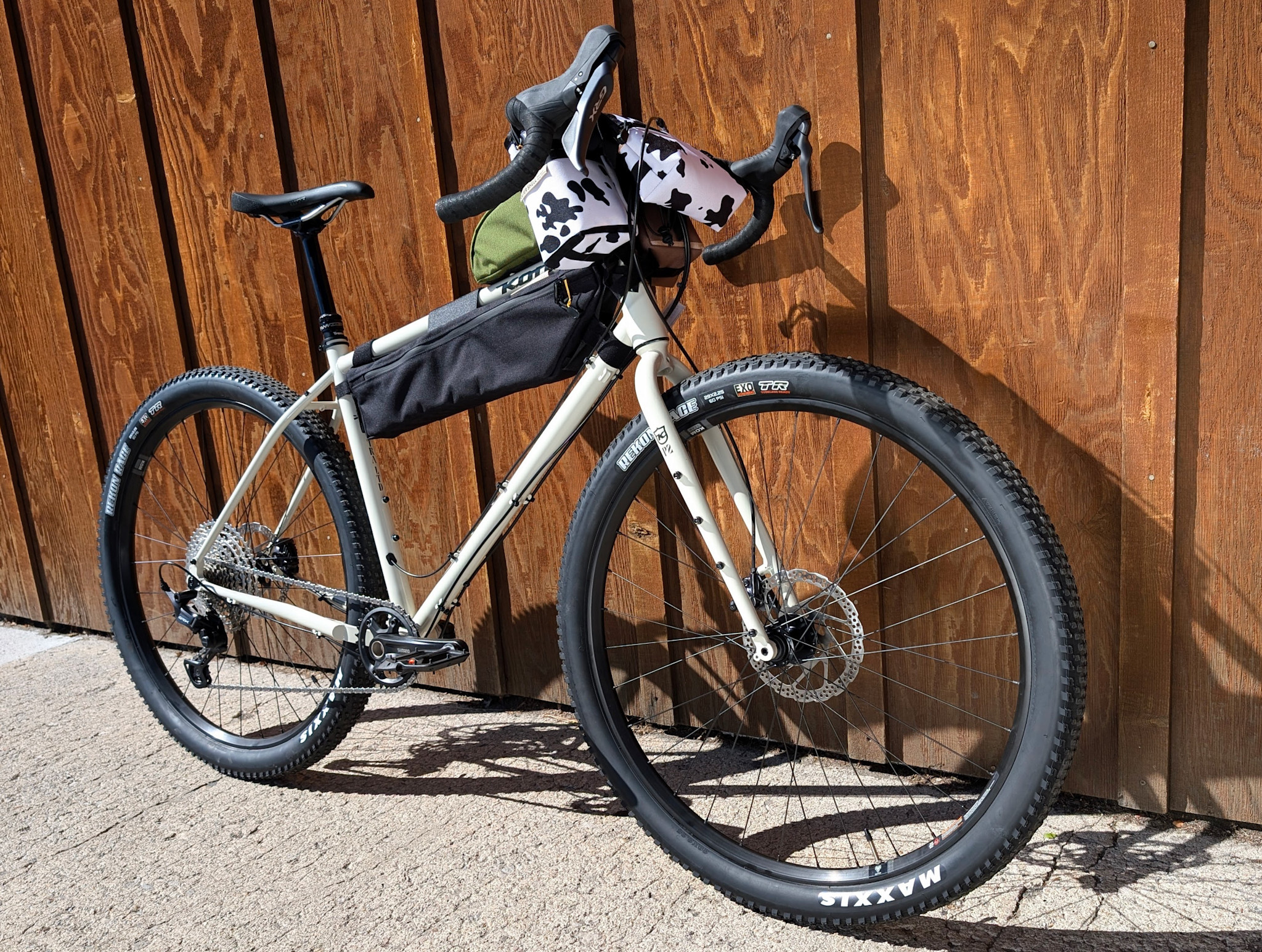

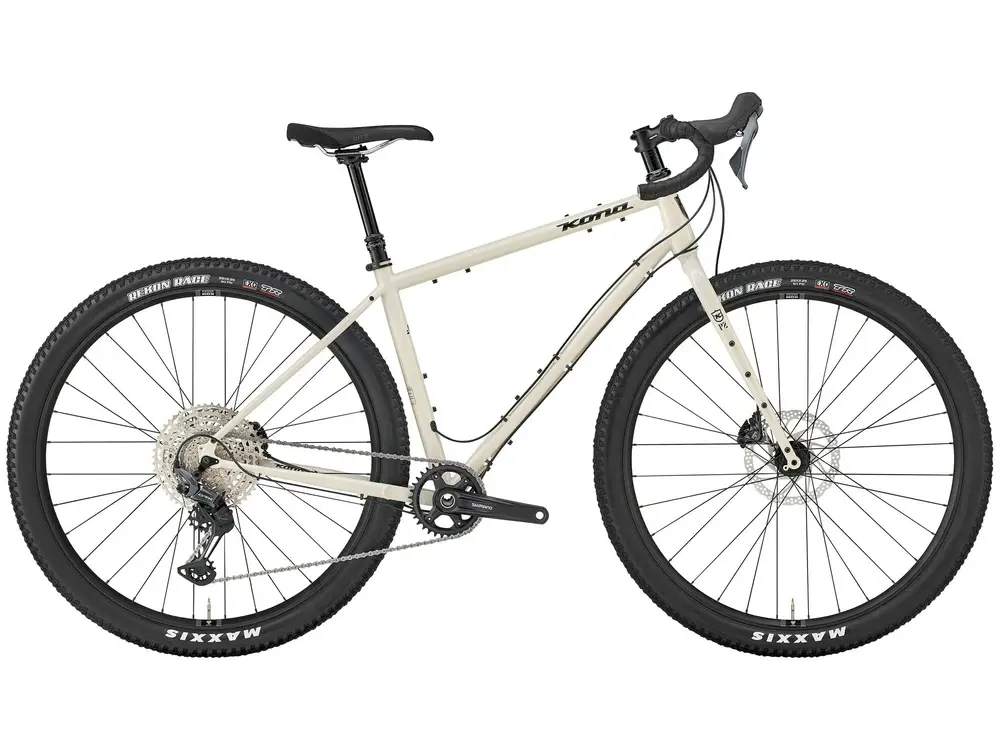

2025 Kona Sutra LTD 29"

$2,899.00
In store: Check availability

Available in store

SKU: B36SULWHSHFA48

69.5° HT | 29" | Gravel Bike

Delivery time: 5-7 Business Days

Description

From the Manufacturer



The Sutra LTD is one of those bikes that just changes everything. You thought you were a mountain biker, but you find yourself sneaking off on adventures and enjoying the drop bars on the LTD. You thought you were a roadie but find yourself absolutely destroying singletrack when no one else is looking and suddenly getting rad is all you wanna do! That’s the best part about the Sutra LTD—it broke the mold of what a bike has to be. It’s got bigger tires, burlier construction, and enough mounts to hold a horse. But who needs a horse when this is your horse?



Geometry



Size 48 50 52 54 56 58
ST Length 410 410 455 455 500 535
TT Length 532 545 560 575 592 613
Reach 380 385 390 395 400 405
Stack 568 578 592 609 627 660
Standover 735 739 773 781 827 851
HT Angle 69.5 69.5 69.5 69.5 69.5 69.5
HT Length 115 125 140 160 180 215
ST Angle 75 74.5 74 73.5 73 72.5
CS Length 445 445 445 445 445 445
BB Drop 74 74 74 72 72 72
BB Height 301 301 301 303 303 303
Wheelbase 1062 1071 1081 1094 1106 1123
Front Center 628 636 647 658 670 688
Fork Length 430 430 430 430 430 430
Fork Offset 55 55 55 55 55 55


Sizing

Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:

  • Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
  • Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.



Gravel / Dropbar /Urban

Height (in) Height (cm) Inseam (in) Inseam (cm) Sutra/Ouroboros
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm
5'9"-6'0" 175-183cm 30"-33" 76-84cm 54-56cm
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm



Specifications

Frame Kona Cromoly Butted
Wheel Size 29"
Travel N/A
Fork Kona Project Two Cromoly Disc Touring Fork
Rear Shock N/A
Headset FSA No.1/No.10
Bottom Bracket Shimano Deore 73mm
Shifter Shimano GRX 1x
Rear Derailleur Shimano GRX 1x
Cassette Shimano Deore 10-51t 12spd
Chain Shimano Deore
Chainring 34t Deore
Crankset Shimano Deore
Brakes Shimano GRX
Rotors Shimano 180mm
Seatpost TranzX Dropper +RAD Internal 31.6mm
Handlebar Kona Road
Stem Kona Road Deluxe
Grips Kona Cork Tape
Saddle WTB Volt
Pedals N/A
Front Wheel WTB KOM Team i27 TCS 2.0; Formula 100x12mm
Rear Wheel WTB KOM Team i27 TCS 2.0; Formula 142x12mm
Front Tire Maxxis Rekon Race EXO TR 29x2.25"
Rear Tire Maxxis Rekon Race EXO TR 29x2.25"
Sizes 48, 50, 52, 54, 56, 58
