| Frame | Pivot Carbon |
| Wheel Size | 29"/27.5" |
| Travel | 170mm |
| Fork | Fox Factory 38 29", 44mm offset, GRIP X2 - 170mm |
| Rear Shock | Fox Factory Float X |
| Headset | Pivot Precision Sealed Cartridge |
| Shifter | Sram AXS Pod Controller |

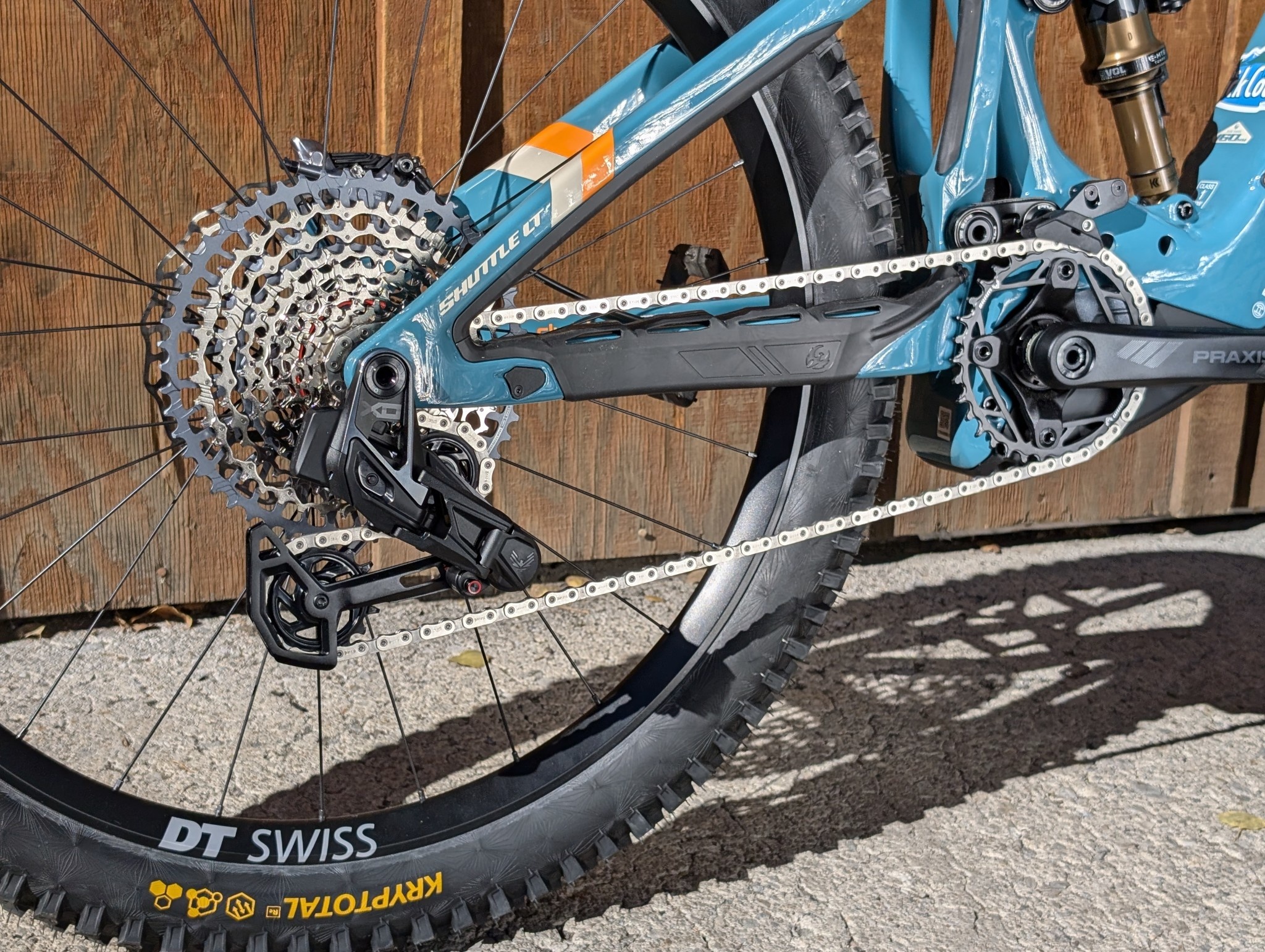

| Rear Derailleur | Sram X0 Eagle Transmission 12-Speed |
| Cassette | Sram GX 1275 Eagle Transmission 10-52t |
| Chain | Sram GX Eagle Transmission Flattop 12-Speed |
| Chainring | |
| Crankset | Praxis Alloy eCranks E-MTB 34t - 160mm |
| Brakes | Shimano XT M8120 4-piston |
| Rotors | Galfer Wave 6 Bolt - 223mm Galfer Wave 6 Bolt - 203mm |
| Seatpost | Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL) |
| Handlebar | Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL) |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Grips | Phoenix Factory Lock-On |
| Saddle | Phoenix WTB Volt Pro (Medium Width) |
| Pedals | N/A |
| Front Wheel | DT Swiss Hybrid HX1501, 30mm - 15x110 F |
| Rear Wheel | DT Swiss Hybrid HX1501, 30mm - 12x157 R |
| Front Tire | Continental Kyrptotal-F 29" x 2.4" Soft Compound Enduro Casing |
| Rear Tire | Continental Kyrptotal-R 27.5" x 2.6" Soft Compound Enduro Casing |

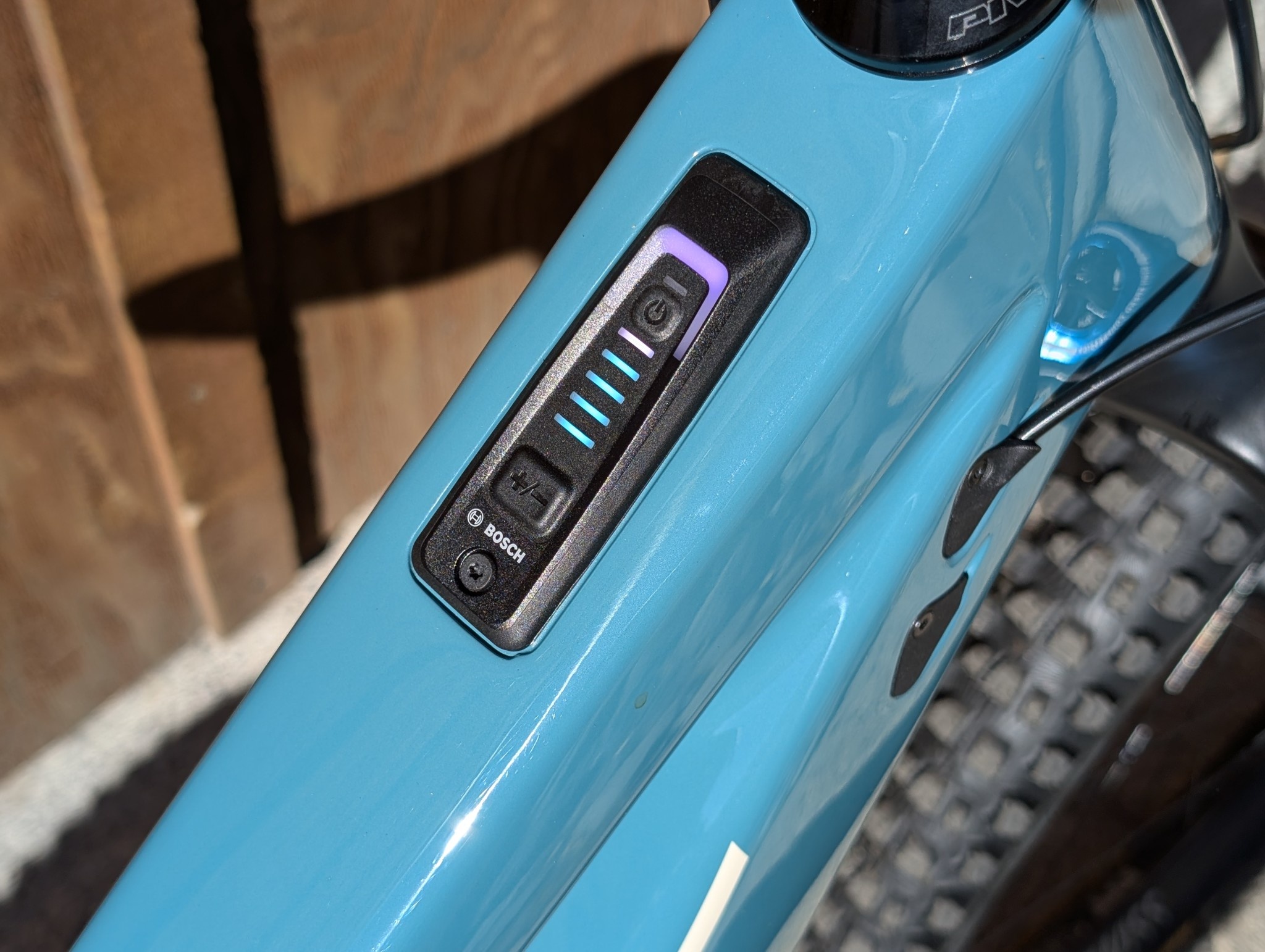

| Drive Unit | Bosch Performance CX Race Edition 750wh |
| Battery | 750 Wh |
| Display | N/A |
| Extras | N/A |
| Sizes |
FROM THE MANUFACTURER
Too Much is Just Right
Race ready and ultra-refined, the new Shuttle LT is the hyper-capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot's deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.
756Wh Powerhouse
The downtube of the Shuttle LT houses an energy dense 756 watt-hour battery. With an origin story that began with Pivot engineers doodling battery cell configurations on a cocktail napkin, this powerhouse was developed for Pivot with Shimano's top battery partner.
"The Shuttle LT isn't exactly an electrified Firebird, but instead feels like a very coherently designed take on a bike that's meant to have similar goals, just in a motorized package. Pivot hasn't just slapped a motor and a battery on the Firebird and called it a day, and the Shuttle LT is better for it."
— BLISTER
FEATURES
- Flip chip geometry customization
- Massive 756Wh battery
- 170mm Fox 38 Fork with custom eMTB tune
- 85Nm of torque
- USB-C charging port
- 223mm Front and 203mm rear rotors
- Clean internal routing with Pivot Cable Port System
GEOMETRY
*All measurements in cm
| SM | MD | LG | XL | |
| Seat Tube Length | 37 | 40 | 43 | 47 |
| Top Tube Length | 60.5 | 63.0 | 65.0 | 66.9 |
| Head Tube Length | 11 | 12 | 13 | 14 |
| Heat Tube Angle | 64° | 64° | 64° | 64° |
| Seat Tube Angle (eff.) | 76.5° | 76.5° | 77° | 77.5° |
| Chainstay Length | 44.1 | 44.1 | 44.1 | 44.1 |
| BB Height | 35 | 35 | 35 | 35 |
| BB Drop | 1.3 | 1.3 | 1.3 | 1.3 |
| Standover | 68.6 | 69.0 | 69.2 | 69.3 |
| Wheelbase | 123.0 | 125.6 | 128.1 | 130.7 |
| Stack | 63.6 | 64.5 | 65.4 | 66.3 |
| Reach | 44.5 | 46.8 | 48.8 | 51.0 |
