Norco

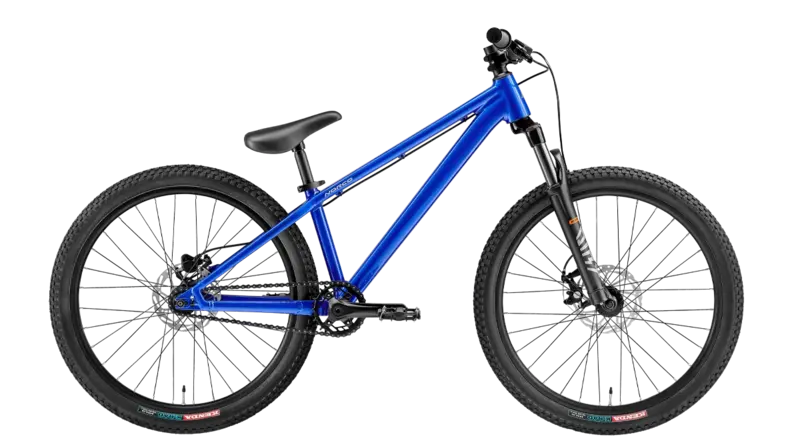

Norco 2025 Norco Rampage Youth 24" Radiant Blue

$799.00

In store: Check availability

24" Wheels | 80mm Front Travel | 68.5° HT

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Description

FROM THE MANUFACTURER

The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.

FEATURES

Frame		Smooth, seamless look for aluminum frame. With all of the finished features of our grown-up models, the Rampage Youth has a strong hydroformed aluminum frame – the welds are virtually invisible. Look good while you shred, it's as smooth as the jumps you'll flow. Slotted dropouts offer low-profile chain tension adjusters, a tapered, gyro-compatible head tube adds strength and fork compatibility, and there’s now more tire clearance at the bottom bracket yoke.
Geometry		Purpose-built for big air. The Rampage Youth brings the latest pro-rider-inspired dirt jump frame design to riders who, despite their size, need a bike that lives up to their skills. Short chainstays along with added tire clearance, and low standover, means the bike sends big air for little rippers.
Components		Components custom-built selected for reliability. Tough 2 & 3-piece cranks, BMX-style, compact single speed drivetrains, and disc brakes with lots of line for bar spins and tailwhips. Components are hand-picked for function with a BMX mindset so you can ride hard every day without second guessing.

GEOMETRY

Size		Small

Travel		80
Reach		375
Stack		524
Head Tube Angle		68.5
Fork Offset		40
Seat Tube Length		290
Effective Seat Tube Angle		75
Rear Center Length		353
Bottom Bracket Drop		15
Bottom Bracket Height		298
Horizontal Top Tube		515
Wheelbase		971
Standover		559
Head Tube Length		100
Trail		80
Maximum Post Insertion		236
Stem Length		35
Crank Length		140
Tire Size		2.35" - 2.5"

Specifications

Frame	Aluminum DJ 24"
Wheel Size	24"
Travel	80mm Front
Fork	RST Dirt, 80 mm, 9x100mm
Rear Shock	N/A
Headset	Tapered 1-1/8"- 1.5",(ZS44/28.6 \| ZS56/40)
Bottom Bracket	Sealed Cartridge, ISIS 73mm
Shifter	N/A
Rear Derailleur	N/A
Cassette	Single speed
Chain	KMC Z1, 1/2 x 3/32"
Chainring	14T
Crankset	Prowheel 3pc, 30T, 140mm
Brakes	Tektro MD-280, Mechanical, Resin pads
Rotors	TR 160-24, 160mm , 6 bolt
Seatpost	Integrated w/saddle, 27.2mm ID, 200mm Length
Handlebar	Norco Alloy, 760mm, 45mm rise
Stem	Norco, 45mm Length, 31.8 Clamp
Grips	Norco w/small flange, 130mm length
Saddle	Norco One Piece
Pedals	VP Jr Flat Pedal
Front Wheel	XD-181 DW, 32h, F/R-24", 24.7mm ID w/ KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt
Rear Wheel	XD-181 DW, 32h, F/R-24", 24.7mm ID w/KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt
Front Tire	Kenda K-Rad, 24x2.30", Wire Bead
Rear Tire	Kenda K-Rad, 24x2.30", Wire Bead
