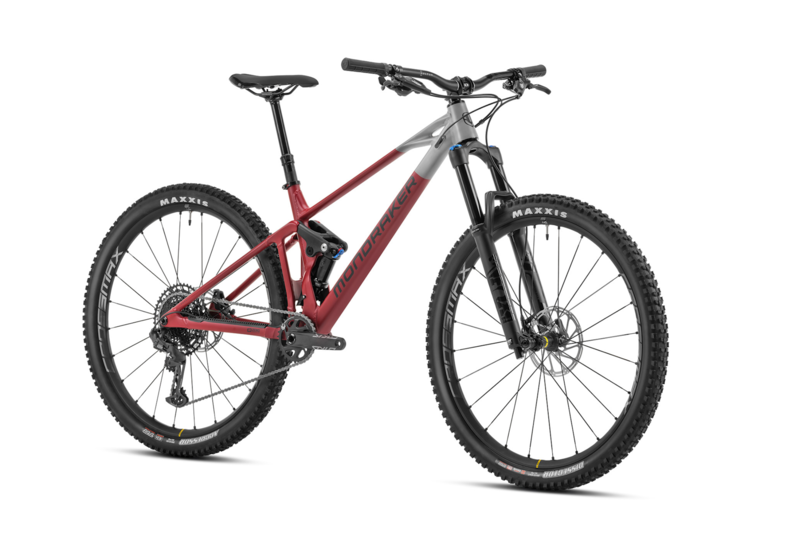

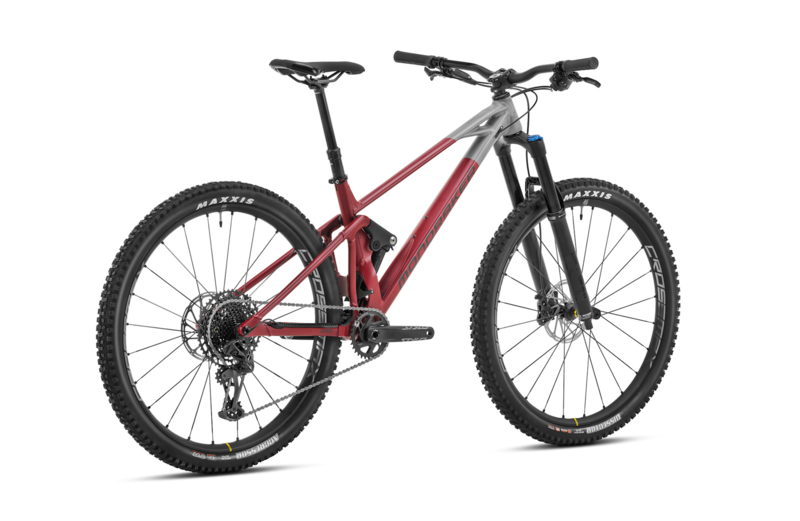

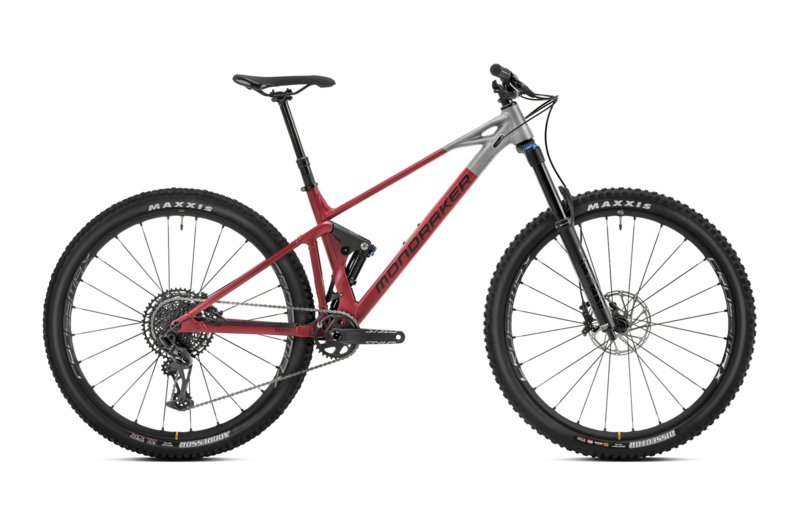

Mondraker 2025 Mondraker Raze R 29"

$3,999.00

In store: Check availability

29" Wheels | 150mm Front / 130mm Rear Travel | 65.5º HT

Color:

Size:

Add to compare Add to wishlist

Delivery time: 5-7 Business Days

No reviews yet
Add yours

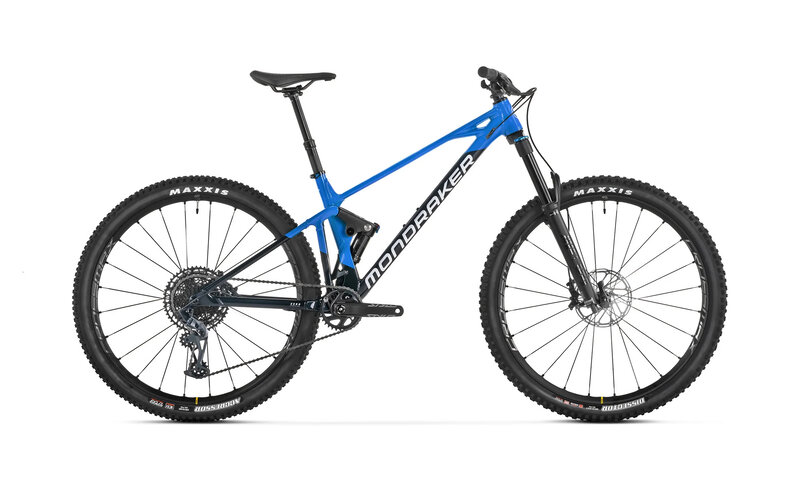

Mondraker 2025 Mondraker Raze R 29" — "Color: Midnight Blue","Size: Small"

Description

FROM THE MANUFACTURER

New for this season, the RAZE R has the same features as the CARBON version, but with a frame made of aluminum alloy. It’s so adept at climbing that that when it’s time to head downhill you’ll be stunned by its levels of shock absorption and manageability. Fun is quite simply one of the RAZE R’s greatest strengths. With 150mm of travel at the front and 130mm at the back, the RAZE R features a Fox 36 Float fork mated with a Fox Float shock; SRAM GX/SRAM NX Eagle 12-speed drivetrain; Mavic Crossmax XL wheels; SRAM G2 brakes; and ONOFF components.

FEATURES

Frame

Stealth Alloy
Made of STEALTH ALUMINIUM the new RAZE and RAZE R, are two Trail models with 150mm travel forks, and 130mm rear travel provided by our ZERO SUSPENSION SYSTEM. A new version that follows the most aggressive Trail philosophy as we here at Mondraker understand it, that “mini-Foxy” bike concept with great shock absorption, agility and pedaling efficiency.

Suspension Travel

Rear travel is set at 130mm, a very balanced figure for our most versatile mountain bike, coupled with a 150mm fork keeping things under control at the front thanks to generous stanchion diameters (a 35mm RockShox 35 on the RAZE and a 36mm Fox 36 on the RAZE R).

Suspension Platform

Zero Suspension System
ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.

ZERO superior technologies’ main advantages are Zero power loss -a completely stable ride when pedalling-, Zero pedal kickback-minimum chain growth throughout the suspension travel-, Zero brake jack –isolated braking and suspension forces- and what we call Zero bumps, its great ability to soak up any type of bump keeping the rear wheel efficiently planted on the ground.

GEOMETRY

	S	M	L	XL
Seat Tube Length	375 mm	415 mm	445 mm	490 mm
Top Tube Length	594 mm	614 mm	638 mm	658 mm
BB Drop	-29 mm
BB Height	340 mm
Chainstay Length	435 mm
Seat Tube Angle	72º
Eff. Seat Tube Angle	77º
Head Tube Angle	65.5º
Fork Offset	44 mm
Wheelbase	1197 mm	1216 mm	1246 mm	1266 mm
Head Tube Length	100 mm	100 mm	120 mm	120 mm
Reach	450 mm	470 mm	490 mm	510 mm
Stack	623 mm	623 mm	641 mm	641 mm

Specifications

Frame	Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic se
Wheel Size	29"
Travel	150mm Front \| 130mm Rear
Fork	Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Rear Shock	Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Headset	ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Bottom Bracket	Sram DUB BSA, sealed bearings, 73mm
Shifter	Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Rear Derailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Cassette	Sram XG-1230, 11-50T, 12s
Chain	Sram NX Eagle, 12s, Powerlock
Chainring
Crankset	Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Brakes	Sram G2 R, tool-free reach adjust
Rotors	Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Seatpost	ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Handlebar	ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Stem	ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Grips	ONOFF Twin, 1lock-on, 135mm
Saddle
Pedals	N/A
Front Wheel	Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Rear Wheel	Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Front Tire	Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tire	Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
