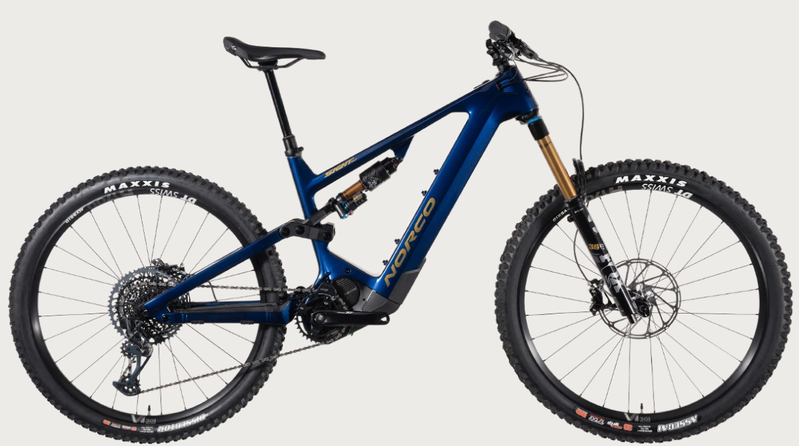

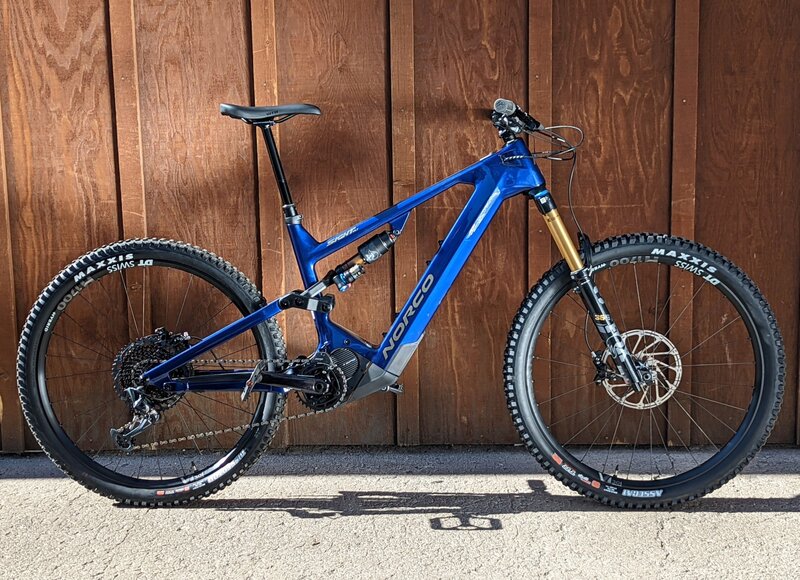

The Norco Sight VLT C1 is the e-bike that will take you way off the beaten path and out further than you imagined you could go. With 3 battery capacity options, you can choose your adventure. A 900Wh battery to take you on a monster adventure, or maybe a 540Wh battery for some lightweight hot laps, or a 720Wh battery for everything in between. How far you go is up to you.
*Don't forget your battery! Available in 720 WH, and a massive 900 WH
S | M | L | XL | ||
Wheel Size | 29" | 29" | 29" | 29" | |
Travel (mm front/mm rear) | 160/150 | ||||
Reach | 425 | 455 | 485 | 515 | |
Stack | 616 | 625 | 634 | 643 | |
HTA | Head Tube Angle | 64 | |||
OS | Fork Offset | 44 | |||
ST | Seat Tube Length | 395 | 415 | 440 | 455 |
STA | Effective Seat Tube Angle | 77 | 77.3 | 77.7 | 78 |
RC | Rear Centre Length | 462 | |||
BB | Bottom Bracket Drop | 25 | |||
BBH | Bottom Bracket Height | 350 | |||
HTT | Horizontal Top Tube | 567 | 596 | 624 | 652 |
WB | Wheelbase | 1224 | 1258 | 1292 | 1327 |
SOH | Standover | 700 | 703 | 720 | 731 |
HT | Head Tube Length | 100 | 110 | 120 | 130 |
Trail | 134 | ||||
Recommended Seatpost Drop | 125 | 150 | 170 | 200 | |
Maximum Post Insertion | 225 | 250 | 275 | 300 | |
Stem Length | 40 | ||||
Crank Length | 165 | ||||
Tire Size | 2.35" – 2.6" | ||||
Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | 2 x 620 mL or 1 x 750 mL | 1 x 750 mL and 1 x 620 mL |
Norco's Real World Battery Test
Norco tests their batteries in real-world conditions to determine potential range per charge. It’s an ongoing process that we insist on to improve our designs and determine what kind of variables effect range.
For example, they rode laps at one of their favorite proving grounds aboard a Sight VLT until the fully-charged battery was totally depleted.
NOT a laboratory setting - Real rider, real trail, real results.
Set on the Eco mode, he was able to cover 2100m of elevation over 38km before that battery was empty.
With the larger batteries, he would have covered proportionally more ground on those same trails in the same conditions:
Battery Capacity Wh | 540 | 720 | 900 |
Elevation m/ft* | 2100/6890 | 2800/9180 | 3500/11480 |
Distance km/mi* | 38/23.5 | 50/31 | 63/39 |
*Let’s be clear: this was a demanding BC ride, under a fit, accomplished rider who can dish out upwards of 300W of power over a sustained period. As with all the battery-powered stuff we have in our lives these days, individual results will vary depending on number of variables.
Range Variables
What will affect the battery range?
Weight
540Wh = 3190g
720Wh = 3880g
900Wh = 4570g

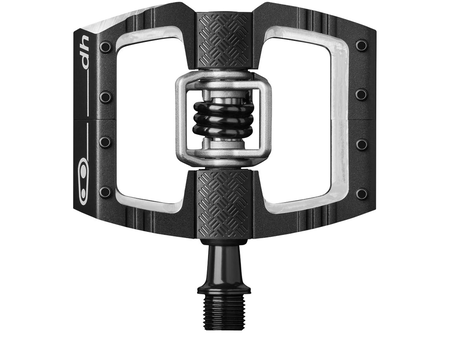

Don't forget your pedals & flat tire repair kit
Frame | Carbon Front Triangle and Seatstay, Aluminum Chainstay, 150mm Travel, Ride Aligned™ |
---|---|
Wheel Size | 29" |
Travel | 150 mm Rear/ 160 mm Front |
Fork | Fox Factory FLOAT 36, GRIP 2, HSC/LSC, HSR/LSR, 160mm Travel, 44mm Offset, E-Rated |
Rear Shock | Fox Factory FLOAT X2, Custom Tune, 210x55mm |
Headset | FSA No.55R-1 Sealed Bearing |
Shifter | SRAM GX Eagle Single Click |
Rear Derailleur | SRAM X01 Eagle |
Cassette | SRAM Eagle XG 1275, 10-52T |
Chain | SRAM GX Eagle |
Chainring | 34T Eagle Ring |
Crankset | Shimano FC-M8150 E-MTB, 165mm |
Brakes | SRAM Code RSC, 4 Piston, Metallic Pads Front | SRAM Code RSC, 4 Piston, Metallic Pads Rear |
Rotors | SRAM Centerline 220mm Front | SRAM Centerline 200mm Rear |
Seatpost | OneUp Adjustable Dropper, 34.9mm, 120mm (S), 150mm (M), 170mm (L) , 210mm (XL) |
Handlebar | Deity Skywire Carbon 35, 800mm, 25mm Rise |
Stem | CNC Alloy, 40mm Length, 35mm Clamp |
Grips | DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL) |
Saddle | Ergon SM-10 E-Mountain Sport |
Pedals | N/A |
Front Wheel | Rim DT Swiss E 1700 Hybrid E-Rated Wheelset, 29" | Hub DT Swiss 350H 15x110mm Boost, 6 Bolt | Spokes DT Swiss Stainless |
Rear Wheel | Rim DT Swiss E 1700 Hybrid E-Rated Wheelset, 29" | Hub DT Swiss 350H 12x148mm Boost, XD, 6 Bolt | Spokes DT Swiss Stainless |
Front Tire | Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT |
Rear Tire | Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR |
Drive Unit | Shimano STEPS EP8 |
Battery | Sold Separately. Removable. 900Wh, 720Wh and 540Wh Options. |
Display | N/A |
Extras | N/A |
Sizes | S, M, L, XL |
