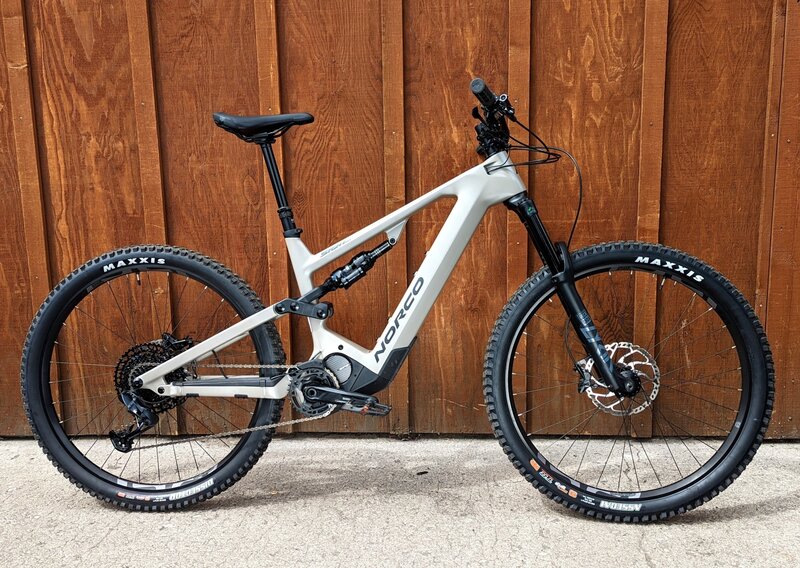

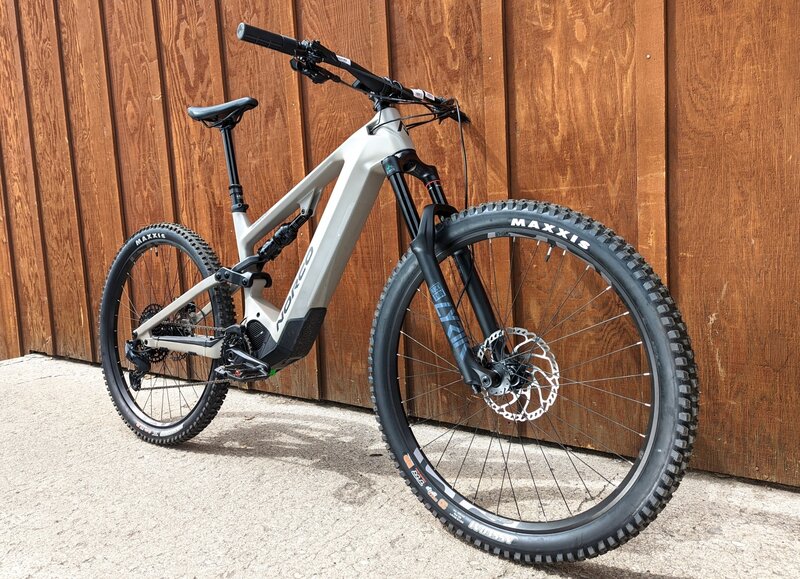

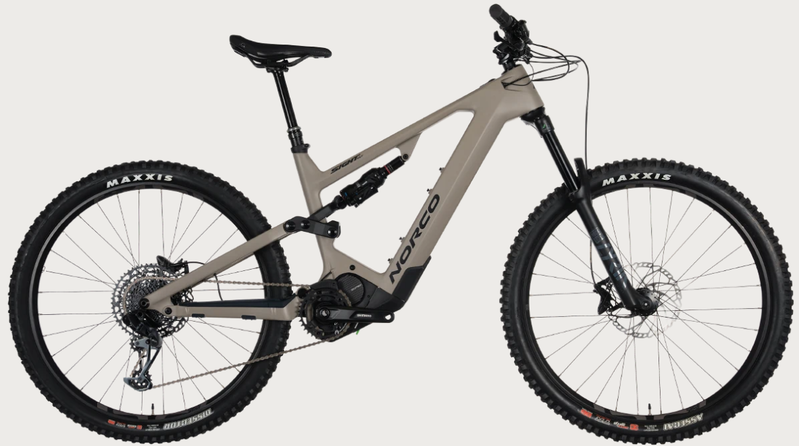

2022 Norco Sight VLT C2 B 29"

$6,799.99 $6,119.99
Available in store: Check availability

Available in store

Shimano STEPS EP8 Motor | 900, 720, 540Wh Battery | 150 mm rear/160 mm front | 64° HT
Add to cart
Delivery time: 5-7 Business Days
Frame Carbon Front Triangle and Seatstay, Aluminum Chainstay
Wheel Size 29"
Travel 150 mm Rear/ 160 mm Front

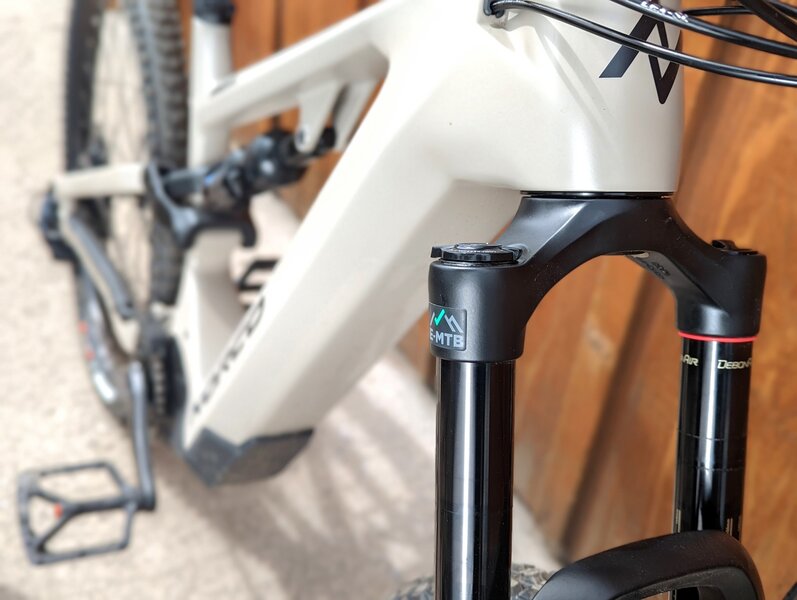

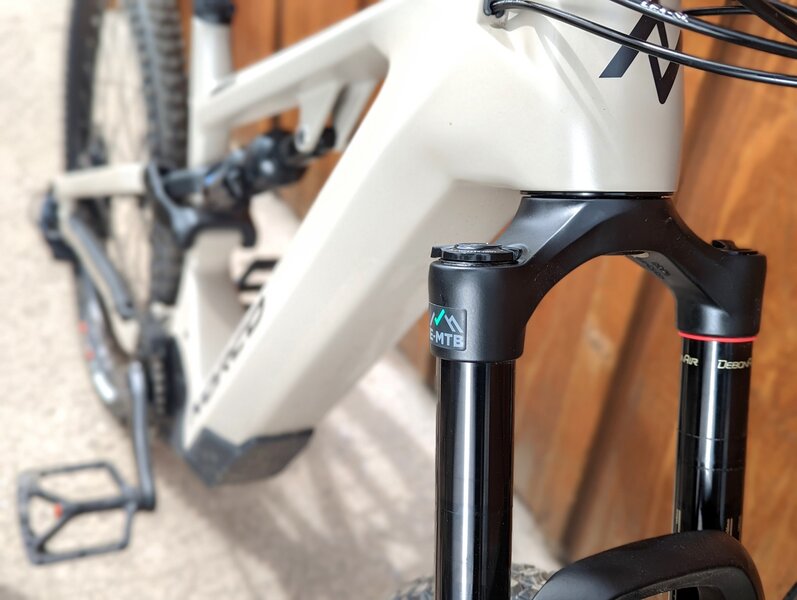

Fork RockShox Lyrik Select, 160mm, E-Rated, 44mm Offset, 1.8" Tapered, E-Rated
Rear Shock RockShox Super Deluxe Select + RT DebonAir 2, MegNeg Air Can, Custom Tune, 210x55mm
Headset FSA No.55R Sealed Bearing
Shifter SRAM SX Eagle Single Click
Rear Derailleur SRAM GX Eagle
Cassette SRAM Eagle PG 1210, 11-50T
Chain SRAM SX Eagle
Chainring 34T
Crankset Shimano FC-EM600, 34T, 165mm
Brakes Shimano BR MT520, 4 Piston, Metallic Pads Front | Shimano BR MT520, 4 Piston, Metallic Pads Rear
Rotors Shimano BR MT520, 4 Piston, Metallic Pads Front | Shimano RT-EM600 203mm, Integrated Sensor Magnet Rear
Seatpost TranzX YS105 Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL)
Handlebar Butted 6061 Alloy, 800mm, 25mm Rise
Stem CNC Alloy 40mm Length, 35mm Clamp
Grips DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)
Saddle Ergon SM-10 E-Mountain Sport
Pedals N/A
Front Wheel Rim e*thirteen LG1 DH, 32H, 29" | Hub DT Swiss H370, 15x110mm Boost 6 bolt, E-MTB | Spokes DT Swiss Stainless Butted
Rear Wheel Rim e*thirteen LG1 DH, 32H, 29" | Hub DT Swiss H370 12x148mm Boost, HG, 6 bolt, E-MTB | Spokes DT Swiss Stainless Alpine
Front Tire Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT
Rear Tire Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR
Drive Unit Shimano STEPS EP8
Battery Sold Separately. Removable. 900Wh, 720Wh and 540Wh Options.
Display N/A
Extras N/A
Sizes S, M, L, XL

The Norco Sight VLT C2 is the e-bike that will take you way off the beaten path and out further than you imagined you could go. With 3 battery capacity options, you can choose your adventure. A 900Wh battery to take you on a monster adventure, or maybe a 540Wh battery for some lightweight hot laps, or a 720Wh battery for everything in between. How far you go is up to you.

*Don't forget the battery! Available in 720 WH, and a massive 900 WH

  • Wide variety of models to choose what suits you best
  • Battery sold separately so you can choose your battery capacity; 540Wh, 720Wh or a massive, industry-leading 900Wh
  • Removable battery for easy charging and one tool swap
  • Ride aligned design system
  • Robust components for performance and durability

    S M L XL
  Wheel Size 29" 29" 29" 29"
  Travel (mm front/mm rear) 160/150
  Reach 425 455 485 515
  Stack 616 625 634 643
HTA Head Tube Angle 64
OS Fork Offset 44
ST Seat Tube Length 395 415 440 455
STA Effective Seat Tube Angle 77 77.3 77.7 78
RC Rear Centre Length 462
BB Bottom Bracket Drop 25
BBH Bottom Bracket Height 350
HTT Horizontal Top Tube 567 596 624 652
WB Wheelbase 1224 1258 1292 1327
SOH Standover 700 703 720 731
HT Head Tube Length 100 110 120 130
  Trail 134
  Recommended Seatpost Drop 125 150 170 200
  Maximum Post Insertion 225 250 275 300
  Stem Length 40
  Crank Length 165
  Tire Size 2.35" – 2.6"
  Water Bottle Compatible 1 x 620 mL 1 x 750 mL 2 x 620 mL or 1 x 750 mL 1 x 750 mL and 1 x 620 mL

Norco's Real World Battery Test

Norco tests their batteries in real-world conditions to determine potential range per charge. It’s an ongoing process that we insist on to improve our designs and determine what kind of variables effect range.

For example, they rode laps at one of their favorite proving grounds aboard a Sight VLT until the fully-charged battery was totally depleted.

NOT a laboratory setting - Real rider, real trail, real results.

Set on the Eco mode, he was able to cover 2100m of elevation over 38km before that battery was empty.

With the larger batteries, he would have covered proportionally more ground on those same trails in the same conditions:

Battery Capacity Wh 540 720 900
Elevation m/ft* 2100/6890 2800/9180 3500/11480
Distance km/mi* 38/23.5 50/31 63/39

*Let’s be clear: this was a demanding BC ride, under a fit, accomplished rider who can dish out upwards of 300W of power over a sustained period. As with all the battery-powered stuff we have in our lives these days, individual results will vary depending on number of variables.

Range Variables

What will affect the battery range?

  • Battery capacity
  • Assist mode selected
  • Bike + Rider + Battery system mass
  • Rider output
  • Riding conditions
  • Amount of climbing/elevation change
  • Ambient temperature
  • And SO many others…


540Wh = 3190g
720Wh = 3880g
900Wh = 4570g


Don't forget your pedals!
