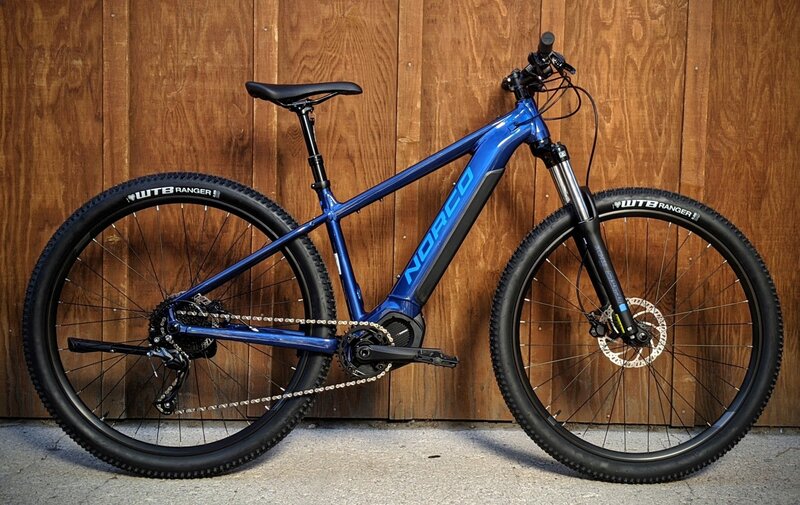

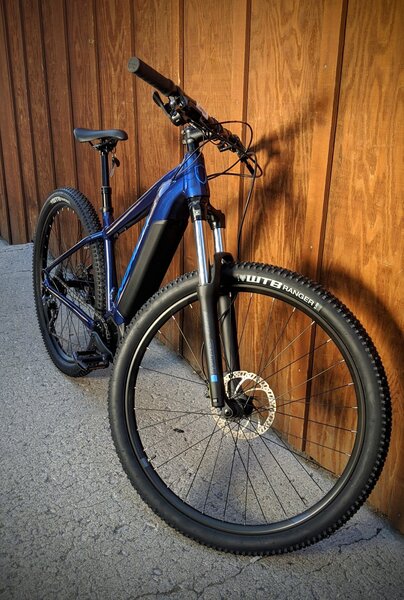

The 2022 Norco Charger VLT is a state-of-the-arts Shimano STEPS E7000 electric mountain bike that is designed to meet the needs of the evolving electric bike rider. Versatile and easy to ride, the Charger VLT features a durable 9-speed e-optimized Shimano Alivio drivetrain, Kektro HD-M285 disc brakes, and more. Equipped with a removable 504Wh downtube mounted battery you have reliable charge and security in one!
*Don't forget your battery! Available in 720 WH, and a massive 900 WH

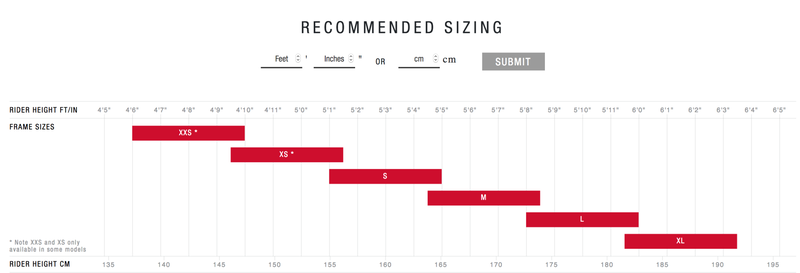

S | M | L | XL | |
Travel (mm front) | 120 | |||
Reach | 380 | 410 | 440 | 470 |
Stack | 629 | 629 | 639 | 649 |
Head Tube Angle | 67 | |||
Fork Offset | 46 | |||
Seat Tube Length | 430 | 470 | 510 | 550 |
Effective Seat Tube Angle | 74 | |||
Rear Centre Length | 450 | |||
Bottom Bracket Drop | 53 | |||
Bottom Bracket Height | 320 | |||
Horizontal Top Tube | 564 | 595 | 627 | 660 |
Wheel Base | 1120 | 1150 | 1184 | 1217 |
Stand Over | 667 | 698 | 727 | 754 |
Head Tube Length | 105 | 105 | 115 | 125 |
Trail | 107 | |||
Maximum Post Insertion | 190 | 210 | 230 | 250 |
Stem Length | 60 | |||
Water Bottle Compatible | 750 mL |
Don't forget your pedals!
Frame | 6061 Aluminum Frame |
---|---|
Wheel Size | 29" |
Travel | Hardtail/120 Front |
Fork | SR Suntour XCM32 DS, 120mm Travel, E-Bike |
Rear Shock | N/A |
Headset | FSA No.57E Sealed Bearing |
Shifter | Shimano Altus SL-M2010 |
Rear Derailleur | Shimano Altus M-2000 |
Cassette | Shimano Acera CS-HG2009, 11/36T, 9 Speed |
Chain | KMC e9S E-Bike |
Chainring | 34T |
Crankset | Prowheel E8000, 170mm |
Brakes | Tektro HD-M285 Hydraulic, E-Bike |
Rotors | Tektro 180/180mm |
Seatpost | TranzX YSP18 Dropper, 31.6mm, 130mm |
Handlebar | Butted 6061 Alloy, 740mm, 20mm Rise |
Stem | Alloy, 60mm Length, 31.8mm Clamp |
Grips | VP Lock-On |
Saddle | Norco XC |
Pedals | N/A |
Front Wheel | Alex MD25 TRS 29", 32H (Hub: Alloy 15x110mm Boost, 6 Bolt) |
Rear Wheel | Alex MD25 TRS 29", 32H (Hub: Alloy 12x148mm Boost, HG, 6 Bolt) |
Front Tire | WTB Ranger Comp 2.25" |
Rear Tire | WTB Ranger Comp 2.25" |

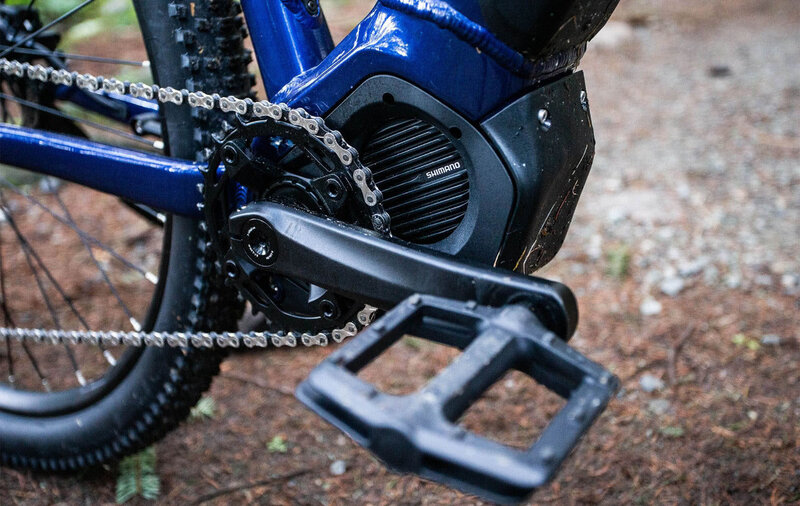

Drive Unit | Shimano STEPS E7000 |

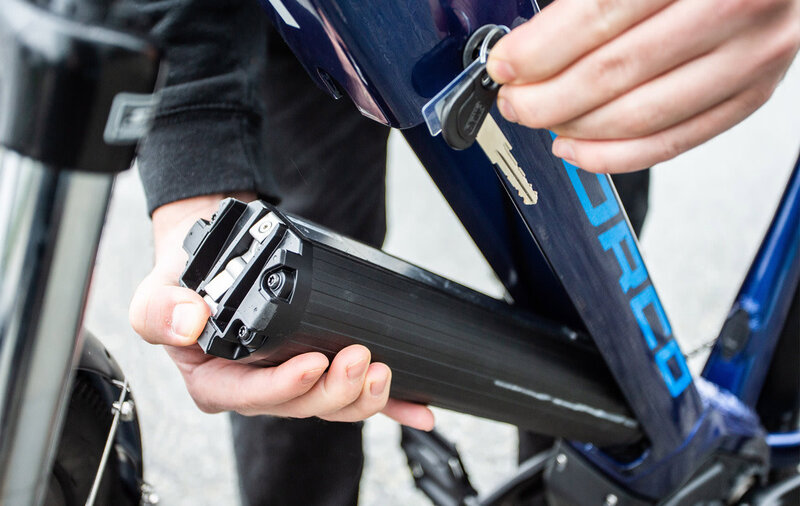

Battery | Shimano STEPS E8035 Downtube |

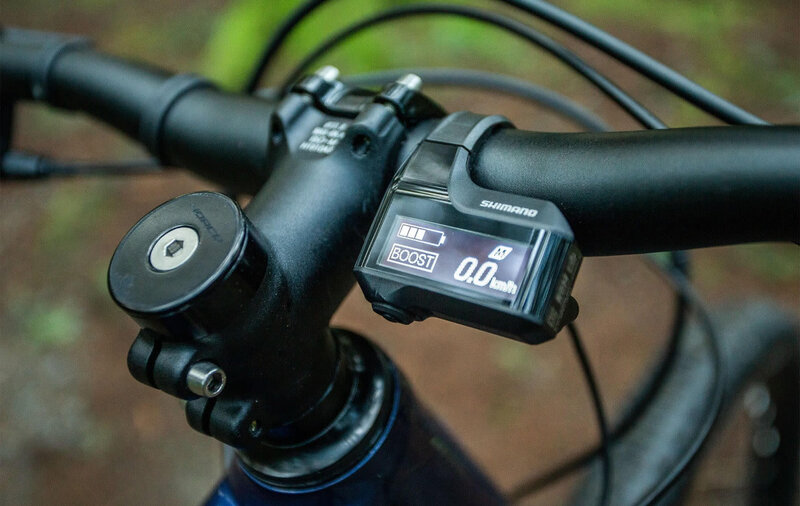

Display | Shimano STEPS E7000 |
Extras | N/A |
Sizes | S, M, L, XL |
