Goal Zero Goal Zero Boulder 200 Briefcase Solar Panel W/20A Charge Controller

$519.96 ~~$649.95~~

In store: Check availability

Boulder 200 Solar Panel + 20A Charge Controller | Includes carrying bag and kickstand

Delivery time: IN STORE EXCLUSIVE

No reviews yet
Add yours

Goal Zero Goal Zero Boulder 200 Briefcase Solar Panel W/20A Charge Controller

Description

FROM THE MANUFACTURER

This powerful, portable kit features a hinged 200-Watt panel and 20-Amp Charge Controller to speed up charge times of 12V batteries. Includes a canvas carrying bag and integrated kickstand for easy transport and setup.

FEATURES

Design

Boulder 200 Solar Kit comes with a pre-installed 20A Charge Controller, integrated High Power Port for connecting to solar, Spade to SAE Cable, and SAE to Alligator Clips plus SAE to Ring Terminal options for connecting to 12V batteries. No additional cables or accessories required.
To charge a Goal Zero Yeti Power Station with the Boulder 200 Solar Kit, you simply disconnect the High Power Port Cable on the solar panel from the High Power Port Cable on the Charge Controller and plug it into the High Power Port on the Yeti.
200 total Watts - two 100-Watt panels (14-21.8V) chained together and connected by a hinge.
Built with strong tempered glass and an aluminum frame with added corner protection.
Included is a protective canvas bag for easy transport and carrying.

Tips & Tricks

The solar panel does not hold a charge - it produces power when it is exposed to sunlight.
Place solar panels towards the sun at an angle.
Connect High Power Power to Yeti Power Station.
Adjust solar panel as the sun moves across the sky.

RECOMMENDED YETI PAIRINGS

https://cdn.shopify.com/s/files/1/0520/1156/5225/files/Yeti_1000X_928f6749-bd63-4359-9479-81c9d16249e3.png?v=1649430252

https://cdn.shopify.com/s/files/1/0520/1156/5225/files/Yeti_1500X_3e4d68a1-a47f-4dd6-80ec-478d762f181e.png?v=1649430266

https://cdn.shopify.com/s/files/1/0520/1156/5225/files/Yeti_3000X_e58be997-ba64-4a2f-95b2-d493bae120ed.png?v=1649430281

https://cdn.shopify.com/s/files/1/0520/1156/5225/files/Yeti_6000X_d99165b8-d2ef-47bc-b14d-e8b25039fc39.png?v=1649430296

SPECIFICATIONS

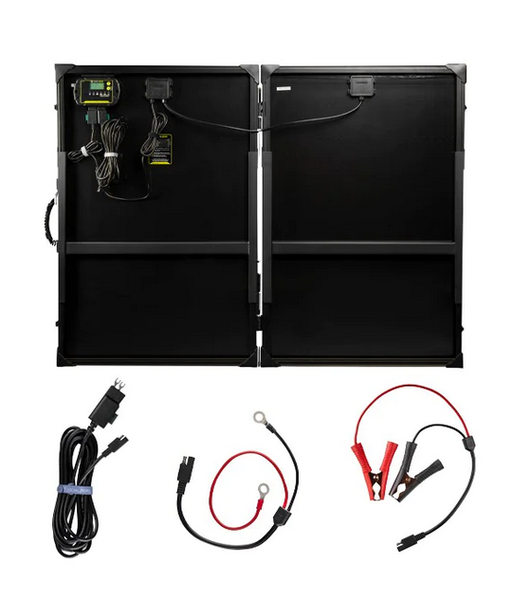

What's In The Box		Boulder 200 Solar Panel Briefcase with cord and Built-in kickstand Canvas Carrying Bag 20 Amp Charge Controller Boulder Charge Controller Mounting Bracket Spade to HPP Cable Spade to SAE Cable SAE to Ring Terminal SAE to Alligator Clip
General		Product SKU: 44220 Weight: 44.45 lbs (20.16 kg) Dimensions (folded): 40 x 26.75 x 3.5 in (101.6 x 70 x 8.9 cm) Dimensions (unfolded): 40 x 53.5 x 1.75 in (101.6 x 140 x 4.4 cm) Cable Length: Spade to HPP: 3Ft Spade to SAE: 15Ft SAE to Ring: 23in SAE to Alligator: 29in Warranty: 2 years
Battery Details		Charge Controller: PWM Rated solar panel amps GZ-10: 20A Normal input solar cell array voltage: 15-22V Max solar cell array voltage (output has no load): 25V Lowest operating voltage at solar or battery side: 8V Minimum Charging Characteristics: Start Voltage at 25°C: 3-10V Charge Voltage at 25°C: LTO battery: 14.0V Gel battery: 14.1V LiFePO4 battery: 14.4V Charge Voltage at 25°C: AGM battery-14.4V WET battery: 14.7V Calcium battery: 14.9V Equalizing Voltage at 25°C: WET or Calcium battery-15.5V Float Voltage at 25°C: Gel, AGM, WET, Calcium batteries-13.6V LTO and LiFePO4 batteries-13.4V Battery temperature compensation coefficient: -24mV/°C
Ports		High Power Port: 14-22V, up to 14A (200W max) Solar Input Port (High Power Port): 14-23V, up to 14A Fuse: 25A replaceable
Solar		Rated Power: 200 Watts Open Circuit Voltage (Voc): 21.8V Maximum Power Point Voltage (Vmpp): 18.1V Cell Type: Monocrystalline
