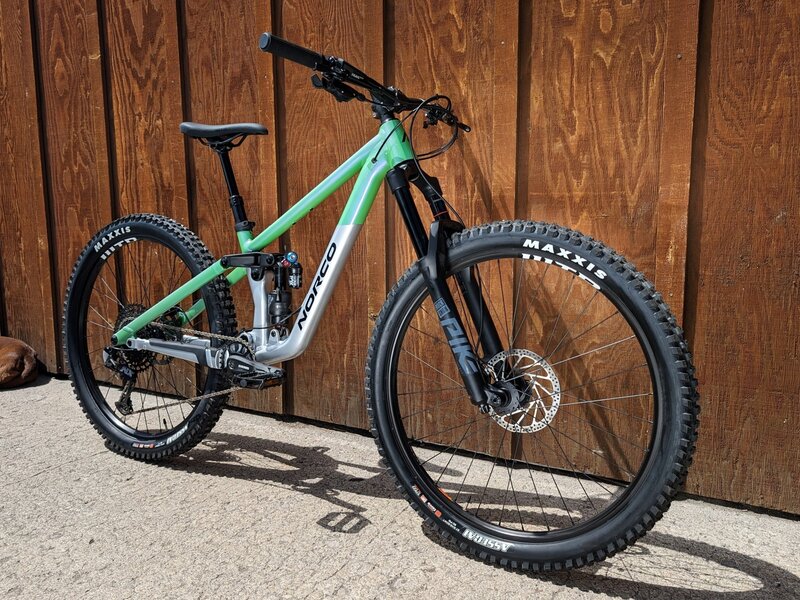

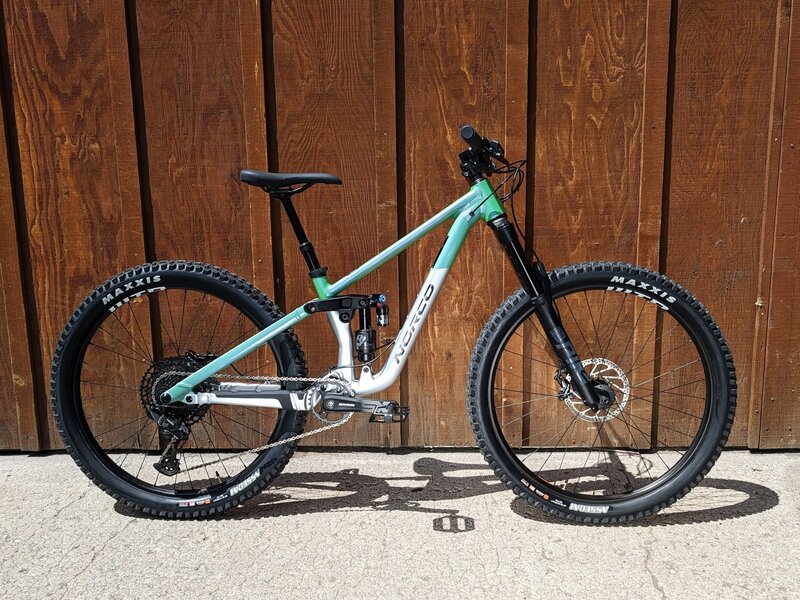

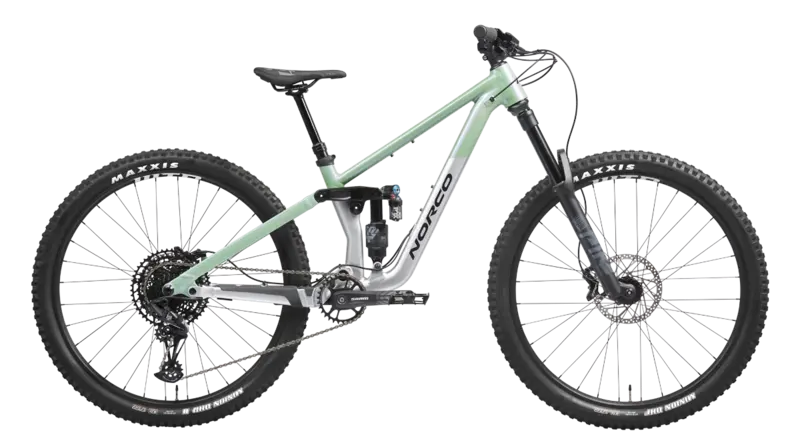

27.5" Wheels | 150mm Front/Rear Travel | Youth-specific

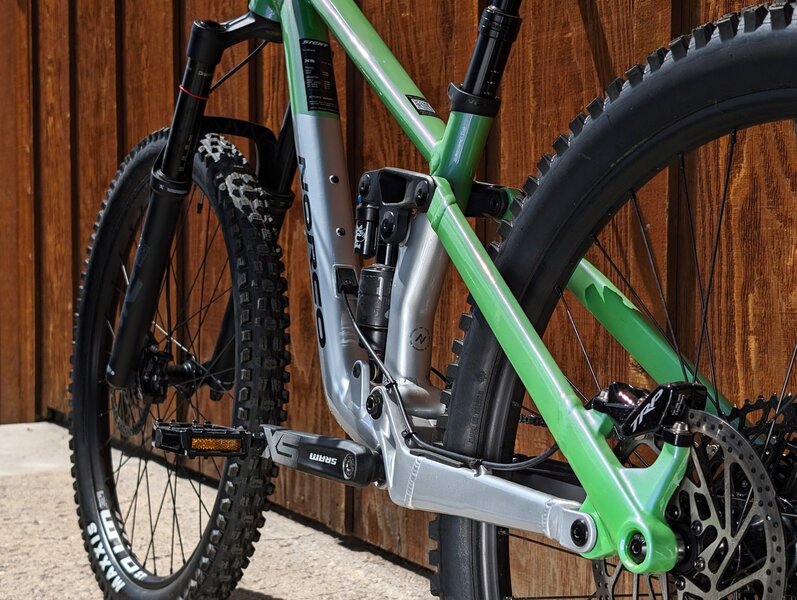

It’s hard to step things up when you can’t find a bike that fits right - so we built the Sight Youth 27.5". Now featuring a Fox Float X2 Performance Elite rear shock with custom light tune.
With 150mm of rear travel and 150mm up front, the suspension is custom-tuned to meet the needs of lighter riders who go big but still have some growing to do.
| 27.5" | |
| Reach | 395 |
| Stack | 576 |
| HT Angle | 63.5° |
| Fork Offset | 37 |
| ST Length | 350 |
| Eff. ST Angle | 76.7° |
| Rear Center Length | 425 |
| BB Rise/Drop | 15 |
| BB Height | 342 |
| Horiz. Top Tube | 531 |
| Wheelbase | 1141 |
| Standover | 650 |
| HT Length | 100 |
| Rec. Seatpost Drop | 125 |
| Max Post Insertion | 180 |
| Stem Length | 35 |
| Crank Length | 165 |
| Tire Size | 2.35-2.6" |
| Water Bottle | 1x 620mL |
| Frame | Aluminum Youth All-Mountain, 150mm Travel, Ride Aligned™ |
|---|---|
| Wheel Size | 27.5" |
| Travel | 150mm Front | 150mm Rear |
| Fork | RockShox Pike/Lyrik RC, Charger Damper, 150mm, 37mm Offset |
| Rear Shock | Fox Float X2 Performance Elite, 2 Pos, Light Tune 185x50mm Trunnion |
| Headset | FSA No. 57E, Sealed Bearing |
| Bottom Bracket | - |
| Shifter | SRAM SX Eagle |
| Rear Derailleur | SRAM SX Eagle |
| Cassette | SRAM SX Eagle, 30t, 165mm |
| Chain | SRAM Eagle |
| Chainring | - |
| Crankset | SRAM SX Eagle, 30t, 165mm |
| Brakes | TRP Slate EVO |
| Rotors | TRP 180mm/180mm |
| Seatpost | JD TranzX Light Action Dropper, 31.6mm, 120mm |
| Handlebar | Alloy, 720mm, 15mm Rise |
| Stem | Alloy, 35mm Length, 31.8mm Clamp |
| Grips | SDG Slater, Lock-on |
| Saddle | SDG Fly Jr |
| Pedals | N/A |
| Front Wheel | WTB STP I125, Tubeless Ready |
| Rear Wheel | WTB STP I125, Tubeless Ready |
| Front Tire | Maxxis Minion DHF 2.3" EXO, TR, Folding |
| Rear Tire | Maxxis Minion DHRII 2.4", EXO, TR, Folding |
| Sizes |
