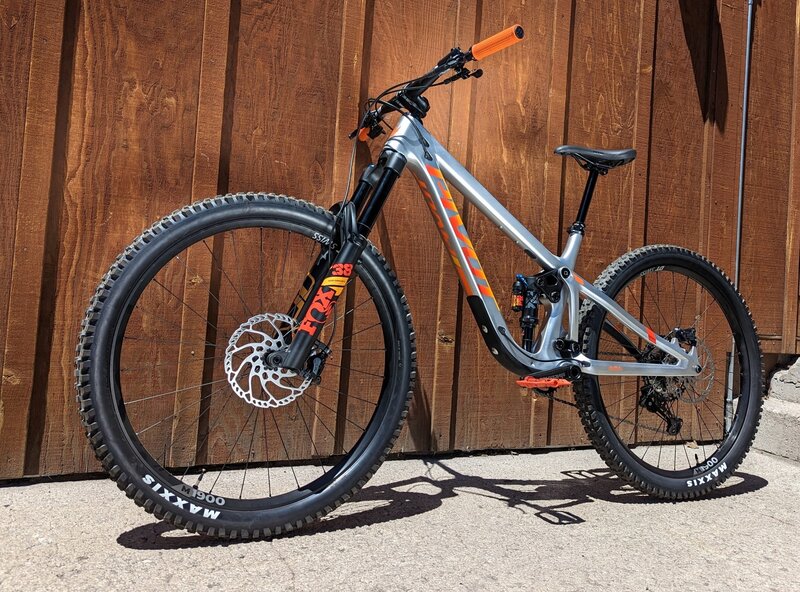

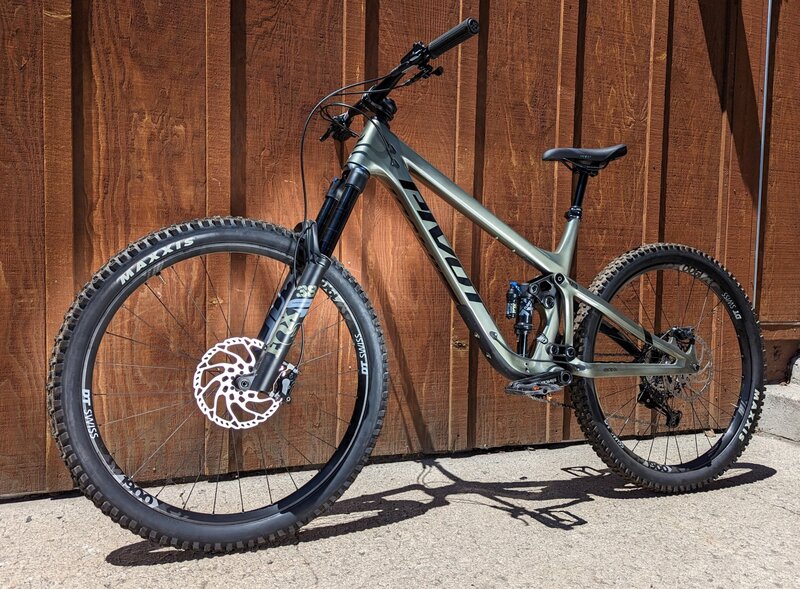

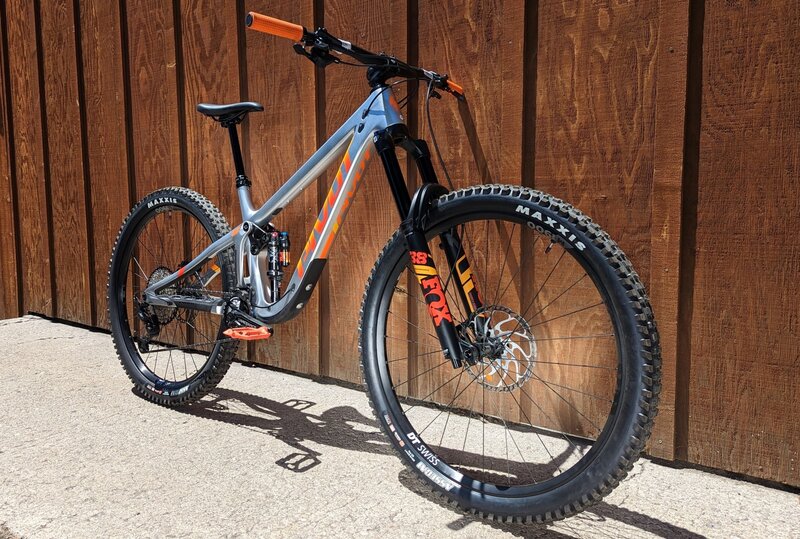

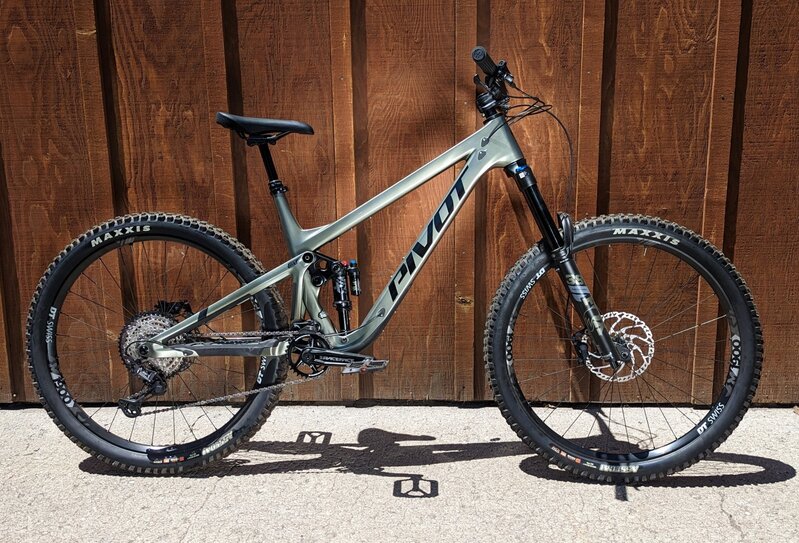

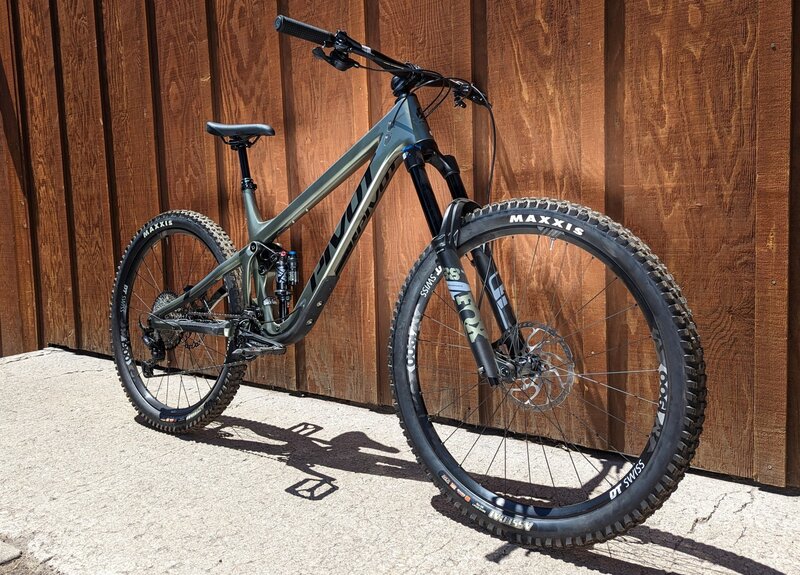

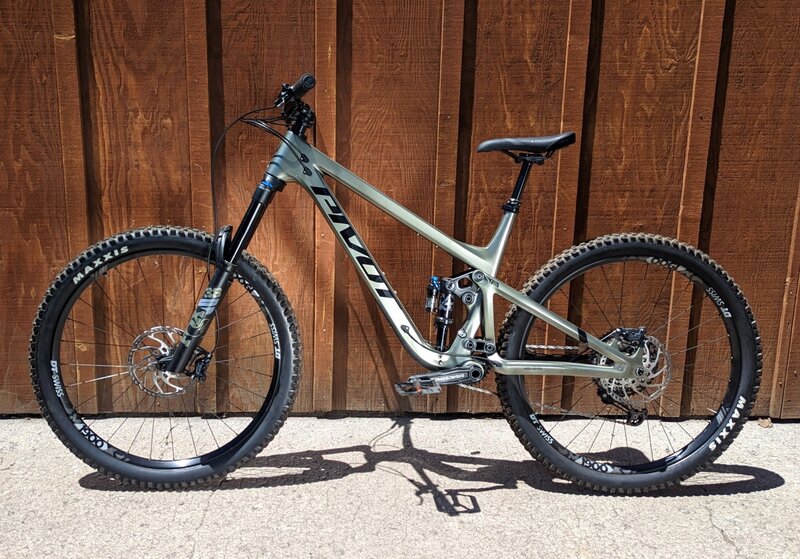

Pivot 2024 Pivot Firebird 29" Ride SLX/XT

$6,599.99

In store: Check availability

29" Wheels | 165mm Rear/ 170 Front Travel | 64° - 64.6° Head Tube | *Staff Pick

Color:

Size:

Add to compare Add to wishlist

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Pivot 2024 Pivot Firebird 29" Ride SLX/XT — "Color: Glacial Green","Size: X-Large"

Description

FROM THE MANUFACTURER

The DNA of Velocity
Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Fast up, fast down. Fast.

Not As Sweet As It Looks
The Firebird's Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!

FEATURES

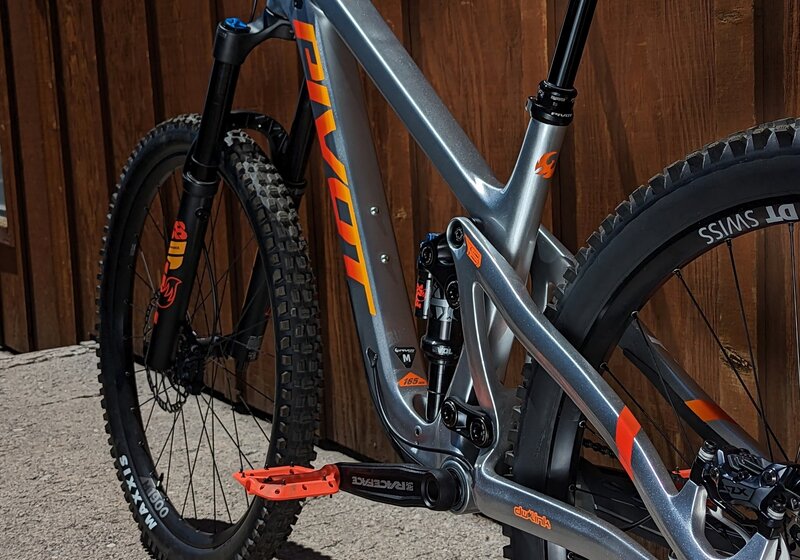

Frame		Pivot's full carbon frame features size-specific tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5'2" to 6'9" has a bike that feels perfect and performs at the optimum level for their size. Long and low geometry for a confident, and size-specific chainstay length refine the EWS podium performance for different sized riders. Phoenix DH-inspired longer dw-link® maximizes the Firebird's rearward wheel-path for erasing square edge bumps and maximizing control.

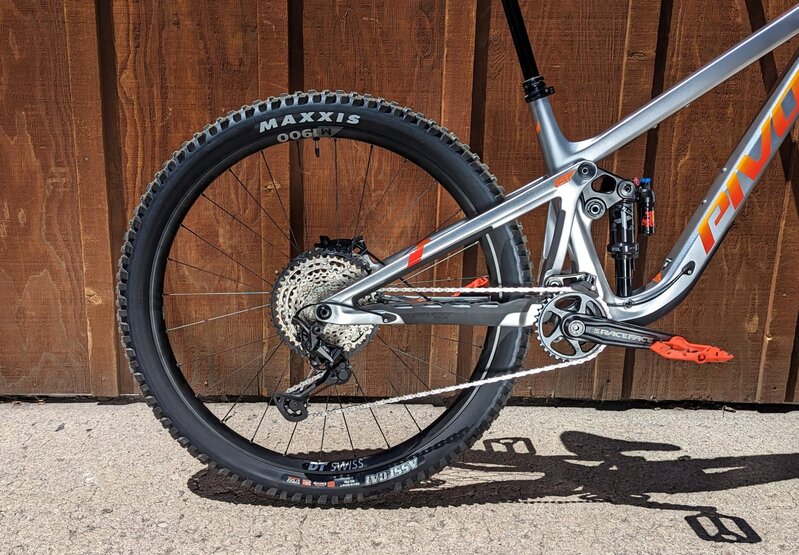

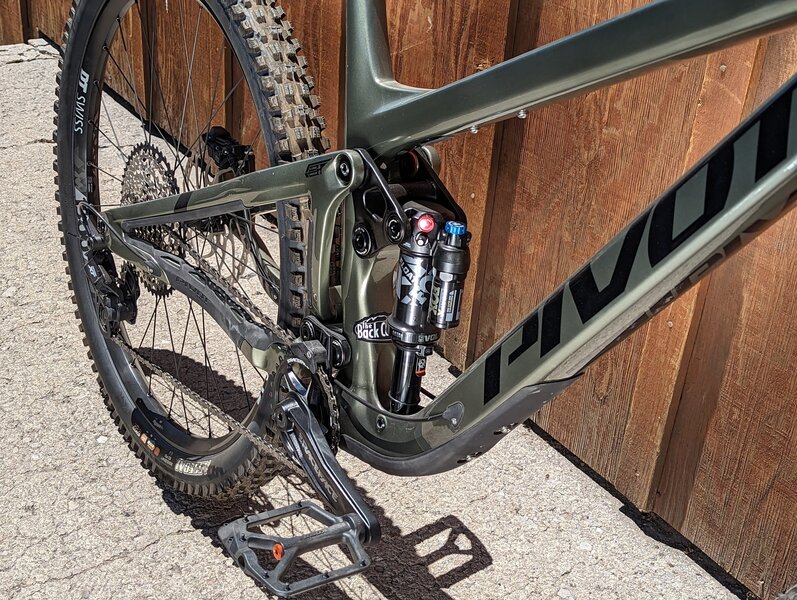

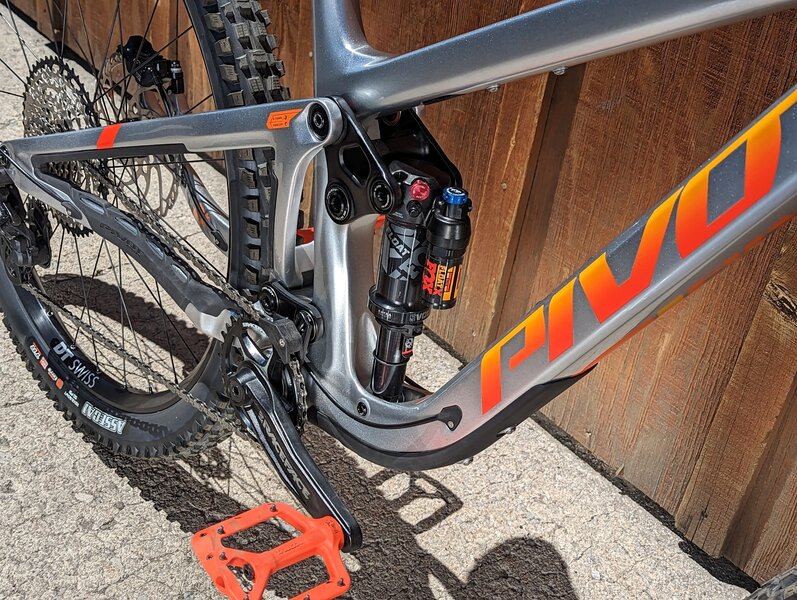

Suspension		165mm of supple-yet-effective dw-link™ suspension travel featuring a vertically mounted metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance. Equipped with a 44mm offset 170mm-travel Fox Factory and Performance Series 38 FIT Grip2 forks. Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options.
Wheels		Compatible with both 29" and 27.5" wheel sizes without compromise thanks to the adjustable geometry for 29", 27.5" or MX wheel setups. Fits tires up to 29x2.6" or 27.5x2.8" wide.
Seatpost		31.6mm size seatpost match with the Firebird's short seat tube with deep insertions for longer travel posts.
Other Features		Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world. 1.5" headtube provides increased front end stiffness and tracking. Hassle-free, full-length, internal cable routing. All sizes fit a water bottle inside the front triangle. Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame. Adjustable geometry with a flip chip upper link mount.

GEOMETRY

*All measurements in cm

Low BB

	SM	MD	LG	XL
Seat Tube Length	37.5	41	44	47
Top Tube Length	59.8	62.4	64.1	66.5
HT Length	9.5	10.8	11.8	12.8
HT Angle	64°	64°	64°	64°
Seat Tube Angle (eff.)	76°	76.5°	77°	77°
Chainstay	43.1	43.4	43.8	44.5
BB Height	35	35	35	35
BB Drop	2	2	2	2
Standover	66.2	67.2	69.3	70.4
Wheelbase	120.7	123.9	126.7	130
Reach	44.5	46.8	48.8	51
Stack	61.5	62.7	63.6	64.5

High BB

	SM	MD	LG	XL
Seat Tube Length	37.5	41	44	47
Top Tube Length	59.7	62.3	64	66.4
HT Length	9.5	10.8	11.8	12.8
HT Angle	64.6°	64.6°	64.6°	64.6°
Seat Tube Angle (eff.)	76.5°	77°	77.5°	77.5°
Chainstay	43	43.3	43.7	44.4
BB Height	35.6	35.6	35.6	35.6
BB Drop	1.42	1.42	1.42	1.42
Standover	66.7	67.8	69.9	70.9
Wheelbase	120.6	123.7	126.6	129.9
Reach	45	47.3	49.3	51.5
Stack	61.2	62.4	63.3	64.2

Specifications

Frame	Carbon
Wheel Size	29"
Travel	170mm Front \| 165mm Rear
Fork	Fox Performance 38 29", 44mm offset, GRIP - 170mm
Rear Shock	Fox Performance Elite Float X - 165mm
Headset	Pivot Precision Sealed Cartridge
Bottom Bracket	-
Shifter	Shimano SLX M7100 ISPEC EV 12spd
Rear Derailleur	Shimano XT M8100 SGS 12spd
Cassette	Shimano SLX M7100 10-51t
Chain	Shimano CN-M7100 12spd
Chainring	-
Crankset	Race Face Ride 32t
Brakes	Shimano SLX M7100 4-Piston
Rotors	203mm 6-Bolt Rotor
Seatpost	Fox Transfer Performance Elite 150mm (SM), 175mm (MD-LG), 200mm (XL)
Handlebar	Phoenix Race Low Rise Aluminum - 800mm
Stem	Phoenix Team Enduro/Trail
Grips	Phoenix Factory Lock-On
Saddle	Phoenix WTB Volt Race (Medium Width)
Pedals	N/A
Front Wheel	DT Swiss M1900 w/ DT Swiss 370 Hub, 30mm - 29" 15 x 110
Rear Wheel	DT Swiss M1900 w/ DT Swiss 370 Hub, 30mm - 29" 12 x 157
Front Tire	Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Rear Tire	Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Sizes	S, MD, L, XL
