29" | 120mm Front Travel | 66.5° HT

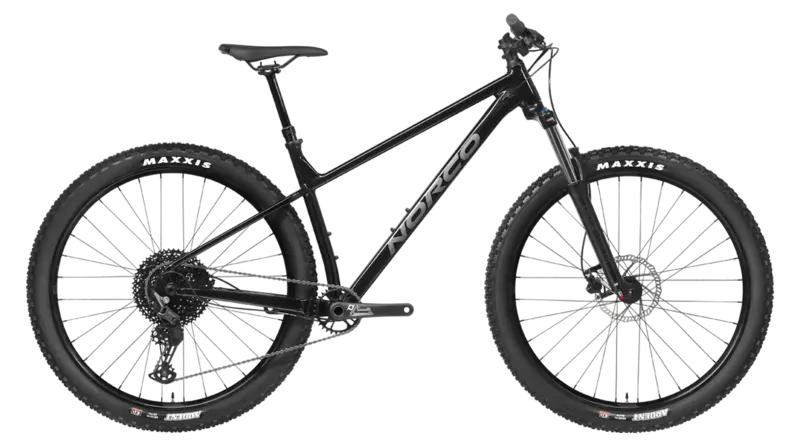

The Fluid HT 2 is the ultimate singletrack adventure hardtail.
The double-butted aluminum hardtail’s progressive design and size-scaled tubing provides a premium, next-level trail ride for every rider across all frame sizes.
| MD |
LG |
XL |
|
| Reach | 440 | 470 | 500 |
| Stack | 619 | 628 | 637 |
| HT Angle | 66.5° | 66.5° | 66.5° |
| Fork Offset | 51 | 51 | 51 |
| Seat Tube Length | 420 | 450 | 490 |
| Eff. Seat Tube Angle | 74.5° | 74.5° | 74.5° |
| Rear Center Length | 430 | 430 | 430 |
| BB Drop | 58 | 58 | 58 |
| BB Height | 320 | 320 | 320 |
| Horiz. Top Tube | 612 | 644 | 677 |
| Wheelbase | 1166 | 1200 | 1234 |
| Standover | 661 | 677 | 701 |
| HT Length | 100 | 110 | 120 |
| Trail | 109 | 109 | 109 |
| Rec. Seatpost Drop | 130 | 130 | 130 |
| Max Post Insertion | 250 | 245 | 250 |
| Stem Length | 50 | 50 | 50 |
| Crank Length | 175 | 175 | 175 |
| Tire Compatibility | 2.35 - 2.6" | 2.35 - 2.6" | 2.35 - 2.6" |
| Water Bottle | 1x 750mL | 1x 750mL | 1x 750mL |
| Frame | 6061 Alloy, Butted TT, DT, Internal Routing |
|---|---|
| Wheel Size | 29" |
| Travel | 120mm Front |
| Fork | SR Suntour XCM32 LOR DS - 120mm |
| Rear Shock | N/A |
| Headset | Sealed Bearing, Tapered |
| Bottom Bracket | Shimano Sealed Bearing BSA Threaded |
| Shifter | Shimano Deore SL-M5100 |
| Rear Derailleur | Shimano Deore RD-M5100 |
| Cassette | Shimano Deore CS-M5100, 11-51t, 11spd |
| Chain | KMC X11 |
| Chainring | - |
| Crankset | Shimano Deore FC-M5100-1, 30t, 170mm (XS, S) 175mm (M, L, XL) |
| Brakes | Tektro HD-M275 Hydraulic, Resin Pads |
| Rotors | Front: Tektro 180mm | Rear: Tektro 160mm |
| Seatpost | TranzX YSP18 Dropper, 31.6mm, 130mm |
| Handlebar | X6 Alloy 750mm, 15mm Rise |
| Stem | Alloy 50mm length, 31.8mm clamp |
| Grips | VP Lock-On |
| Saddle | Norco XC |
| Pedals | N/A |
| Front Wheel | Alex DP30 TRS |
| Rear Wheel | Alex DP30 TRS |
| Front Tire | Maxxis Ardent 2.4" EXO 60TPI |
| Rear Tire | Maxxis Ardent 2.4" EXO 60TPI |
| Sizes | MD, LG, XL |
