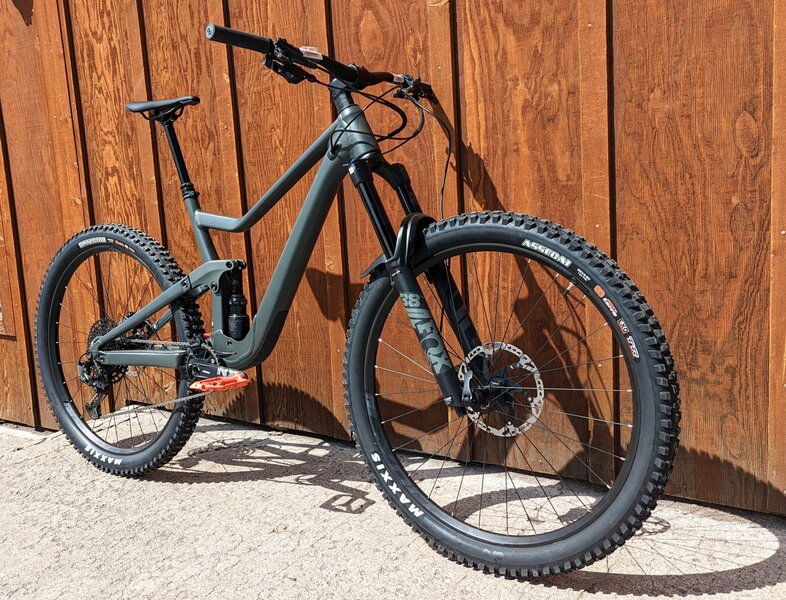

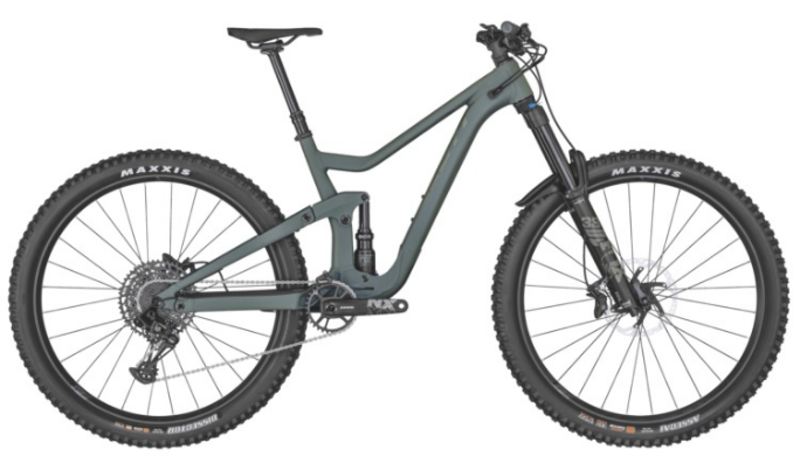

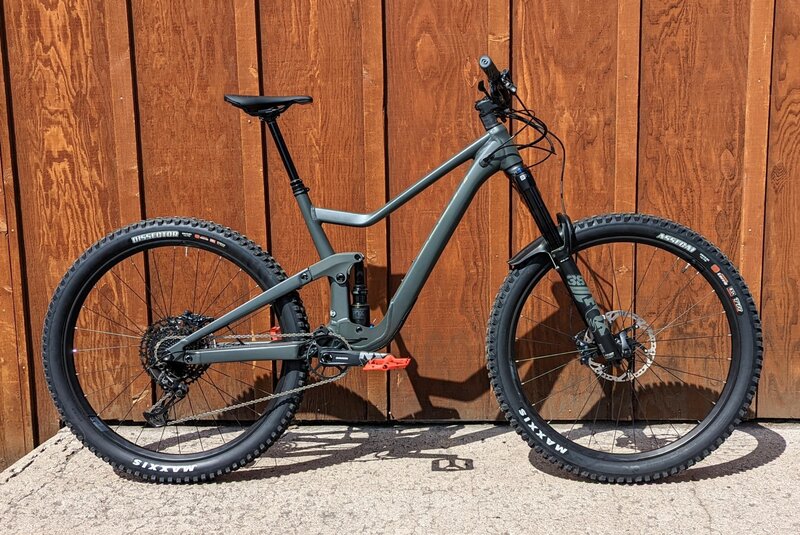

Scott 2022 Scott Ransom 920 29"

$3,149.99 ~~$4,499.99~~

In store: Check availability

29" Wheels | 170mm Rear/170 Front Travel | 64.5° HT

Color:

Size:

Add to compare Add to wishlist

Delivery time: 5-7 Business Days

No reviews yet
Add yours

Scott 2022 Scott Ransom 920 29" — "Color: Pantone","Size: X-Large"

Description

FROM THE MANUFACTURER

The Ransom. This Enduro Mountain Bike features 170mm of trail munchin', climb crushing, stage winning all day pinning mountain biking excellence. The 920 comes equipped with a FOX 38 fork, our TwinLoc Suspension System, a SRAM Eagle groupset and Syncros components to help you get away with murder, regardless of your ability level.

FEATURES

Ransom Alloy SL Frame
FOX 38 Float Performance 170mm Fork
FOX Nude T EVOL, TwinLoc, 170mm
SRAM NX Eagle 12 Speed
Shimano 4 Piston Disc Brakes
Syncros Revelstoke 2.5 TR Wheels
Maxxis Kevlar Tires
Syncros Dropper Post and Parts

GEOMETRY

	Scott Ransom	S	S	M	M	L	L	XL	XL
		LOW BB / 29" WHEEL	HIGH BB / 27.5" WHEEL	LOW BB / 29" WHEEL	HIGH BB / 27.5" WHEEL	LOW BB / 29" WHEEL	HIGH BB / 27.5" WHEEL	LOW BB / 29" WHEEL	HIGH BB / 27.5" WHEEL
A	Head tube angle	64.5 °	65.0 °	64.5 °	65.0 °	64.5 °	65.0 °	64.5 °	65.0 °
B	Head tube length	100.0 mm	100.0 mm	100.0 mm	100.0 mm	115.0 mm	115.0 mm	130.0 mm	130.0 mm
C	Top tube horizontal	571.1 mm	569.7 mm	604.2 mm	602.7 mm	634.7 mm	633.2 mm	671.3 mm	669.7 mm
D	Standover Height	744.6 mm	733.9 mm	746.3 mm	736.5 mm	760.9 mm	751.6 mm	776.5 mm	767.4 mm
E	BB offset	-22.0 mm	-15.0 mm	-22.0 mm	-15.0 mm	-22.0 mm	-15.0 mm	-22.0 mm	-15.0 mm
F	BB height	353.5 mm	346.5 mm	353.5 mm	346.5 mm	353.5 mm	346.5 mm	353.5 mm	346.5 mm
G	wheel base	1,182.9 mm	1,181.4 mm	1,215.9 mm	1,214.4 mm	1,249.2 mm	1,247.8 mm	1,288.5 mm	1,287.1 mm
H	BB center to toptube center	-	-	-	-	-	-	-	-
I	BB center to top of seattube	420.0 mm	420.0 mm	440.0 mm	440.0 mm	470.0 mm	470.0 mm	500.0 mm	500.0 mm
J	Seat Angle	75.0 °	75.5 °	75.0 °	75.5 °	75.0 °	75.5 °	75.0 °	75.5 °
K	Chainstay	437.9 mm	436.0 mm	437.9 mm	436.0 mm	437.9 mm	436.0 mm	437.9 mm	436.0 mm
L	Reach	406.3 mm	412.0 mm	439.5 mm	445.0 mm	466.5 mm	472.0 mm	499.5 mm	505.0 mm
M	Stack	613.6 mm	609.8 mm	613.6 mm	609.8 mm	627.6 mm	623.4 mm	641.3 mm	637.0 mm
N	Stem length	50.0 mm	50.0 mm	50.0 mm	50.0 mm	50.0 mm	50.0 mm	50.0 mm	50.0 mm
0	Trail	122.5 mm	112.3 mm	122.5 mm	112.3 mm	122.5 mm	112.3 mm	122.5 mm	112.3 mm

Don't forget your pedals!

Specifications

Frame	Ransom Alloy SL 6011 Custom butted / VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj. TBC Trunnion box construction / Boost 12x148mm
Wheel Size	29"
Travel	170 mm Rear with 120 mm lockout / 170 mm Front
Fork	Fork FOX 38 Float Performance Air / Grip 3-Modes / 15x110mm QR axle 44mm offset / tapered steerer Reb. Adj. / Lockout / 170mm travel
Rear Shock	FOX NUDE T EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 170-120-Lockout / 205X65mm
Headset	Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
Bottom Bracket	N/A
Shifter	SRAM NX Eagle Trigger
Rear Derailleur	SRAM NX / Eagle 12 Speed
Cassette	SRAM NX / PG1210 / 11-50 T
Chain	SRAM CN NX Eagle
Chainring	32T
Crankset	SRAM NX Eagle DUB Boost
Brakes	Shimano M6120 4 Piston Disc
Rotors	Shimano SM-RT76 6 Bolt 203 mm Front \| Shimano SM-RT76 6 Bolt 180 mm Rear
Seatpost	Syncros Duncan 2.0 Dropper Post 31.6mm / S 125mm / M 150mm / L & XL 170mm
Handlebar	Syncros Hixon 1.5 Rise / Alloy 20140D.B. 20mm rise / 8° / 780mm
Stem	Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8"
Grips	Syncros Pro lock-on grips
Saddle	Syncros Kaslo 2.0 Crmo Rails
Pedals	N/A
Front Wheel	Syncros Revelstoke 2.5 6 Bolt 15x110mm 30mm Tubeless ready rim 28Hr Syncros Axle w/Removable Lever with Tool
Rear Wheel	Syncros Revelstoke 2.5 6 Bolt 12x148mm Boost 30mm Tubeless ready rim 28Hr Syncros Axle w/Removable Lever with Tool
Front Tire	Maxxis Assegai / 2.6" / 60TPI Foldable / EXO / TR / 3C Maxx Terra
Rear Tire	Maxxis Dissector / 2.6" / 120TPI Foldable / EXO+/ TR / 3C Maxx Terra
