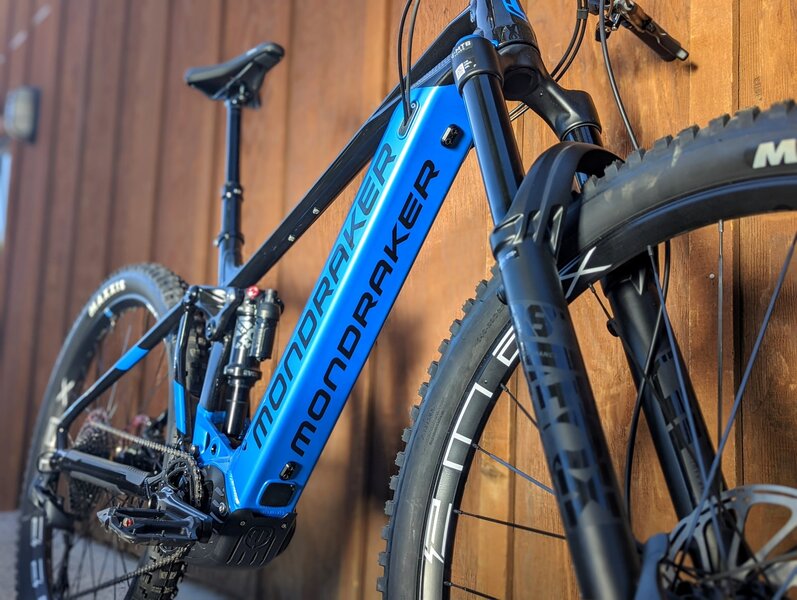

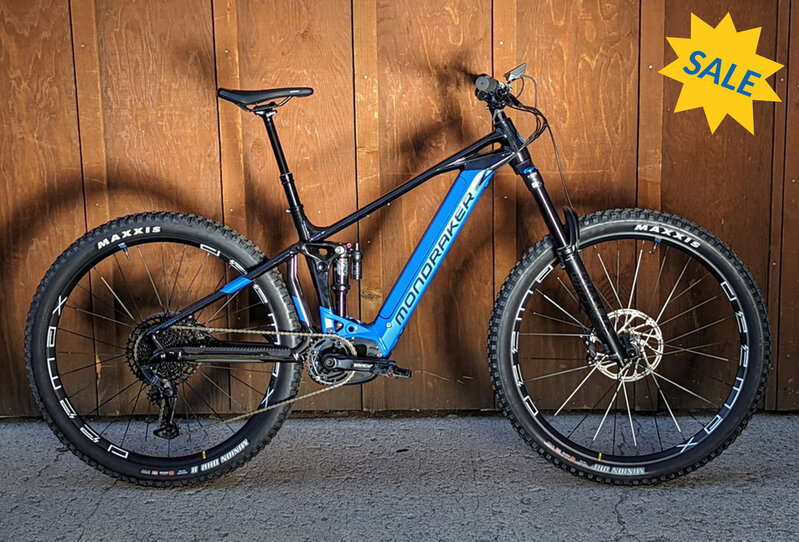

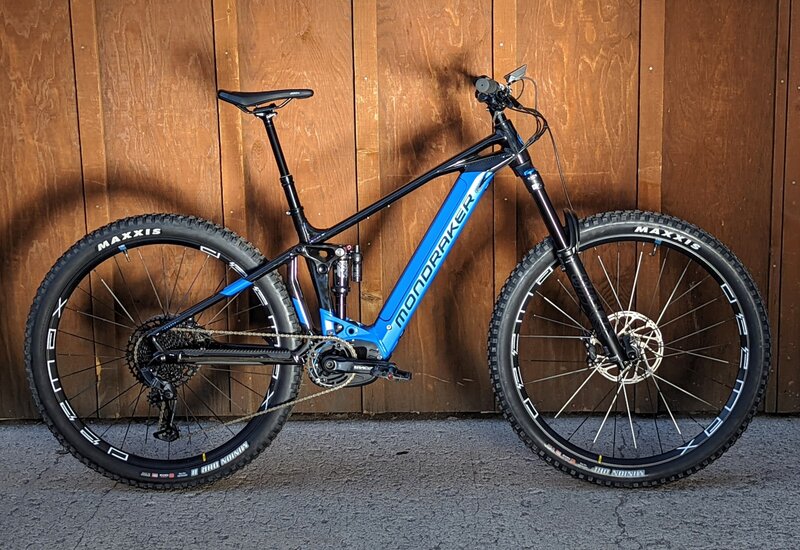

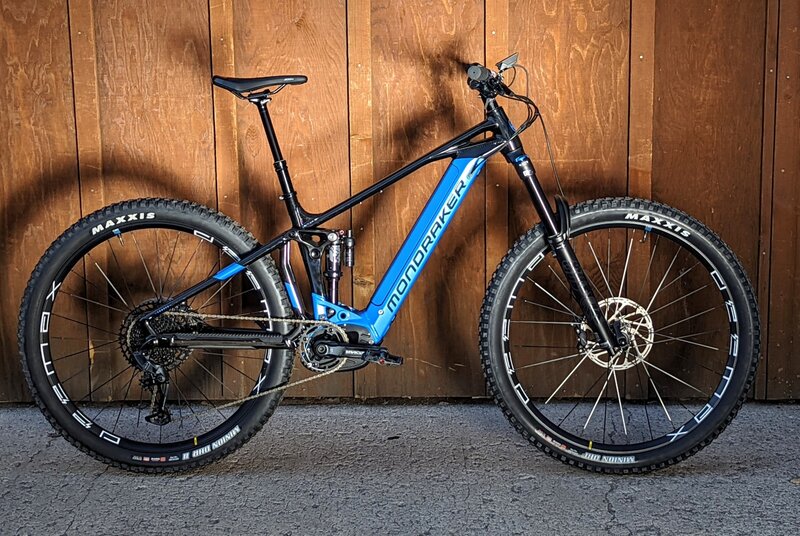

Bosch Performance Line CX Cruise | 625Wh Battery | 150mm Rear/160 Front Travel | 65.5° HT
A video is being shown

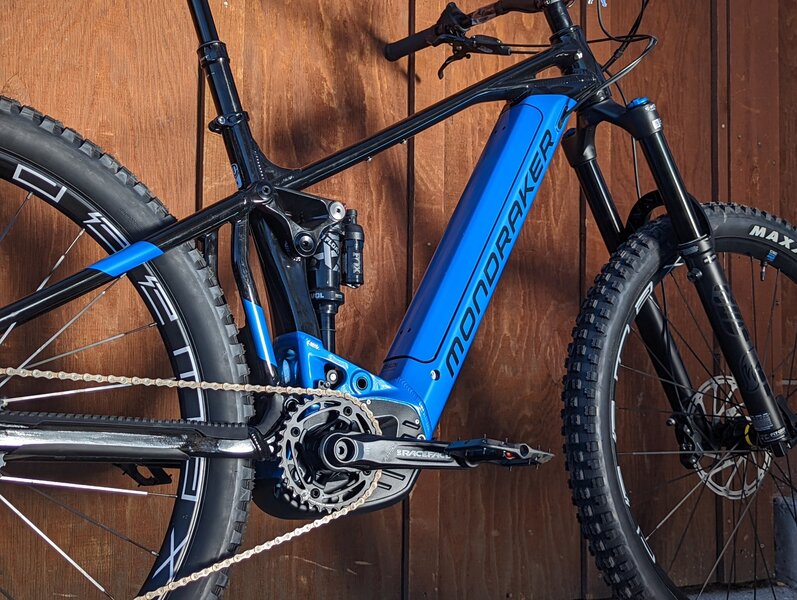

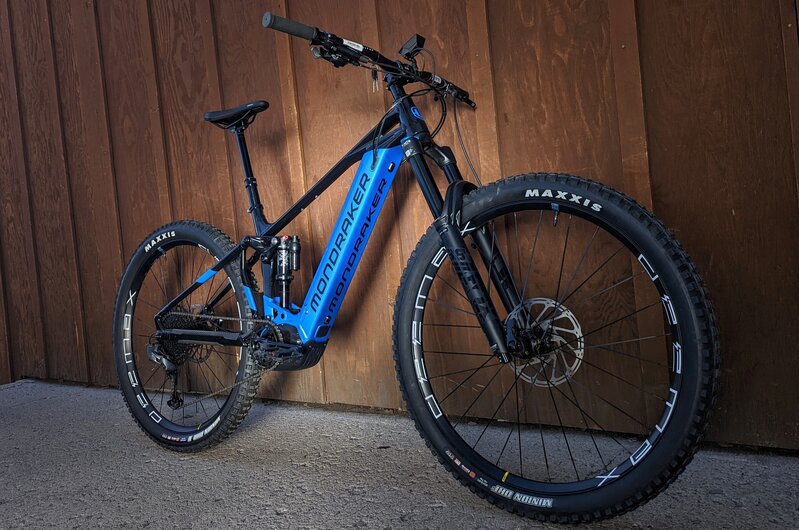

The Crafty Carbon SE (Special Edition) is a mid-model year bike that Mondraker has decided to make to fill the void of bikes during supply chain issues and component shortages. Getting some of the upgrades that the 2022 line will see, the SE is one of the best spec'd bikes in its price range. With a Fox 38 fork and a Fox Float X rear shock it comes with top of the line suspension matched a SRAM GX Drivetrain, and Maxxis tires, you will be stoked with the SE.
*All measurements in mm
| S | M | L | XL | |
| Seat Tube Length | 380 | 420 | 450 | 490 |
| Top Tube Length | 605 | 625 | 650 | 670 |
| BB Drop | -25 | -25 | -25 | -25 |
| BB Height | 350 | 350 | 350 | 350 |
| Chainstay | 455 | 455 | 455 | 455 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Eff. Seat Tube Angle | 76° | 76° | 76° | 76° |
| Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Fork Offset | 44 | 44 | 44 | 44 |
| Wheelbase | 1225 | 1245 | 1265 | 1285 |
| Head Tube Length | 110 | 110 | 130 | 130 |
| Reach | 450 | 470 | 490 | 510 |
| Stack | 622 | 622 | 640 | 640 |
| Frame | Crafty 6061 Alloy Stealth Evo |
|---|---|
| Wheel Size | |
| Travel | |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160mm |

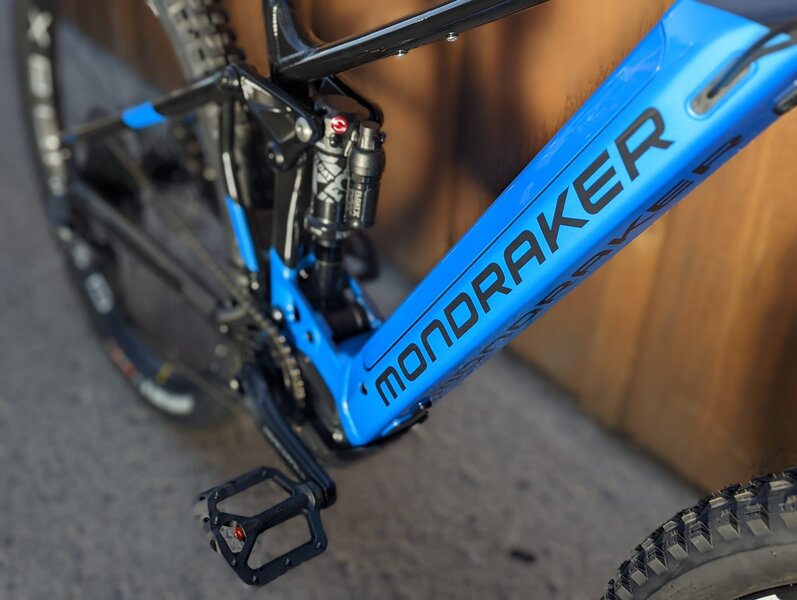

| Rear Shock | Fox Float-X LV, 205x65mm |
| Headset | |
| Shifter | SRAM Trigger NX Eagle |
| Rear Derailleur | SRAM GX Eagle |

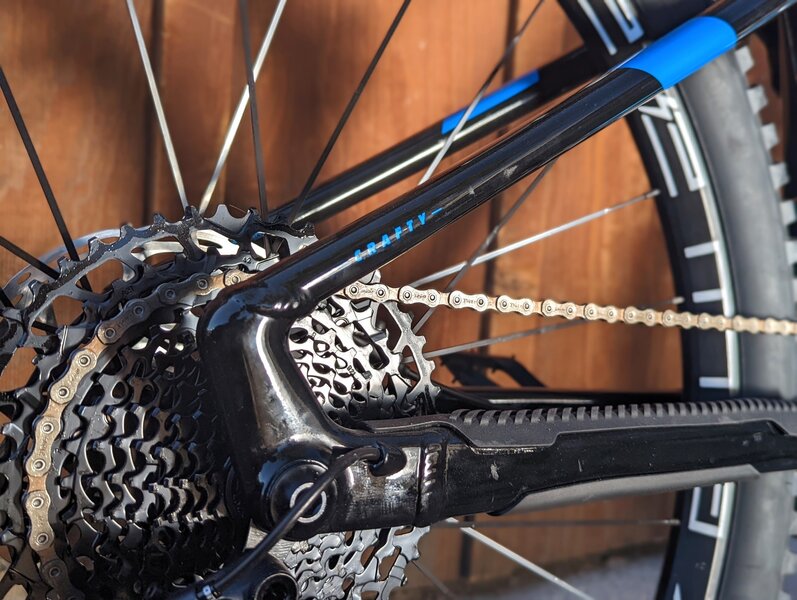

| Cassette | SRAM PG-1210, 11-50T, 12s |
| Chain | SRAM NX Eagle, 12s |
| Chainring | |
| Crankset | Race Face Aeffect ebike, 165mm |
| Brakes | |
| Rotors | SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Grips | Onoff Diamond, 1lock-on, 135mm |
| Saddle | Fizik Terra Aidon X5 145mm |
| Pedals | N/A |
| Front Wheel | Mavic E-Deemax 30 29, 30mm internal width, sleeved aluminum, 28 spokes | Hub: Mavic E-Deemax, Boost 15x110mm, IS 6 bolt |
| Rear Wheel | Mavic E-Deemax 30 29, 30mm internal width, sleeved aluminum, 28 spokes | Hub:Mavic E-Deemax, Boost 12x148mm, Instant 360, IS 6 bolt |
| Front Tire | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Drive Unit | Bosch Performance Line CX Cruise (25Km/h) GEN4 |
| Battery | Bosch Powertube 625Wh |

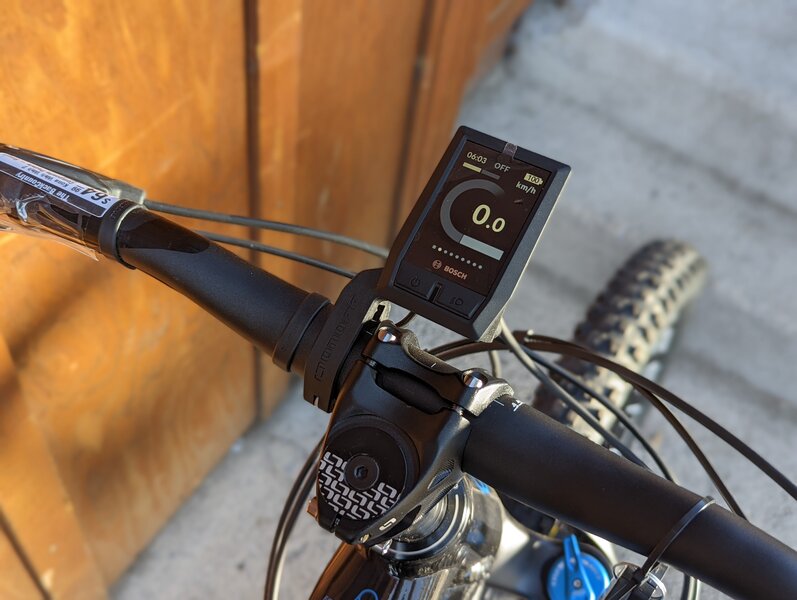

| Display | Bosch Kiox |
| Extras | N/A |
| Sizes |
